Grohe 19910000 Eurocube Volume Control Trim

SUMMARY

Grohe 19910000 Eurocube Concealed Stop Valve Trim

The Grohe 19910000 is a Eurocube concealed stop valve trim set, designed to provide external control and a finished appearance for a concealed isolation valve.

Function

The trim allows manual isolation of water supplies while concealing the valve body within the wall.

Installation Notes

Fit to the compatible concealed valve body once wall finishes are complete.

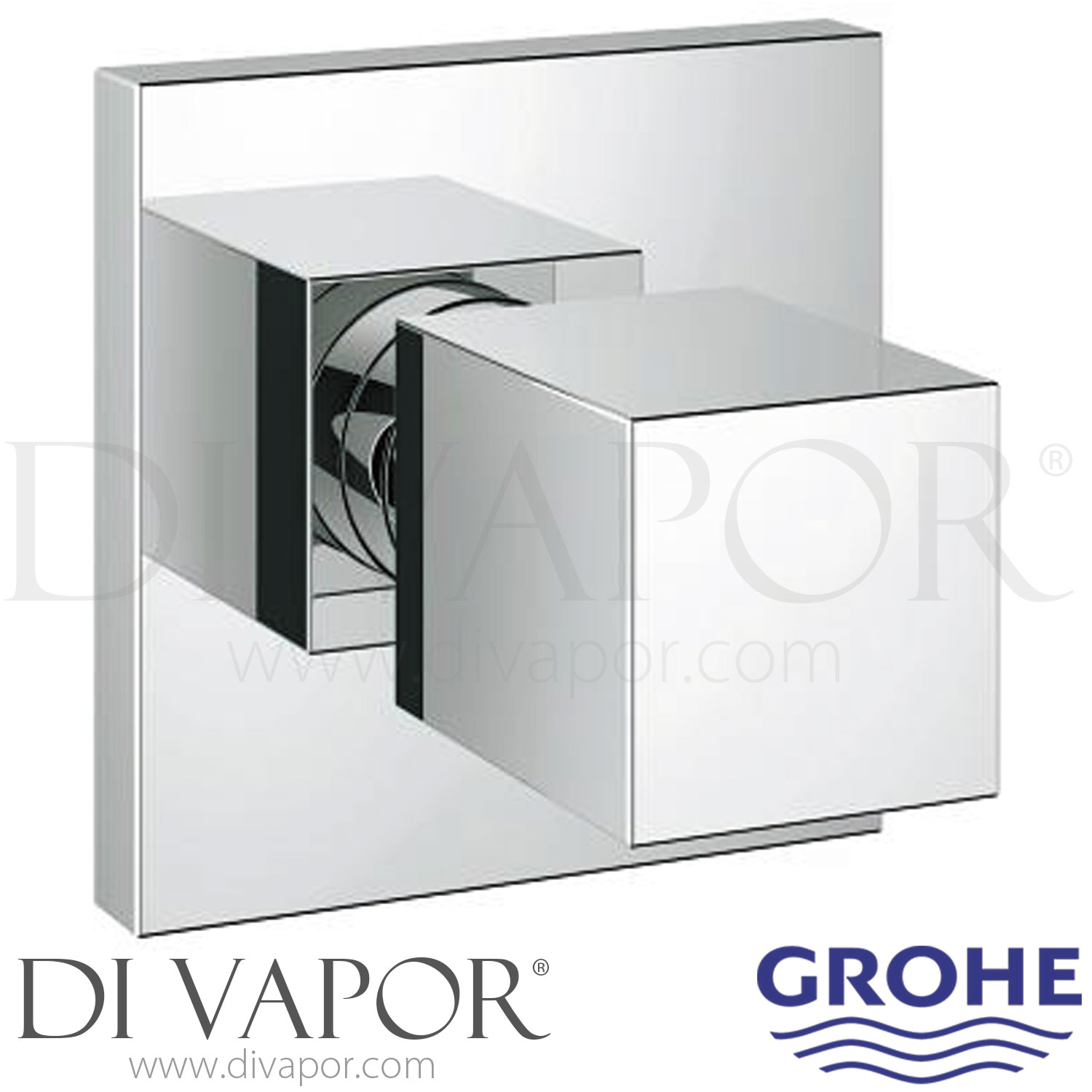

Grohe 19910000 Eurocube is a chrome volume control trim for a separately installed concealed valve. It provides the exposed metal cube handle and square sliding escutcheon with wall sealing. The concealed valve body is not included.

The handle operates the concealed valve to control water flow, while the escutcheon finishes the opening at the wall. This is an external control and trim assembly, not a complete bath tap, thermostatic mixer or internal flow cartridge. It does not provide temperature regulation.

Technical Details

- - Brand: Grohe

- - Product code: 19910000

- - Finish: chrome

- - Handle: metal, cube-shaped design

- - Escutcheon: square, sliding design with wall sealing

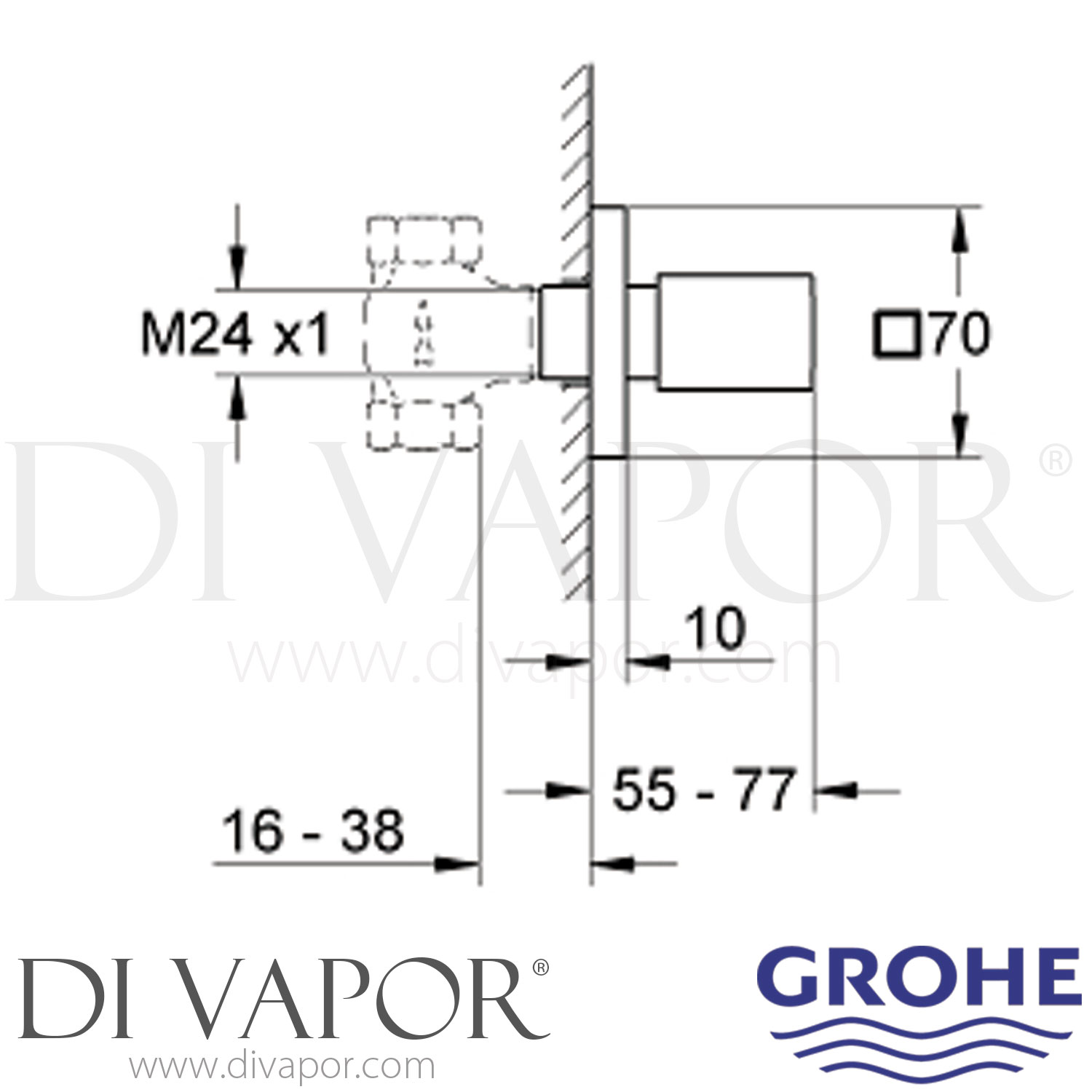

- - Escutcheon dimensions: 70 x 70 mm

- - Escutcheon thickness: 10 mm

- - Projection from the finished wall to the front of the handle: 55-77 mm

- - Adjustable trim installation dimension: 16-38 mm

- - Trim attachment thread: M24 x 1, not the concealed valve's pipe connection

- - Concealed valve body: required separately and not included

The adjustable trim dimension is not a universal concealed-body installation depth. Check the installation requirements for the exact valve body, together with the finished wall position.

Confirmed Compatible Models

- - Grohe 29800000 Concealed Valve 1/2 Inch

- - Grohe 29802000 Concealed Valve 3/4 Inch

- - Grohe 29805000 Concealed Valve 1 Inch

- - Grohe 29273000 Concealed Stop-Valve 1/2 Inch, US-specification body with NPT connections

- - Grohe 29274000 Concealed Valve Bottom Part 3/4 Inch, US-specification body with NPT connections

Identify the complete valve model before ordering. The listed bodies do not all have the same pipe connections or internal service parts, and nominal connection size alone does not establish fitment.

Trim Component References

The October 2013 onwards trim arrangement includes the following component references. Check the existing assembly before selecting loose components for an earlier installation.

- - 48139000, cube handle assembly

- - 06688000, 1/2 inch sleeve

- - 45201000, spindle extension

- - 45565000, optional volume control extension accessory, not part of the standard trim assembly

Related Spares You May Need

Trim and Handle Parts

- - Grohe 45186000 Handle Connection and Fixing Kit, used in the October 2013 onwards 19910000 handle arrangement

- - Grohe 0392400M O-Rings, Pack of 10, 18.2 x 1.7 mm, for the specified handle-connection service position

The O-ring listing is a ten-piece service pack, not a requirement to install ten O-rings in the handle assembly.

Concealed Valve Service Parts

The following parts service the concealed valve behind the trim. They are not supplied with 19910000 and must be selected according to the installed valve model.

- - Grohe 07146000 1/2 Inch Flow Control Headworks, for concealed valve 29800000

- - Grohe 45023000 Flow Cartridge Seat, for concealed valves 29800000 and 29273000

- - Grohe 07025000 3/4 Inch Flow Control Headpart, for concealed valve 29802000

- - Grohe 45882000 1/2 Inch Ceramic Headpart, for concealed valve 29273000

- - Grohe 45888000 3/4 Inch Ceramic Headpart, for concealed valve 29274000

Before Ordering and Fitting

Check the trim code, concealed valve model, handle-fixing arrangement and available adjustment against the existing installation. Fit the trim after the wall finish is complete, using the correct spindle extension, sleeve and handle connection. Do not treat this volume control as a substitute for a separate service-isolation valve.

Persistent dripping from the shower head or spout when the control is closed can indicate a fault in the concealed valve headpart or its sealing surfaces. Replacing the decorative trim alone will not repair an internal valve-sealing fault. Isolate the water supply before servicing the concealed valve.

For help identifying the required component, contact us with photographs of the complete control, the exposed fixing arrangement and any available valve or part codes.
