Grohe 20404001 Costa L Basin Tap Spare Parts
Send a photo of your item and we'll help confirm it.
Summary

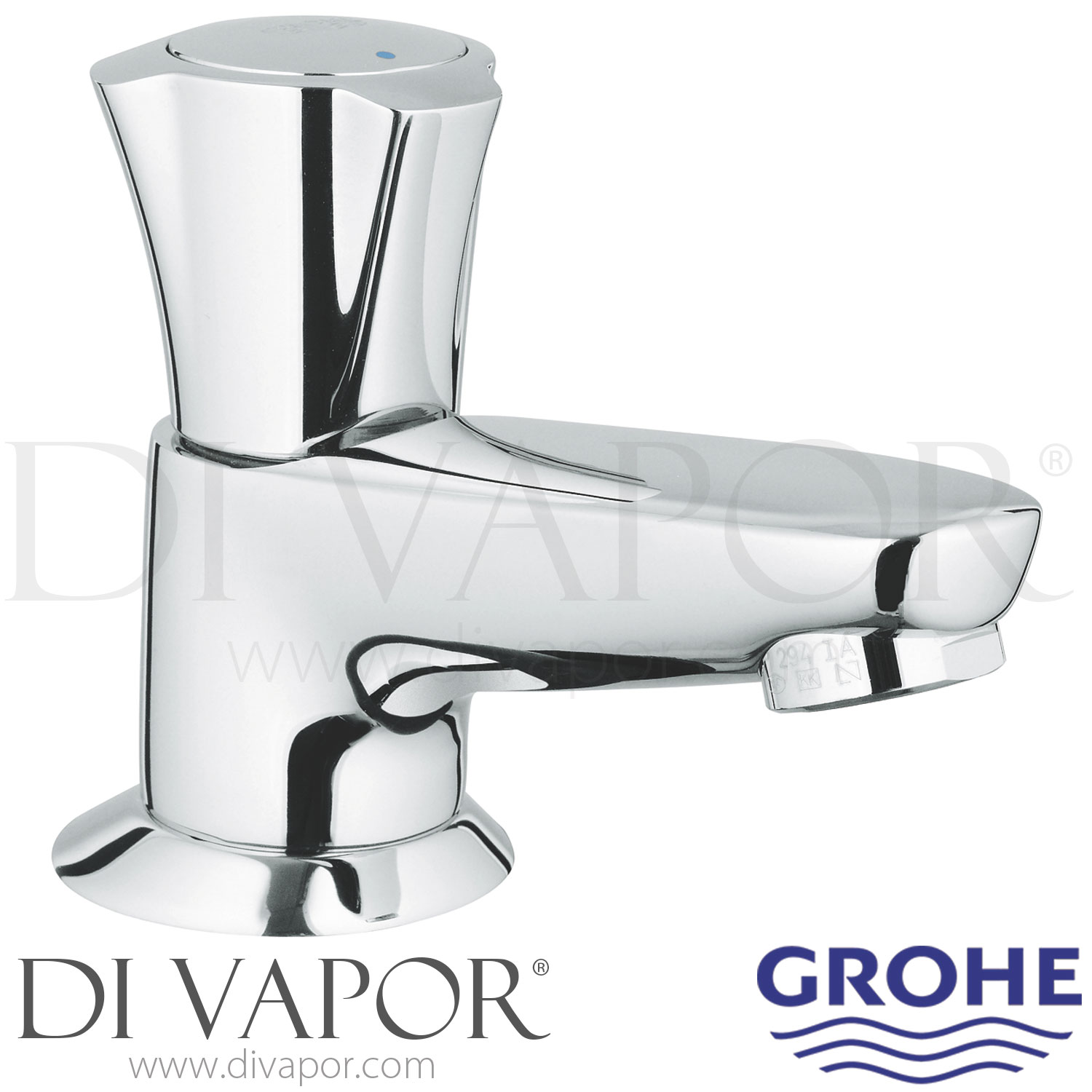

Spare parts for the Grohe 20404001 Costa L 1/2 inch basin tap, a deck-mounted XS size pillar tap with a chrome finish. This page covers the principal service components currently available for maintaining the headwork, sealing and outlet functions of the tap.

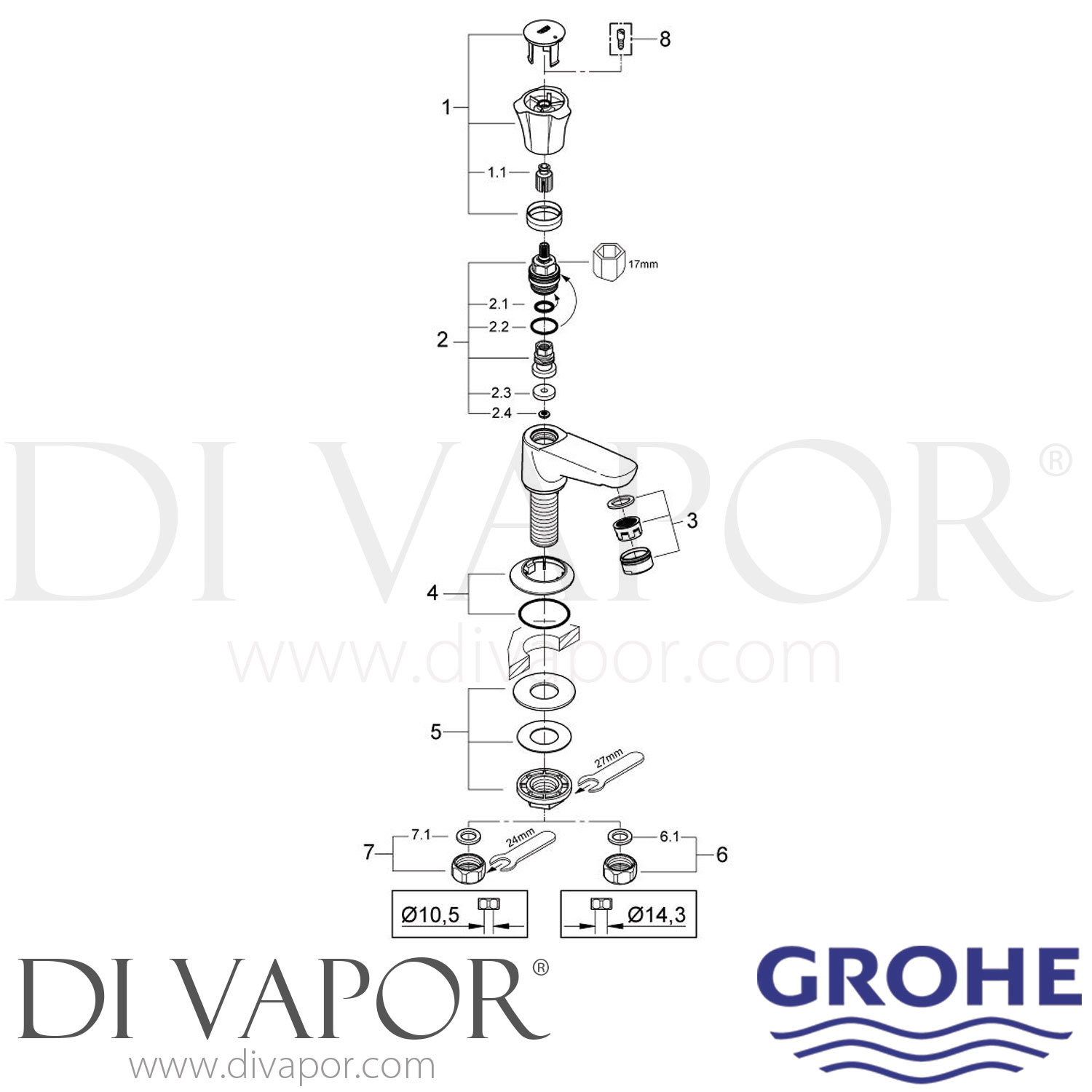

The tap uses a GROHE Long-Life 1/2 inch headpart to control the water flow, together with dedicated sealing components and a mousseur at the spout outlet. For routine servicing, the Grohe spares listed below cover the main replaceable components currently available for this model.
Technical Details
| Brand | GROHE |
|---|---|
| Range | Costa L |
| Category | Basin tap / pillar tap |
| Product code | 20404001 |
| Size | XS |
| Finish | Chrome |
| Connection | G 1/2 |
| Headpart | GROHE Long-Life 1/2 inch headpart |
| Handle | Metal, heat insulated and screwable, with blue marking |
| Spout | Cast spout with mousseur |
| Overall height above mounting surface | 93 mm |
| Spout reach to outlet centreline | 80 mm |
| Outlet height above mounting surface | 39 mm |
| Base diameter | 50 mm |
| Maximum mounting-surface thickness | 25 mm |
| Outlet angle | 20 degrees |
| EAN | 4005176842986 |
Before You Order
Check that the tap model is 20404001 and identify which component requires servicing before ordering. Poor shut-off or difficult flow control can indicate wear within the headwork or its seals, while reduced or uneven flow from the spout can indicate limescale or restriction at the mousseur.
Grohe 07146000 1/2 Inch Headpart Flow Cartridge On/OffThe Grohe 07146000 is a 1/2 inch short-spindle screw-down headpart used to control on/off water flow in specified Grohe taps, shower mixers, thermostatic mixers and concealed valves. It is also described as a headworks flow ca...
GROHE 0392400M Pack of 10 O-Rings 18.2mm x 1.7mmGROHE 0392400M is a service pack of 10 O-rings, each measuring 18.2 mm outside diameter with a 1.7 mm cross-section. The seals are used in identified GROHE tap and shower assemblies, including 1/2-inch ceramic headparts and selected...
Grohe 13929000 Mousseur Aerator Flow RestrictorThe Grohe 13929000 mousseur aerator is a flow regulating insert designed to fit compatible Grohe tap spouts. It shapes the water stream and helps control flow rate.FunctionThe aerator mixes air with water to reduce splashing and mana...
