Grohe 07526000 Diverter Knob

SUMMARY

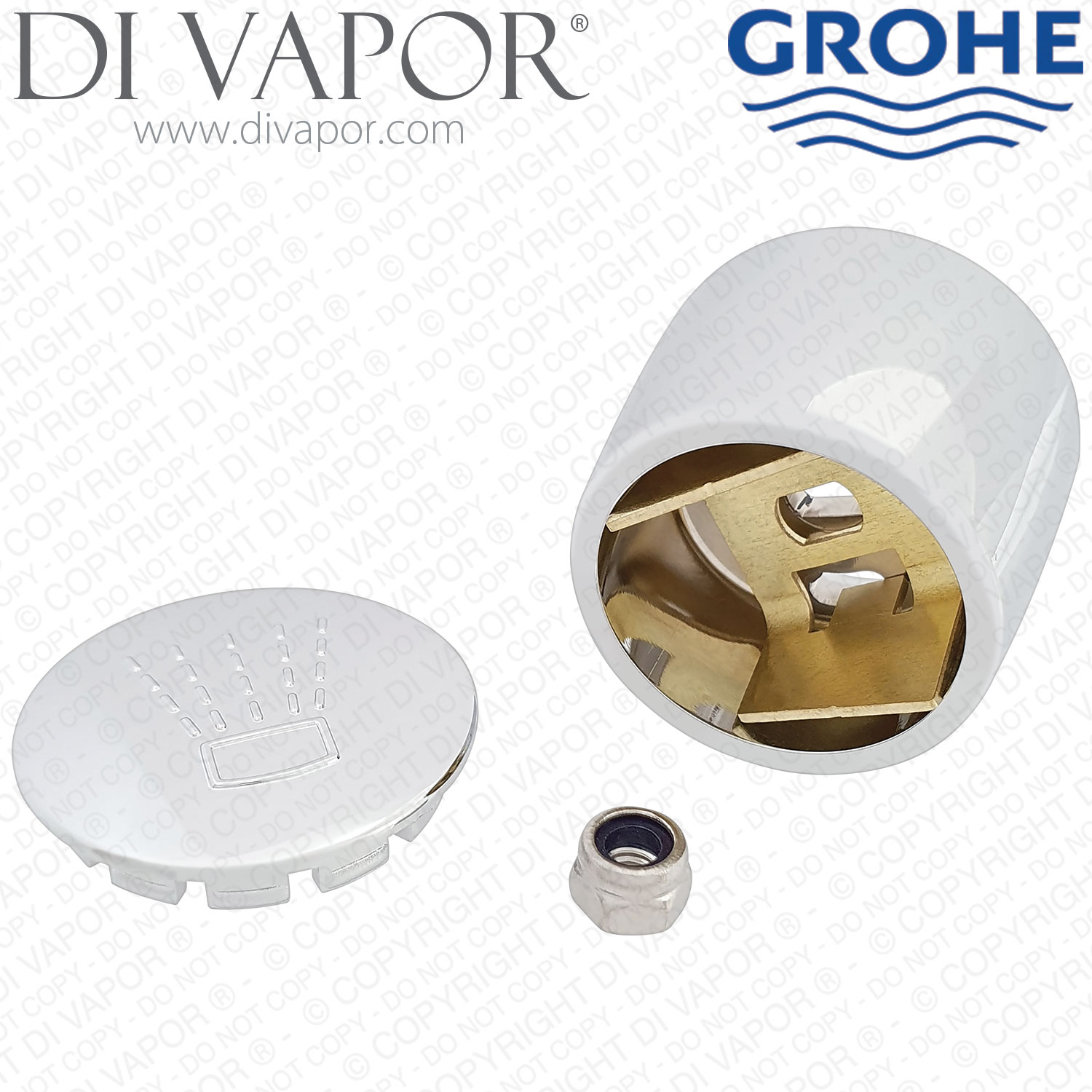

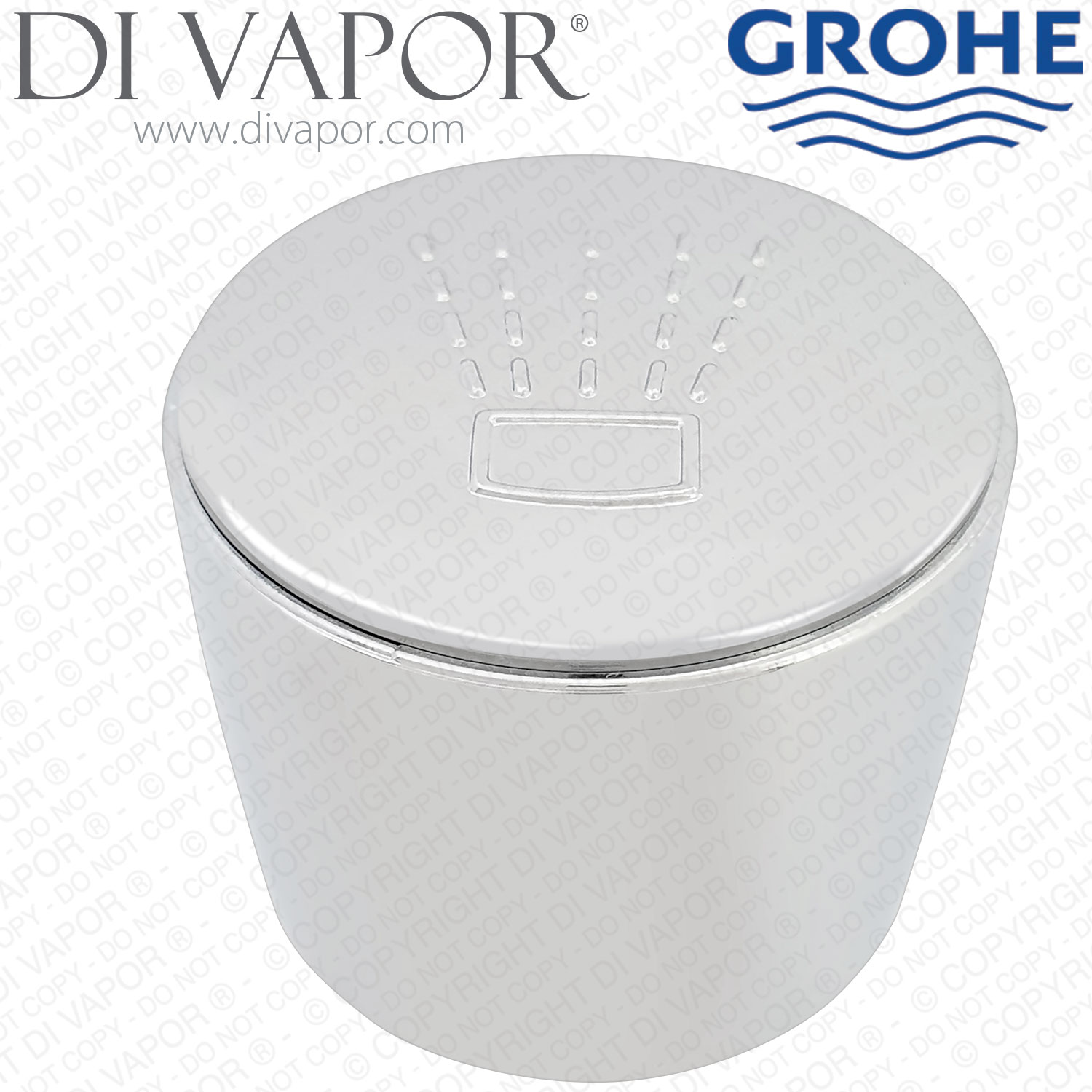

GROHE 07526000 Chrome Bath Shower Mixer Diverter Knob

The GROHE 07526000 is a chrome external diverter control knob for the specific GROHE bath/shower mixers and diverter assemblies listed below. It provides the operating control for the separate mechanism that selects between the bath and shower outlets.

This part is used to renew a damaged or missing diverter knob. It is an external control component, not a complete internal diverter valve, flow cartridge or thermostatic cartridge. Replacing the knob does not replace the water-sealing components inside the mixer.

Technical Details

- - Part number: 07526000

- - Alternative code presentation: 07 526 000

- - Part type: external diverter control knob

- - Finish: chrome

- - Function: operates the separate bath/shower outlet selection mechanism

Confirmed Models and Applications

- - GROHE 34357000 Automatic 2000 Thermostatic Bath Mixer

- - GROHE 34357 Automatic 2000 Bath Mixer Basic / Clova, for the assembly using 07526000 as the diverter knob

- - GROHE 34376 Automatic 2000 thermostatic bath/shower mixer

- - GROHE 33116001 Eurosmart mixer, with the 46056000 diverter assembly

- - GROHE 32360101 Eurostyle single-lever bath/shower mixer

- - GROHE 25038 Atlanta bath mixer, using the service replacement knob described below

- - GROHE 25038K Atlanta bath mixer, using the service replacement knob described below

- - GROHE 33421 Euromix bath mixer

- - GROHE 29736000 diverter assembly

Service Replacement for Atlanta Mixers

For the GROHE 25038 and 25038K Atlanta mixers, 07526000 is the service knob used in place of the discontinued 45106000 knob. This is a model-specific replacement relationship and must not be extended to every other application of 45106000.

Before Ordering and Fitting

Check the exact mixer model, the existing knob connection and the fitted diverter assembly before ordering. Other mixers within the same range can use different controls, so appearance or a partial measurement alone is not sufficient to establish fitment.

If the existing knob still operates the mechanism but water does not switch correctly between outlets, the internal diverter may require inspection rather than the knob alone. Isolate the water supplies before opening or servicing the mixer, and follow the instructions for the exact valve.

Related Spares You May Need

The following three diverters are separate assemblies used in different applications of this knob. Select the assembly specified for your mixer; they are not interchangeable simply because they use the same control knob.

- - GROHE 06804000 Automatic Diverter, with 07526000 as its separately serviceable knob

- - GROHE 46056000 Bath Shower Diverter Cartridge, with 07526000 as its separately serviceable knob

- - GROHE 08915000 Diverter, used alongside this knob in the specified 34357, 34376, 32360101, 25038 and 25038K assemblies

The following items are other maintenance spares for the GROHE 34357000 Automatic 2000 mixer. They are separate from the diverter knob and should be selected according to the fitted valve version and the fault being repaired.

- - GROHE 07146000 Headworks On/Off Flow Cartridge, also used in the 25038 and 25038K Atlanta mixers

- - GROHE 47255000 Temperature Control Handle

- - GROHE 47167000 Automatic 2000 Stop Ring Adapter

- - GROHE 47450000 Thermostatic Cartridge

- - GROHE 47245000 Automatic 2000 Flow Control Knob

- - GROHE 45346000 Half-Turn Flow Cartridge

- - GROHE 0392400M Pack of 10 O-Rings

- - GROHE 08565000 Non-Return Valve

For help identifying the correct knob, send photographs of the complete mixer, the existing control and its connection to our part identification service.
