Dornbracht 9090031660090 Cartridge - Compatible Spare
Part number: 9090031660090
Price: £120.84
Sale: £89.83
You save: £31.01 (26%)
Price includes UK VAT (Region: UK▼)
In stock
Is this the right part?
Send a photo of your item and we'll help confirm it.
Product description
Summary

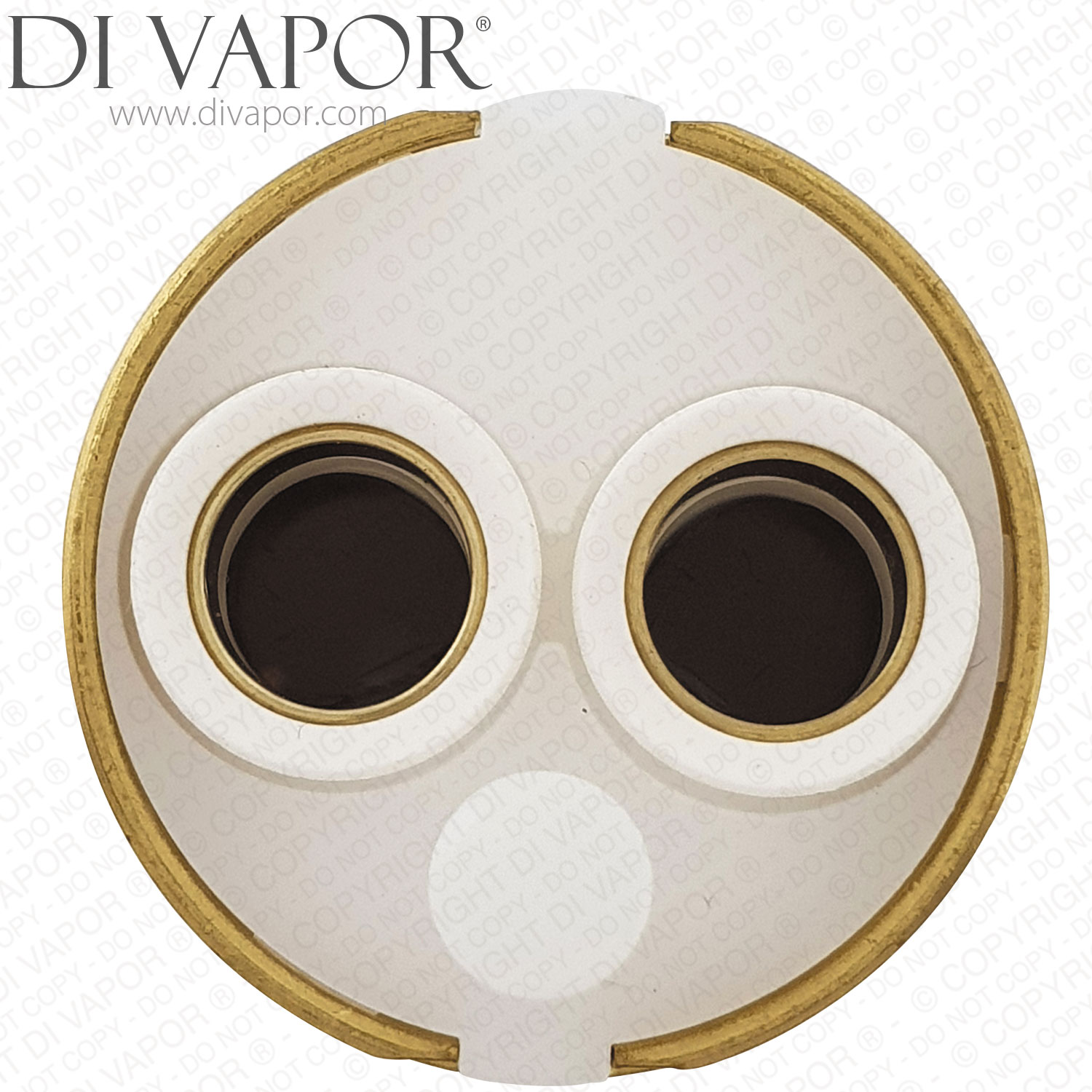

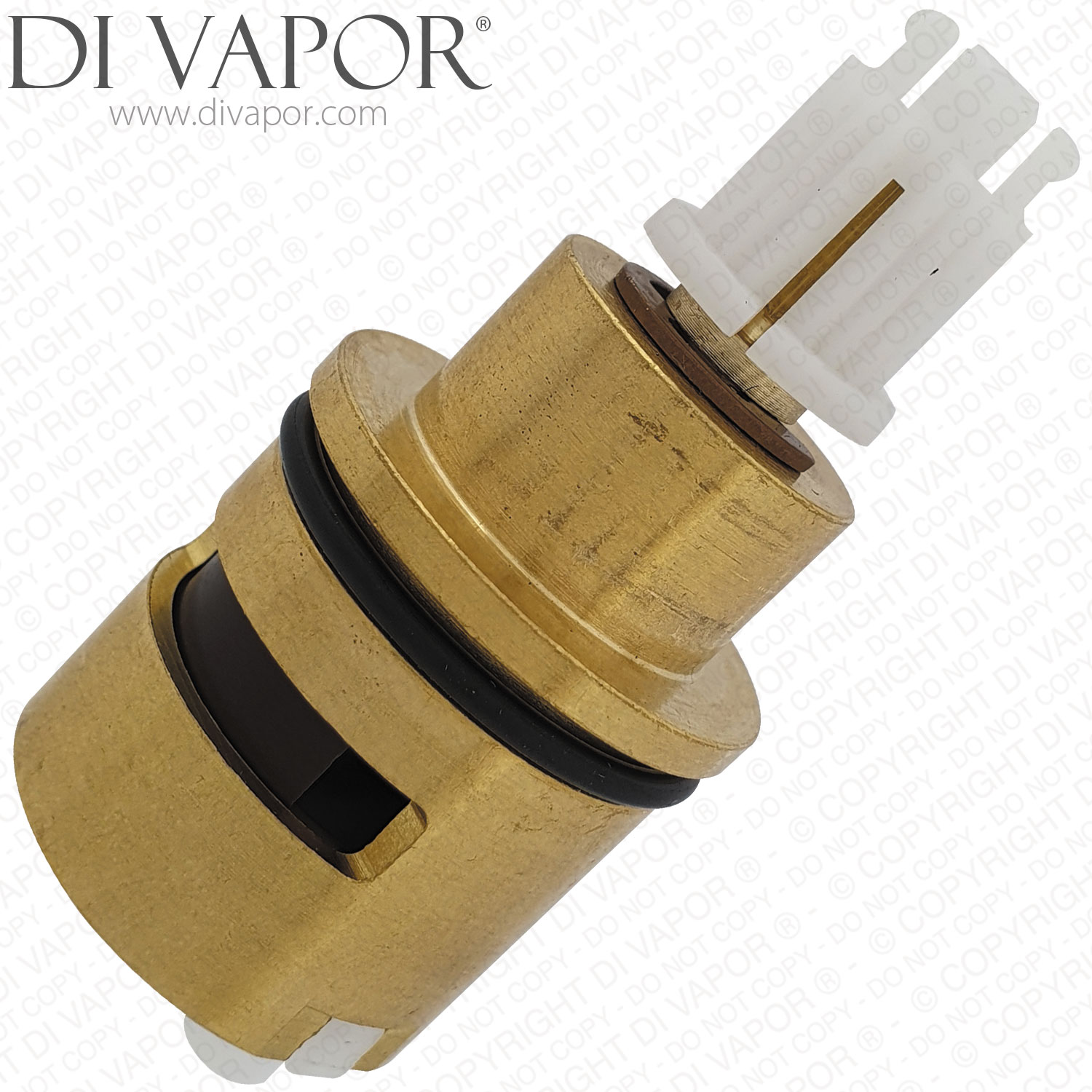

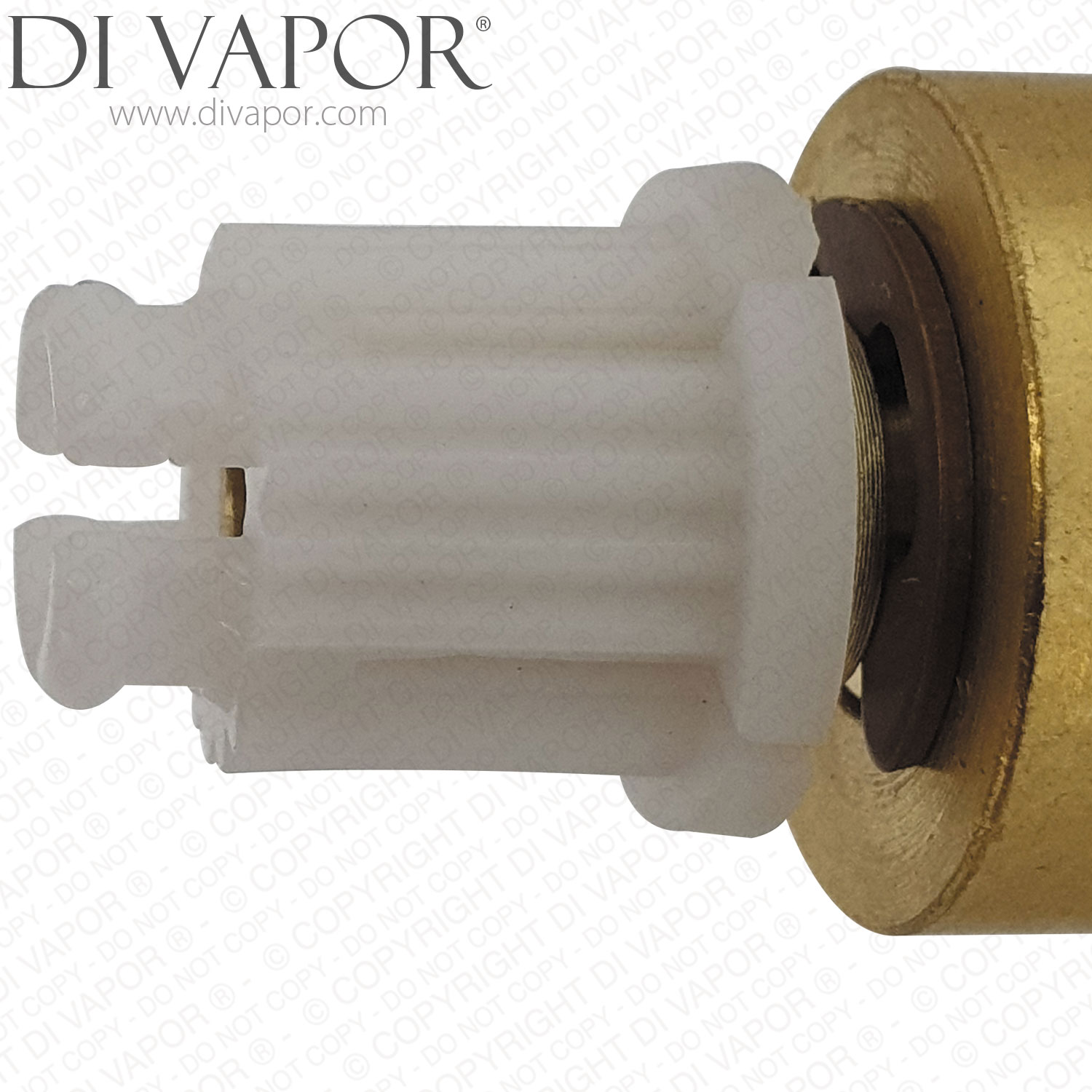

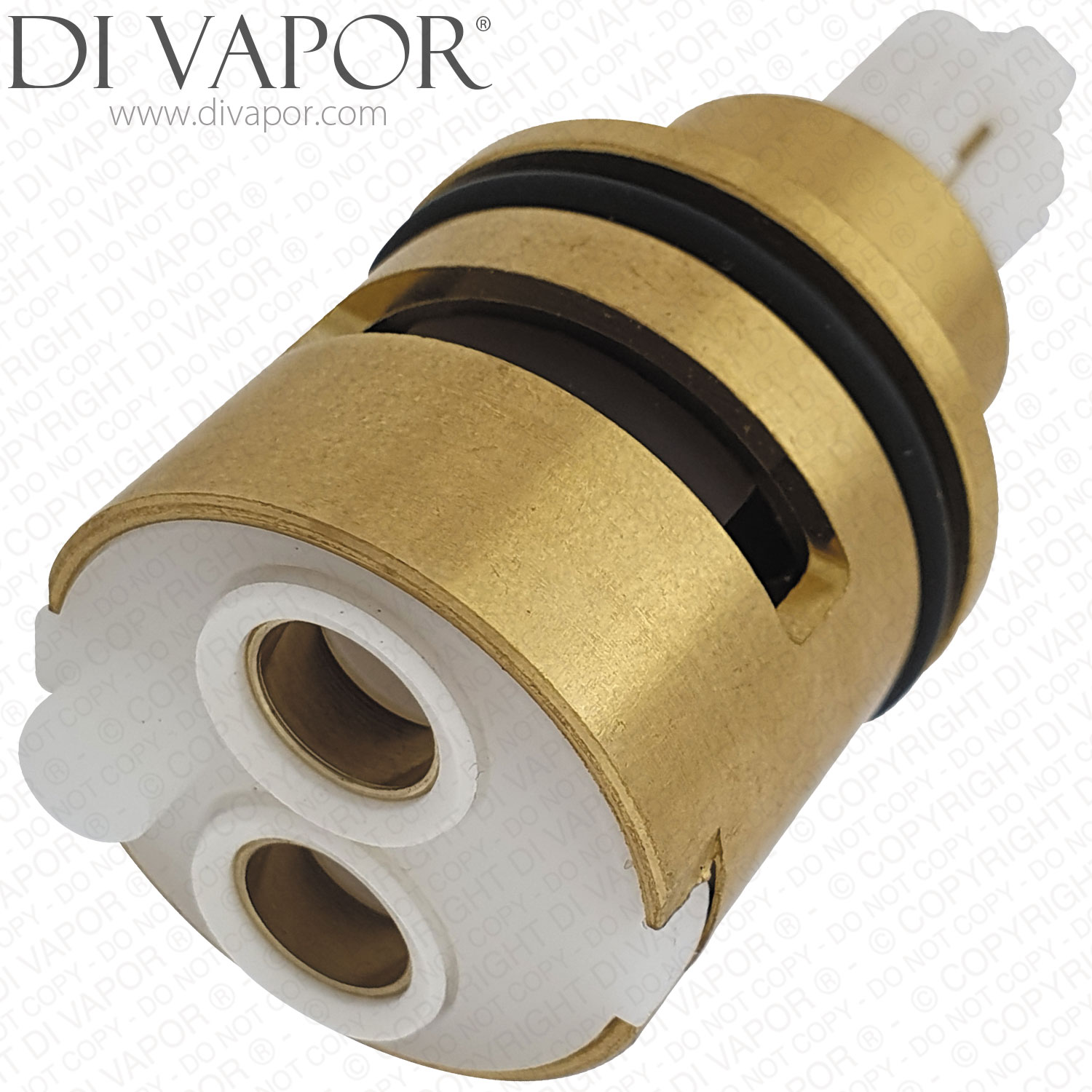

Dornbracht 9090031660090 is a compatible spare volume control shower cartridge for selected Dornbracht concealed thermostat assemblies with one-way or one-function volume control. It is used on the flow control side of the valve to open, close and regulate water volume and is separate from the thermostatic cartridge that controls mixed water temperature.
The same Dornbracht spare is also referenced as 90 90 03 166 00 90 in spare parts diagrams, where it is identified as the top or upper part in the cartridge assembly. A worn flow cartridge can make the control stiff, difficult to shut off or allow water to drip from the shower outlet after the valve has been turned off.
Technical Details
| Brand | Dornbracht |
|---|---|
| Part Number | 9090031660090 |
| Other Dornbracht reference | 90 90 03 166 00 90 |
| Part type | volume control shower cartridge / flow control cartridge |
| Application | flow and on-off control side of selected concealed thermostat trim assemblies |
- Not a thermostatic temperature cartridge
- Related handles, sleeves, adapters and thermostatic cartridges are ordered separately where fitted
Before You Order
- Check the code on the existing cartridge or the spare parts diagram before ordering
- Check whether your valve uses the 9090031660090 / 90 90 03 166 00 90 volume control cartridge rather than a thermostatic cartridge or diverter cartridge
- If the cartridge cannot be identified from the code, compare the valve model and send photos for identification before purchase
Common Symptoms
- Water dripping from the shower head or outlet when the valve is turned off
- Stiff or uneven volume control operation
- Difficulty fully shutting off the shower flow
- Worn internal cartridge seals or ceramic control surfaces
Confirmed Compatible Models
- Dornbracht Series Specific Concealed Thermostat with One-Way Volume Control - Chrome 36 425 670-000010
- Dornbracht Series Specific Concealed Thermostat with One Function Volume Control - Brushed Platinum 36 425 670-06
- Dornbracht Series Specific Concealed Thermostat with One Function Volume Control - Platinum 36 425 670-08
- Dornbracht Series Specific Concealed Thermostat with One Function Volume Control - Matte Black 36 425 670-33
- Dornbracht Series Specific Concealed Thermostat with One Function Volume Control - Brushed Dark Platinum 36 425 670-99
- Dornbracht Lulu Concealed Thermostat with One-Way Volume Control - Chrome 36 425 710-000010
- Dornbracht Liss? Concealed Thermostat with One Function Volume Control - Brushed Platinum 36 425 845-06
- Dornbracht Liss? Concealed Thermostat with One Function Volume Control - Matte Black 36 425 845-33
- Dornbracht Tara Concealed Thermostat with One Function Volume Control - Matte White 36 425 892-10
- Dornbracht Series Specific Concealed Thermostat with One-Way Volume Control - Chrome 36 425 970-000010
- Dornbracht Series Specific Concealed Thermostat with One Function Volume Control - Brushed Platinum 36 425 970-06
- Dornbracht Series Specific Concealed Thermostat with One Function Volume Control - Matte White 36 425 970-10
- Dornbracht Series Specific Concealed Thermostat with One Function Volume Control - Matte Black 36 425 970-33
- Dornbracht Series Specific Concealed Thermostat with One Function Volume Control - Brushed Dark Platinum 36 425 970-99
- Dornbracht Madison Concealed Thermostat with One Function Volume Control - Brushed Platinum 36 425 977-06
- Dornbracht Symetrics Concealed Thermostat Trim with One-Way Volume Control 36425670 including 36425670-000010 and 36425670-060010
Related Spares You May Need
- TACSIL 3g Premium Cartridge Silicone Grease - WRAS Approved for lubricating cartridge seals and O-rings during installation
- Dornbracht 0415020120090 Cartridge (Villeroy & Boch Cult Valve) for the thermostatic control side of Villeroy & Boch CULT concealed thermostatic valves
- Dornbracht 092067006-00 Flow Control Handle for the matching volume control handle where fitted
- Dornbracht 09121205290 Handle Base Extension for the handle base extension used on documented 36 425 assemblies
- Dornbracht 09121205490 Adapter for documented assemblies where reference 10 is fitted
- Dornbracht 09230112490 Thermostatic Cartridge Adapter - D-09230112490 for the cartridge adapter sleeve used in the same valve families
- Dornbracht 09184007790 Brass Sleeve for the sleeve component used around the cartridge or spindle assembly
- Dornbracht 9015020130090 Thermostatic Cartridge for the temperature control side of selected Dornbracht concealed thermostat assemblies
