Dornbracht 092067006-00 Flow Control Handle
SUMMARY

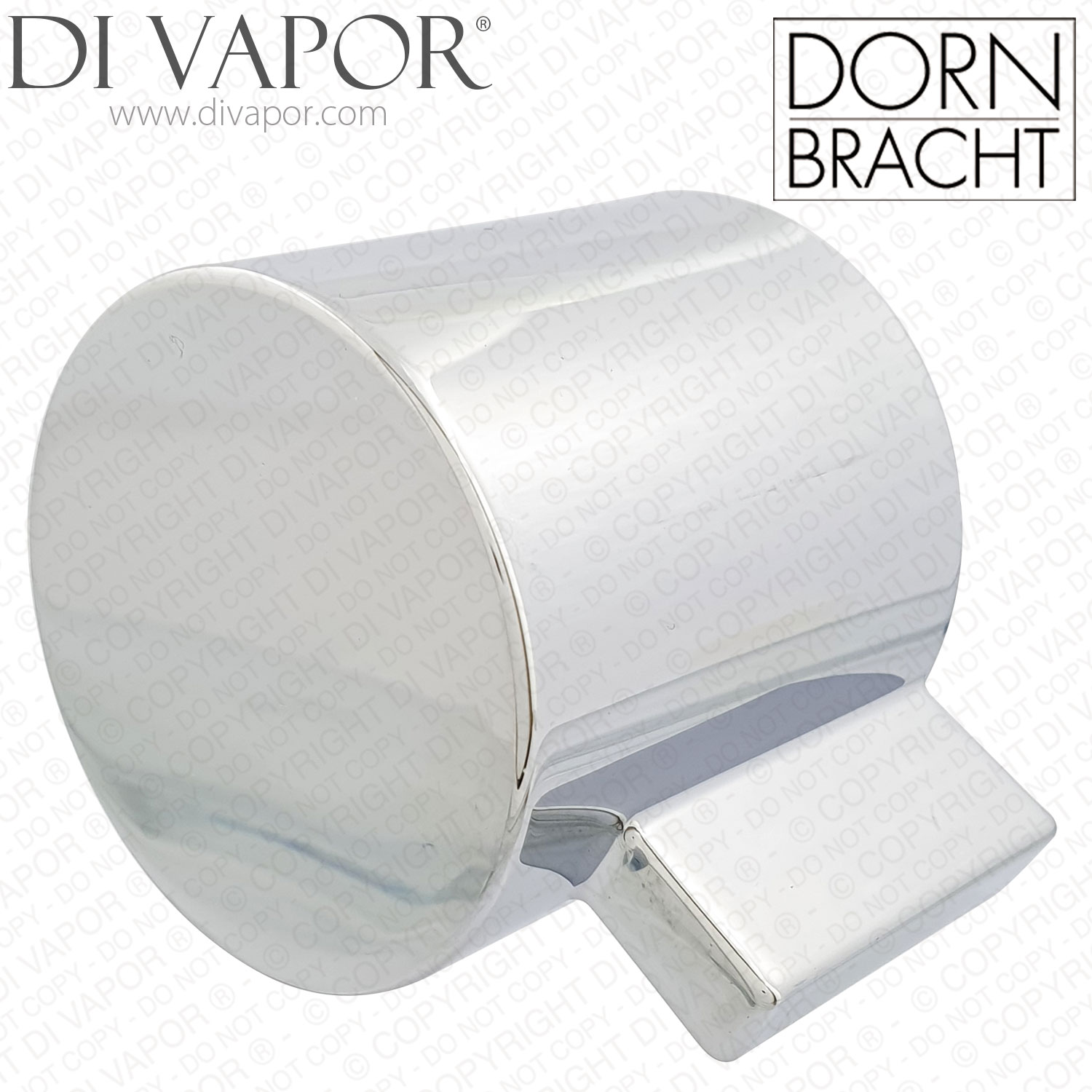

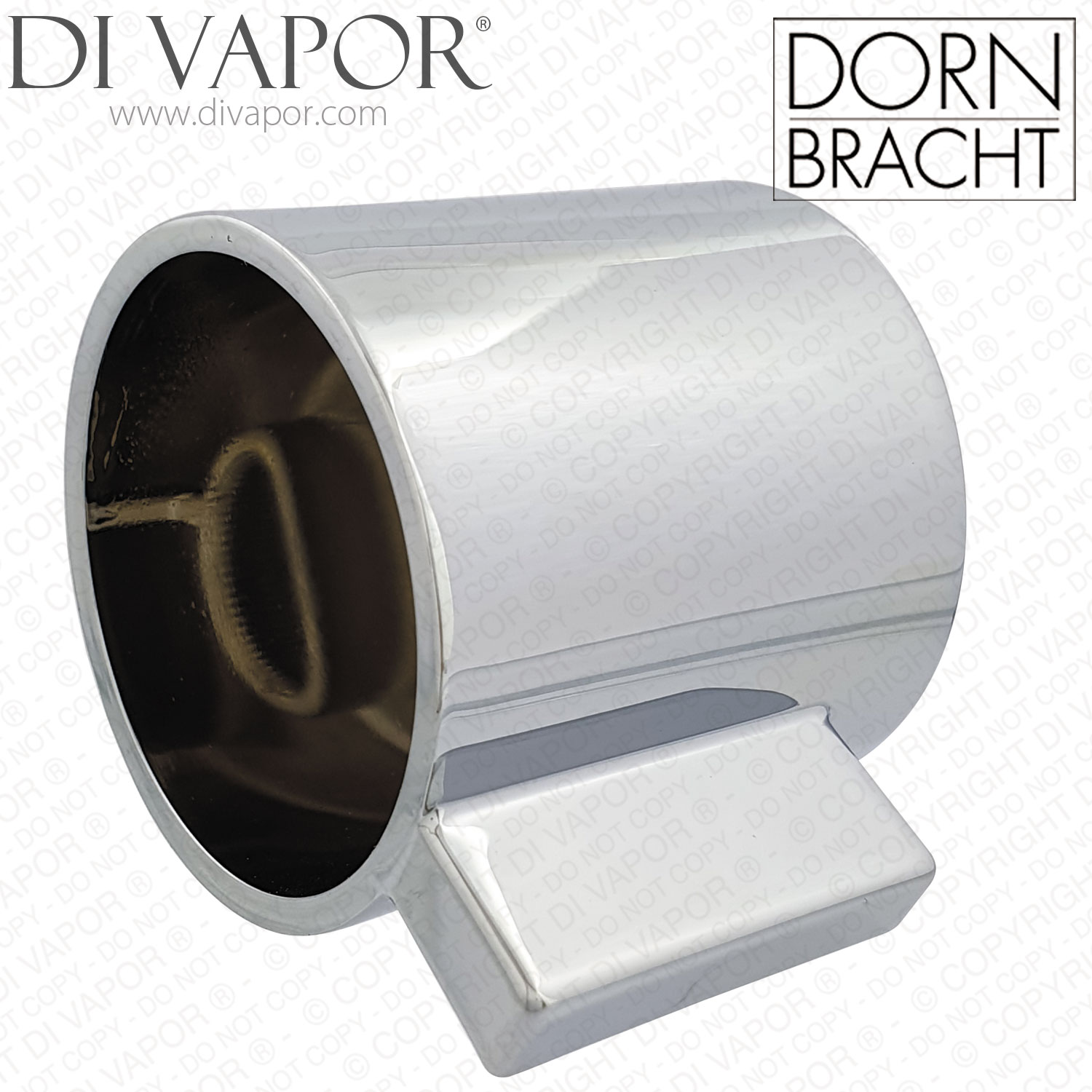

Dornbracht 092067006-00 is a flow control handle for selected Dornbracht concealed thermostat assemblies with volume control. It is the external handle used on the flow or volume control side of the shower valve and is listed as position 6 in the spare parts layout under manufacturer-style code 09 20 67 006-00.
This handle operates the customer-facing volume control and should be checked against the valve article number, finish suffix and spline before ordering. It is not the volume cartridge, diverter cartridge, thermostatic cartridge, handle base, sleeve or adapter used inside the same assemblies.
Technical Details
- - Brand: Dornbracht
- - Product code: 092067006-00
- - Manufacturer-style code: 09 20 67 006-00
- - Part type: flow control handle / volume control handle
- - Diagram position: 6
- - Diameter: 41.4mm
- - Height: 40mm

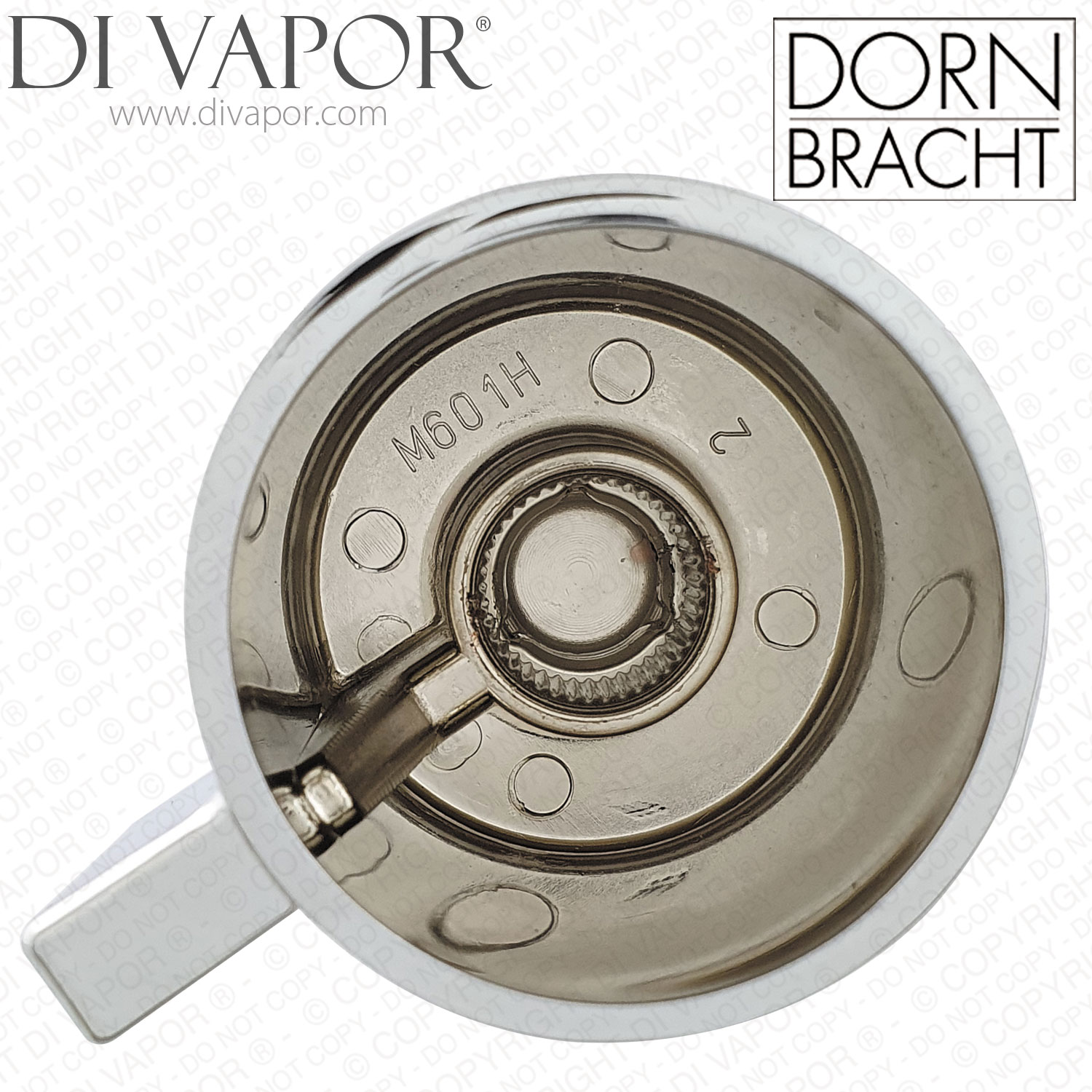

- - Internal spline diameter: approximately 13mm
- - Finish suffix: -00
Before You Order
- - Check the article number on the existing Dornbracht concealed thermostat or spare parts diagram before ordering.
- - Check whether the valve is a one-way, two-way or three-way volume control version because the internal cartridge behind the handle can differ by valve type.
- - Match the spline and finish suffix before replacing the handle. Do not order from size measurements alone.
Confirmed Compatible Models
- - Dornbracht Lulu Concealed Thermostat with One-Way Volume Control - Chrome 36 425 710-000010
- - Dornbracht Lulu Concealed Thermostat with Two-Way Volume Control - Chrome 36 426 710-000010
- - Dornbracht Madison Concealed Thermostat with One-Way Volume Control - Chrome 36 425 977-00 0010
- - Dornbracht Madison Concealed Thermostat with Three-Way Volume Control - Chrome 36 428 977-000010
Related Spares You May Need
- - Dornbracht 9090031660090 Cartridge - Compatible Spare
- - DORNBRACHT 9090031630090 Diverter Cartridge - 90.90.03.163.90 Compatible Spare
- - Dornbracht 9090031700090 Diverter Cartridge
- - Dornbracht 09121205290 Handle Base Extension
- - Dornbracht 09121205490 Adapter
- - Dornbracht 09230112490 Thermostatic Cartridge Adapter - D-09230112490
