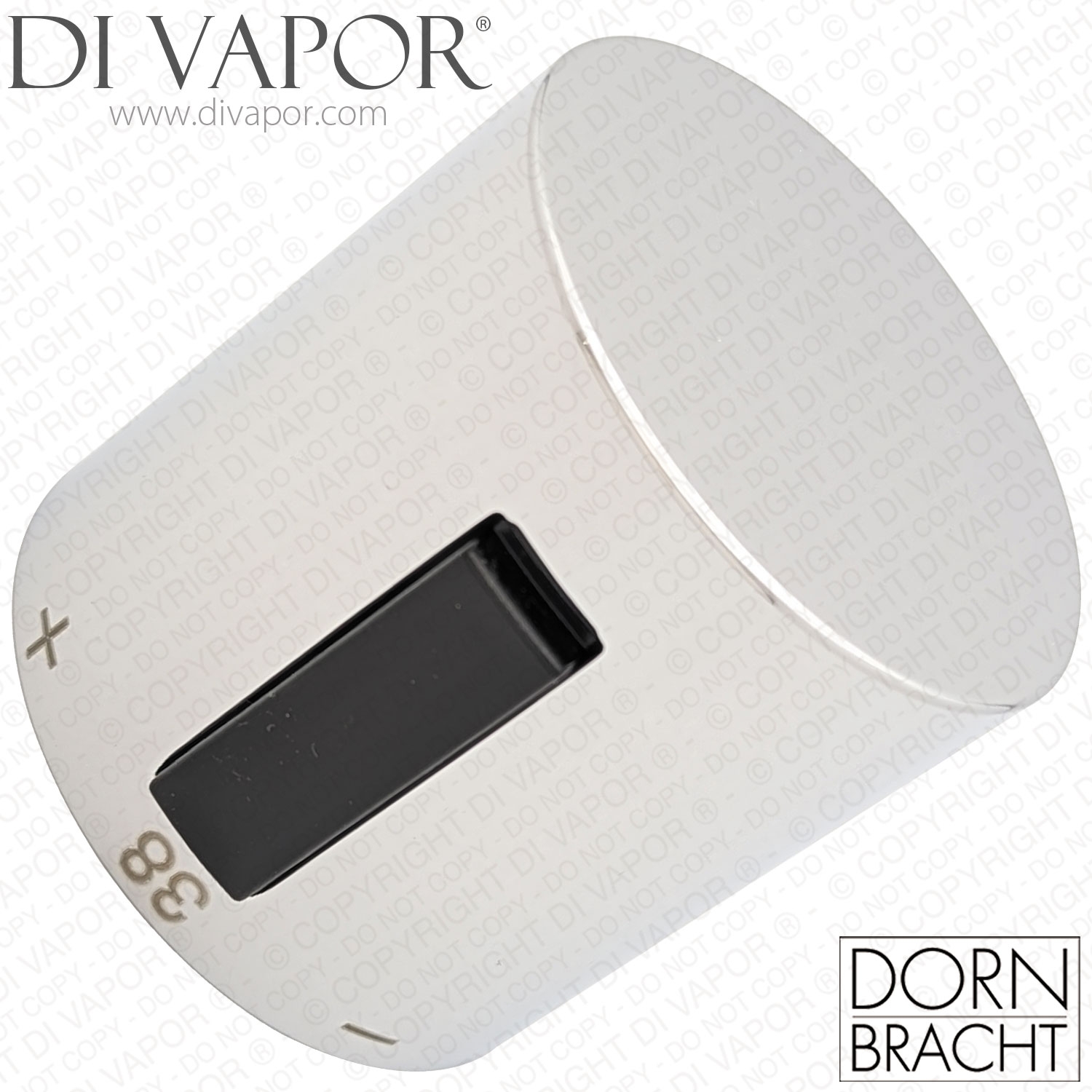

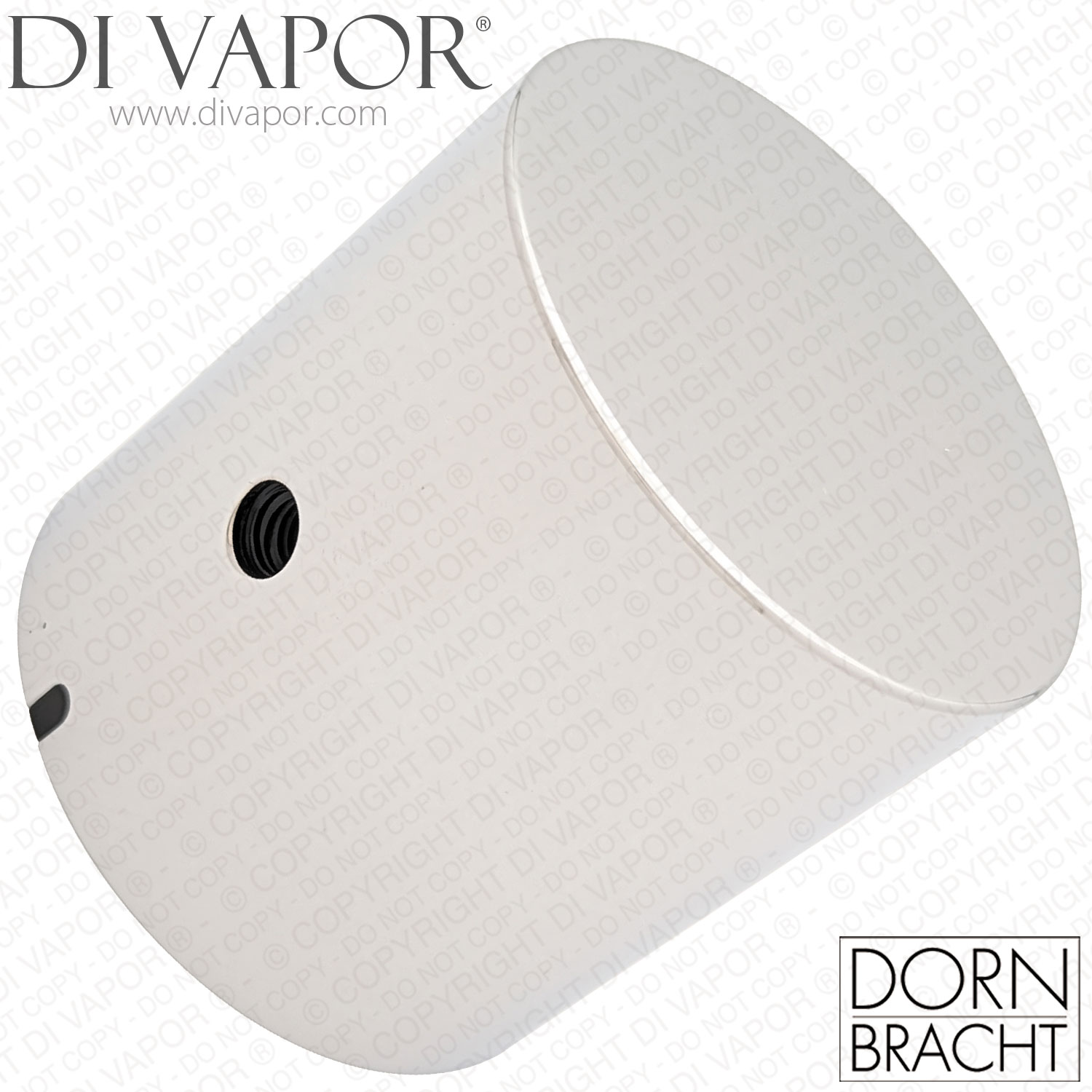

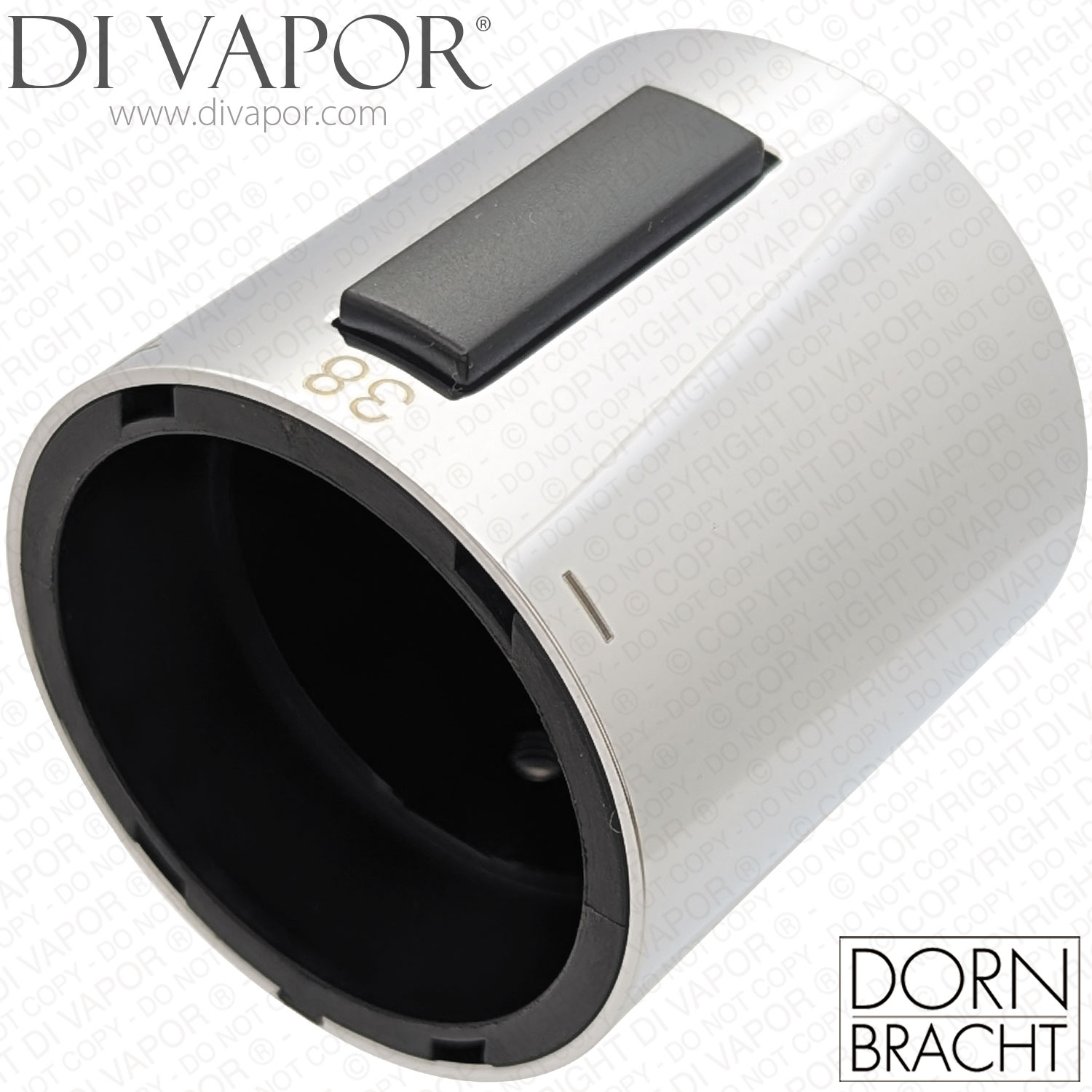

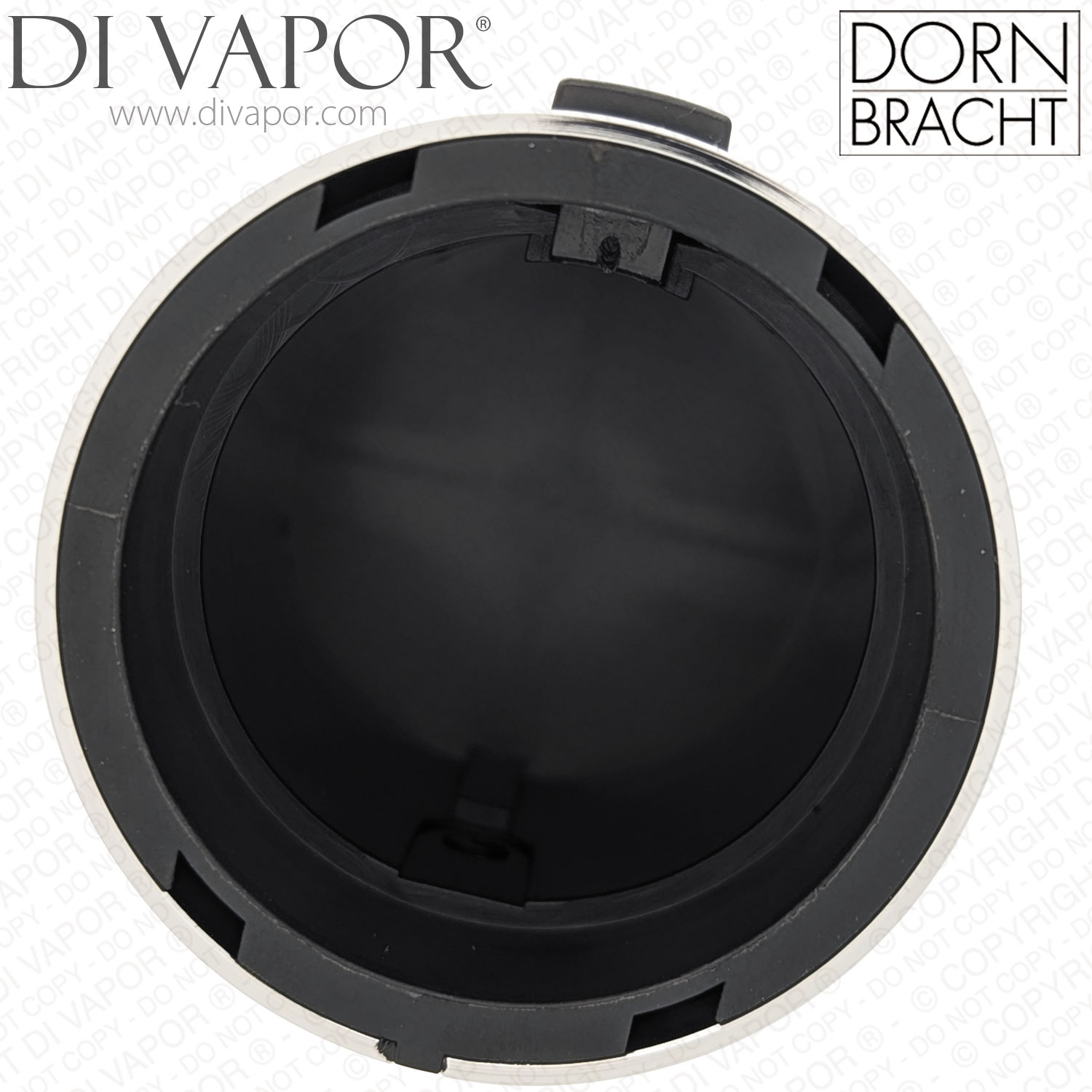

Dornbracht 90173301700-00 Thermostat Handle 48mm Chrome

SUMMARY

Dornbracht 90173301700-00 is a chrome thermostat handle for the temperature-control side of selected Dornbracht concealed thermostatic shower valve trim assemblies. It is used to adjust the mixed water temperature from the external valve control and is separate from the internal thermostatic cartridge, volume-control cartridge, diverter cartridge, sleeves and adapter components used inside the valve.

The Dornbracht manufacturer-format code for this handle is 90 17 33 017 00-00. The -00 finish suffix identifies the chrome version, so customers should check the exact handle code, finish suffix and valve version before ordering.

Technical Details

- - Brand: Dornbracht

- - Part Number: 90173301700-00

- - Manufacturer code format: 90 17 33 017 00-00

- - Part type: thermostat handle / temperature-control handle

- - Finish: Chrome

- - Diameter: 48mm

- - Application: temperature control on selected Dornbracht concealed thermostatic shower valve trims

- - Not supplied as a thermostatic cartridge, flow cartridge, diverter cartridge, sleeve or adapter

Confirmed Compatible Models

- - Dornbracht Gentle Concealed Thermostat With One-Way Diverter - Chrome 36425720-00

- - Dornbracht Gentle Concealed Thermostat With Two-Way Diverter - Chrome 36426720-00

- - Dornbracht Symetrics xTool Concealed Thermostat Without Diverter - Chrome 36417980-00

- - Dornbracht Lissé Concealed Thermostat With One-Way Diverter - Chrome 36425845-00

- - Dornbracht Lissé Concealed Thermostat With Two-Way Diverter - Chrome 36426845-00

- - Dornbracht Lissé Concealed Thermostat With Three-Way Diverter - Chrome 36427845-00

- - Dornbracht Lulu Concealed Thermostat With One-Way Diverter - Chrome 36425710-00

- - Dornbracht Lulu Concealed Thermostat With Two-Way Diverter - Chrome 36426710-00

- - Dornbracht Lulu Concealed Thermostat With Three-Way Diverter - Chrome 36427710-00

- - Dornbracht Madison Concealed Thermostat With One-Way Diverter - Chrome 36425977-00

- - Dornbracht Madison Concealed Thermostat With Two-Way Diverter - Chrome 36426977-00

- - Dornbracht Madison Concealed Thermostat With Three-Way Diverter - Chrome 36427977-00

- - Dornbracht Madison xTool Concealed Thermostat Without Diverter - Chrome 36416977-00

- - Dornbracht Concealed Thermostat With One-Way Diverter - Chrome 36425670-00

- - Dornbracht Concealed Thermostat With Two-Way Diverter - Chrome 36426670-00

- - Dornbracht Concealed Thermostat With Three-Way Diverter - Chrome 36427670-00

- - Dornbracht Concealed Thermostat With One-Way Diverter - Chrome 36425970-00

- - Dornbracht Concealed Thermostat With Two-Way Diverter - Chrome 36426970-00

- - Dornbracht Concealed Thermostat With Three-Way Diverter - Chrome 36427970-00

- - Dornbracht Yamou Concealed Thermostat With One-Way Diverter - Chrome 36425831-00

- - Dornbracht Yamou Concealed Thermostat With Two-Way Diverter - Chrome 36426831-00

- - Dornbracht Yamou Concealed Thermostat With Three-Way Diverter - Chrome 36427831-00

- - Dornbracht Yarre Concealed Thermostat With One-Way Diverter - Chrome 36425832-00

- - Dornbracht Yarre Concealed Thermostat With Two-Way Diverter - Chrome 36426832-00

- - Dornbracht Yarre Concealed Thermostat With Three-Way Diverter - Chrome 36427832-00

Important Version Check

- - Do not use this handle for later 00 0010 valve pages unless the installation manual specifically lists 90 17 33 017 00-00

Related Spares You May Need

- - Dornbracht 9090031660090 Cartridge - Compatible Spare for the flow-control side of selected one-way or one-function concealed thermostat assemblies that use 90 90 03 166 00 90

- - DORNBRACHT 9090031630090 Diverter Cartridge - 90.90.03.163.90 Compatible Spare for selected two-way or two-function concealed thermostat assemblies that use 90 90 03 163 00 90

- - Dornbracht 092067006-00 Flow Control Handle for the matching volume-control side where 09 20 67 006-00 is shown on the valve diagram

- - Dornbracht 09121205290 Handle Base Extension for documented Dornbracht concealed thermostat assemblies where this base extension is used

- - Dornbracht 09121205490 Adapter for valve assemblies that list 09 12 12 054 90 in the spare parts breakdown

- - Dornbracht 09230112490 Thermostatic Cartridge Adapter - D-09230112490 for assemblies that use 09 23 01 124 90 sleeve / adapter components

- - Dornbracht 09184007790 Brass Sleeve for internal sleeve positioning around the cartridge or spindle assembly where 09 18 40 077 90 is listed

- - Dornbracht 9015020120090 Thermostatic Cartridge (Villeroy & Boch) - 90 15 02 012 00 90 for older valve diagrams that call for 90 15 02 012 00 90

- - Dornbracht 9015020130090 Thermostatic Cartridge for selected concealed thermostatic shower assemblies that use 90 15 02 013 00 90

Use the valve model code, production version and spare parts diagram to confirm the correct handle before ordering. If the code on the removed part cannot be read, compare the full trim layout and internal parts list before selecting between 90 17 33 017 00-00 and later 90 17 33 019 00-00 handle versions.
