Dornbracht 90173301700-33 Thermostat Handle 48mm Matte Black
Send a photo of your item and we'll help confirm it.
Summary

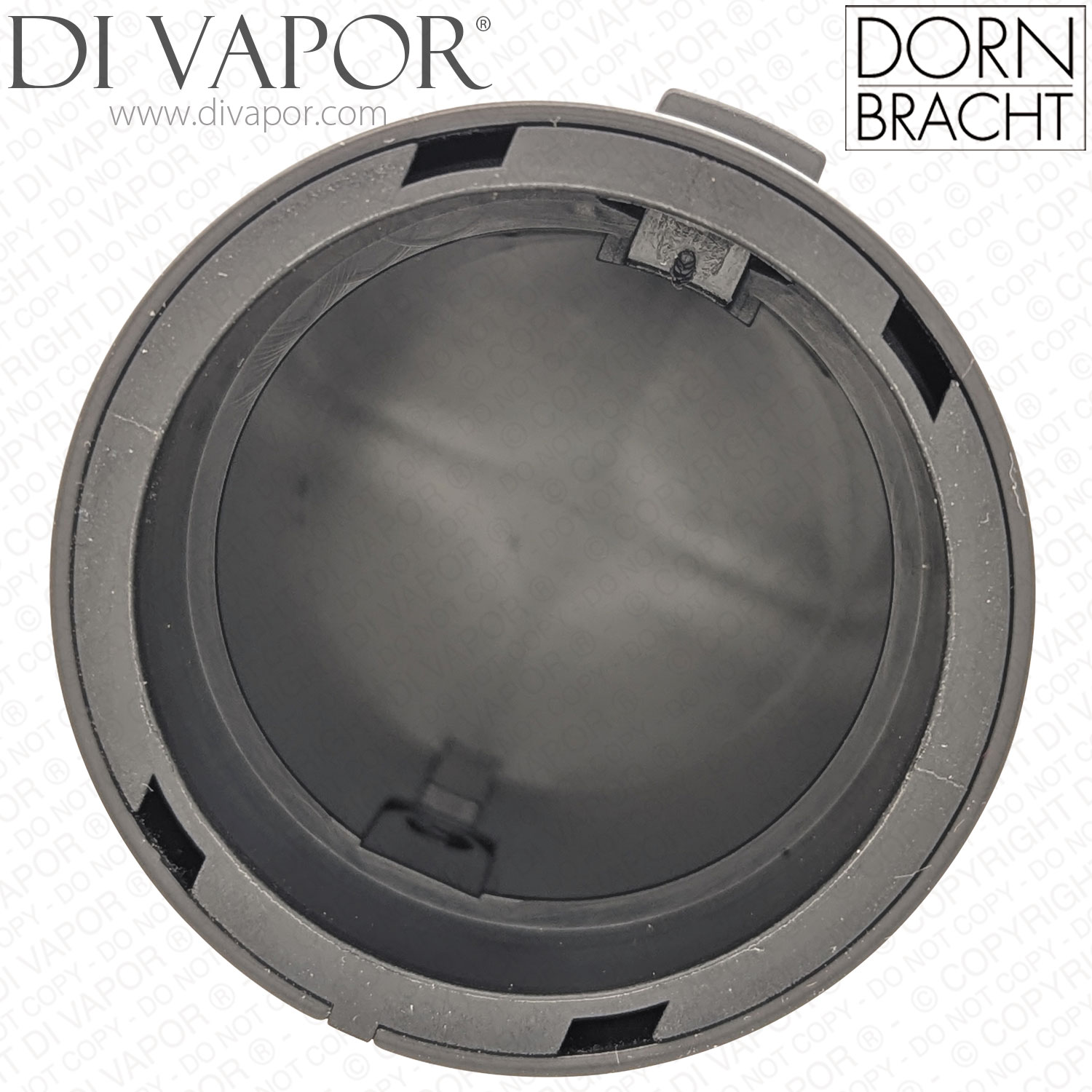

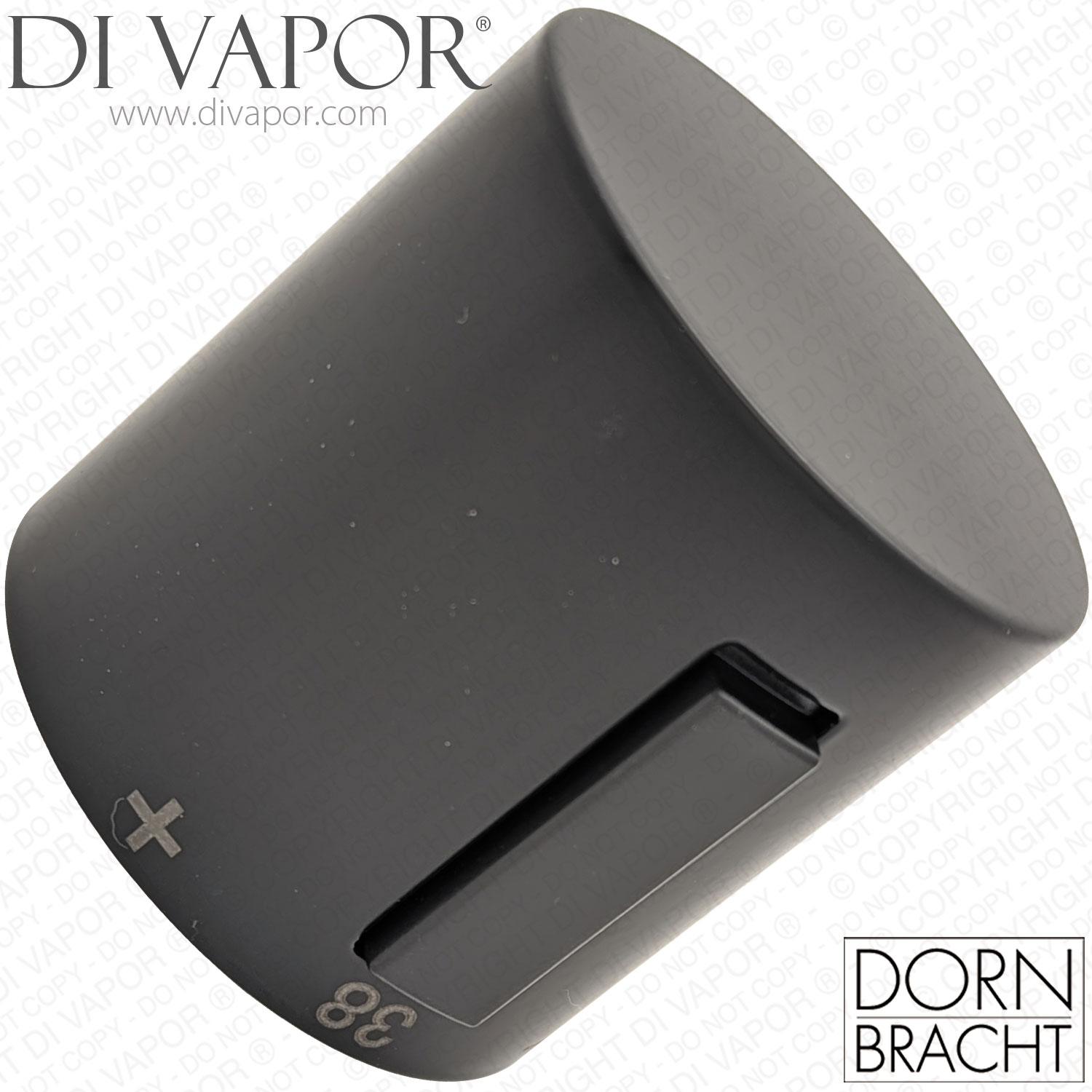

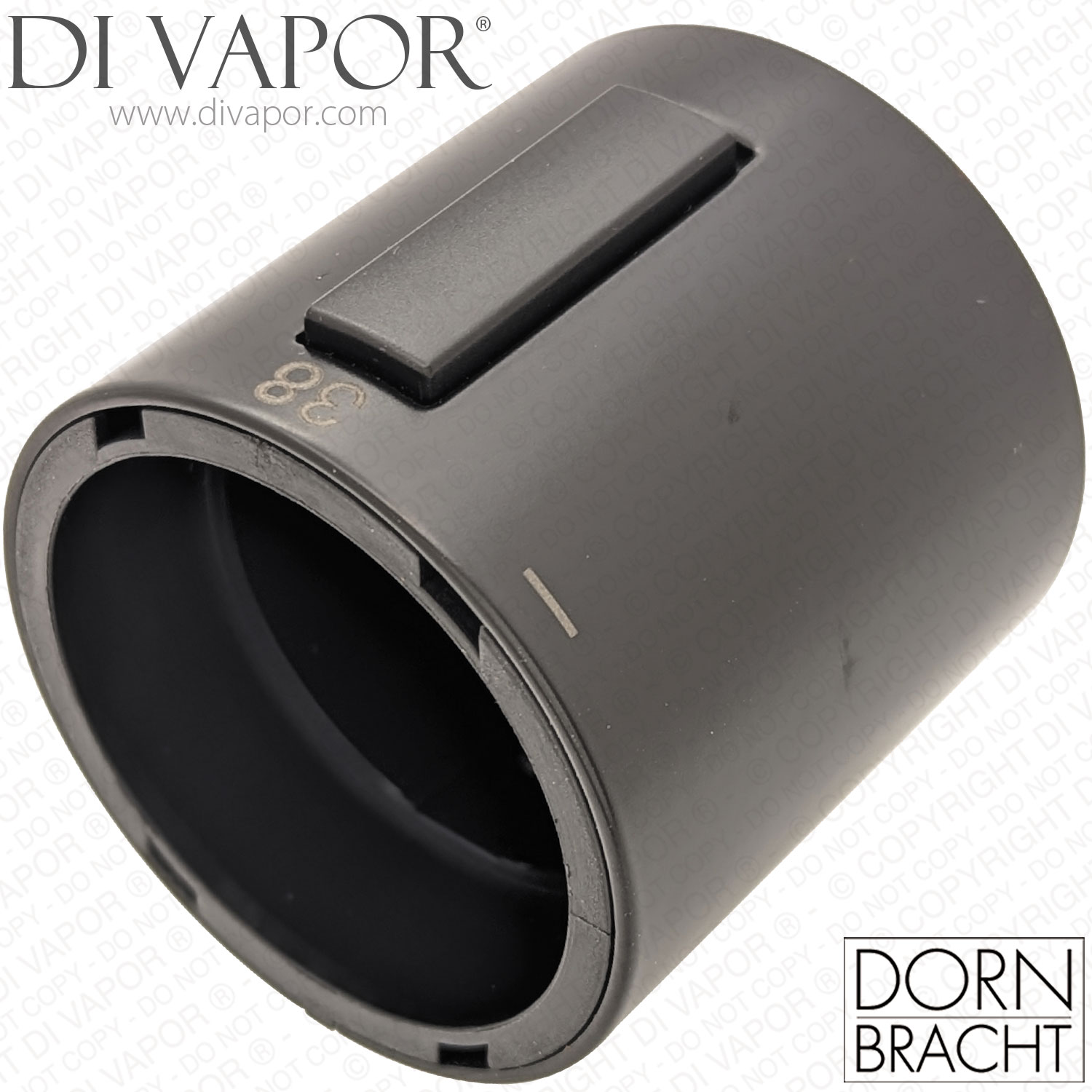

Dornbracht 90173301700-33 Thermostat Handle 48mm Matte Black for Concealed Thermostat Shower Valves
The Dornbracht 90173301700-33 is a 48mm matte black thermostat handle for the temperature-control side of selected Dornbracht concealed thermostat shower valve trim assemblies. In Dornbracht spare-code format this handle is shown as 90 17 33 017 00-33.
Use this handle when the original matte black thermostat handle is damaged, loose, missing, worn, marked incorrectly, or no longer engages the control securely. It is a finish-coded external trim part, so the valve model, spare-parts diagram, and finish suffix should be checked before ordering.
Technical Details
| Brand | Dornbracht |
|---|---|
| Part Number | 90173301700-33 |
| Dornbracht spare-code format | 90 17 33 017 00-33 |
| Finish | Matte Black |
| Handle size | 48mm |
| Part type | thermostat handle with marking |
| Component reference on verified valve pages | 7 |
| Application | selected concealed thermostat shower trim assemblies with temperature control and volume control functions |
Confirmed Compatible Models
- Dornbracht Liss? Concealed Thermostat with One Function Volume Control - Matte Black 36 425 845-33 Spare Parts
- Dornbracht Series Specific Concealed Thermostat with Two Function Volume Control - Matte Black 36 426 670-33 Spare Parts
- Dornbracht Series Specific Concealed Thermostat with Three Function Volume Control - Matte Black 36 427 970-33 Spare Parts
Before Ordering
- Confirm that the spare-parts diagram for your valve shows 90173301700-33 or 90 17 33 017 00-33.
- Check the -33 finish suffix for Matte Black because similar 48mm Dornbracht handles are supplied in other finish-coded variants.
- Do not order from diameter alone; match the exact valve model, handle reference, and finish code before purchase.
Related Spares You May Need
- Dornbracht 9090031660090 Cartridge - Compatible Spare for the one-function volume control side where fitted
- DORNBRACHT 9090031630090 Diverter Cartridge - 90.90.03.163.90 Compatible Spare for two-function outlet selection where fitted
- Dornbracht 9090031700090 Diverter Cartridge for three-function outlet selection where fitted
- Dornbracht 09121205290 Handle Base Extension for the associated handle base assembly
- Dornbracht 09121205490 Adapter for the handle base adapter position
- Dornbracht 09230112490 Thermostatic Cartridge Adapter - D-09230112490 for the thermostat cartridge sleeve adapter
- Dornbracht 09184007790 Brass Sleeve for the internal sleeve component used around the cartridge or spindle assembly
- Dornbracht 9015020130090 Thermostatic Cartridge for the temperature-control cartridge inside selected concealed thermostat assemblies
