Dornbracht 90173301700-06 Thermostat Handle 48mm Brushed Platinum

SUMMARY

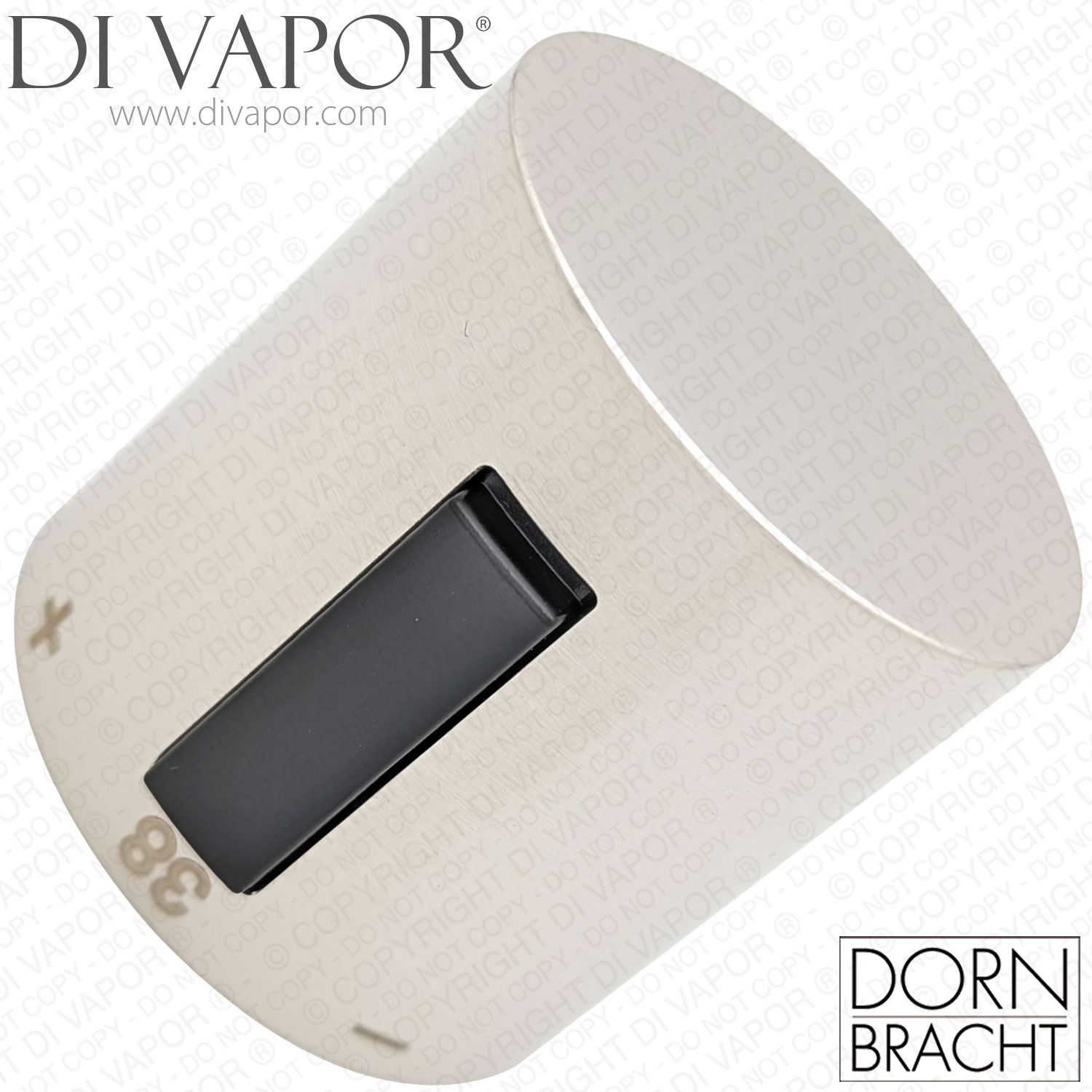

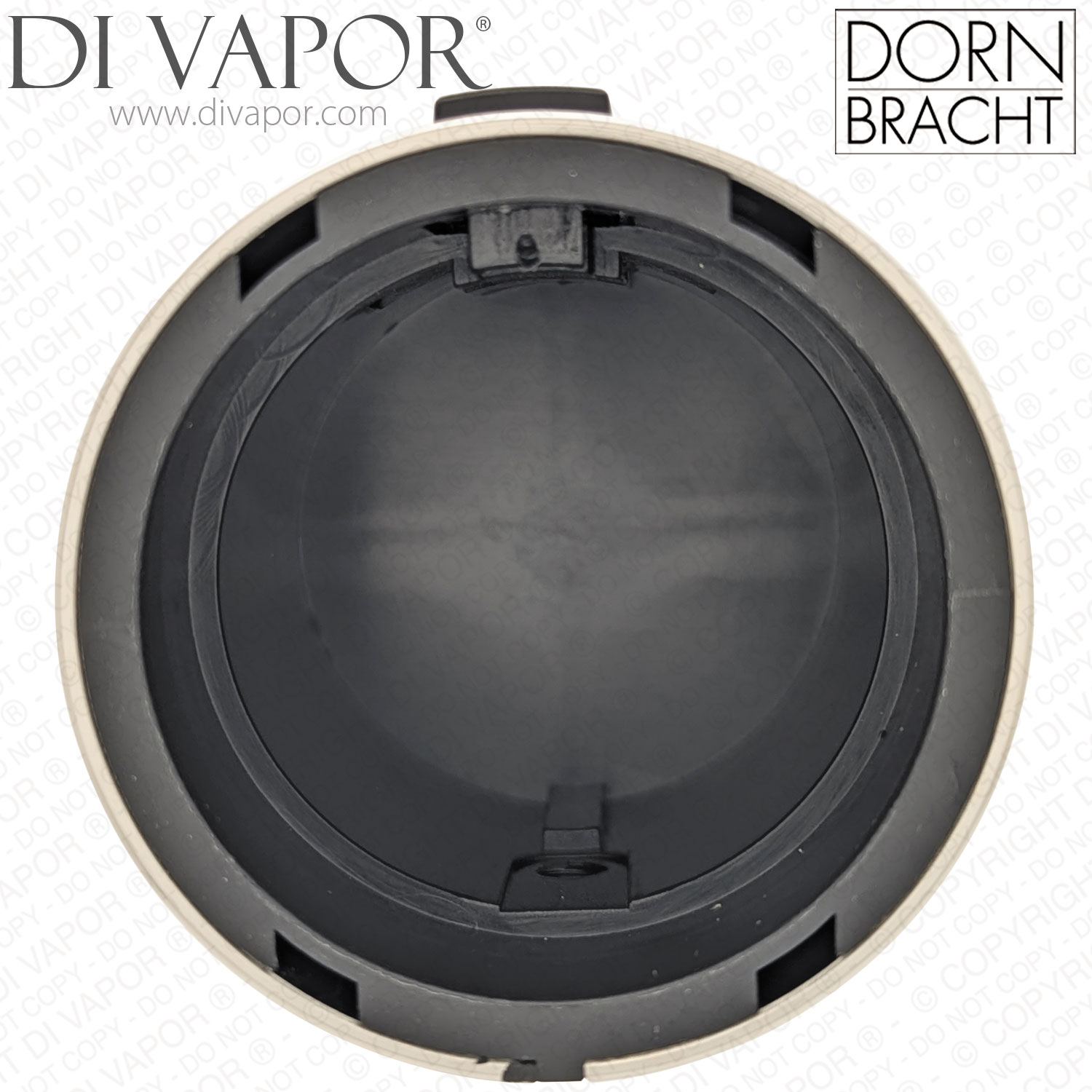

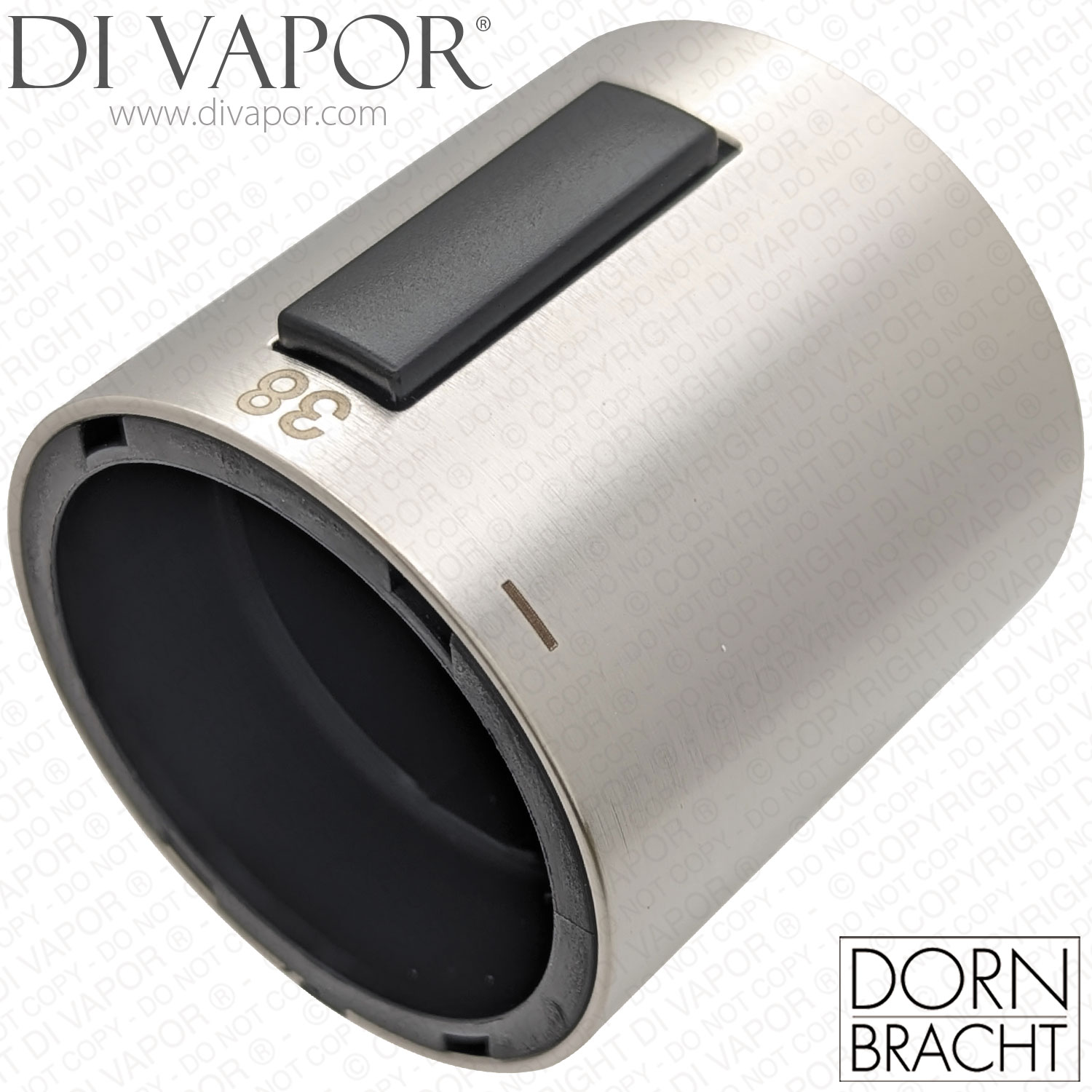

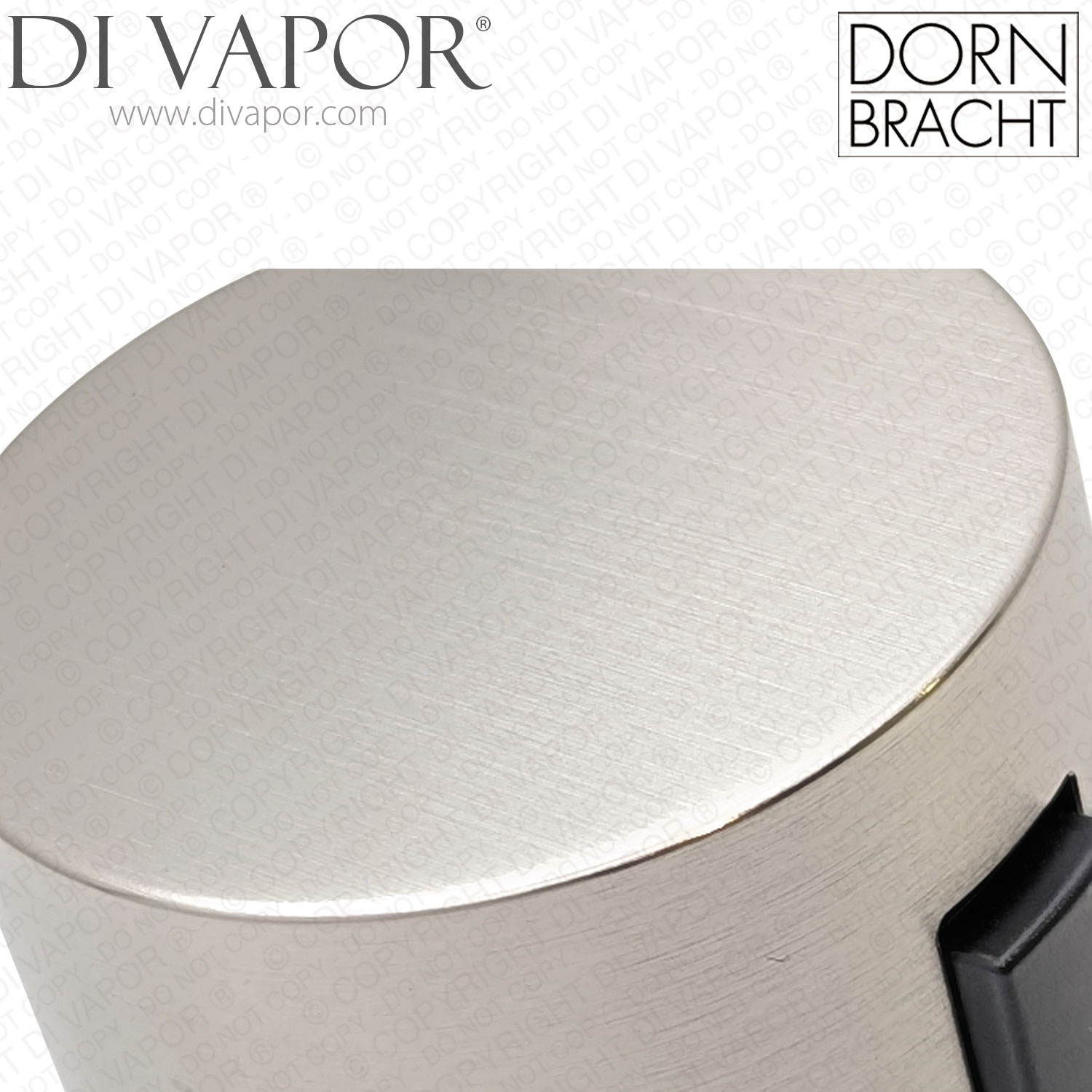

Dornbracht 90173301700-06 Thermostat Handle 48mm Brushed Platinum for Concealed Thermostat Shower Valves

The Dornbracht 90173301700-06 is a 48mm thermostat handle in Brushed Platinum for the temperature-control side of selected Dornbracht concealed thermostat shower valve trim assemblies.

The handle is used on the thermostat control position, separate from the flow cartridge, diverter cartridge, thermostatic cartridge, handle base extension, adapter and brass sleeve used elsewhere in the same concealed valve assembly.

Technical Details

- - Brand: Dornbracht

- - Part Number: 90173301700-06

- - Dornbracht document-format code: 90 17 33 017 00-06

- - Part type: thermostat handle / temperature control handle

- - Finish: Brushed Platinum

- - Size shown: 48mm

- - Spare-parts diagram position: Reference 7 on verified Dornbracht concealed thermostat assemblies

Before You Order the 90173301700-06 Thermostat Handle

- - Check the existing handle code, finish code and valve spare-parts diagram before ordering.

- - Match the finish suffix -06 for Brushed Platinum, as similar Dornbracht handles are available in other finishes.

- - This item is the thermostat handle only and does not include the internal cartridge, adapter, sleeve or volume-control parts.

Confirmed Compatible Dornbracht Shower Valves

- - Dornbracht Series Specific Concealed Thermostat with One Function Volume Control - Brushed Platinum 36 425 970-06

- - Dornbracht Madison Concealed Thermostat with One Function Volume Control - Brushed Platinum 36 425 977-06

- - Dornbracht Lisse Concealed Thermostat with One Function Volume Control - Brushed Platinum 36 425 845-06

- - Dornbracht Series Specific Concealed Thermostat with Two Function Volume Control - Brushed Platinum 36 426 670-06

- - Dornbracht Series Specific Concealed Thermostat with Two Function Volume Control - Brushed Platinum 36 426 970-06

- - Dornbracht Lisse Concealed Thermostat with Two Function Volume Control - Brushed Platinum 36 426 845-06

- - Dornbracht Series Specific Concealed Thermostat with Three Function Volume Control - Brushed Platinum 36 427 670-06

- - Dornbracht Madison Concealed Thermostat with Three Function Volume Control - Brushed Platinum 36 427 977-06

- - Dornbracht Madison Concealed Thermostat with Two Function Volume Control - Brushed Platinum 36 426 977-06

- - Dornbracht TARA Concealed Thermostat with Three Function Volume Control - Brushed Platinum 36 427 970-06

Related Spares You May Need

- - Dornbracht 9090031660090 Cartridge - Compatible Spare

- - DORNBRACHT 9090031630090 Diverter Cartridge - 90.90.03.163.90 Compatible Spare

- - Dornbracht 9090031700090 Diverter Cartridge

- - Dornbracht 09121205290 Handle Base Extension

- - Dornbracht 09121205490 Adapter

- - Dornbracht 09230112490 Thermostatic Cartridge Adapter - D-09230112490

- - Dornbracht 09184007790 Brass Sleeve

- - Dornbracht 9015020130090 Thermostatic Cartridge
