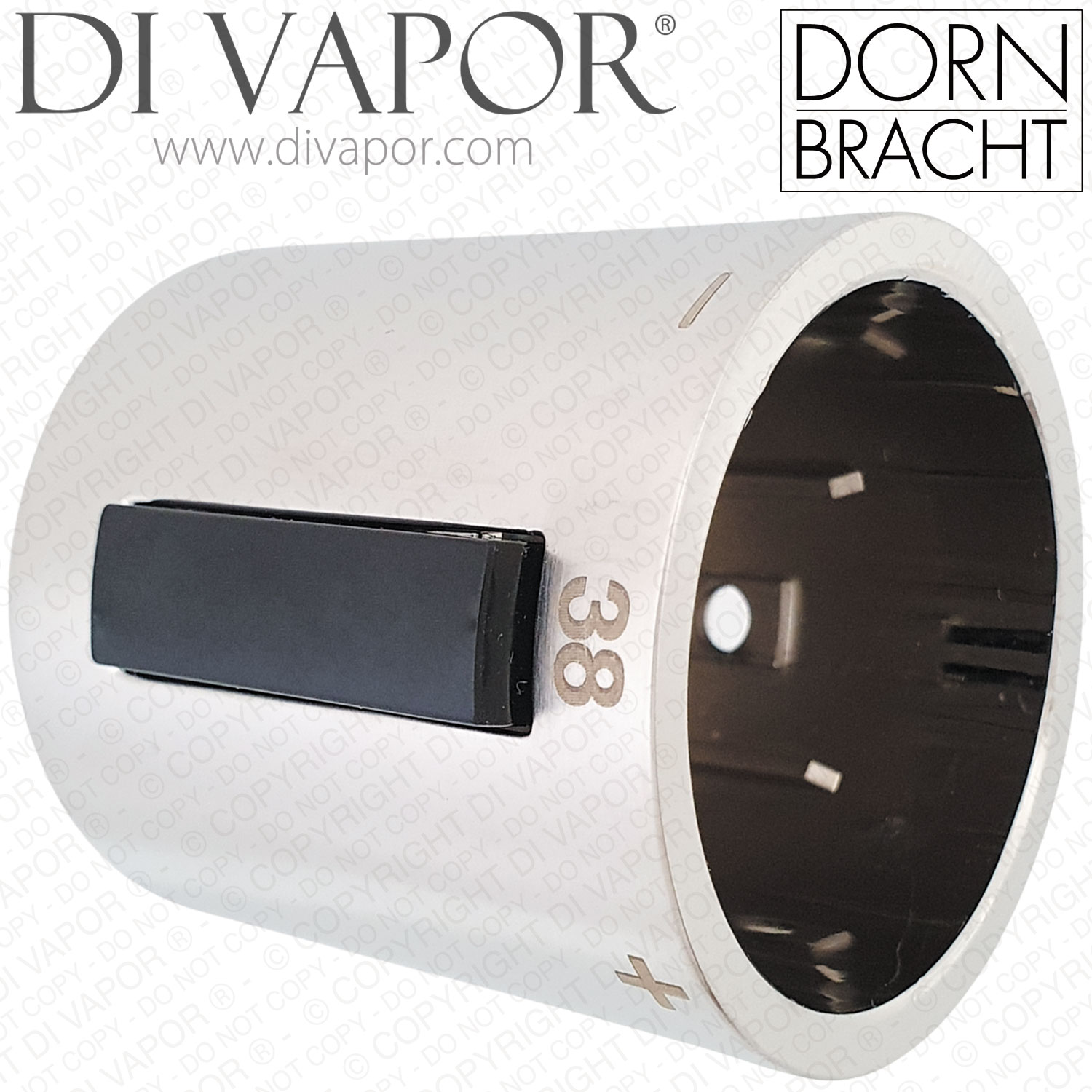

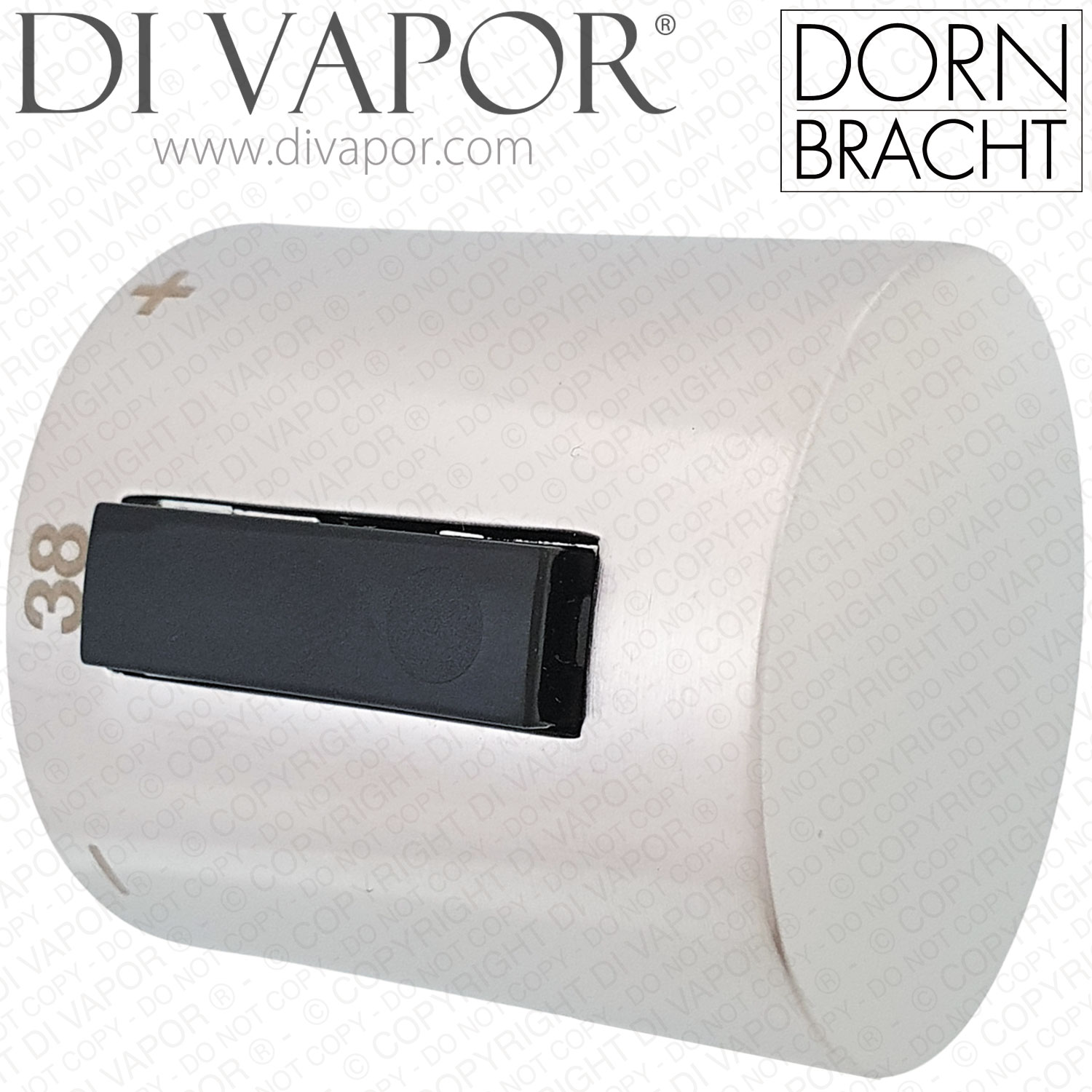

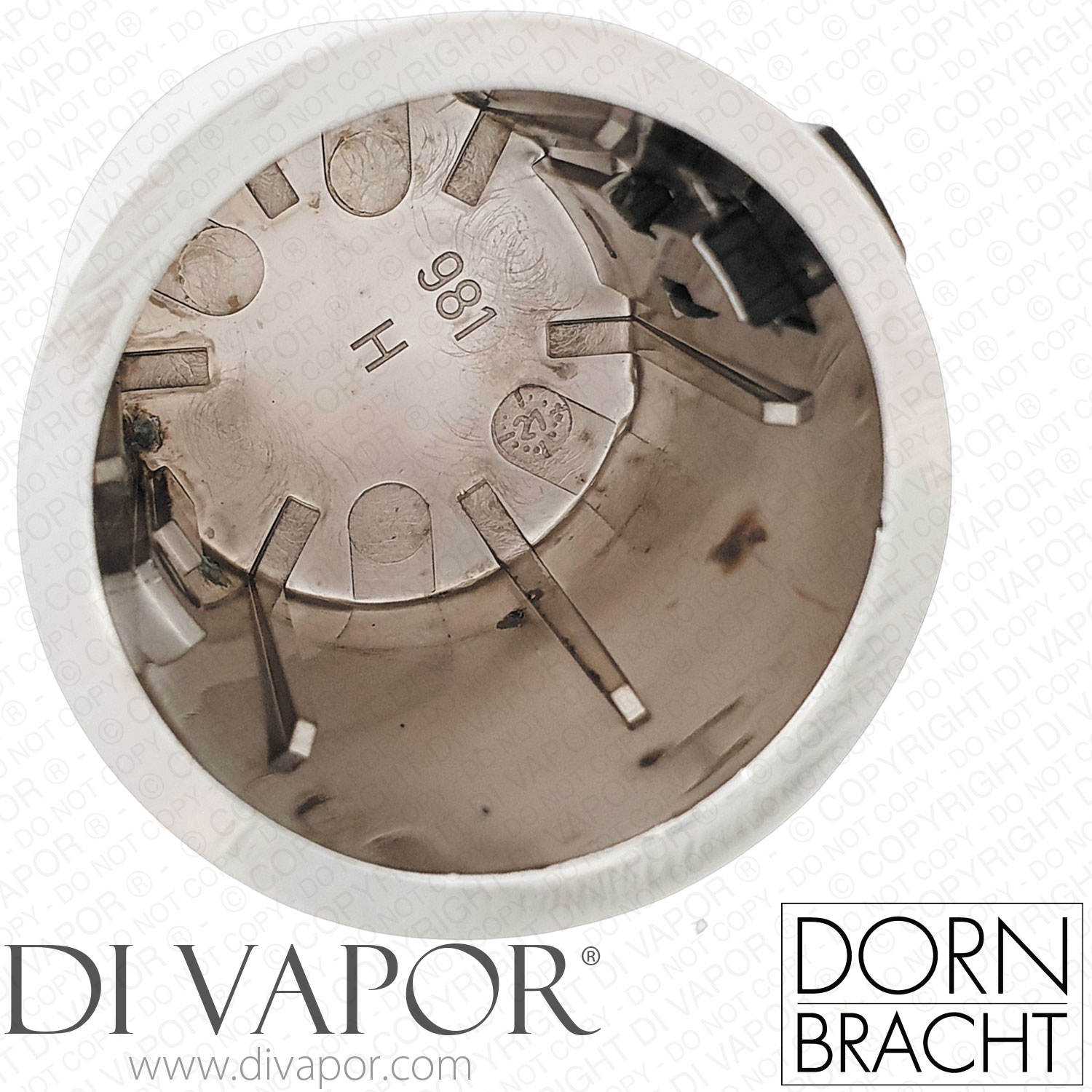

Dornbracht 04173300401-06 Platinum Matte Control Handle (90173300400-06)
Part number: 04173300401-06
Only 1 left in stock.
Price: £264.30
Sale: £169.83
You save: £94.47 (36%)
Price includes UK VAT (Region: UK▼)
In stock
Is this the right part?
Send a photo of your item and we'll help confirm it.
Product description
Summary
Dornbracht 04173300401-06 is a Platinum Matte thermostatic control handle for selected Dornbracht xTOOL concealed shower thermostat trim assemblies. The same handle is also shown in Dornbracht service-code format as 90 17 33 004 00-06 and on the Di Vapor product page as 90173300400-06.
This is the external temperature control handle used on the thermostat side of the valve. It operates the thermostatic control mechanism through the handle and button assembly, while temperature regulation itself is handled by the separate thermostatic cartridge inside the concealed valve.
Technical Details
| Brand | Dornbracht |
|---|---|
| Di Vapor Part Number | 04173300401-06 |
| Additional code shown | 90173300400-06 |
| Dornbracht service-code format | 90 17 33 004 00-06 |
| Part type | thermostatic control handle / temperature control handle |
| Finish | Platinum Matte on Di Vapor / Brushed Platinum in Dornbracht finish terminology |
| Finish suffix | -06 |
| Approximate handle size | 46 x 48 mm |
| Associated button return spring | 9016020270090 / 90 16 02 027 00 90 where shown in the spare parts list |
Before You Order
- Check that the removed handle or the spare parts diagram for your valve calls for 04173300401-06, 90173300400-06 or 90 17 33 004 00-06.
- Do not order by size alone because similar Dornbracht thermostat handles can use different service codes and finishes.
- If the handle turns but temperature control remains unstable, also check the thermostatic cartridge for your exact concealed thermostat assembly.
Confirmed Compatible Models
- Dornbracht Lulu xTool Concealed Thermostat without Volume Control 3/4 - Brushed Platinum 36 503 710-06
- Dornbracht Series Specific xTool Concealed Thermostat without Volume Control 1/2 - Brushed Platinum 36 501 780-06
- Dornbracht Series Specific xTool Concealed Thermostat without Volume Control 3/4 - Brushed Platinum 36 503 780-06
- Dornbracht TARA xTOOL Concealed Thermostat without Volume Control 1/2 - Brushed Platinum 36 501 979-06
- Dornbracht TARA xTOOL Concealed Thermostat without Volume Control 3/4 - Brushed Platinum 36 503 979-06
Related Spares You May Need
- Dornbracht 0415020650090 Thermostatic Cartridge 3/4 inch with Calibration
- Dornbracht 9015020630090 Thermostatic Cartridge
- Dornbracht 9015020650090 XTool Thermostatic Cartridge and Temperature Handle Assembly Villeroy & Boch
- Dornbracht 9016020270090 Spring for Thermostatic Handle Button
- Dornbracht 1217897090 Extension 46mm
- DORNBRACHT 9090031630090 Diverter Cartridge - 90.90.03.163.90 Compatible Spare
- Dornbracht 9090031660090 Cartridge - Compatible Spare
- Dornbracht 09121205290 Handle Base Extension
- Dornbracht 09121205490 Adapter
- Dornbracht 09230112490 Thermostatic Cartridge Adapter - D-09230112490
- Dornbracht 09184007790 Brass Sleeve
- Dornbracht 9015020130090 Thermostatic Cartridge
