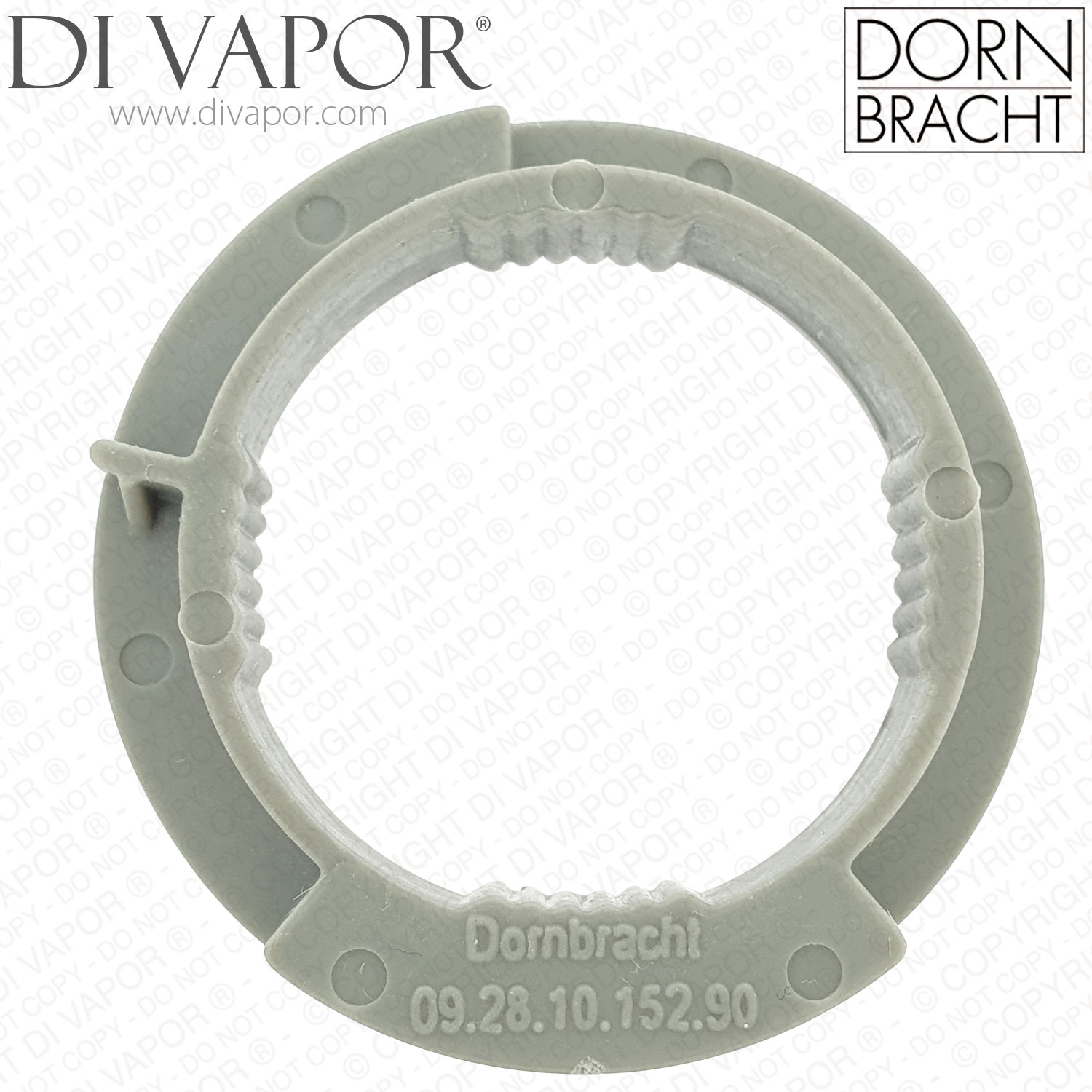

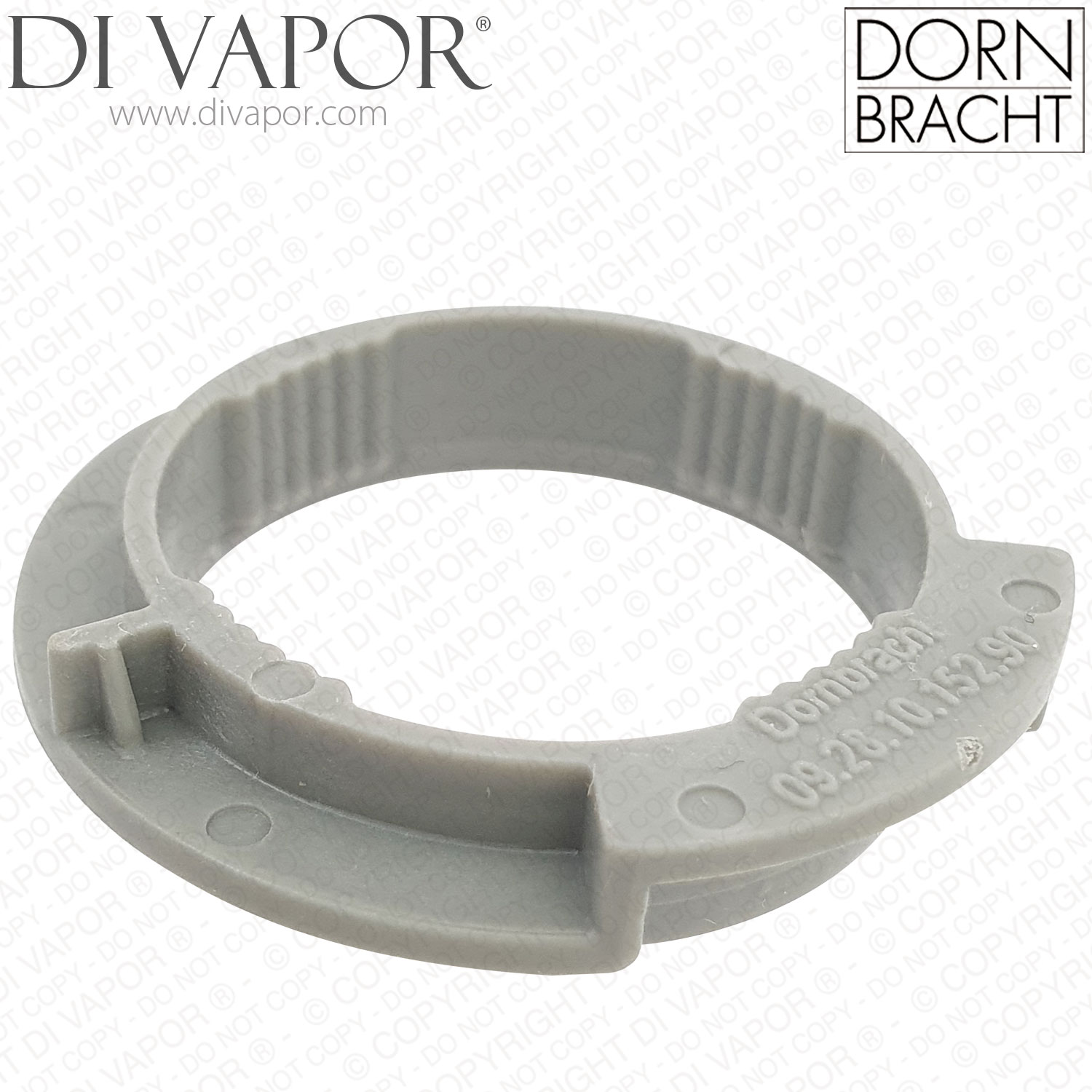

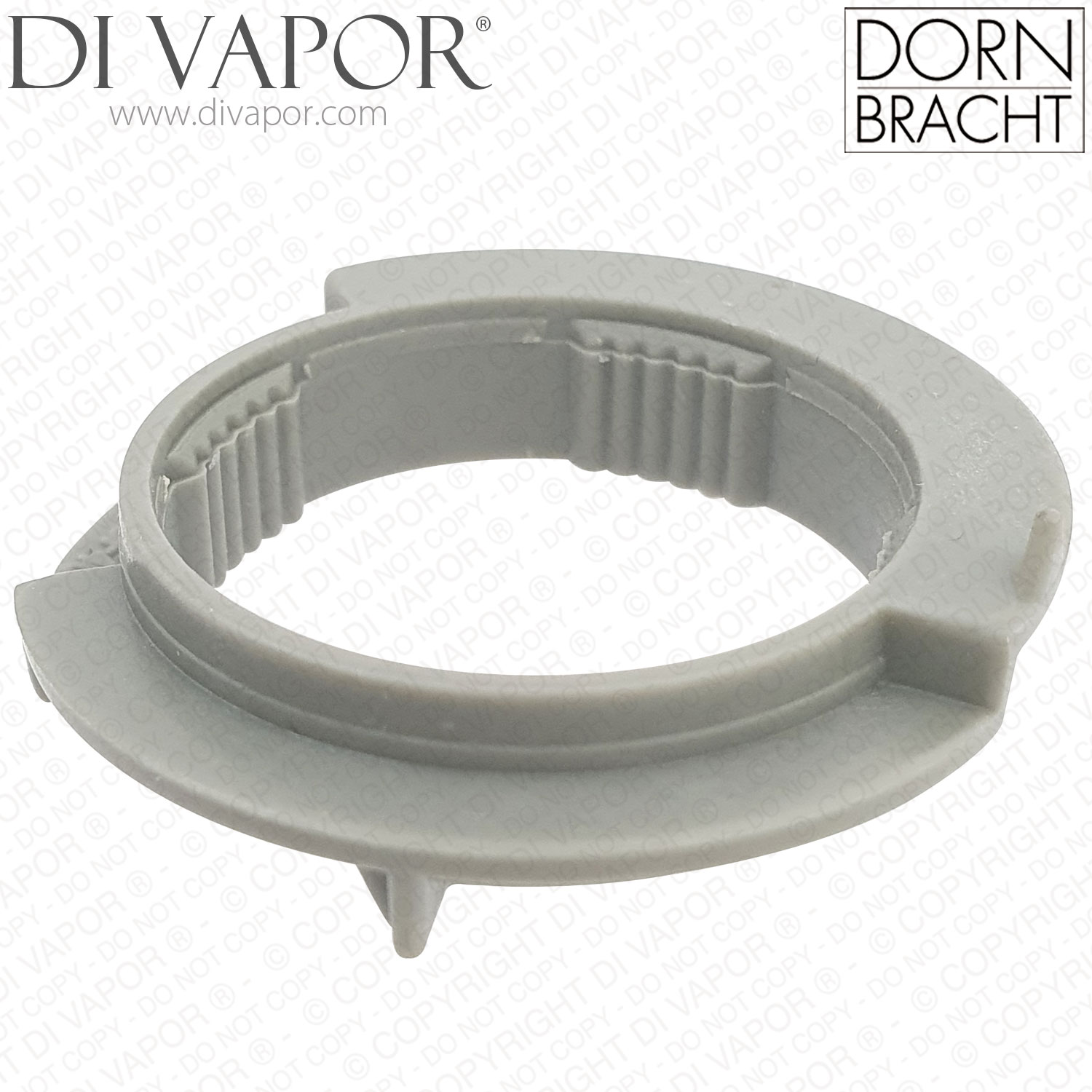

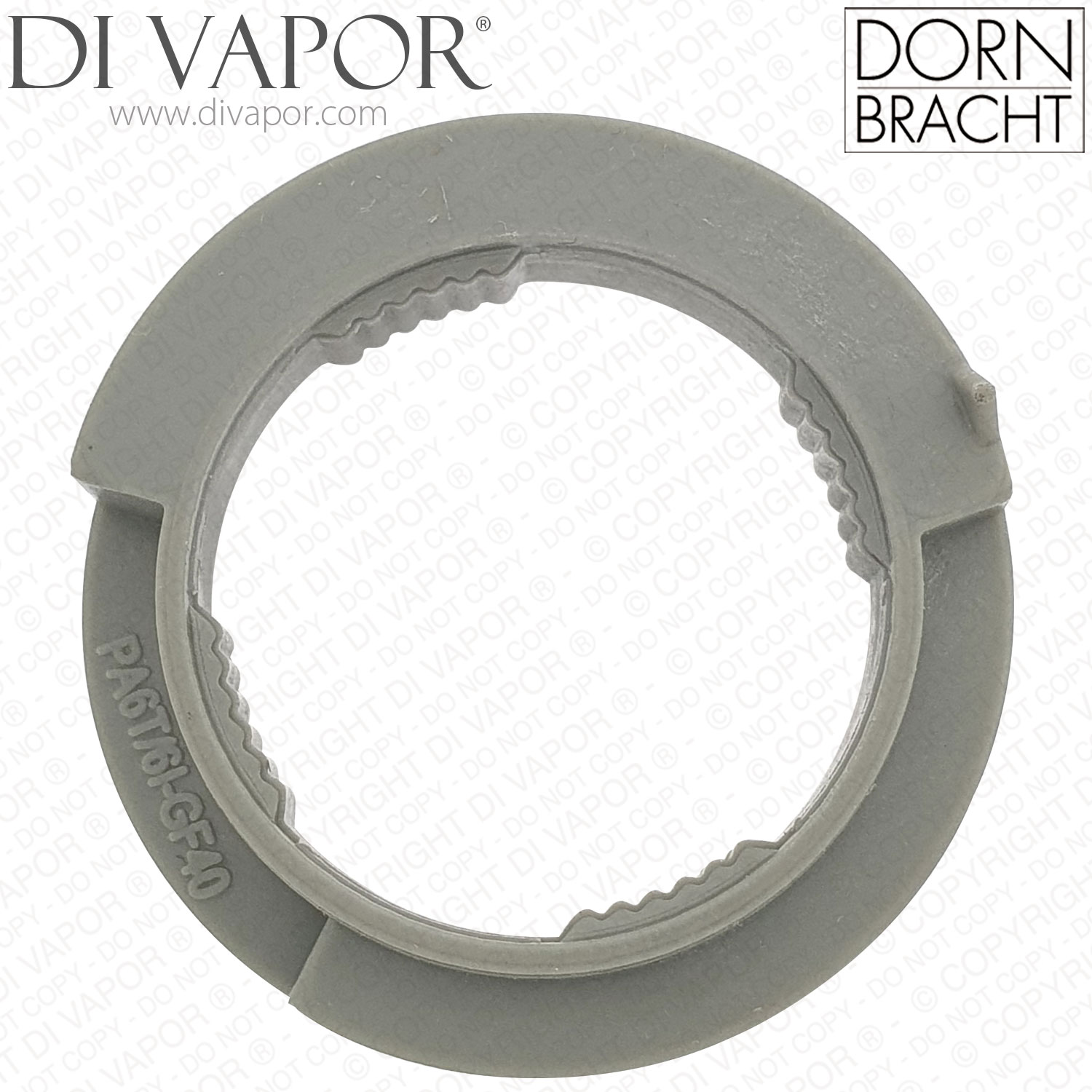

Dornbracht 09281015290 Regulator Stop Ring
Part number: D-09281015290
Only 2 left in stock.
Price: £6.89
Price includes UK VAT (Region: UK▼)
In stock
Is this the right part?
Send a photo of your item and we'll help confirm it.
Product description
Summary
Dornbracht 09281015290 is a regulator stop ring for selected Dornbracht concealed thermostatic shower valve assemblies. It is used in the temperature control section of the valve and is also shown in Dornbracht documentation in the spaced format 09 28 10 152 90.
This regulator stop ring is associated with the maximum temperature setting in the thermostatic control assembly. Dornbracht documentation identifies 09 28 10 152 90 for the 47°C / 117°F setting, while 09 28 10 151 90 is the separate lower-temperature 42°C / 108°F regulator and should not be treated as the same part.
Technical Details
| Brand | Dornbracht |
|---|---|
| Part code | 09281015290 |
| Dornbracht document format | 09 28 10 152 90 |
| Part type | regulator stop ring / temperature-limit regulator insert |
| Application | concealed thermostatic shower valve temperature control assembly |
| Temperature reference | max. 47°C / 117°F |
| Separate lower-temperature regulator | 09 28 10 151 90 for max. 42°C / 108°F |
Confirmed Compatible Models
- Dornbracht Series Specific Concealed Thermostat with One-Way Volume Control - Chrome 36 425 670-000010
- Dornbracht Lulu Concealed Thermostat with One-Way Volume Control - Chrome 36 425 710-000010
- Dornbracht 36 425 720-FF 0010 concealed thermostat with one function volume control
- Dornbracht Liss Concealed Thermostat with One Function Volume Control - Brushed Platinum 36 425 845-06
- Dornbracht 36 425 845-FF 0010 concealed thermostat with one function volume control
- Dornbracht 36 425 970-FF 0010 concealed thermostat with one function volume control
- Dornbracht Series Specific Concealed Thermostat with One Function Volume Control - Brushed Platinum 36 425 970-06
- Dornbracht 36 425 977-FF 0010 concealed thermostat with one function volume control
- Dornbracht 36 426 670-FF 0010 concealed thermostat with two function volume control
- Dornbracht Series Specific Concealed Thermostat with Two Function Volume Control - Brushed Dark Platinum 36 426 670-99
- Dornbracht 36 426 710-FF 0010 concealed thermostat with two function volume control
- Dornbracht Lulu Concealed Thermostat with Two-Way Volume Control - Chrome 36 426 710-000010
- Dornbracht 36 426 720-FF 0010 concealed thermostat with two function volume control
- Dornbracht 36 426 845-FF 0010 concealed thermostat with two function volume control
- Dornbracht 36 426 970-FF 0010 concealed thermostat with two function volume control
- Dornbracht Series Specific Concealed Thermostat with Two Function Volume Control - Matte Black 36 426 970-33
- Dornbracht 36 426 977-FF 0010 concealed thermostat with two function volume control
- Dornbracht CL.1 Concealed Thermostat with Three-Way Volume Control 36 428 670-00 0010 Old Version
- Dornbracht LULU Concealed Thermostat with Three-Way Volume Control 36 428 710-00 0010 Old Version
- Dornbracht Lissé Concealed Thermostat with Three-Way Volume Control 36 428 845-00 0010 Older Version and 36 428 845-06 0010
- Dornbracht Meta Concealed Thermostat with Three-Way Volume Control 36 428 970-00 0010 Old Version and 36 428 970-99 0010
- Dornbracht Madison Concealed Thermostat with Three-Way Volume Control 36 428 977-00 0010
- Dornbracht Madison Concealed Thermostat with Three-Way Volume Control 36 428 977-06 0010
- Dornbracht Madison Concealed Thermostat with Three-Way Volume Control 36 428 977-08 0010
- Dornbracht Madison Concealed Thermostat with Three-Way Volume Control 36 428 977-09 0010
- Dornbracht Madison Concealed Thermostat with Three-Way Volume Control 36 428 977-28 0010
- Dornbracht Madison Concealed Thermostat with Three-Way Volume Control 36 428 977-99 0010
