DORNBRACHT 9090031630090 Diverter Cartridge - 90.90.03.163.90 Compatible Spare
Send a photo of your item and we'll help confirm it.
Summary

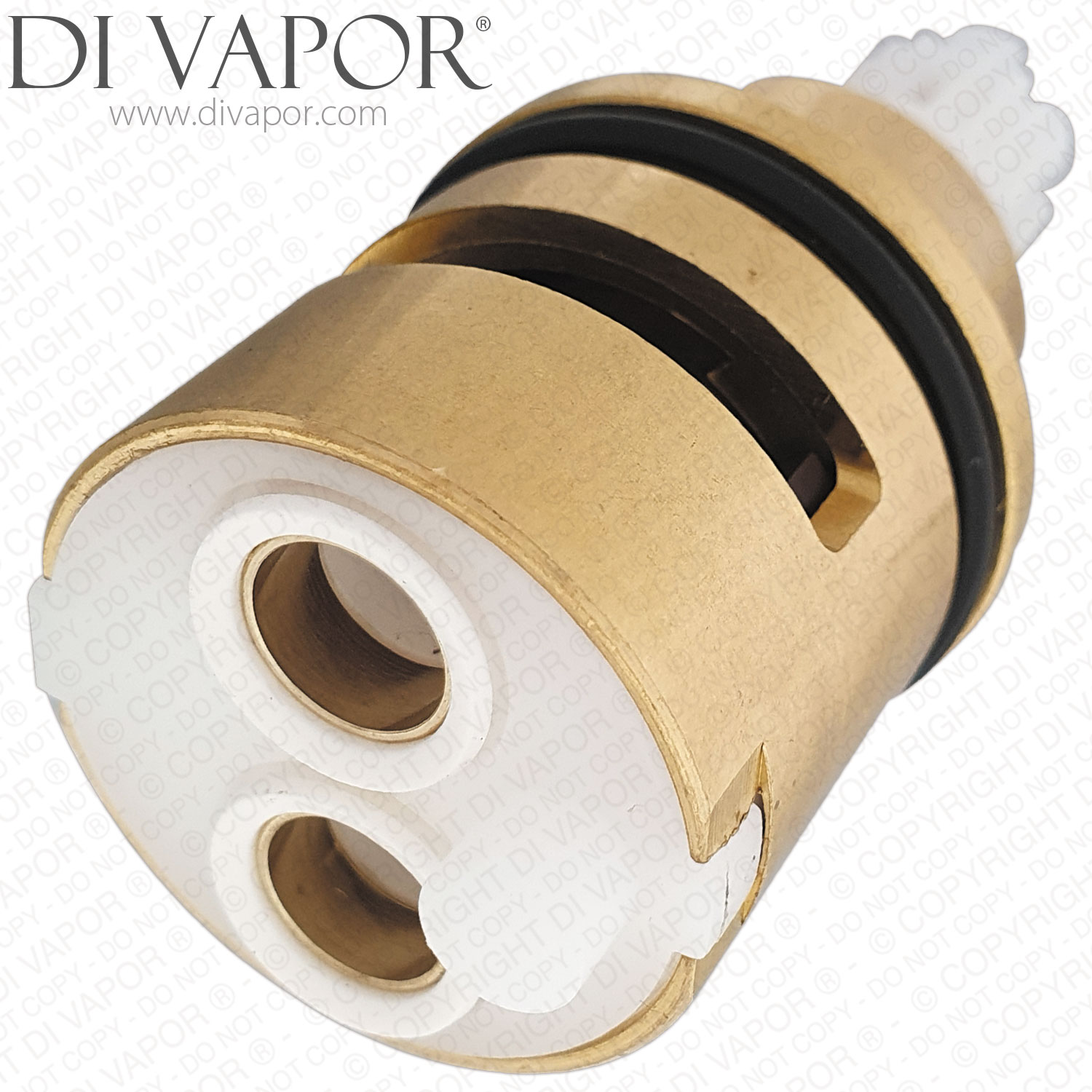

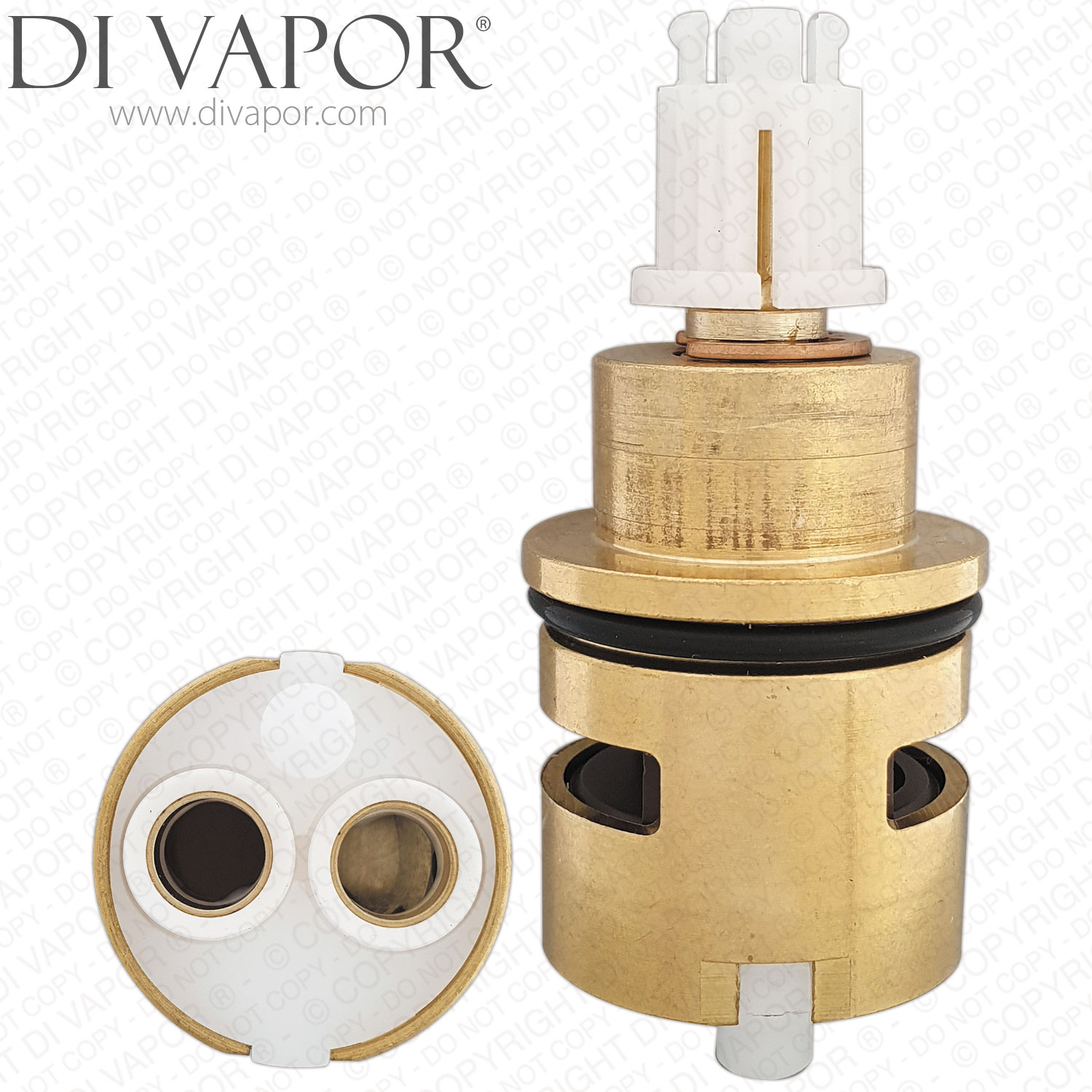

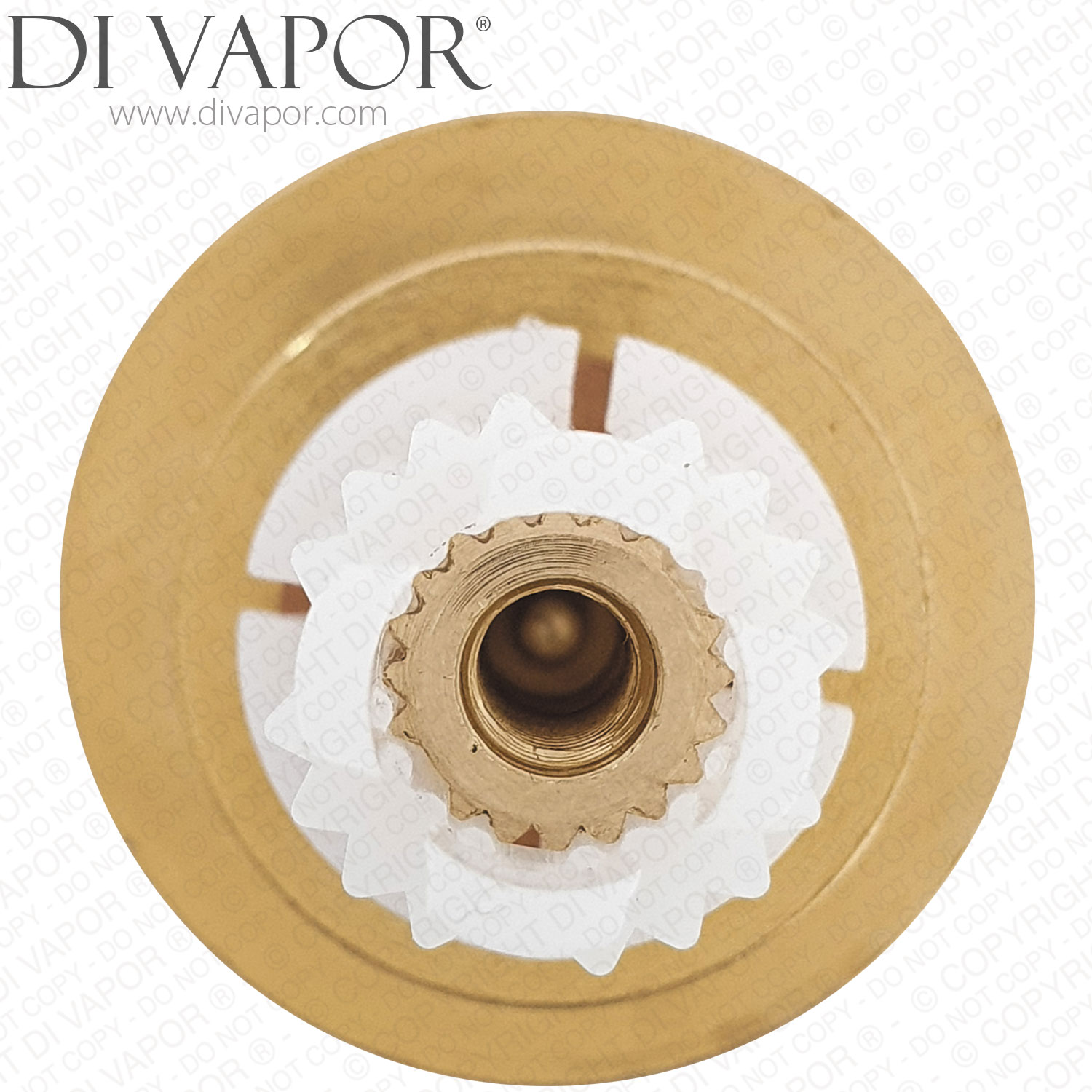

Dornbracht 9090031630090 is a diverter cartridge compatible spare for selected Dornbracht concealed thermostatic shower valves with two-way or two-function volume control. It is used to control outlet selection within the valve assembly and should not be confused with the separate thermostatic cartridge, handle base extension, brass sleeve or cartridge adapter used elsewhere in the same valve.
This spare is also shown as 90.90.03.163.90 and 90 90 03 163 00 90 in Dornbracht-style spare parts information. A common sign of diverter cartridge wear is water passing to the wrong outlet, poor outlet switching, or dripping from a shower head or spout when the shower is turned off or when that outlet should not be selected.
Technical Details
| Brand | Dornbracht |
|---|---|
| Main part code | 9090031630090 |
| Also referenced as | 90.90.03.163.90 |
| Manufacturer code | 90 90 03 163 00 90 |
| Part type | diverter cartridge |
| Application | selected concealed thermostatic shower valves with two-way or two-function volume control |
| Function | selects or diverts flow between the valve outlets |
Before You Order
- Check that the existing spare parts diagram or removed cartridge shows 9090031630090, 90.90.03.163.90 or 90 90 03 163 00 90.
- Check whether your valve is a two-function or three-function version because similar Dornbracht concealed thermostats can use different diverter cartridges.
- This item is the diverter cartridge and not the thermostatic temperature-control cartridge.
Confirmed Compatible Models
- Dornbracht Lulu Concealed Thermostat with Two-Way Volume Control - Chrome 36 426 710-000010 Spare Parts
- Dornbracht Lulu Concealed Thermostat with Two Function Volume Control - Brushed Platinum 36 426 710-06 Spare Parts
- Dornbracht Lisse Concealed Thermostat with Two Function Volume Control - Brushed Platinum 36 426 845-06 Spare Parts
- Dornbracht Lisse Concealed Thermostat with Two-Way Volume Control 36 426 845-000010
- Dornbracht Tara Concealed Thermostat with Two Function Volume Control - Platinum 36 426 892-08 Spare Parts
- Dornbracht Tara Concealed Thermostat with Two Function Volume Control - Matte Black 36 426 892-33 Spare Parts
- Dornbracht Tara Concealed Thermostat with Two Function Volume Control - Brushed Dark Platinum 36 426 892-99 Spare Parts
- Dornbracht Series Specific Concealed Thermostat with Two Function Volume Control - Brushed Platinum 36 426 670-06 Spare Parts
- Dornbracht Series Specific Concealed Thermostat with Two Function Volume Control - Matte Black 36 426 670-33 Spare Parts
- Dornbracht Series Specific Concealed Thermostat with Two Function Volume Control - Brushed Dark Platinum 36 426 670-99 Spare Parts
- Dornbracht Series Specific Concealed Thermostat with Two Function Volume Control - Brushed Platinum 36 426 970-06 Spare Parts
- Dornbracht Series Specific Concealed Thermostat with Two Function Volume Control - Matte Black 36 426 970-33 Spare Parts
- Dornbracht Series Specific Concealed Thermostat with Two Function Volume Control - Brushed Dark Platinum 36 426 970-99 Spare Parts
Related Spares You May Need
- TACSIL 3g Premium Cartridge Silicone Grease - WRAS Approved
- Dornbracht 9015020130090 Thermostatic Cartridge
- Dornbracht 0415020120090 Cartridge (Villeroy & Boch Cult Valve)
- Dornbracht 092067006-00 Flow Control Handle
- Dornbracht 09121205290 Handle Base Extension
- Dornbracht 09230112490 Thermostatic Cartridge Adapter - D-09230112490
- Dornbracht 09184007790 Brass Sleeve
Check the removed cartridge, valve reference and outlet count before ordering. If the spare parts diagram is missing or the valve body differs from the listed models, use the Di Vapor Find a Spare Part service before purchase.
