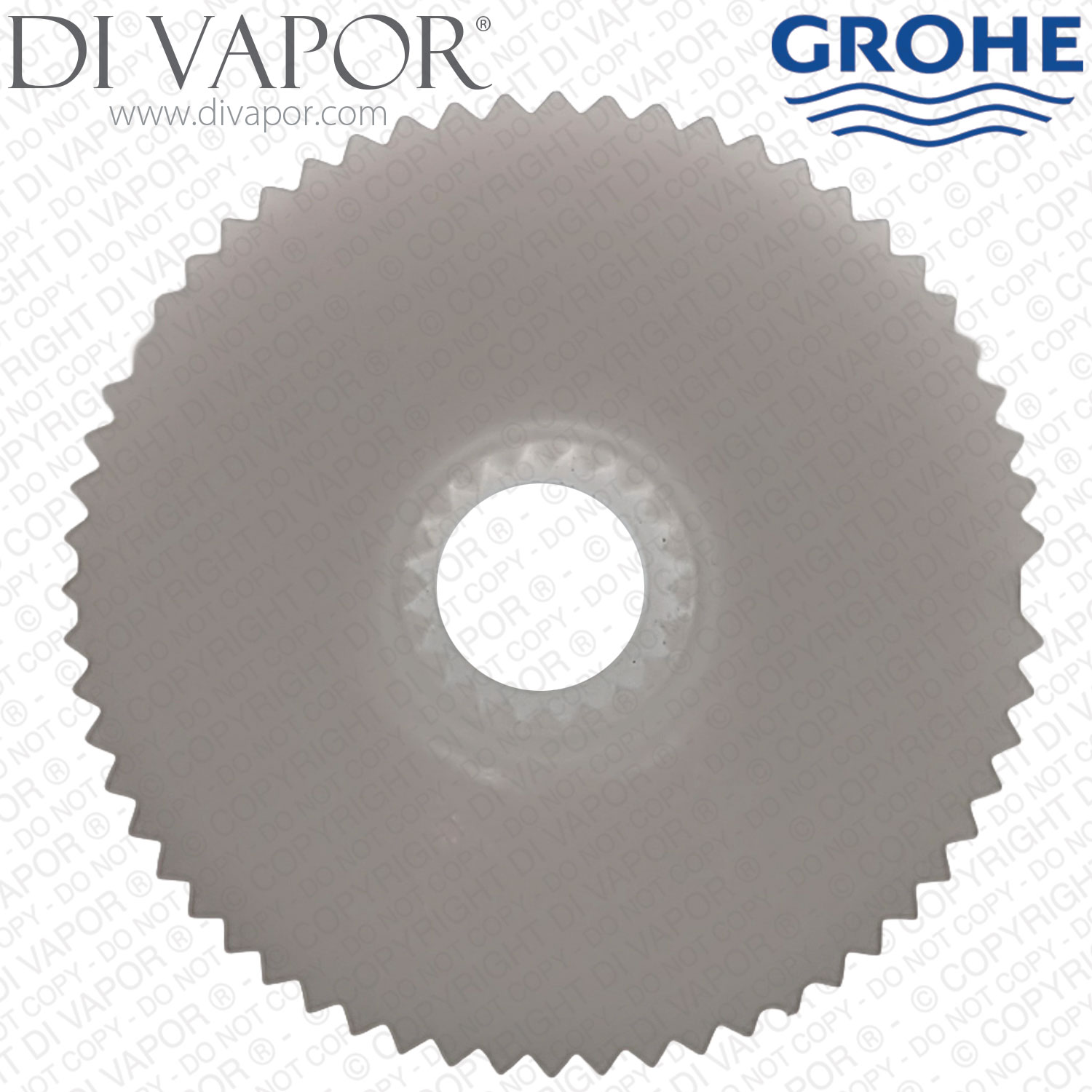

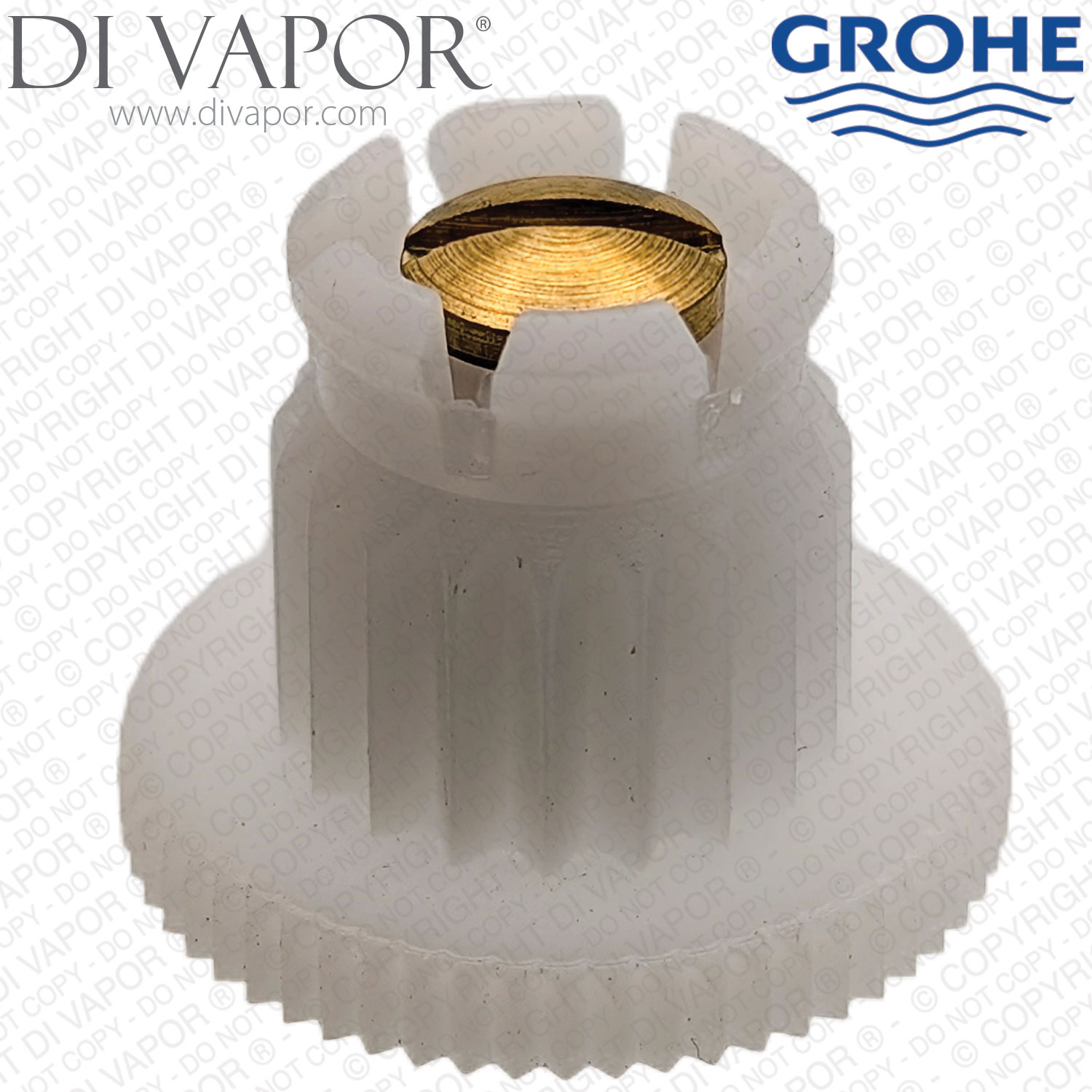

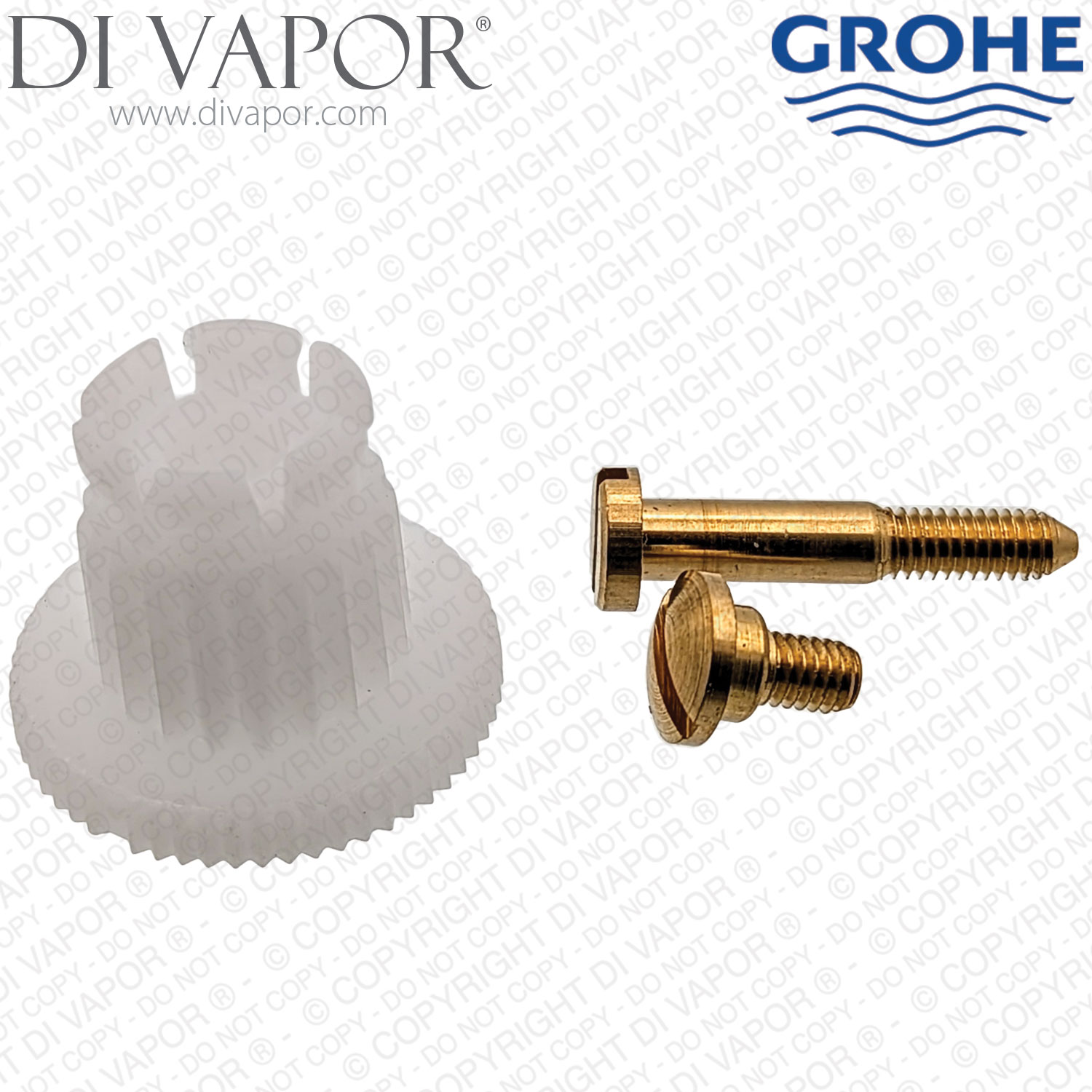

Grohe 45186000 Fixing Set For Facetta Handles

SUMMARY

GROHE 45186000 Handle Fixing Connection Set for Taps and Shower Controls

GROHE 45186000 is a handle fixing and connection set used beneath selected GROHE operating handles in taps, bath and shower mixers, thermostatic controls, volume controls and diverter assemblies. It provides the mechanical connection between the operating handle and the control mechanism.

The same 45186000 fixing set is used across several GROHE handle families, so the exact parent product and spare-parts arrangement should be checked rather than identifying the part from handle appearance alone.

Technical Details

- - GROHE code: 45186000

- - Part type: handle fixing and connection set

- - Finish description: chrome

- - Direct associated seal: 0392400M O-ring measuring 18.2 x 1.7 mm

Before Ordering

Check the exact GROHE model or spare-parts arrangement for 45186000 before ordering. The same fixing code appears beneath several different handle designs and across different tap and shower control types.

Confirmed Models Using 45186000

- - GROHE 34334000 Grohtherm Auto 1000 Bar Mixer Shower

- - GROHE 34336000 Grohtherm 1000 Thermostatic Bath Mixer

- - GROHE 34624000 Grohtherm 1000 Thermostatic Shower

- - GROHE 34646000 Grohtherm 1000 Thermostatic Shower Mixer

- - GROHE 19384000 Allure Concealed Valve Exposed Part

- - GROHE 19385000 Allure Volume Control Trim

- - GROHE 19590000 Allure 5 Way Diverter

- - GROHE 19591000 Allure 5 Way Diverter

- - GROHE 27623000 Grohtherm F Single Volume Control Shower Valve

- - GROHE 27625000 Grohtherm F Triple Volume Control Trim

- - GROHE 19910000 Eurocube Volume Control Trim

- - GROHE 19903000 Sentosa 3-Port Single-Handle Diverter Valve Trim Kit with Round Handle

- - GROHE 19905000

- - GROHE 25097000 Allure 5-Hole Bath/Shower Combination

- - GROHE 2019100A Allure Three-Hole Basin Mixer 1/2 Inch M-Size

- - GROHE 2110800A

- - GROHE 21108EN0

- - GROHE 24667000 Talia Three-Hole Bidet Mixer

- - GROHE 20188000 Allure 3-Hole Basin Mixer 1/2 Inch M-Size

- - GROHE 20189000 Allure 3-Hole Basin Mixer 1/2 Inch S-Size

- - GROHE 20193000 Allure Three-Hole Basin Mixer 1/2 Inch M-Size

- - GROHE 21107IG0 Grandera Two-Handle Basin Mixer 1/2 Inch L-Size

- - GROHE 19909000 Chiara 5-Way Diverter

- - GROHE 25133002 Europlus Two-Handled Bath/Shower Mixer 1/2 Inch

- - GROHE 25102000 Concetto Two-Handle Bath Filler

- - GROHE 25109000 Concetto Two-Handled Bath Shower Mixer

- - GROHE 25104000 Lineare Two-Handled Bath Filler

- - GROHE 25113000

- - GROHE 25174000 Wave Cosmopolitan Bathroom Set

- - GROHE 25128000 Eurosmart Cosmopolitan Two-Handle Bath Filler 1/2 Inch

- - GROHE 32207001 Concetto Pillar Tap XS-Size

- - GROHE 25120000

- - GROHE 25107002

- - GROHE 19796AL0

- - GROHE 19798AL0 Allure Brilliant 5-Way Diverter

- - GROHE 20380000 BauMetric Pillar Tap

- - GROHE 20286000

- - GROHE 20239000

- - GROHE 20003000 Sentosa Pillar Tap

- - GROHE 21105000 Sentosa Basin Mixer Tap

- - GROHE 21109000

- - GROHE 26022000

- - GROHE 23051002 Eurodisc Cosmopolitan Pillar Tap XS-Size

- - GROHE 29398DC0 Allure Brilliant Concealed Valve Exposed Part

- - GROHE 29399DC0 Allure Brilliant 5-Way Diverter

- - GROHE 29399AL0 Allure Brilliant 5-Way Diverter

- - GROHE 18934000 Clova Basin Taps

- - GROHE 21781000 Clova Mono Basin Tap

- - GROHE 18693000 Petita Basin Pillar Tap

- - GROHE 20190000 Allure 3-Hole Basin Mixer 1/2 Inch S-Size

- - GROHE 25767000 Clova Bath Shower Mixer 3/4 Inch

- - GROHE 25129000 Eurosmart Cosmopolitan Two-Handled Bath/Shower Mixer 1/2 Inch

- - GROHE 34328000 Grohtherm Auto 1000 Shower

- - GROHE 19657000 Grohtherm Auto 2000 Shower Valve

- - GROHE 25143000 Touch Cosmopolitan Bath/Shower Mixer

- - GROHE 25176000 Feel Bathroom Set

- - GROHE 25177000 Get Bathroom Set

- - GROHE 25173001 Essence Bath/Shower Mixer

- - GROHE 25137000 Eurocube Two-Handled Bath/Shower Mixer

- - GROHE 25167000 Grandera Two-Handled Bath Shower Mixer

- - GROHE 25172001 Essence Bath Filler

- - GROHE 25136000 Eurocube Two-Handle Bath Filler 1/2 Inch

- - GROHE 25132002 Europlus Two-Handle Bath Filler 1/2 Inch

- - GROHE 25175000 Feel Two-Handle Bath Filler 1/2 Inch

- - GROHE 23137000 Eurocube Pillar Tap XS-Size

- - GROHE 23039002 Eurostyle Cosmopolitan Pillar Tap XS-Size

- - GROHE 23498000 Get Pillar Tap XS-Size

- - GROHE 23496000 Wave Cosmopolitan Pillar Taps

- - GROHE 25134000 Get Two-Handle 1/2 Inch Bath Filler

- - GROHE 2042100M BauEdge Basin Pillar Taps

- - GROHE 21107000 Grandera Two-Handle Basin Mixer 1/2 Inch L-Size Chrome

- - GROHE 34 226 Grohmaster Automatic 2000 3/4 Inch Shower

- - GROHE 34 025 Grohmaster Grohtherm 1000 EV Shower

Related Spares You May Need

- - GROHE 0392400M Pack of 10 O-rings - 18.2 x 1.7 mm O-rings used directly with the 45186000 handle connection assembly

- - GROHE 47092000 Grohtherm 1000 Flow Control Handle - used with 45186000 in Grohtherm 1000 handle arrangements

- - GROHE 47187000 Flow Control Knob for Auto 2000 Shower Valves - used with 45186000 in Automatic 2000 handle arrangements
