Grohe 32207001 Concetto Pillar Tap XS-Size Spare Parts
Send a photo of your item and we'll help confirm it.
Summary
Spares for Grohe 32207001 Concetto Pillar Tap XS-Size

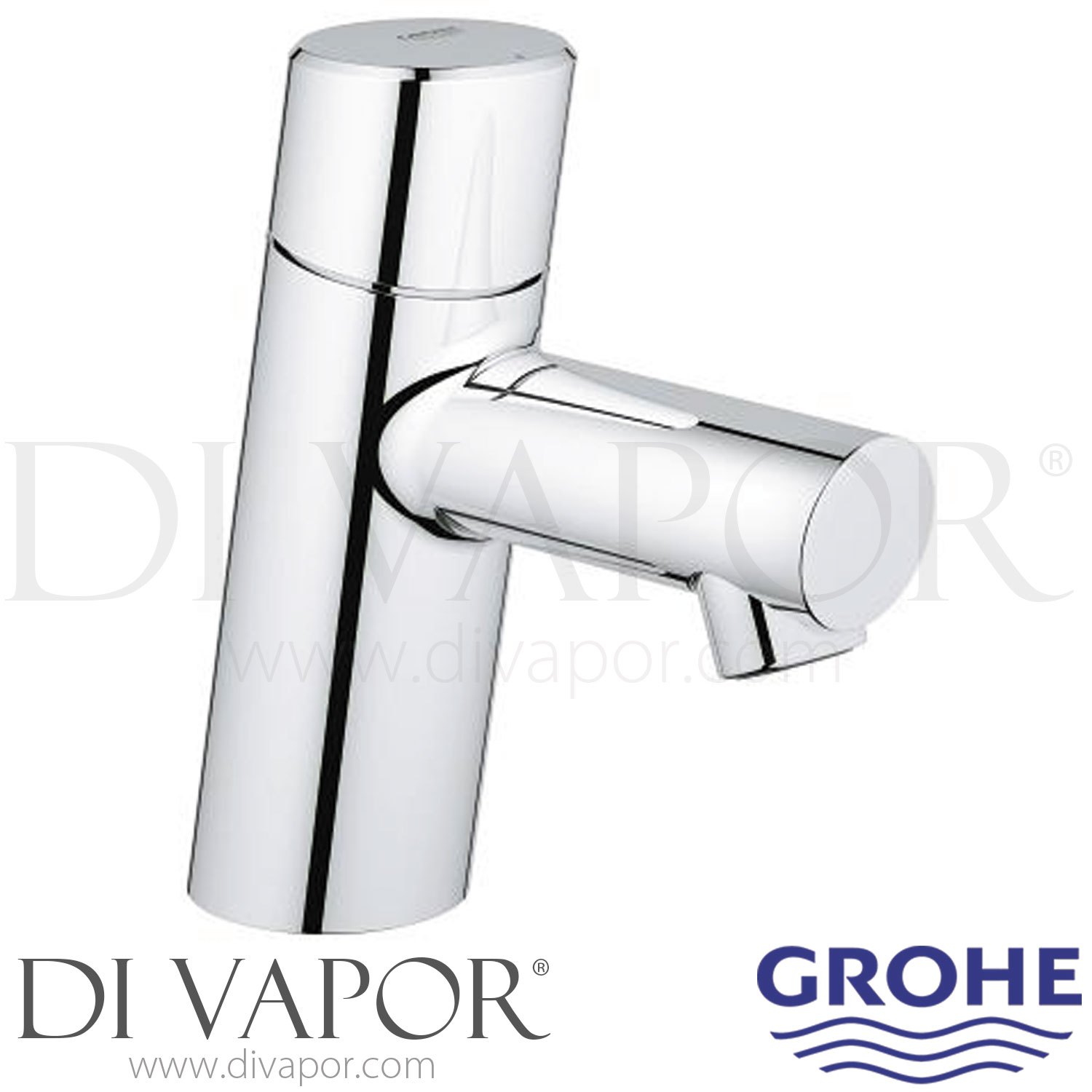

Grohe 32207001 is an XS-Size Concetto basin pillar tap with a compact single-hole design and chrome finish. The tap uses a 1/2 inch 90-degree ceramic headpart to control water flow and is designed with a short 100 mm spout projection for smaller basin installations.

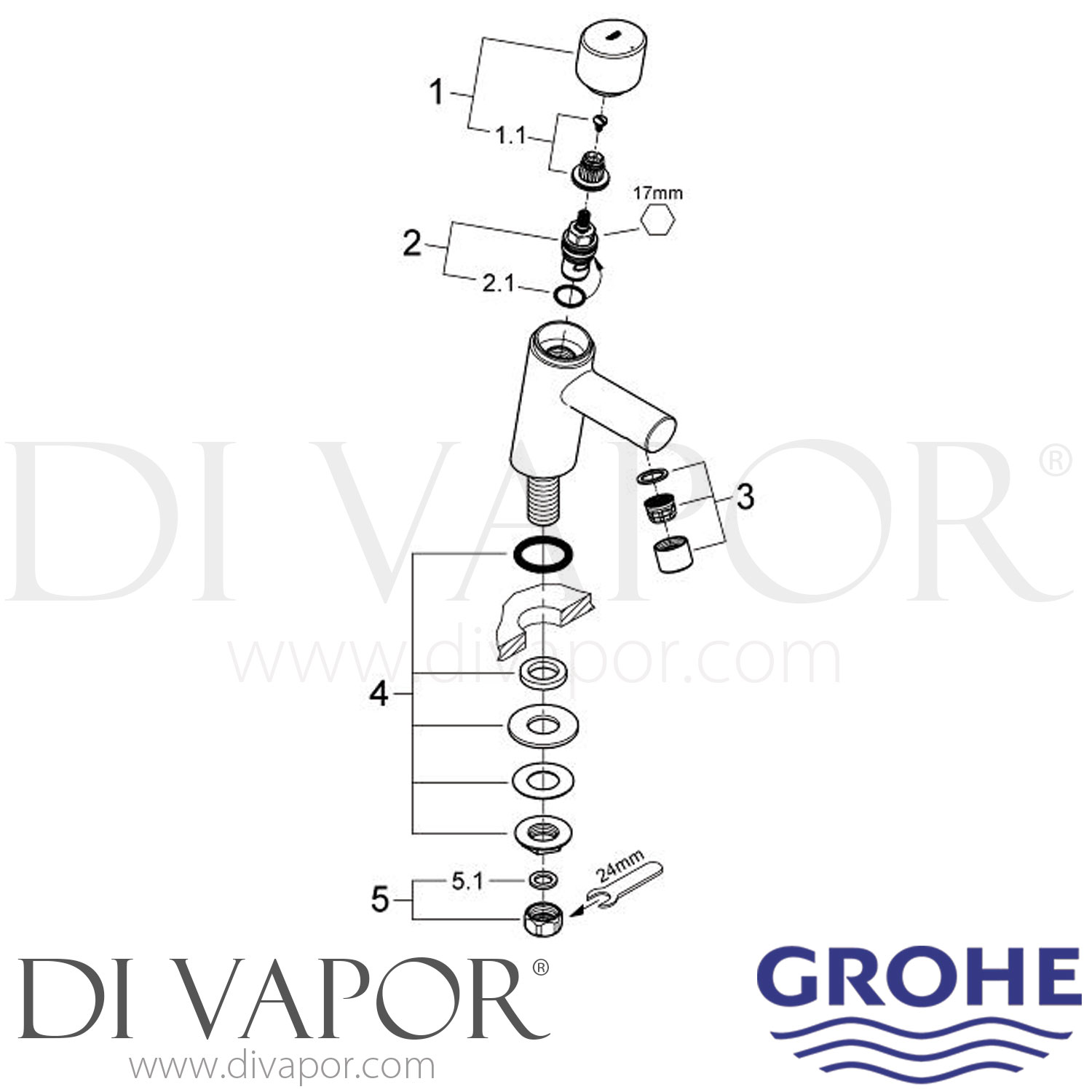

For servicing this Concetto tap, the Grohe spare parts listed below cover the key service components identified for the 32207001 assembly, including the ceramic headpart, handle fixing set and sealing O-rings. If water continues to drip from the spout when the tap is fully closed, wear in the ceramic headpart is one service point to inspect.

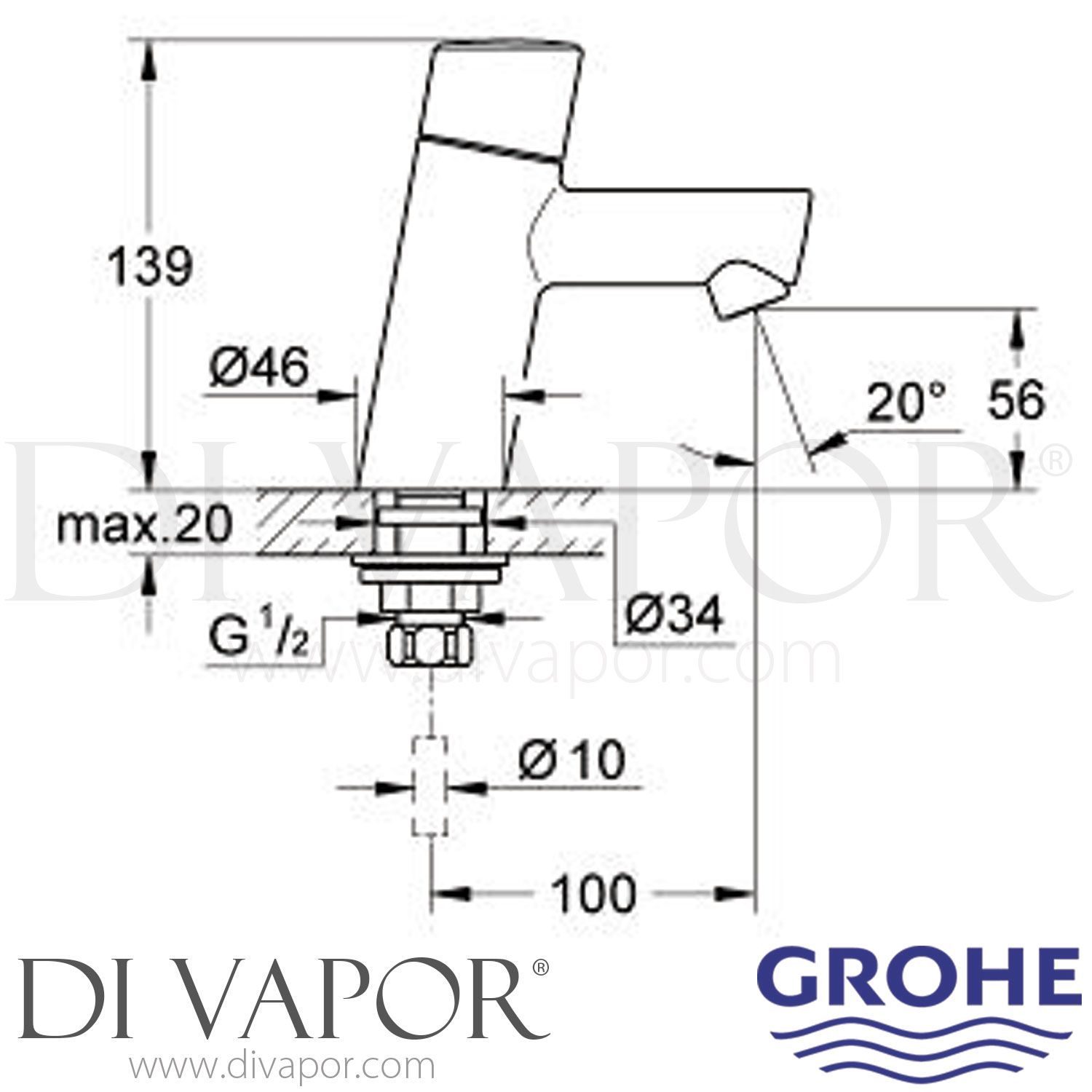

Technical Details
| Brand | Grohe |
|---|---|
| Range | Concetto |
| Category | Basin pillar tap |
| Product code | 32207001 |
| EAN | 4005176888878 |
| Size | XS-Size |
| Installation | Single-hole |
| Finish | Chrome |
| Ceramic headpart | 1/2 inch 90-degree |
| Maximum flow rate | 5 l/min at 3 bar |
| Overall height | 139 mm |
| Spout projection | 100 mm |
| Outlet height | 56 mm |
| Body diameter | 46 mm |
| Mounting shank diameter | 34 mm |
| Maximum mounting surface thickness | 20 mm |
| Water connection | G 1/2 inch |
| Spout outlet angle | 20 degrees |
Before you order check
Confirm that the tap is GROHE model 32207001 and compare the existing headpart, handle connection and sealing components before ordering. This is particularly important where the original control parts have previously been changed during servicing.
GROHE 45882000 1/2 Inch Quarter-Turn Ceramic Tap and Shower Cartridge Anti-Clockwise OpeningThe GROHE 45882000 is a nominal 1/2 inch ceramic headpart cartridge for the flow controls of specified GROHE taps and shower valves. It opens anti-clockwise and closes clockwise through a ...
