Grohe 25128000 Eurosmart Cosmopolitan Two-Handle Bath Filler (1/2 Inch) Spare Parts
Send a photo of your item and we'll help confirm it.
Summary
Spares for Grohe 25128000 Eurosmart Cosmopolitan Two-Handle Bath Filler

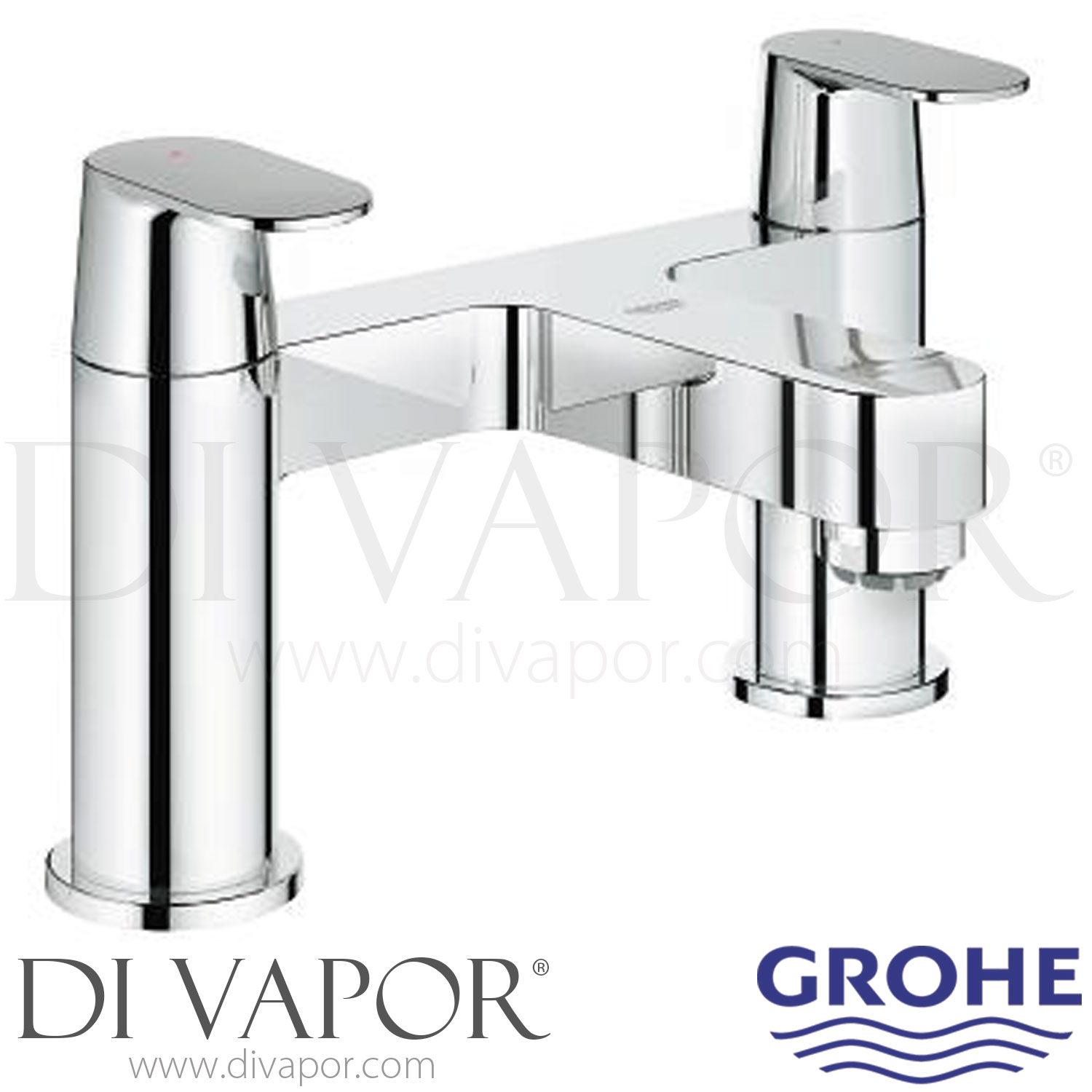

Grohe 25128000 is an Eurosmart Cosmopolitan two-handle deck-mounted bath filler in chrome, with separate controls operating the hot and cold water supplies and a fixed bath spout. This spare-parts page covers service components used within the 25128000 bath filler.

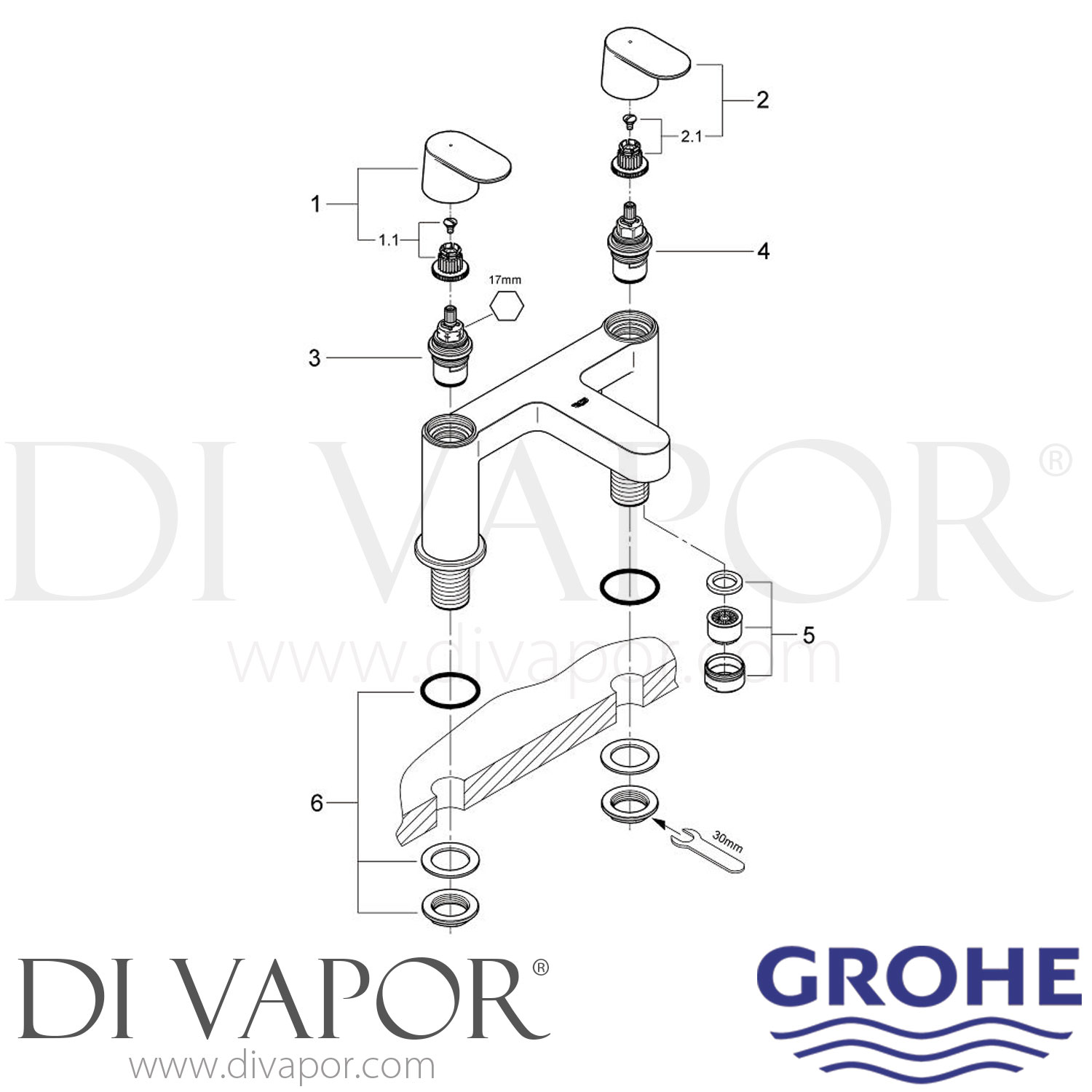

The mixer uses separate ceramic headparts for water flow control. Wear within these ceramic headparts can cause symptoms including water dripping from the bath spout when the tap is turned off, stiff operation or incomplete shut-off. The exploded parts arrangement also identifies separate handle connection components, sealing O-rings and the shank fastening assembly.
Technical Details
| Brand | Grohe |
|---|---|
| Model code | 25128000 |
| Range | Eurosmart Cosmopolitan |
| Category | Bath filler |
| Product type | Two-handle bath filler |
| Installation | Deck mounted |
| Finish | Chrome |
| Controls | Two metal handles |
| Product designation | 1/2 inch |
| Overall height | 141 mm |
| Height from mounting surface to spout outlet | 66 mm |
| Spout projection | 105 mm |
| Tap centres | 180 mm |
| Overall span shown on the technical drawing | 230 mm |
| Maximum mounting surface thickness | 20 mm |
| Deck shank connection shown on the technical drawing | G 3/4 |
- Spare-parts configuration documented from November 2010 onwards
Before You Order Check
The 25128000 uses two different ceramic headpart codes, 45887000 and 45888000. Check the code and operating arrangement of the part being removed before ordering. If servicing the handles or deck mounting, also inspect the connection pieces, O-rings and shank fastening hardware for wear, scale or damage before reassembly.
Product OverviewThe Grohe 45887000 3/4" Quarter Turn Flow On/Off Cartridge (Clockwise Open) is a genuine Grohe replacement cartridge designed for taps and valves that use a 3/4" ceramic disc flow mechanism with a left-hand (anti-clockwise close) quarter turn action. It restores s...
Grohe 45888000 3/4" Inch Quarter Turn Flow On/Off Cartridge (Clockwise Close) Other codes on the cartridge may include: Grohe FDL LF/SI 817008415 The official Grohe website says it is a half turn (180 degree) turn cartridge but it isn't. The cartridge is quarter (90 degree...
Grohe 45163000 3/4 Inch Shank Fastening Set for Bath Tap MountingThe Grohe 45163000 is a 3/4 inch shank fastening set for selected Grohe bath tap and bath/shower mixer assemblies. It is used where the Grohe parts diagram specifies 45163000 for the shank fastening or mounting conn...
