Grohe 23051002 Eurodisc Cosmopolitan Pillar Tap XS-Size Spare Parts

SUMMARY

Spares for Grohe 23051002 Eurodisc Cosmopolitan Pillar Tap XS-Size

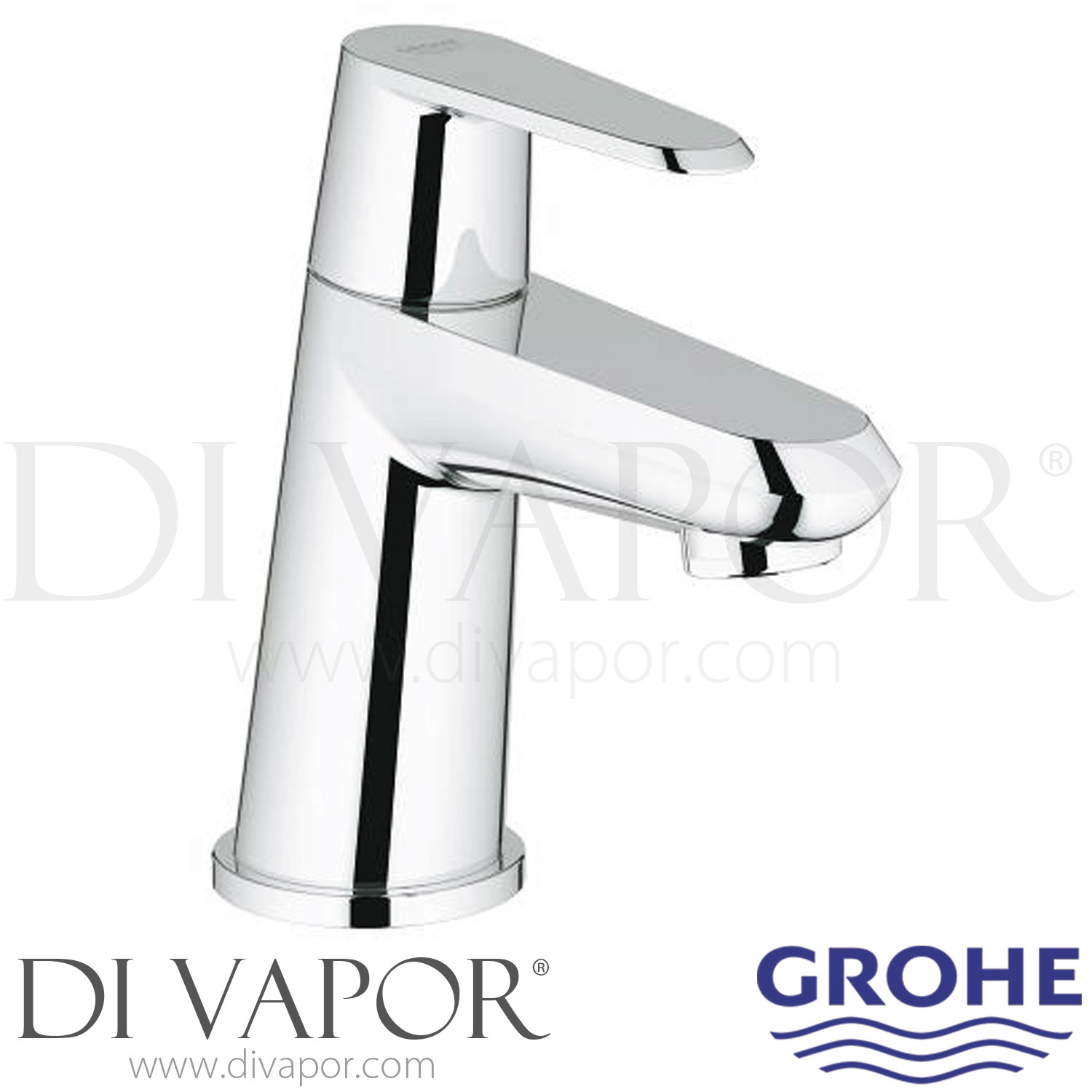

The Grohe 23051002 is the Eurodisc Cosmopolitan XS-Size pillar tap for a single water supply, designed for compact basin installations where hot and cold water mixing is not required.

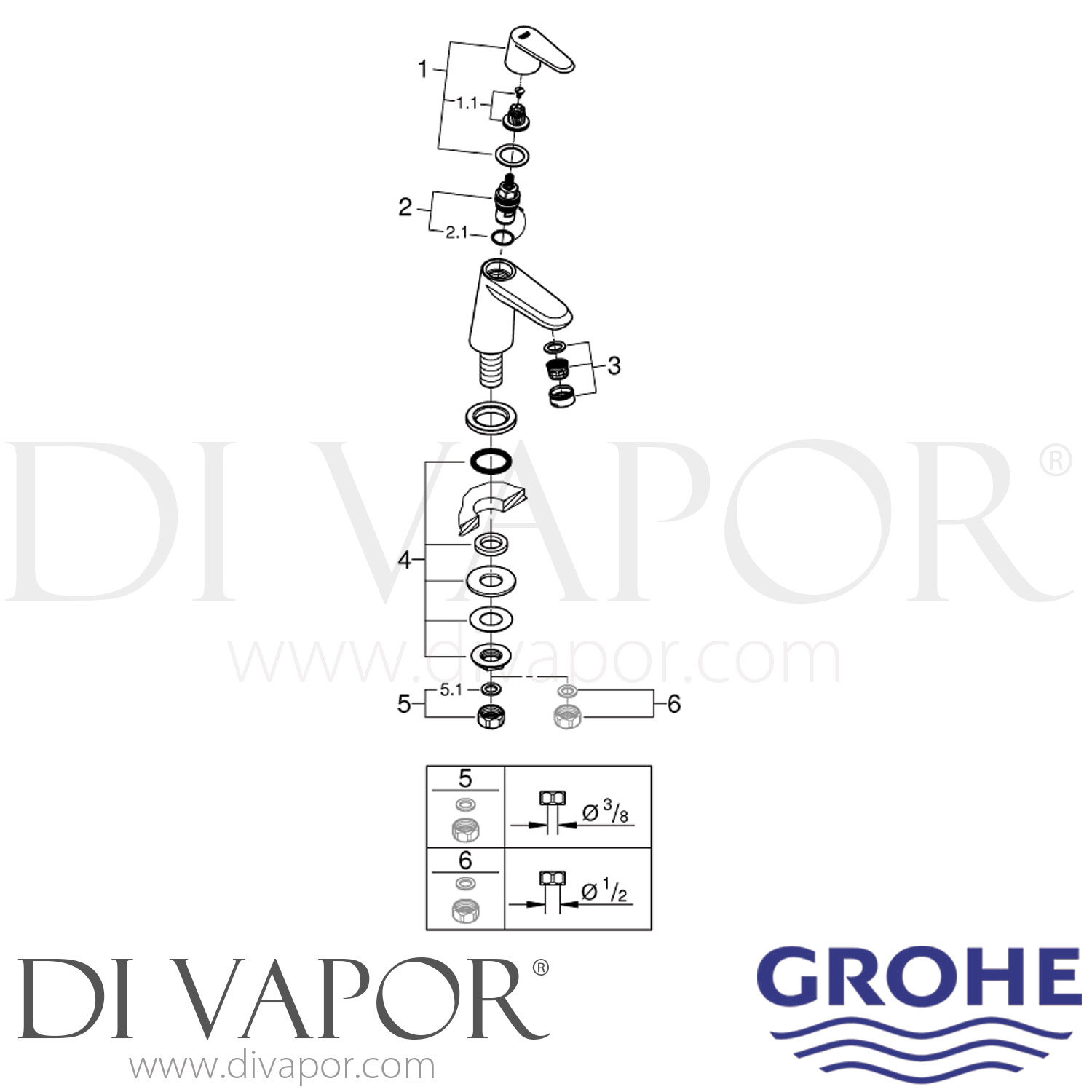

The metal lever operates the 1/2" ceramic headpart to control water flow through the outlet. For servicing this tap, the Grohe spares listed below include the handle fixing set, ceramic headpart and sealing O-rings used within the 23051002 assembly.

This monobloc pillar tap installs through a single deck hole and has no waste control. If the tap begins to drip after the lever is fully closed or shut-off becomes unreliable, inspect the ceramic headpart and its sealing O-ring for wear, scale or sealing damage.

Technical Details

- - Brand: Grohe

- - Range: Eurodisc Cosmopolitan

- - Category: Pillar tap

- - Product code: 23051002

- - Size: XS-Size

- - Installation: Monobloc single-hole deck mounting

- - Water supply: Single water feed

- - Control: Metal lever

- - Headpart: 1/2" ceramic headpart

- - Finish: Chrome

- - Outlet flow: 5.7 l/min

- - Connection: 1/2"

- - Overall height: approximately 134 mm

- - Spout projection: approximately 85 mm

- - Outlet height: approximately 64 mm

- - Minimum operating pressure: 1.0 bar

- - Waste control: None

- - EAN: 4005176887567

Before You Order Check

Match the complete tap code 23051002 and the exact spare code shown on the removed component or service information. Do not select a spare by appearance alone.
