Grohe 47310000 Thermoelement 3/​4" Thermostatic Cartridge for Aquatower 3000, Chiara 34305, THM 34959 and Automatic 2000 Valves

Summary

Grohe 47310000 Thermoelement 3/4 Inch Thermostatic Cartridge for Aquatower 3000, Chiara 34305, THM 34959 and Automatic 2000 Valves

Frequently Asked Questions: Grohe 47310000 Shower Cartridge Spare

Question: Will this Grohe cartridge spare part fit in other shower valves?

Answer: Yes, it will. Aside from those stated above, this Grohe shower cartridge is the spare part for the Sinfonia and Tenso. If your shower is not among the list, please use our shower/tap spare part identifier (it’s a free service). We will be the one to gladly search for the correct spare part you need.

Question: Is there a seal kit for this cartridge for the THM shower?

Answer: I’m sorry, there are no seal kits available for the Grohe 47310000.

Question: What is the spanner size to remove the cartridge?

Answer: A 24mm spanner is used to unscrew this spare part.

We offer many Grohe spare parts in stock (unless stated otherwise) and ready for shipping. All spare parts ordered on a weekday before 3:00 PM will be dispatched on the same day.

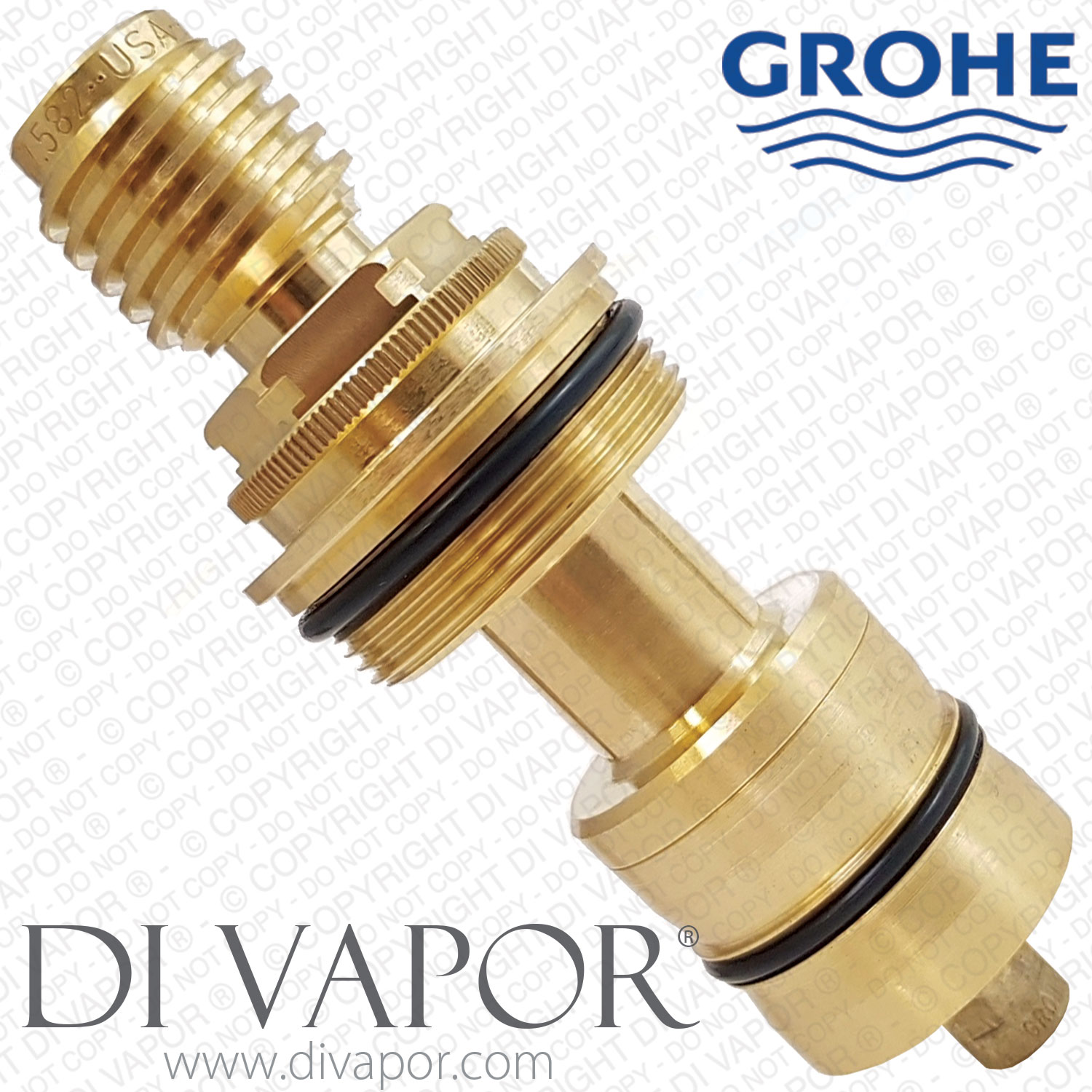

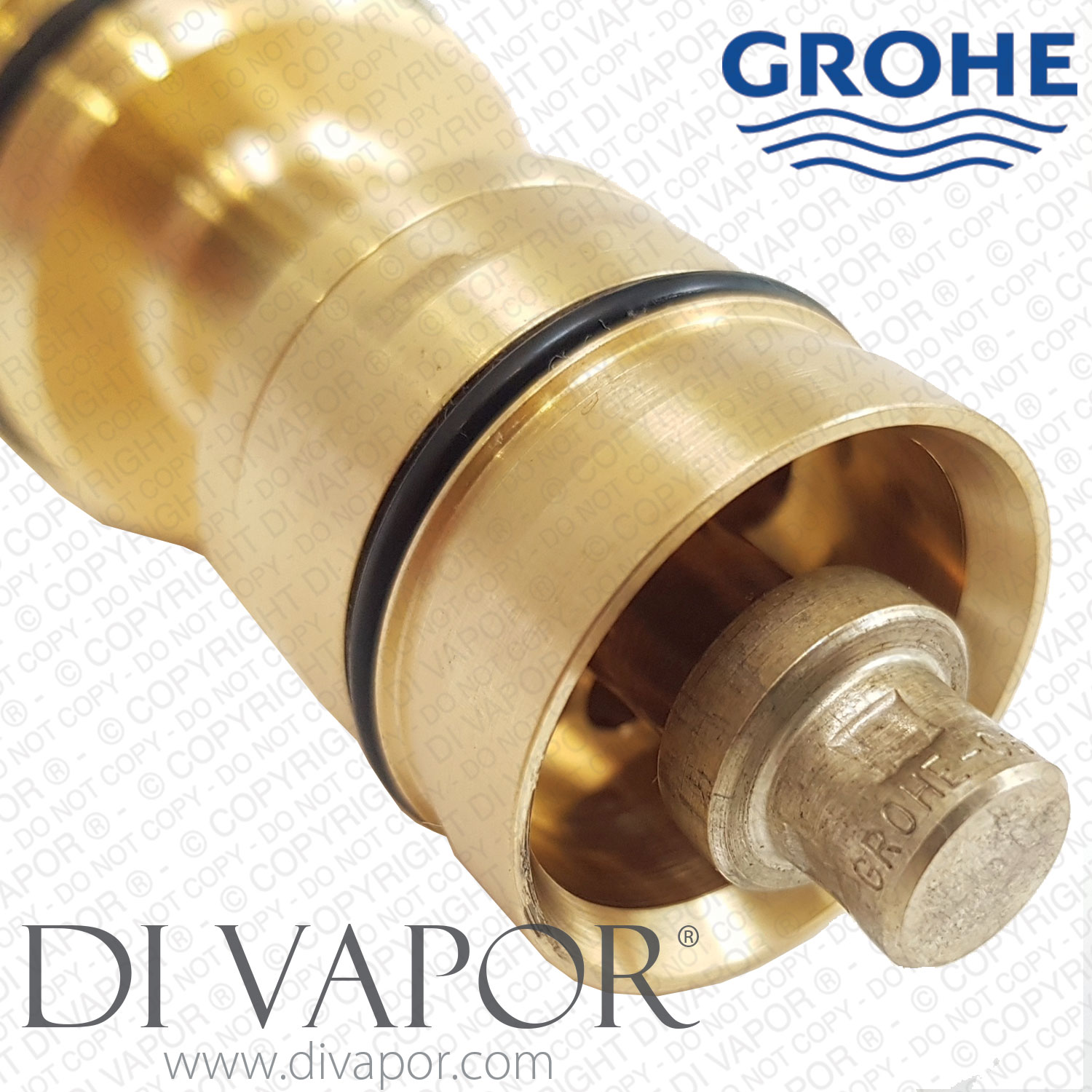

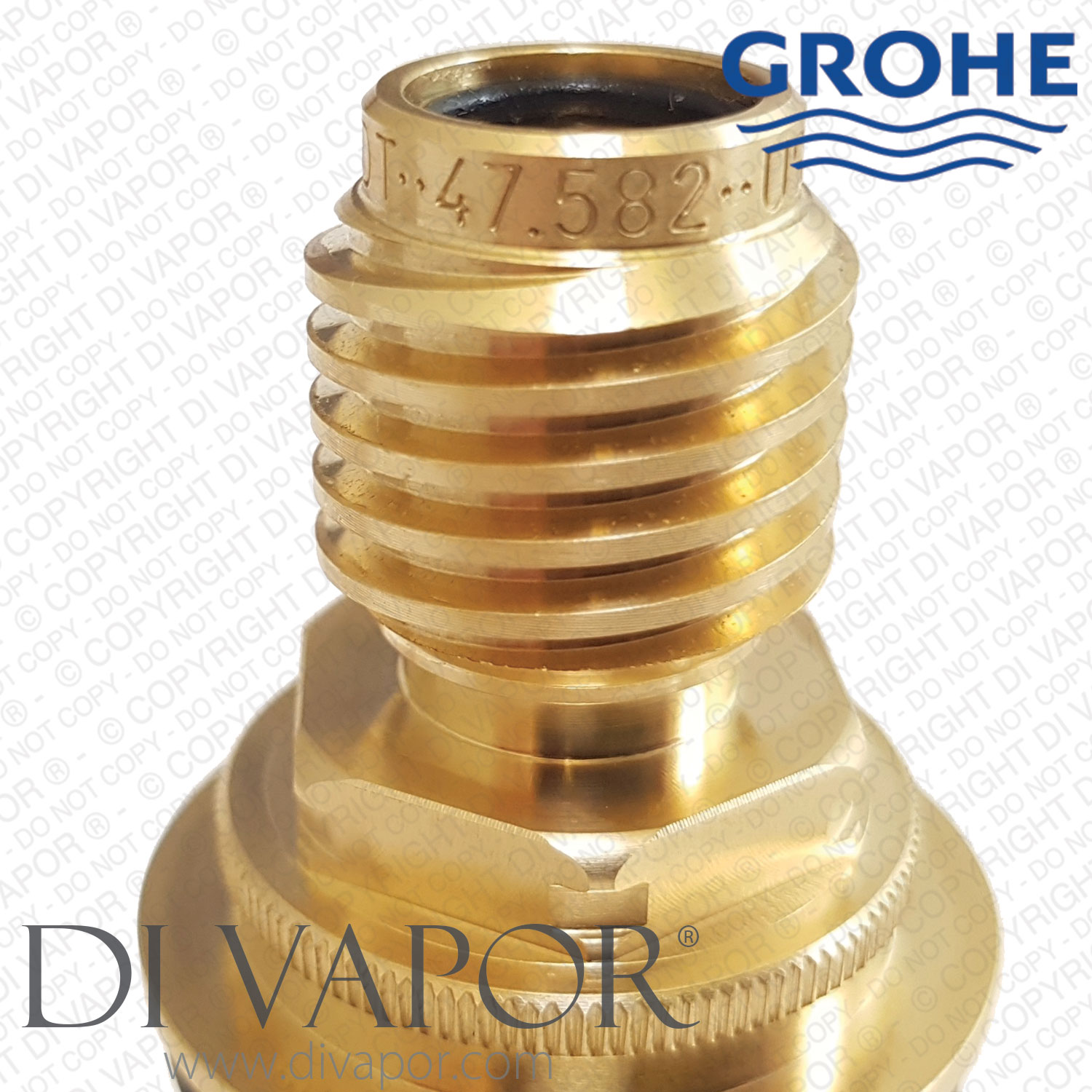

The GROHE 47310000 is a 3/4 inch thermostatic cartridge and thermoelement used to control mixed-water temperature in selected GROHE thermostatic shower and bath/shower mixer assemblies. The wax thermostatic element reacts to changes in the incoming water supplies and adjusts the mixed-water balance to regulate the outlet temperature.

This cartridge is used across selected GROHE Aquatower 3000, Chiara, THM, Automatic 2000, Tenso and Sinfonia applications. Correct valve and cartridge identification is important before ordering because other GROHE thermostatic cartridges are used in visually similar valves and within some of the same product ranges.

Technical Details

• GROHE technical drawing shows a 22mm upper section and 30mm lower cartridge body
• GROHE technical drawing shows 39mm and 59mm vertical reference dimensions; these should not be combined to infer an overall cartridge length
• A 24mm spanner can be used to unscrew the cartridge
• No separate seal kit is listed for the GROHE 47310000

Before You Order

Check the existing cartridge code and exact GROHE valve or shower model before ordering. Do not identify the cartridge from the 3/4 inch size or range name alone, as other thermostatic cartridges are used in some GROHE Aquatower and related installations.

The GROHE 47379000 is a separate reverse-supply thermostatic cartridge used in selected Chiara and THM installations. It is not a superseding code for 47310000, so the supply arrangement and existing cartridge should be checked before selection.

Confirmed Models and Valves

• GROHE 34305 / 34305000 Chiara Thermostat Mixer 3/4 Inch
• GROHE 34959 Concealed Body for THM 34959 Thermostat Mixer 3/4 Inch
• GROHE 19657000 / 19657 000 Grohtherm Auto 2000 Shower Valve
• GROHE 34963000 / 34963 000 Mixer Valve Shower
• GROHE 34964000 / 34964 000 Mixer Valve
• GROHE 19060000 Tenso Thermostatic Bath / Shower Mixer 2001-2007 GEN1
• GROHE 19613000 Chiara Bath Shower Mixer Chrome
• GROHE 27203 / 27203000 Aquatower 3000 Top 4 Shower System 3/4 Inch
• GROHE Sinfonia 19030
