Bristan D282-027 35mm Heritage Bathrooms Thermostatic Temperature Cartridge

SUMMARY

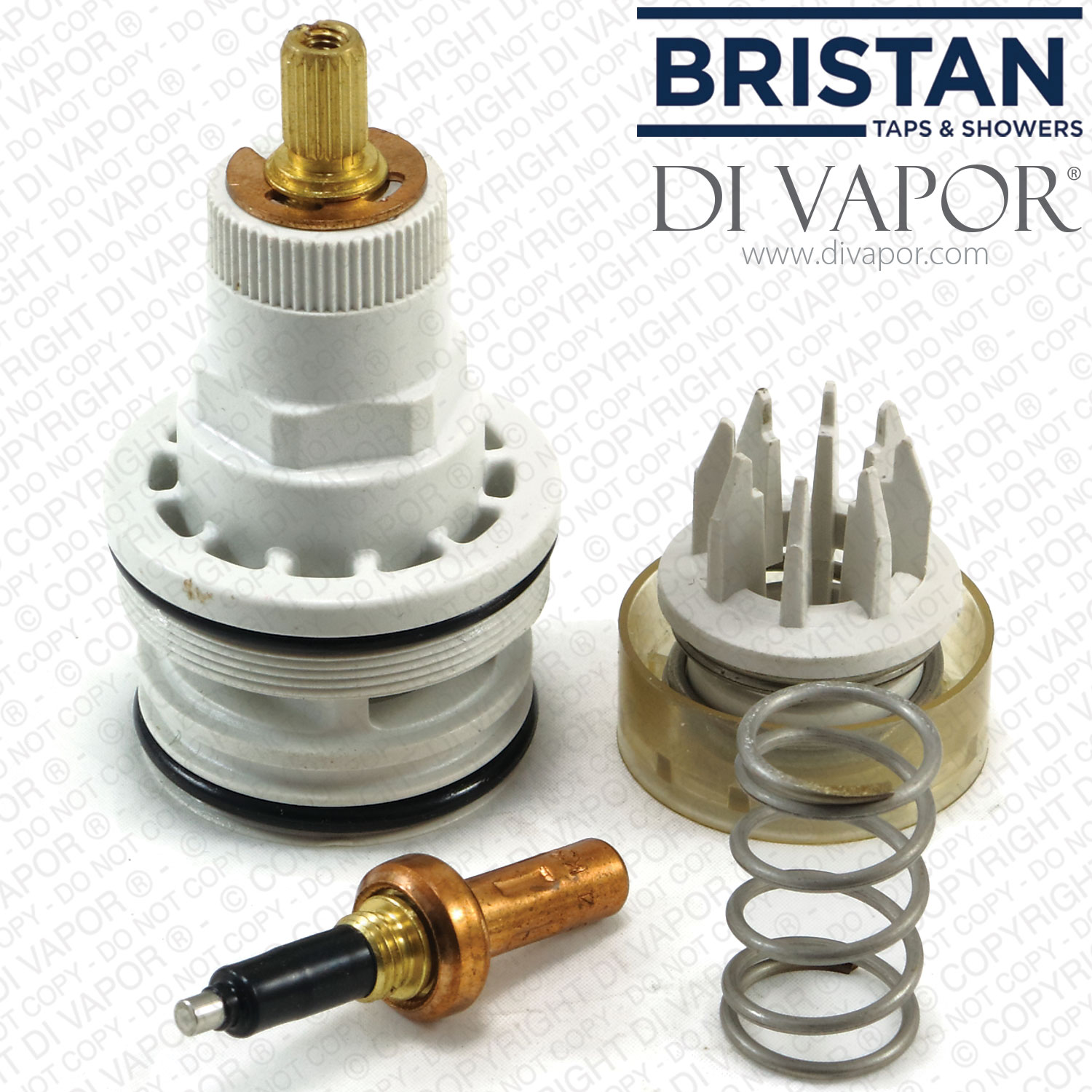

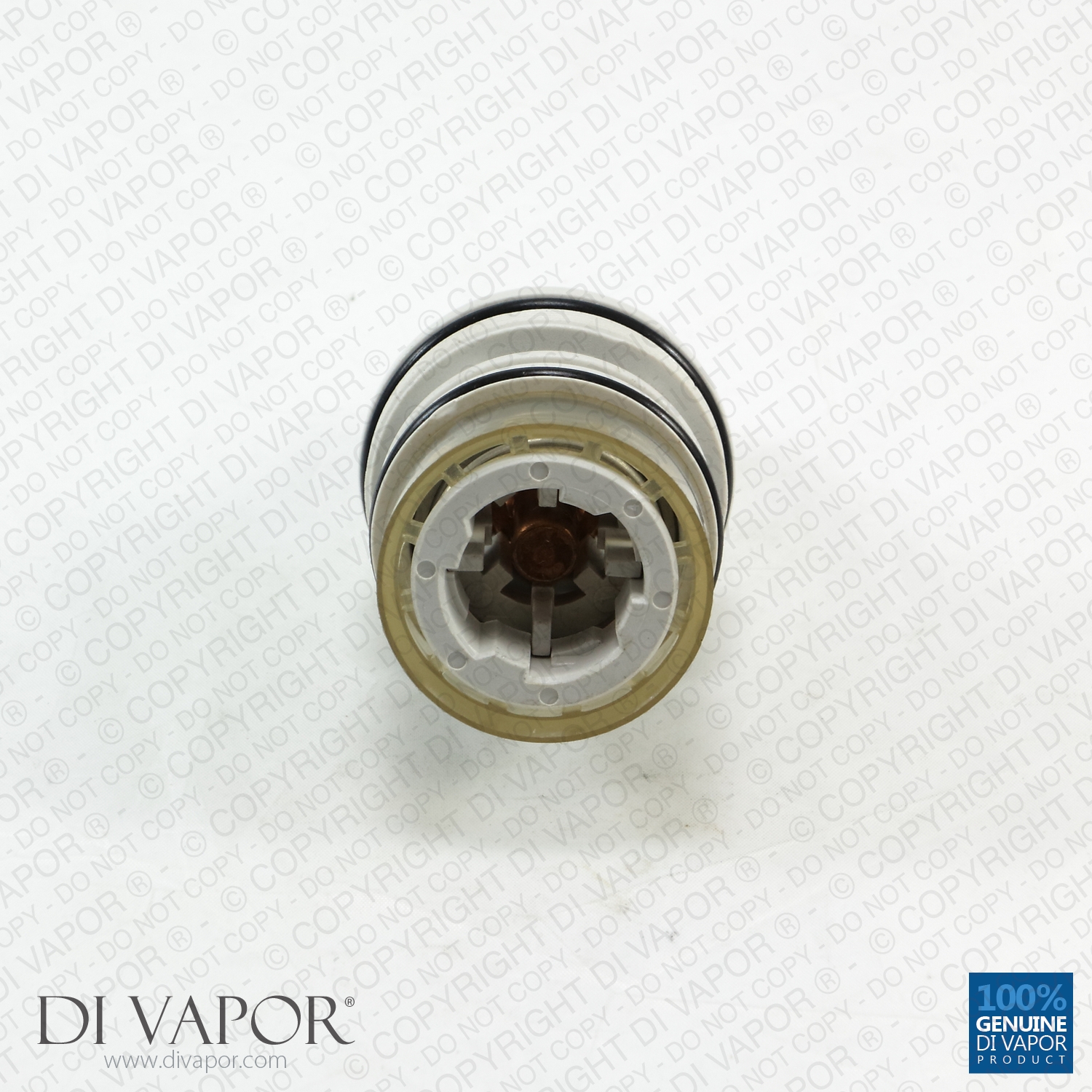

This is a Bristan D282-027 thermostatic cartridge.

If your shower valve is experiencing temperature issues then you may only need the wax thermostat and element kit which is in the following link:

Sirrus SK1500-3 Thermostat and Piston (SK1500/3)

The Bristan D282-027 is a 35mm thermostatic temperature cartridge for selected Heritage Bathrooms and Bristan recessed concealed thermostatic shower valves. It controls and stabilises the blended water temperature inside the valve body.

This cartridge is used where the existing shower valve has temperature control faults such as poor temperature regulation, unstable hot and cold blending or inability to reach the set temperature. If the valve only has temperature issues and the cartridge body is otherwise serviceable, the Sirrus SK1500-3 may be the required service kit instead of the complete D282-027 cartridge.

Technical Details

- - Part Number: BRISTAN-D282-027

- - Cartridge type: thermostatic temperature cartridge

- - Cartridge size: 35mm

- - Application: thermostatic recessed concealed shower valves

- - Package dimensions: 520mm length x 260mm width x 100mm height

- - Use WRAS approved silicone grease on cartridge O-rings during fitting where required.

Confirmed Valve Applications

- - Heritage SDC04 Dawlish dual control concealed valve

- - Heritage SOC10 Orbit Concealed Thermostatic Dual Control Shower Valve

- - Heritage SHP01 Hemsby Recessed Thermostatic Shower Valve

- - Bristan Renaissance Concealed Shower Valve

- - Bristan PM2 SHCDIV C Prism Thermostatic Concealed Shower Valve with Integral Diverter

- - Bristan PM2 SHCVO C Prism Thermostatic Recessed Concealed Shower Valve

- - Bristan PM2 SHC3DIV C Prism Three Control Concealed Shower Valve with Diverter and Stopcock

- - Bristan N2 SHCVO C 1901 Recessed Concealed Shower Valve

- - Bristan D2 SHCDIV C Art Deco Recessed Concealed Shower Valve with Diverter

Checks Before Ordering

- - Confirm the printed or stamped valve model where possible before ordering.

- - Check whether the issue is with the complete thermostatic cartridge or only the wax thermostat and piston assembly.

- - If the installed valve version is unclear, compare the removed cartridge with the product images or use the Di Vapor Find a Part service before ordering.

Related Spares You May Need

- - Bristan D282-006 Temperature Handle Shroud for PM2 SHCDIV C Prism Shower Valves

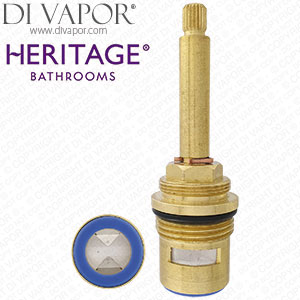

- - Heritage D282-011 3/4" Flow Cartridge

- - Bristan D282-138 Flow Handle for PM2 SHCDIV C Prism Shower Valves

- - Sirrus SK1500-3 Thermostat and Piston (Bristan SK1500/3)

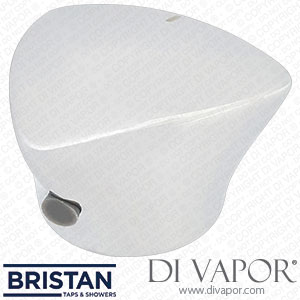

- - Bristan D282-156 Bright Dual Ctrl Handle Ass

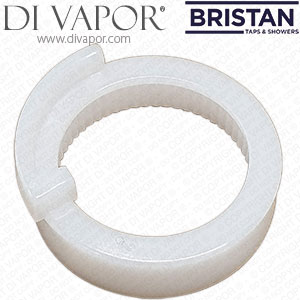

- - Bristan 0020-33 Temperature Stop Ring 26mm OD 21.3mm Spline

- - Bristan Renaissance Concealed Shower Valve

- - Bristan 00622206 Diverter Cartridge for Prism Artisan Chill JS2 Oval Qube and Quadrant Shower Valves

- - TACSIL 3g Premium Cartridge Silicone Grease - WRAS Approved
