Hansgrohe 13955000 M24 Laminar Jet Regulator Control Aerator - HANS-13955000

SUMMARY

HANSGROHE 13955000 M24 Laminar Jet Regulator Control Aerator - Diameter at thread is 24mm

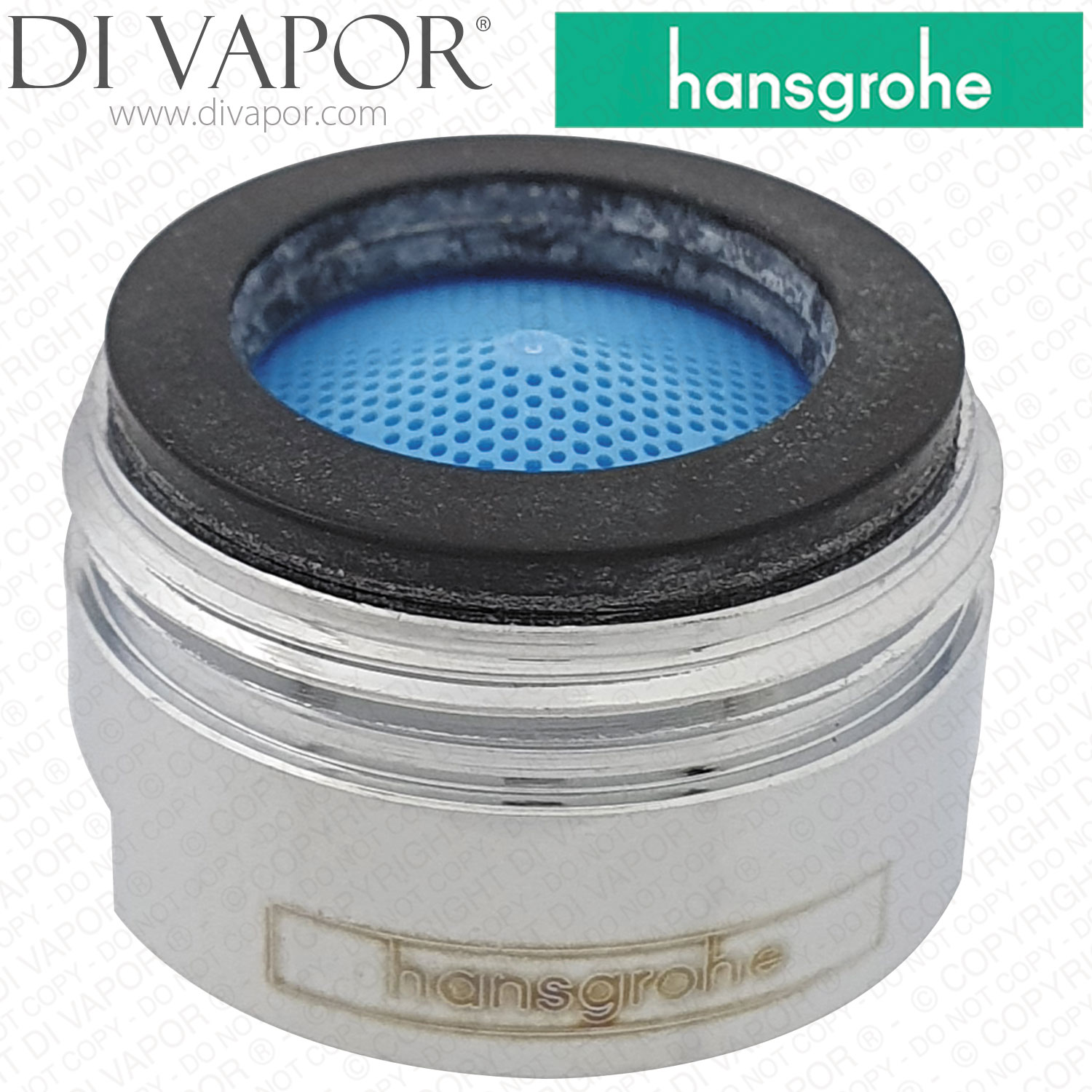

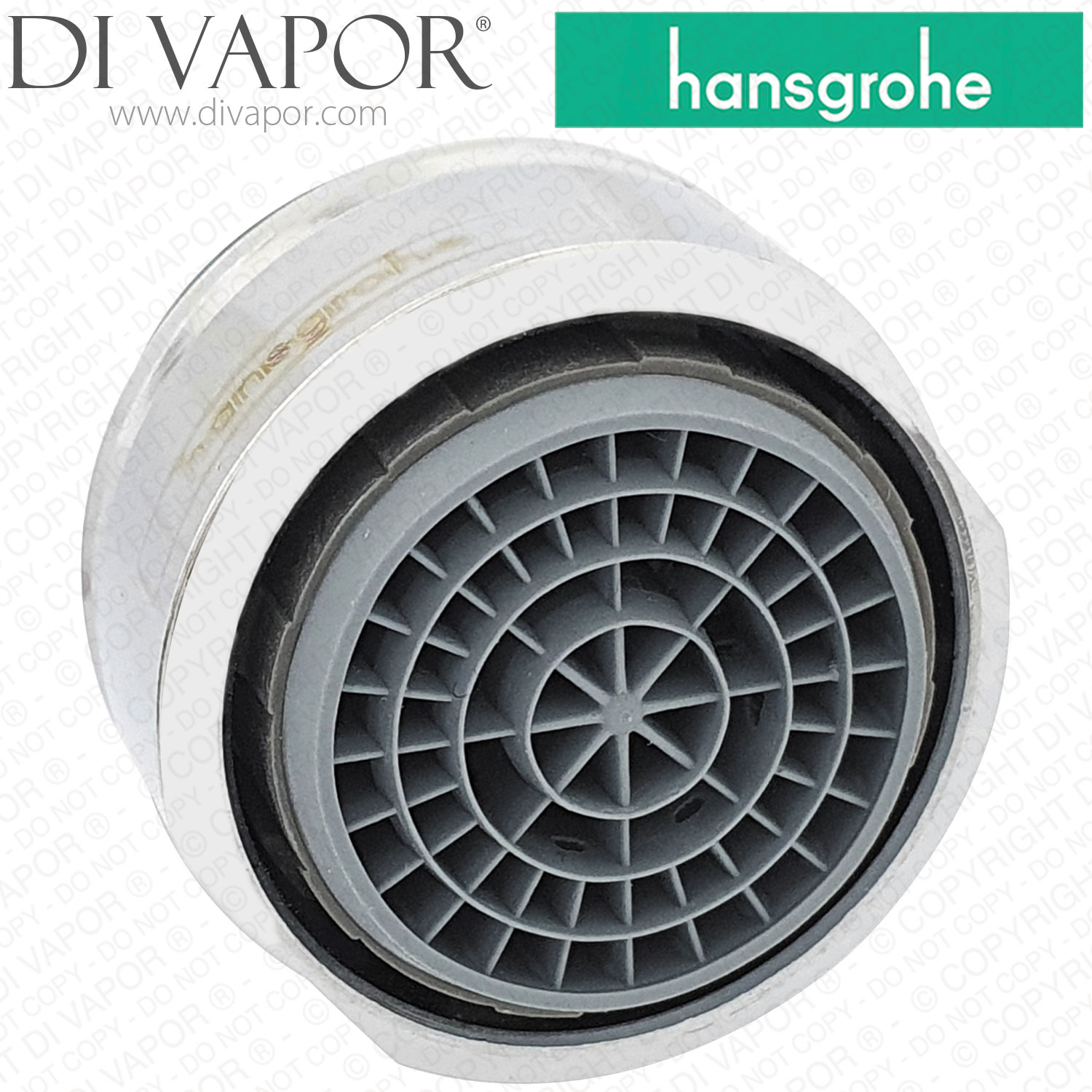

The Hansgrohe 13955000 is a chrome QuickClean tap aerator used on selected Hansgrohe basin mixers and kitchen mixers. It screws onto the tap outlet using an external M24x1 thread and forms the final water stream as it leaves the spout.

The aerator has flexible QuickClean outlet elements that allow limescale deposits to be rubbed away manually. Replacing a scaled, blocked or damaged aerator can help correct an uneven water stream, excessive splashing or reduced outlet flow.

Technical Details

- - Manufacturer part code: 13955000

- - Part type: QuickClean tap aerator

- - Connection thread: M24x1

- - Thread orientation: External male thread

- - Diameter at thread: 24mm

- - Manufacturer aerator group: M24x1 A

- - Nominal aerator flow rate: 15 l/min

- - Finish: Chrome

- - Removal and fitting tool size: SW22 spanner

- - Manufacturer tightening torque: 2 Nm

- - Earlier part code: 13913000

The 13955000 supersedes the earlier 13913000 aerator. Some original mixer spare-parts diagrams may therefore show 13913000 while the current replacement reference is 13955000.

Before Ordering

Confirm the mixer article number, the existing aerator code and the M24x1 external thread before ordering. Hansgrohe uses several different M24x1 aerator groups and flow-rate versions, so the thread diameter alone does not confirm the correct part.

Installation Notes

Turn the tap off and protect the chrome surface before removing the existing aerator with an SW22 spanner. Clean the outlet seating surface before fitting the new aerator, tighten it evenly to 2 Nm and avoid overtightening.

Confirmed Models

- - Hansgrohe Metris single lever basin mixer with bidet spray and 160cm shower hose 31285000 - production 01/11 to 09/13, 10/13 to 02/17 and from 03/17.

- - Hansgrohe Focus single lever basin mixer 100 with two flow rates and pop-up waste 31657000 - production 12/11 to 07/12, 08/12 to 06/15, 07/15 to 02/17 and from 03/17.

- - Hansgrohe Focus single lever basin mixer 190 CoolStart with two flow rates and pop-up waste 31658000 - production 12/11 to 06/12 and from 07/12.

- - Hansgrohe Focus single lever basin mixer 100 with bidet spray and 160cm shower hose 31927000 - production 09/13 to 03/17, 04/17 to 05/25 and from 06/25.

- - Hansgrohe Logis single lever basin mixer with bidet spray and 160cm shower hose 71290000 - production 04/14 to 12/14, 01/15 to 05/25 and from 06/25.

- - Hansgrohe Logis single lever basin mixer 190 with two flow rates and pop-up waste 71095000 - production 04/14 to 12/14, 01/15 to 04/17 and from 05/17.

- - Hansgrohe Logis single lever basin mixer 70 with pop-up waste and two flow rates 71075000 - production 04/14 to 12/14, 01/15 to 04/17 and from 05/17.

- - Hansgrohe Logis single lever basin mixer 100 with two flow rates and pop-up waste 71105000 - production 04/14 to 12/14, 01/15 to 04/17 and from 05/17.

- - Hansgrohe Logis single lever basin mixer 70 with two flow rates without waste 71076000 - production 04/14 to 12/14, 01/15 to 04/17 and from 05/17.

- - Hansgrohe Metropol single lever basin mixer with loop handle with bidet spray and 160cm shower hose 74522000 - production from 01/17.

- - Hansgrohe Focus M41 single lever kitchen mixer 200 with appliance shut-off valve 31803000 - production 10/09 to 09/10, 10/10 to 05/15 and from 06/15.

- - Hansgrohe Focus M41 single lever kitchen mixer 160 Stainless Steel Finish 31806800 - production 03/10 to 03/17 and from 04/17.

- - Hansgrohe Focus M41 single lever kitchen mixer 160 Chrome 31806000 - production 10/09 to 03/17 and from 04/17.

- - Hansgrohe Talis Select M51 single lever kitchen mixer 220 with pull-out spout and sBox 73852000 - production 04/17 to 03/19 and from 04/19.

- - Hansgrohe Focus M42 single lever kitchen mixer 220 71802000 - production from 10/18.

- - Hansgrohe Talis Select M51 single lever kitchen mixer 220 with pull-out spout 72822000 - production 01/17 to 03/19 and from 04/19.

- - Hansgrohe Focus M41 wall-mounted single lever kitchen mixer 31825000 - production from 11/12.

- - Hansgrohe Talis Select M51 single lever kitchen mixer 300 with pull-out spout and sBox 73853000 - production 04/17 to 04/19 and from 05/19.

- - Hansgrohe Logis M31 single lever kitchen mixer 160 with collapsible body 71833000 - production 12/15 to 09/16 and from 10/16.

- - Hansgrohe Logis M31 single lever kitchen mixer 120 CoolStart EcoSelection 71837000 - production from 02/15.

- - Hansgrohe Focus M42 single lever kitchen mixer 120 71806000 - production from 10/18.

- - Hansgrohe Focus M42 single lever kitchen mixer 120 CoolStart EcoSelection 71805000 - production from 10/18.

- - Hansgrohe Focus M42 single lever kitchen mixer 150 with pull-out spout 71814000 - production 10/18 to 04/20, 05/20 to 07/25 and from 08/25.

- - Hansgrohe Focus M42 single lever kitchen mixer 100 71808000 - production from 10/18.

- - Hansgrohe Focus M42 single lever kitchen mixer 100 CoolStart EcoSelection 71809000 - production from 10/18.

- - Hansgrohe Focus M42 single lever kitchen mixer 220 with appliance shut-off valve 71803000 - production from 10/18.

- - Hansgrohe Metris Select M71 two-hole single lever kitchen mixer 200 with pull-out spout and sBox 73804000 - production 04/17 to 04/19 and from 05/19.

- - Hansgrohe Logis M31 single lever kitchen mixer 120 71830000 - production from 02/15.

- - Hansgrohe Focus M42 single lever kitchen mixer 120 for installation in front of a window 71807000 - production from 10/18.

- - Hansgrohe Focus M42 single lever kitchen mixer 150 with pull-out spout and sBox 71829000 - production 10/18 to 07/25 and from 08/25.

- - Hansgrohe Focus M42 single lever kitchen mixer 150 EcoSmart with pull-out spout 71865000 - production 10/19 to 04/20 and from 05/20.

- - Hansgrohe Talis Select M51 single lever kitchen mixer 220 with pull-out spout Stainless Steel Finish 72822800 - production from 04/19.

- - Hansgrohe Zesis M33 single lever kitchen mixer 150 74802000 - production from 10/21.

- - Hansgrohe Zesis M33 single lever kitchen mixer 160 for installation in front of a window 74805000 - production from 10/21.

- - Hansgrohe Zesis M33 single lever kitchen mixer 200 with appliance shut-off valve CoolStart 74807000 - production from 10/21.

- - Hansgrohe Zesis M33 single lever kitchen mixer 200 with appliance shut-off valve 74808000 - production from 10/21.

- - Hansgrohe Zesis M33 single lever kitchen mixer 150 CoolStart EcoSelection 74813000 - production from 10/21.
