Dornbracht 9090031430090 Flow Cartridge Assembly - Anti-Clockwise Open
Send a photo of your item and we'll help confirm it.
Summary
Dornbracht 9090031430090 is an anti-clockwise open flow cartridge assembly for selected Dornbracht 1/2 inch wall valves volume controls xTool thermostat installations and FMI assemblies. It controls the on and off water flow through the valve and is used when the original flow cartridge is worn stiff seized or no longer shutting off correctly.
Note: The assembly is supplied as shown with the cartridge and 2 plastic spline adapters. Earlier kits included a brass adapter and an additional plastic clip but these are no longer supplied with this assembly as they do not usually need replacing. The cartridge can be cut to length to suit the installation.
Technical Details
| Brand | Dornbracht |
|---|---|
| Part number | 9090031430090 |
| Alternative spaced code | 90 90 03 143 00 90 |
| Part type | anti-clockwise open flow cartridge assembly |
| Fitting screw thread | 1/2 inch BSP / 20.7mm |
| Upper screw thread | 23.7mm |
| Total length | 138mm |
- Supplied with cartridge and 2 plastic spline adapters
- Brass adapter not included
- Additional plastic clip not included
Confirmed Compatible Models
- xTool Thermostat from July 2005 onwards
- FMI 35 621/671/675 970 90 from October 2002 onwards
- Dornbracht Tara xTool Thermostat Module with 2 Valves - Matte White
- Dornbracht Madison Volume Control Clockwise-Closing 1/2 - Chrome 36 607 361-00
- Dornbracht Cl.1 Volume Control Clockwise-Closing Cold 1/2 - Chrome 36 627 706-00
- Dornbracht Tara Volume Control Clockwise-Closing 1/2 - Chrome 36 607 892-00
- Dornbracht Tara Wall Valve Clockwise Closing 1/2 - Brushed Dark Platinum 36 607 892-99
- Dornbracht Mem Volume Control Clockwise-Closing 1/2 - Chrome 36 607 782-00
- Dornbracht Mem Wall Valve Clockwise Closing 1/2 - Brushed Platinum 36 607 782-06
- Dornbracht META Wall Valve Clockwise Closing 1/2 36 607 661 family
- Dornbracht Vaia Volume Control Clockwise-Closing 1/2 - Chrome 36 607 819-00
- Dornbracht Vaia Wall Valve Clockwise Closing 1/2 - Platinum 36 607 819-08
- Dornbracht Vaia Wall Valve Clockwise Closing 1/2 - Brushed Dark Platinum 36 607 819-99
- Dornbracht Tara Volume Control Clockwise-Closing 1/2 - Chrome 36 607 882-00
- Dornbracht Tara Wall Valve Clockwise Closing 1/2 - Matte Black 36 607 882-33
- Dornbracht Tara Wall Valve Clockwise Closing 1/2 - Brushed Dark Platinum 36 607 882-99
Related Spares You May Need
- TACSIL 3g Premium Cartridge Silicone Grease - WRAS Approved
- Dornbracht 9090031420090 Flow Cartridge Assembly - Clockwise Open (90 90 03 142 00 90)

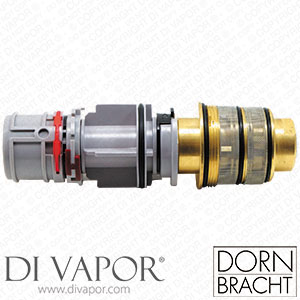

- Dornbracht 9015020650090 XTool Thermostatic Cartridge and Temperature Handle Assembly (Villeroy & Boch)

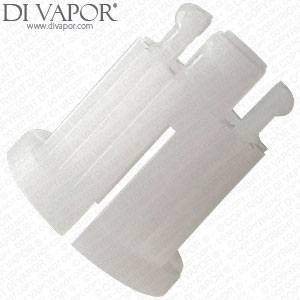

- Dornbracht 09.12.12.002.90 Spline Adapter - 9121200290

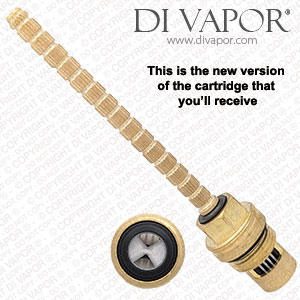

- Dornbracht 0490032020090 Cartridge - Clockwise Open (9090032020090)

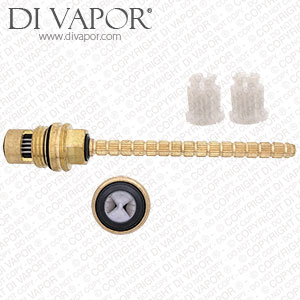

- Dornbracht 0490031420090 Cartridge - Clockwise Open - Cartridge Only
