Dornbracht 09.12.12.002.90 Spline Adapter - 9121200290

SUMMARY

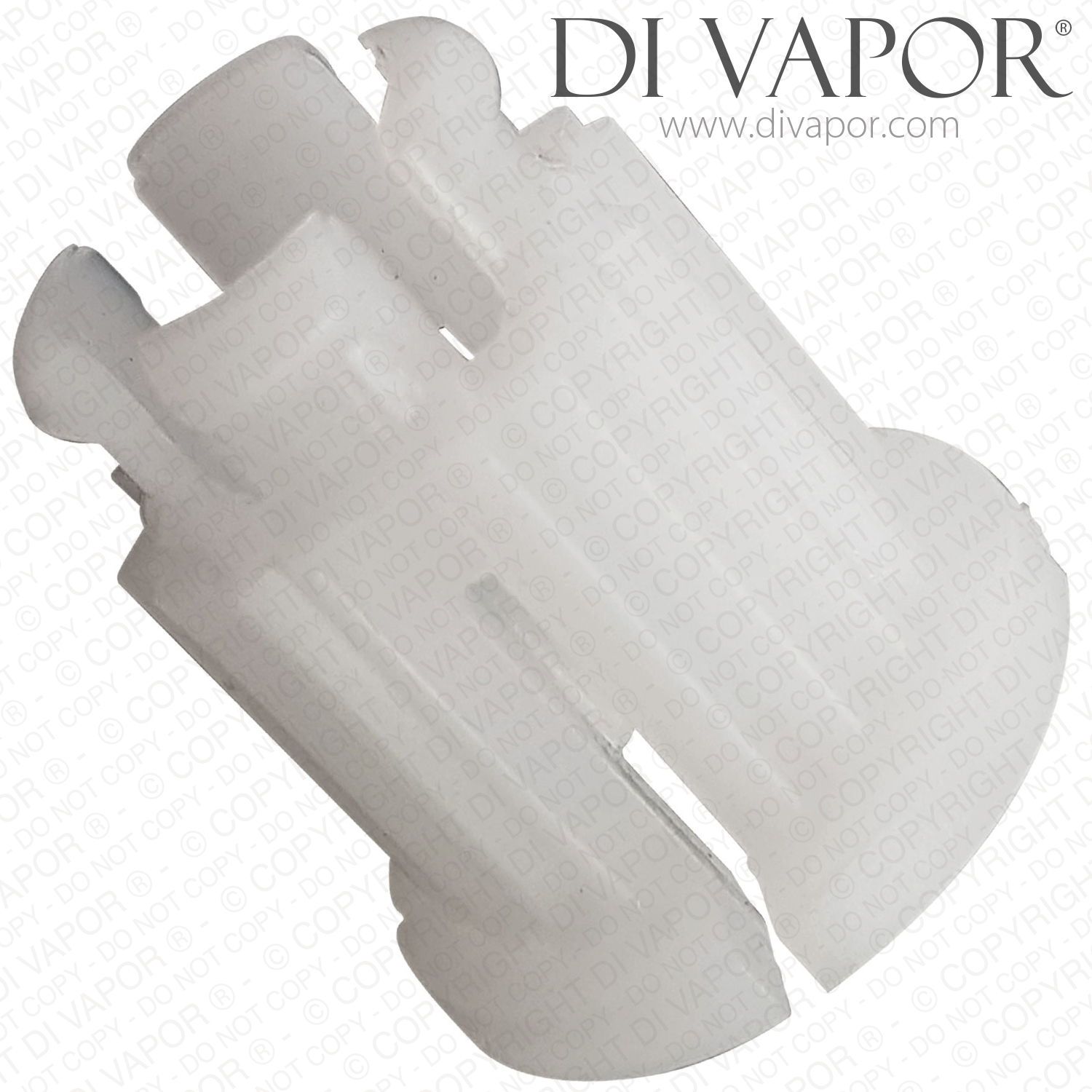

Dornbracht 09.12.12.002.90 is a white spline adapter and fixing cap used in selected Dornbracht cartridge and handle assemblies where the spare-parts breakdown specifies the adapter or fixing cap beneath the control handle.

This part is used to provide the correct engagement and spacing between the handle trim and the cartridge or upper-part assembly. It is not a thermostatic cartridge. Check the old adapter and the valve spare-parts drawing before ordering because Dornbracht uses different fixing caps across different ranges.

Technical Details

- - Brand: Dornbracht

- - Part code: 09.12.12.002.90

- - Other code formats found for the same fixing cap: 09121200290, 9121200290, 09 12 12 002 90 and 90 12 12 002 00 90

- - Current Dornbracht-style code format found: 9012120020090

- - Part type: white spline adapter / fixing cap / snap-in socket

- - Application: selected Dornbracht ceramic and compression cartridge handle assemblies, wall valves, volume controls, diverters and concealed controls

- - Approximate size found: 15 mm diameter x 12 mm

Before You Order

- - Confirm that the spare-parts diagram for your exact Dornbracht valve lists 90 12 12 002 00 90 or an older 09121200290 code variant.

- - Do not order from diameter alone because similar Dornbracht fixing caps can look alike but be used in different handle and cartridge assemblies.

- - If replacing a cartridge at the same time, check whether the cartridge listing already includes plastic spline adapters.

Confirmed Applications

Older Dornbracht spare-parts sheets may show this fixing cap as 09 12 12 002 90, while later Dornbracht spare-parts sheets list the fixing cap as 90 12 12 002 00 90. Check the dated spare-parts resource for the exact valve version before ordering.

- - Dornbracht Tara Volume Control Clockwise-Closing 1/2 - Chrome 36 607 892-00 Spare Parts (Spares resource dated: 19 January 2023; valve manufacture from 27 October 2020)

- - Dornbracht Tara Volume Control Clockwise-Closing 3/4 - Chrome 36 608 882-00 Spare Parts (Older spares resource dated: 6 August 2020; current spares resource dated: 19 January 2023; valve manufacture from 27 October 2020)

- - Dornbracht Series Specific Volume Control Clockwise-Closing 1/2 - Chrome 36 607 740-00 Spare Parts (Older spares resource dated: 6 August 2020; current spares resource dated: 18 January 2023)

- - Dornbracht Series Specific Volume Control Clockwise-Closing 3/4 - Chrome 36 608 740-00 Spare Parts (Spares resource dated: 18 January 2023)

- - Dornbracht Tara Concealed Two-Way Diverter - Platinum 36 200 892-08 Spare Parts (Spares resource dated: 21 March 2023)

- - Dornbracht Series Specific Concealed Two-Way Diverter - Matte Black 36 200 740-33 Spare Parts (Spares resource dated: 21 March 2023)

- - Dornbracht Tara Wall Mounted Three-Way Diverter - Chrome 36 210 882-000010 Spare Parts (Spares resource dated: 19 January 2023; valve manufacture from 1 April 2022)

- - Dornbracht TARA xTOOL Thermostat module with 1 valve ST 060 114 9892 (Spares resource dated: 13 April 2023)

- - Dornbracht xTOOL Thermostat module with 1 valve DORN-DV-1246 (Spares resource dated: 20 April 2023)

- - Dornbracht xTOOL Thermostat module with 3 valves DORN-DV-1078 (Spares resource dated: 13 April 2023)

- - Dornbracht Series Specific Concealed Thermostat with Three Function Volume Control - Brushed Platinum 36 427 670-06 Spare Parts (Current spares resource dated: 23 March 2023; fixing cap listed as 90 12 12 002 00 90; older code cross-reference: 09.12.12.002.90)

- - Dornbracht Series Specific Concealed Thermostat with Three Function Volume Control - Platinum 36 427 670-08 Spare Parts (Current spares resource dated: 23 March 2023; fixing cap listed as 90 12 12 002 00 90; older code cross-reference: 09.12.12.002.90)

- - Dornbracht Series Specific Concealed Thermostat with Three Function Volume Control - Brushed Dark Platinum 36 427 670-99 Spare Parts (Current spares resource dated: 23 March 2023; fixing cap listed as 90 12 12 002 00 90; older code cross-reference: 09.12.12.002.90)

- - Dornbracht MADISON Concealed thermostat with three-way volume control 36 428 977 (Spares resource dated: 18 January 2023; valve manufacture from 2 February 2021)

- - Dornbracht TARA ULTRA PIVOT Single-lever mixer - Brushed Platinum 33 845 875-06 Spare Parts (Current spares resource dated: 2 February 2023; fixing cap listed as 90 12 12 002 00 90; older code cross-reference: 09.12.12.002.90)

- - Dornbracht TARA ULTRA PIVOT Single-lever mixer - Platinum 33 845 875-08 Spare Parts (Current spares resource dated: 2 February 2023; fixing cap listed as 90 12 12 002 00 90; older code cross-reference: 09.12.12.002.90)

- - Dornbracht TARA ULTRA PIVOT Single-lever mixer - Brushed Dark Platinum 33 845 875-99 Spare Parts (Current spares resource dated: 2 February 2023; fixing cap listed as 90 12 12 002 00 90; older code cross-reference: 09.12.12.002.90)

Related Spares You May Need

- - Dornbracht 9090031430090 Flow Cartridge Assembly - Anti-Clockwise Open

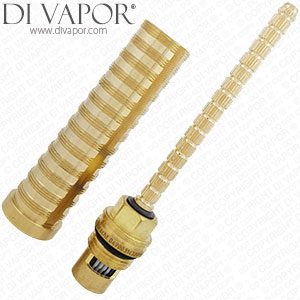

- - Dornbracht 9090031420090 Flow Cartridge Assembly - Clockwise Open (90 90 03 142 00 90)

- - TACSIL 3g Premium Cartridge Silicone Grease - WRAS Approved

- - Dornbracht 9015020650090 XTool Thermostatic Cartridge and Temperature Handle Assembly (Villeroy & Boch)

- - Dornbracht 0490032020090 Cartridge - Clockwise Open (9090032020090)

- - Dornbracht 0490031420090 Cartridge - Clockwise Open - Cartridge Only

- - Dornbracht 0490031430090 1/2 Inch Cartridge

- - Dornbracht 0415020650090 Thermostatic Cartridge 3/4" with Calibration

- - Dornbracht 09184007790 Brass Sleeve
