Hudson Reed PR905 3/4" On/Off Flow Cartridge for Quadro Valves - HR-PR905

Clockwise Close

Spare Part Documentation: Hudson Reed PR905 Flow Cartridge

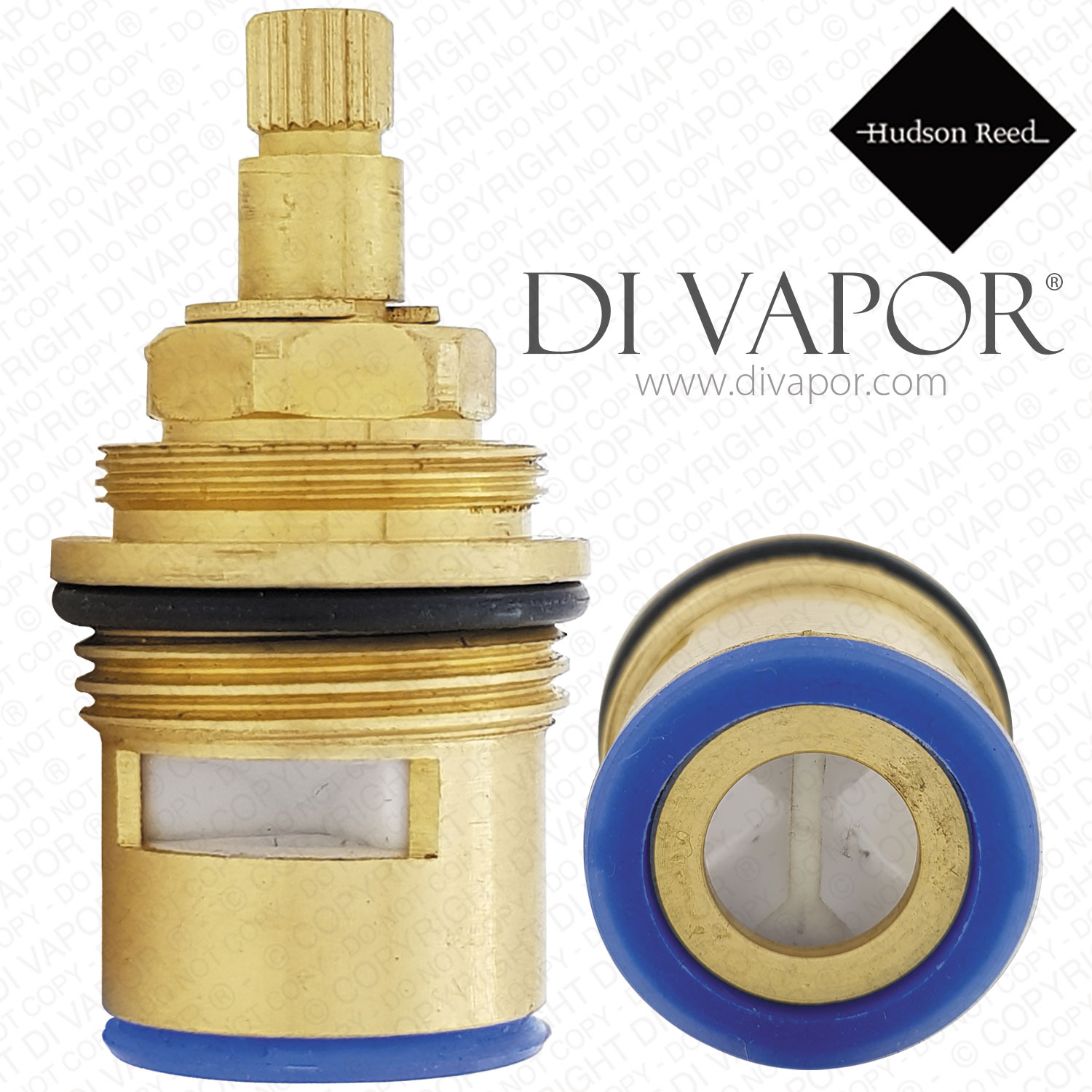

Hudson Reed PR905 is referred to as a ceramic disc flow cartridge for the Quadro shower’s on and off function. It opens anti-clockwise and has a blue bottom seal.

You can get in touch with Di Vapor’s friendly and helpful spares experts through our Find a Part free service or Whats App (07754 173340). We are looking forward to serving you!
*Messages received on a weekend will be attended to first on Monday.

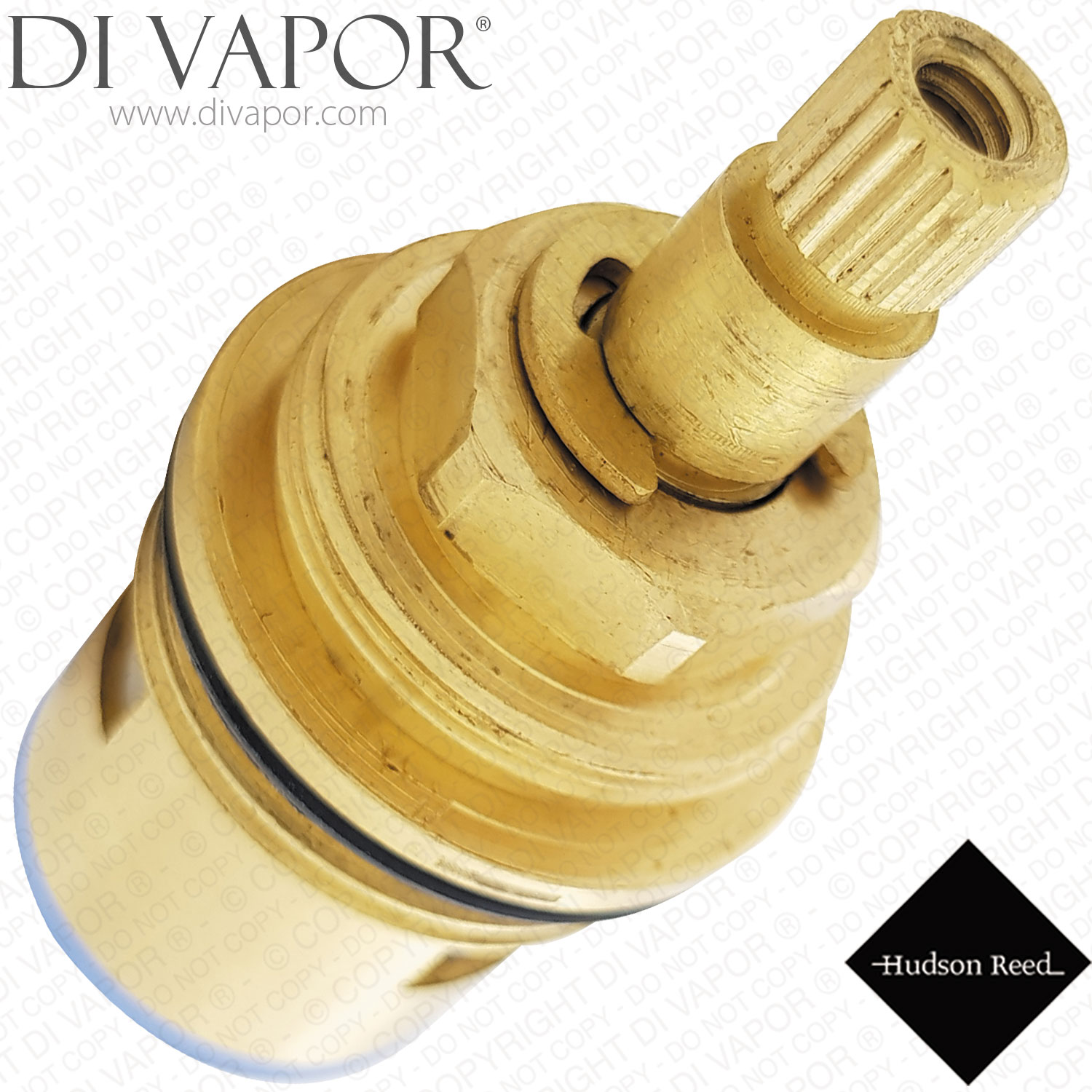

PR905 is the Hudson Reed flow cartridge replacement suitable for Quadro A3502 and A3503 shower bar valves. The cartridge has a brass casing and a ceramic core. Its hexagonal nut makes for an easy grip of a spanner to remove or secure it in the valve.


Other Ultra/Hudson Reed Quadro shower spares:
– DSD902 (Wax Thermostat Element)
– SSC40C (Thermostatic Cartridge)


Why Do You Need to Replace the Hudson Reed PR905?
Limescale. These hard water dregs can accumulate in the PR905 Hudson Reed flow cartridge. It grows with time causing the Quadro shower valve to drip. It can also turn into a hindrance against optimal water flow.

PR905 has a lone O-ring. This rubber component seals water in the valve preventing it from leaking. A time-worn O-ring will harden and can become brittle losing its capability to hold water.


How to Replace the Hudson Reed PR905 Flow Cartridge in an A3502 or A3503 Quadro Shower Valve?
Close the shower’s hot and cold water supplies before starting the Hudson Reed PR905 replacement process.

1. Unscrew the A3502 or A3503 flow control handle’s peg. This can be done by hand or smooth jaw pliers. In using tools be extra careful not to mark or damage any part of the shower valve.

2. With the peg removed, use an Allen key to undo the handle’s grub screw. Separate the flow control handle from the Quadro bar valve.

3. Use an appropriately sized spanner to unscrew the broken cartridge.

4. Apply silicone grease on the O-ring of the Hudson Reed PR905. Insert it in the valve. Secure the threads.

Only use heat-resistant grease formulated for plumbing applications. Failing to do so can rapidly deteriorate the O-ring. Please jump to the last section of the page to see the plumbers grease that will aid you in shower repair.

5. Reassemble the valve handle.


Di Vapor supplies many Hudson Reed shower spares that are in stock and ready to ship.

Our catalogue of spares include:
+ Kitchen Tap Spares;
+ Water Circulation Pumps (for hot tubs and small swimming pools);
+ Sauna Electric Heaters;
+ Sauna Doors;
+ plus, a lot more.


Purchase the Hudson Reed PR905 flow cartridge on a weekday before 3 PM and it will be despatched on the same business day.
