Grohe 47376000 Water Flow Adapter

SUMMARY

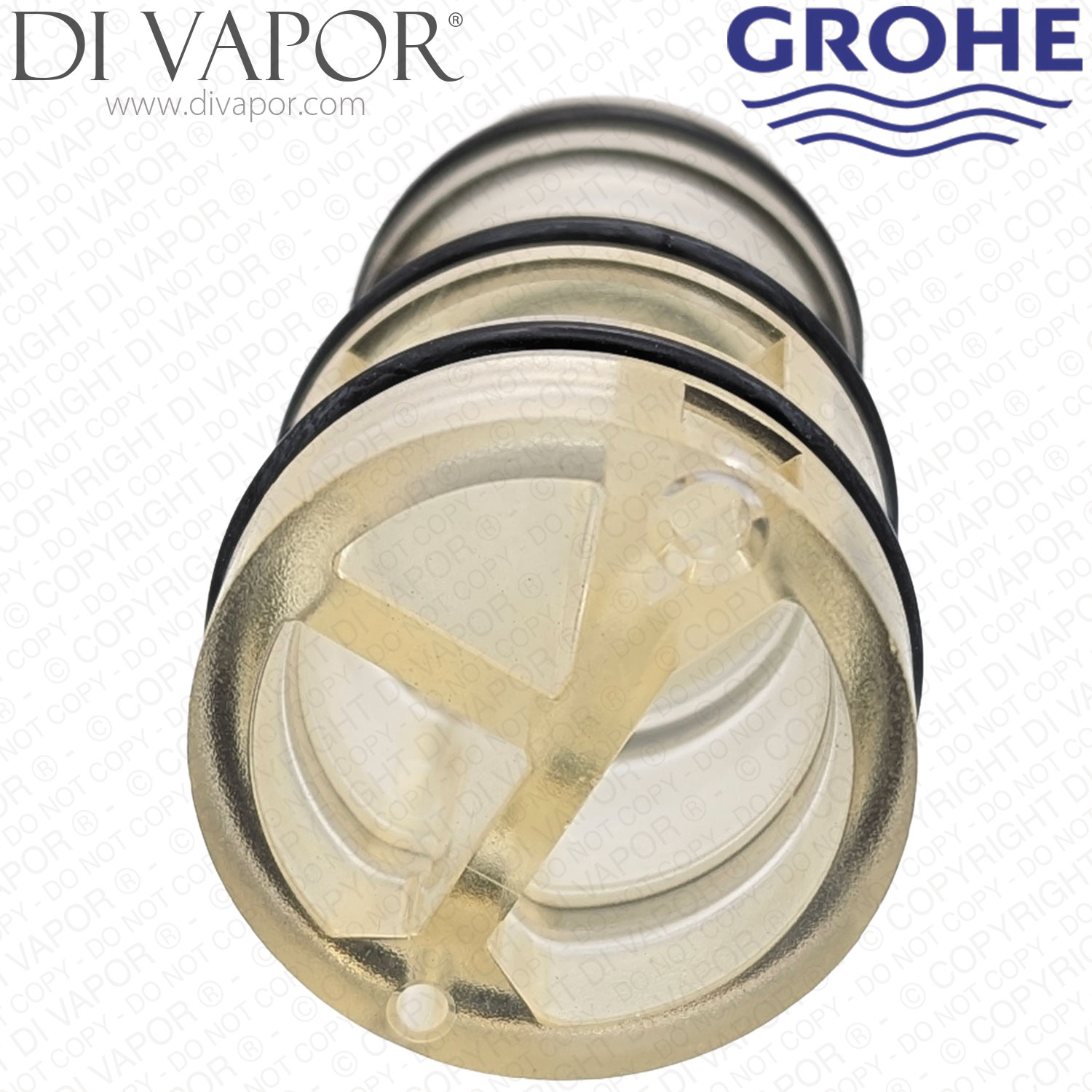

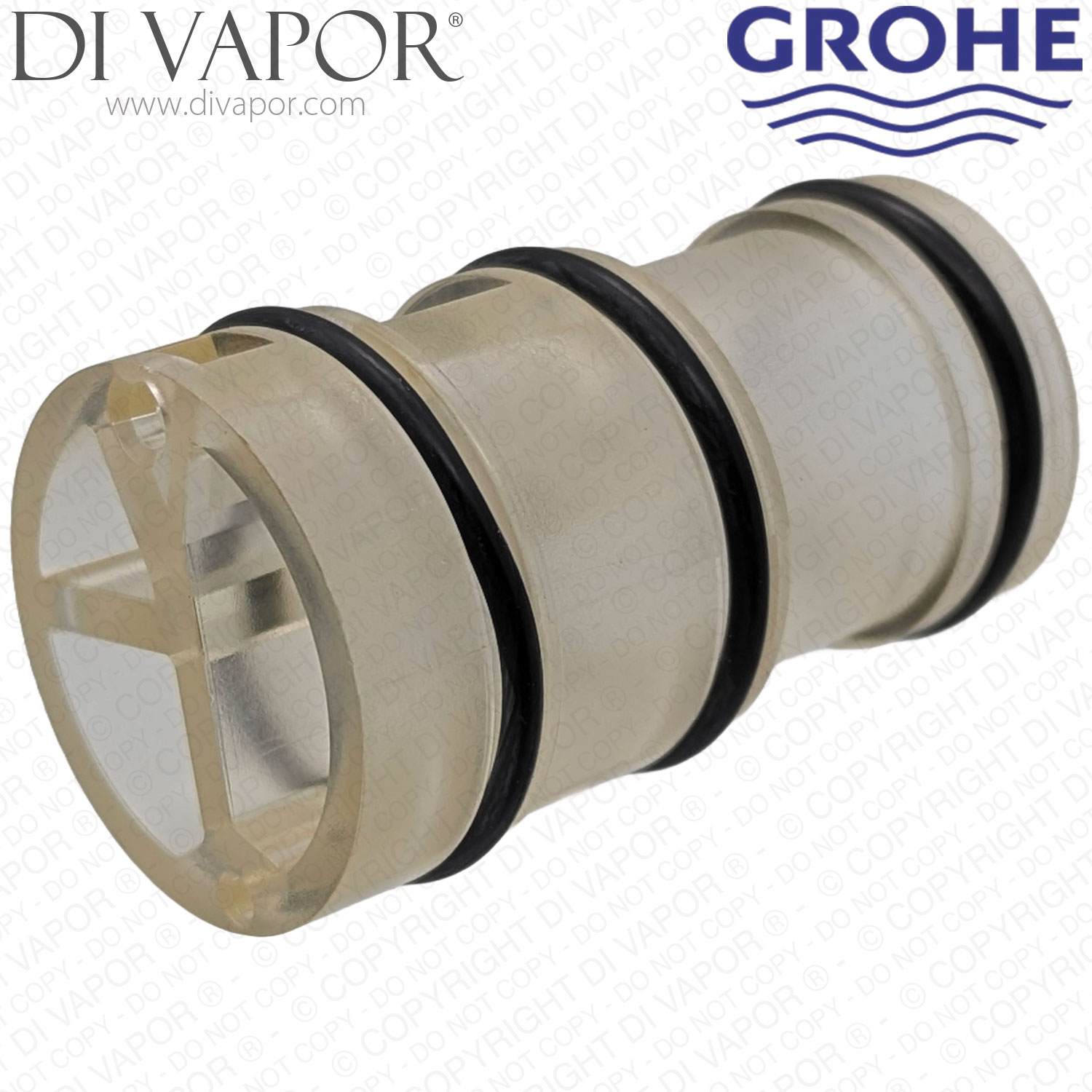

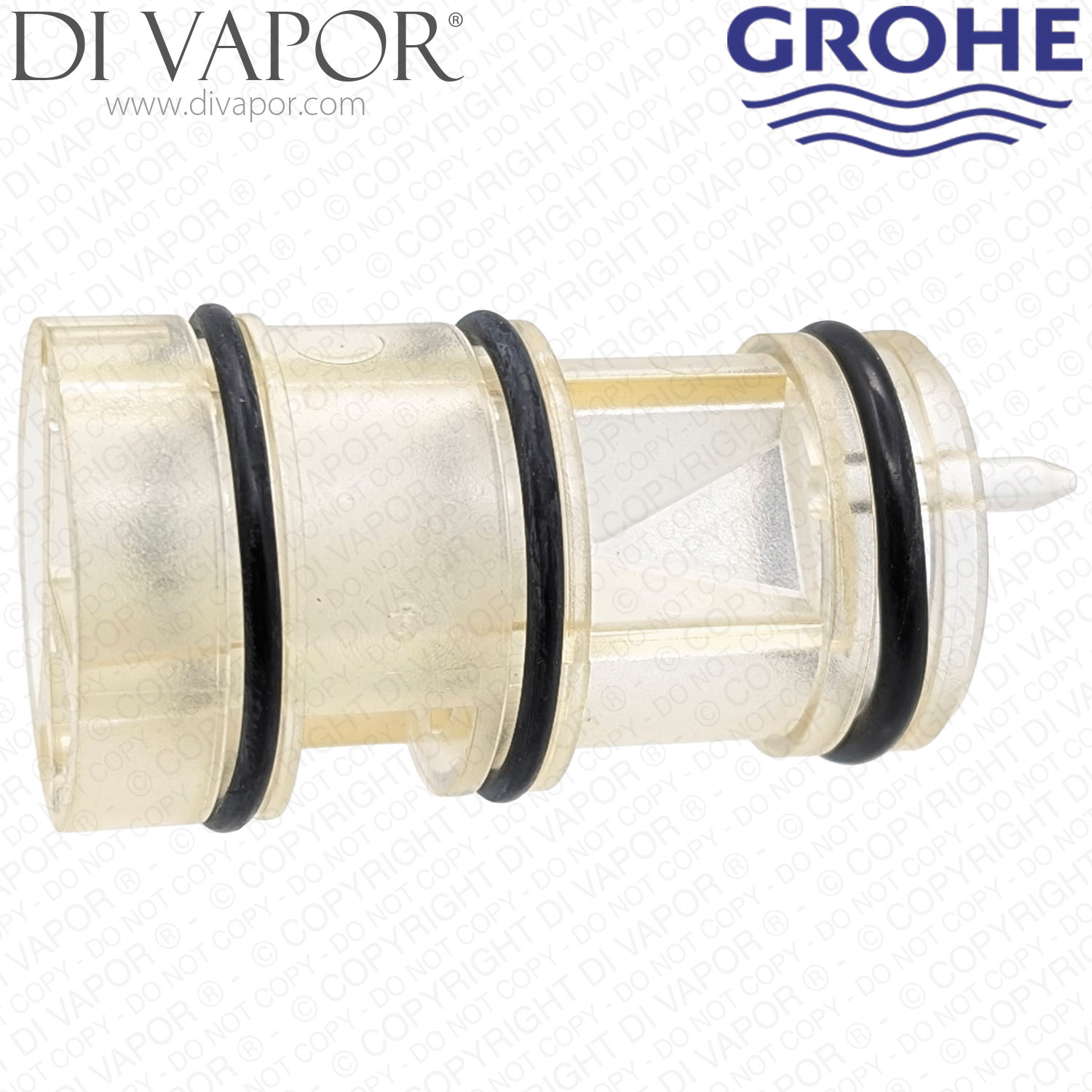

GROHE 47376000 AquaDimmer Water Flow Adapter and Cartridge Seat for Bath Shower Mixers

GROHE 47376000 is an internal water-flow adapter and AquaDimmer cartridge seat for selected GROHE thermostatic bath/shower mixers and shower systems. Also known as the AquaDimmer race, it sits inside the mixer body behind the separate flow/diverter cartridge.

The adapter forms the seating and water-flow interface for the AquaDimmer assembly. It is a distinct service component, not a complete AquaDimmer cartridge or a thermostatic temperature-control cartridge.

Technical Details

- - Part code: 47376000

- - Part type: internal water-flow adapter and AquaDimmer cartridge seat

- - Installation position: behind the AquaDimmer flow/diverter cartridge

- - Abbreviated exploded-diagram reference: 47 376

Confirmed Model Applications

Use the exact mixer model and installation generation when identifying this part. A matching range name or the presence of an AquaDimmer cartridge alone does not establish fitment.

- - GROHE 34367000 Grohtherm 3000 Thermostatic Bath/Shower Mixer

- - GROHE 34367 Grohtherm 3000 Thermostatic Bath/Shower Mixer

- - GROHE 34 368 Grohtherm 3000 Bath/Shower Mixer

- - GROHE 34479000 Grohtherm 3000 Pillar-Mounted Bath/Shower Mixer

- - GROHE 34026000 Tenso Thermostatic Bath/Shower Mixer

- - GROHE 34026 Tenso Thermostatic Bath/Shower Mixer

- - GROHE 34061000 Atrio Thermostatic Bath/Shower Mixer

- - GROHE 34062000 Atrio Thermostatic Bath/Shower Mixer

- - GROHE 34062000 GEN1 Atrio Bath/Shower Mixer - 2001 to 2007

- - GROHE 27032000 Rainshower System 210 Shower System with Thermostat

- - GROHE 27032000 GEN1 Rainshower System 210 - 2004 to 2005

- - GROHE 34001000 Europlus Thermostatic Bath/Shower Mixer

- - GROHE 34551000 Sentosa Thermostatic Bath/Shower Mixer

- - GROHE Ectos Bath Tap - GR DV 102

Before Ordering

Check that the water-flow adapter is the component required, rather than the AquaDimmer cartridge, its separate O-ring or the thermostat-side seat. Compare the removed part with the model-specific assembly. The 0305600M O-ring is a separate AquaDimmer cartridge seal and should not be treated as a complete seal kit for 47376000.

Installation

Isolate both hot and cold water supplies before dismantling the mixer. Follow the instructions for the exact model when removing and refitting the AquaDimmer. Its locating pins must engage the corresponding openings in the race, and the stop, spindle adapter and handle must be correctly aligned during reassembly.

Related Spares You May Need

The following parts are available separately for servicing the listed mixer assemblies. They are model-dependent components, not a kit, and the different thermostatic cartridges are not interchangeable selections for every model.

- - GROHE 47364000 AquaDimmer Flow Cartridge - the separate flow/diverter cartridge fitted in front of the adapter

- - GROHE 47450000 Thermostatic Cartridge - temperature-control cartridge for the specified Grohtherm 3000, Europlus 34001000 and Sentosa 34551000 assemblies

- - GROHE 47167000 Stop Ring and Regulating Adapter - temperature-control adapter used with 47450000 in the relevant mixer assemblies

- - GROHE 47217000 Thermostatic Cartridge with Non-Rising Spindle - temperature-control cartridge for Tenso 34026000, Atrio 34061000 and 34062000, and Rainshower System 210 27032000

- - GROHE 47300000 Stop Ring and Regulating Nut - temperature-control component used with 47217000 in the relevant mixer assemblies

- - GROHE 08565000 Non-Return Valve - separate non-return valve for the specified mixer assemblies

- - GROHE 47282000 Reverse-Supply Thermostatic Cartridge - optional thermostat for the appropriate Grohtherm 3000, Europlus and Sentosa installations with reversed hot and cold supplies

- - GROHE 47375IP0 Grohtherm Auto 3000 Flow-Control Handle - flow-side handle for the Grohtherm 3000 34367000 assembly

- - GROHE 47440IP0 Temperature-Control Handle - temperature-side handle for the Grohtherm 3000 34367000 assembly

- - GROHE Atrio 47289000 Control Handle - handle for the Atrio 34061000 assembly

- - GROHE 47324000 Atrio Jota Flow-Control Lever Handle - flow-control handle for the Atrio 34062000 assembly

- - GROHE 08943000 Atrio Snap Insert Spline Adapter - handle insert for the specified Atrio 34061000 and 34062000 assemblies

- - GROHE Atrio 06676000 Temperature-Control Handle - temperature-control handle for the specified Atrio 34061000 and 34062000 assemblies

- - GROHE 0305600M AquaDimmer Cartridge O-Ring - separate seal for the AquaDimmer cartridge, not a complete seal set for the water-flow adapter

Need Help Identifying the Part?

Contact us with the mixer model number and clear photographs of the complete control assembly and removed adapter before ordering.
