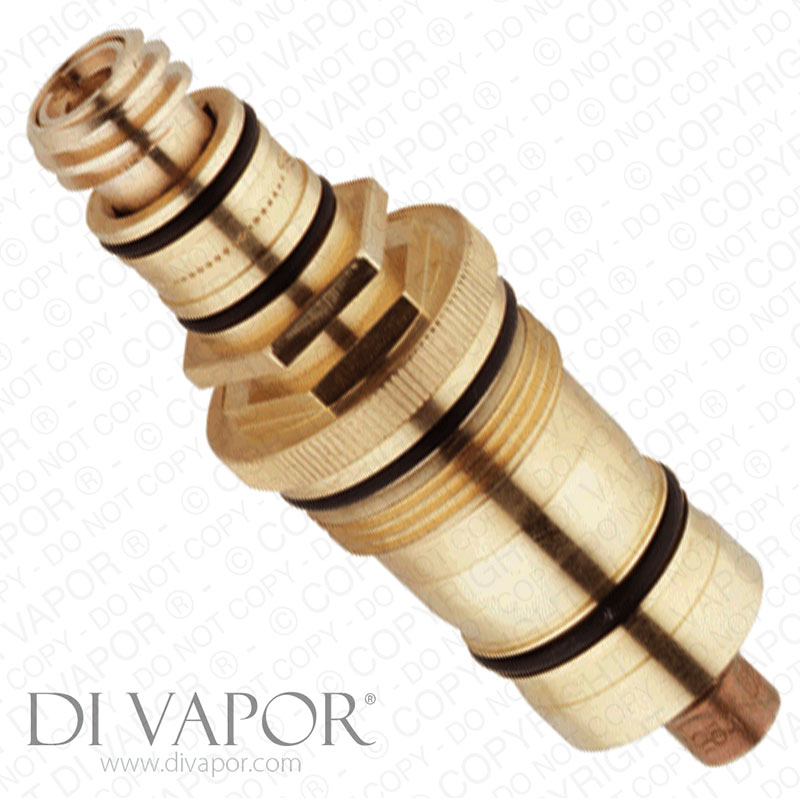

Grohe 47217000 Thermostatic Cartridge (1/2 Inch) with Non-Rising Spindle for Amera, Aquatower, Chiara, Eurodisc, THM, Rainshower and Tenso Valves
SUMMARY
GROHE 47217000 1/2 Inch Thermostatic Cartridge with Non-Rising Spindle for Amera Aquatower Chiara Eurodisc THM Rainshower Tenso Atrio and Europlus E
GROHE 47217000 is a 1/2 inch thermostatic cartridge with a non-rising spindle, used to control mixed water temperature in specific GROHE thermostatic shower valves, bath and shower mixers, shower systems and electronic thermostatic mixers. The cartridge contains the thermostatic element that reacts to changes in the incoming water supplies and adjusts the mixed-water temperature.
This screw-in wax thermo-element is used across a number of GROHE Amera, Aquatower, Chiara, Eurodisc SE, THM, Rainshower, Tenso, Atrio and Europlus E assemblies. It should be matched against the exact GROHE model code before ordering, as visually similar thermostatic cartridges are used in other valve bodies.
Technical Details
- - Part code: 47217000
- - Part type: Thermostatic cartridge / thermo-element
- - Nominal size: 1/2 inch
- - Thermostatic element: Wax thermo-element
- - Spindle type: Non-rising
- - Fitting type: Screw-in
- - Overall height: 81.6 mm
- - Diameter at widest point: 31.8 mm
- - Associated stop ring and regulating nut: 47300000
- - Cartridge sealing O-ring: 0599900M - 21 x 2 mm
- - Cartridge sealing O-ring: 0119600M - 24 x 2 mm
- - Thermostat seat used in several confirmed assemblies: 01460000
Before You Order
Check the exact GROHE model or valve code against the confirmed applications below. Do not identify this cartridge by diameter alone. GROHE uses a different cartridge, 47220000, in certain 3/4 inch thermostat bodies. Applications with reversed or changed hot and cold waterways can use GROHE 47657000 reverse-supply thermostatic cartridge instead of the standard 47217000.
When installing the cartridge, the sealing O-rings should be lightly lubricated with a suitable silicone grease before the cartridge is inserted into the valve body. This helps the seals seat correctly and reduces the risk of damaging or displacing an O-ring during installation.
Confirmed Compatible Models
- - GROHE Amera 27013 / 27013000 Shower System
- - GROHE Aquatower 1000 27015000
- - GROHE Aquatower 2000 27017 / 27017000
- - GROHE Rainshower System 210 27032000 2007 onwards
- - GROHE Rainshower System 210 27032000 GEN1 2004-2005
- - GROHE Tenso 34026 / 34026000 Thermostatic Bath Shower Mixer
- - GROHE Tenso 34027 / 34027000 Thermostatic Shower Mixer
- - GROHE THM 34100 / 34100000 Concealed Body 1/2 Inch
- - GROHE Chiara 34070 / 34070000 Thermostatic Bath Shower Mixer
- - GROHE Chiara 34071 / 34071000 Thermostatic Shower Mixer
- - GROHE Eurodisc SE 36244 / 36244000 Self-Closing Shower Thermostat
- - GROHE Eurodisc SE 36245 / 36245000 Self-Closing Shower Thermostat
- - GROHE Eurodisc SE 36247 / 36247000 Self-Closing Shower Thermostat
- - GROHE Eurodisc SE 36247000 GEN1 2001-2008
- - GROHE Atrio 34010 / 34010000 Thermostat Shower Mixer
- - GROHE Atrio 34011 / 34011000 Thermostatic Shower Mixer
- - GROHE Atrio 34061 / 34061000 Thermostatic Bath Shower Mixer
- - GROHE Atrio 34062 / 34062000 Thermostatic Bath Shower Mixer
- - GROHE Atrio 34062000 GEN1 2001-2007
- - GROHE 36239000 Europlus E Infrared Electronic Wash Basin Thermostat
- - GROHE Europlus E 36240000
- - Grohe GD2 38661 WC concealed cistern 6 / 4 litre PARENT-356
- - Grohe Aquatower 2000 27017 Aquatower 2000 1/2" PARENT-94
- - Grohe Aquatower 2000 27017 Aquatower 2000 1/2" PARENT-95
Related Spares You May Need
- - TACSIL 3g Premium Cartridge Silicone Grease - WRAS Approved
- - GROHE 45869000 Flow On/Off Cartridge F 34966/100
- - GROHE 47300000 Stop Ring and Adapter for 47217000 Thermostatic Cartridge
- - GROHE 47364000 Aquadimmer Flow Cartridge
- - GROHE 45346000 1/2 Inch Carbodur Half Turn Hot Flow Cartridge
- - GROHE 12433000 Aquadimmer Cartridge for Chiara
