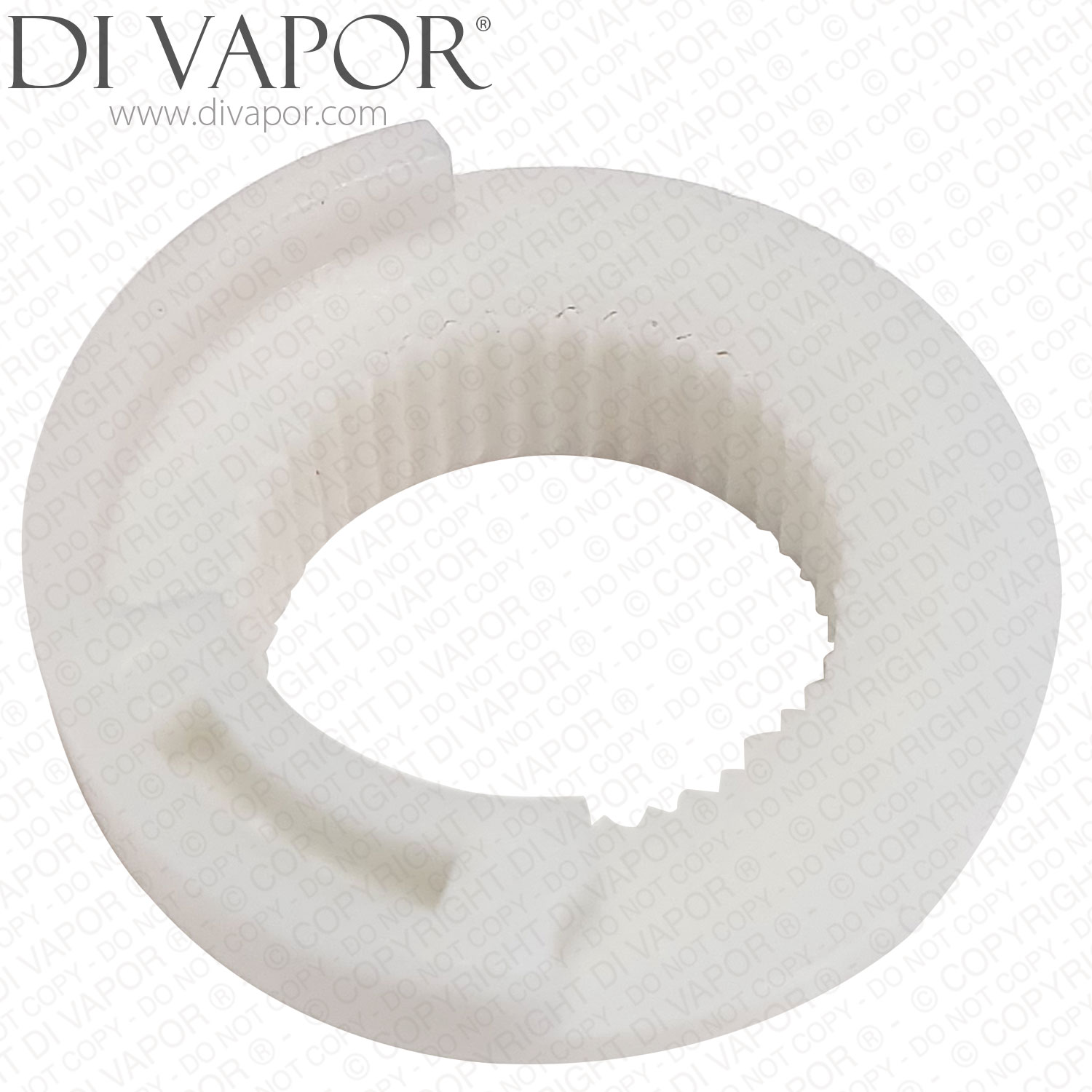

Crosswater AQ9026 Thermostatic Cartridge Temperature Stop Ring
SUMMARY
Crosswater AQ9026 is the thermostatic temperature stop ring, also known as the override ring, used on older Crosswater recessed thermostatic shower valves with the red override button.
It fits onto the thermostatic control assembly and sets the temperature limit stop for the handle. This ring belongs to the old style valve family that also uses AQ8083 flow cartridges, CP0000250 / GP0000250 thermostatic cartridges and IBNRV non-return valves.
Technical Details
- - Spare part code: AQ9026
- - Part type: thermostatic temperature stop ring / override ring
- - Application: recessed thermostatic shower valve temperature control
- - Typical use: restores the temperature limit stop after servicing or replacement of the thermostatic control parts
- - Valve style: old style red button recessed valves
- - Construction detail found during research: white plastic ring

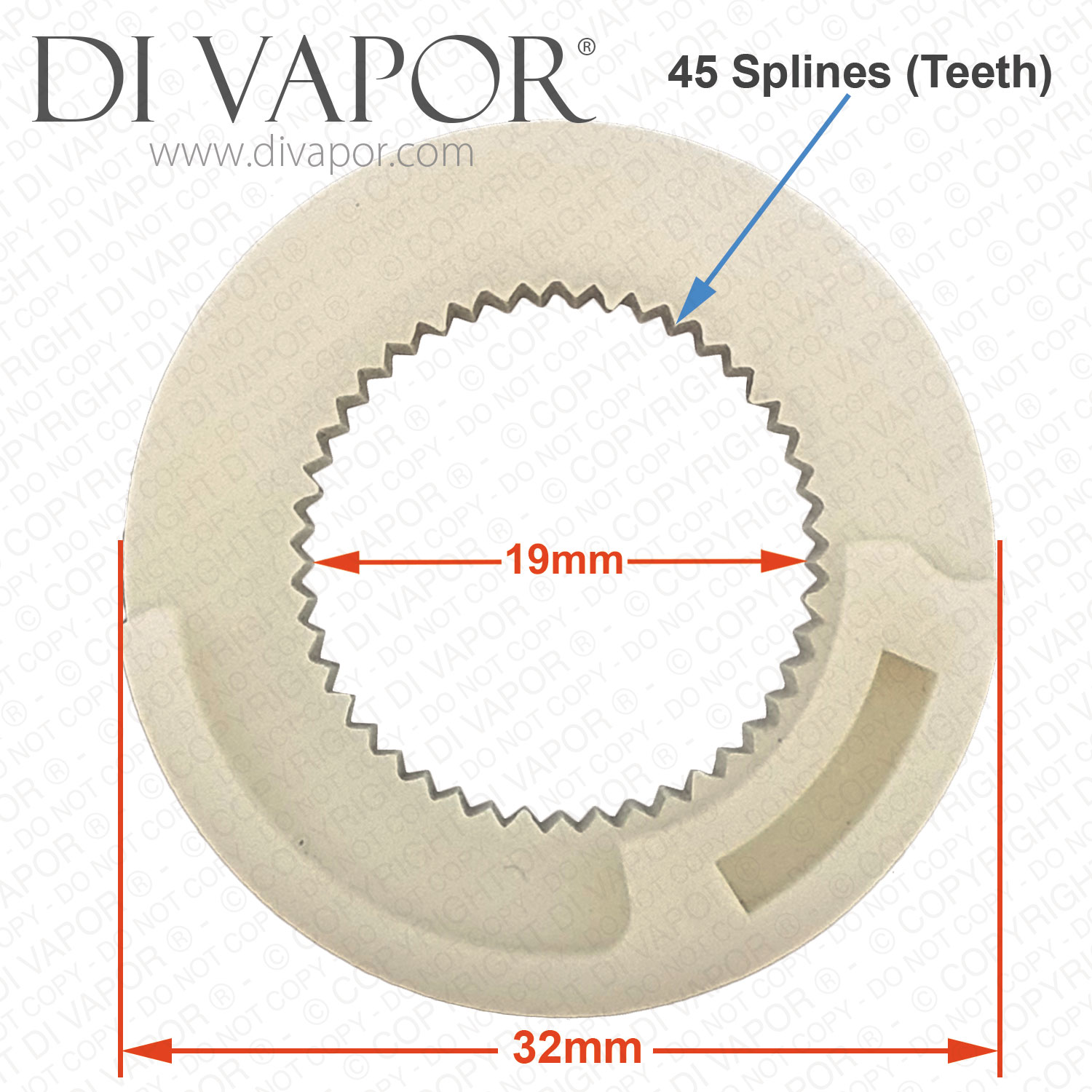

- - Size: approximately 32.78mm diameter and 12.3mm length
- - Check before ordering: confirm an older red button valve and match the existing stop ring because later mid-2007 onwards Crosswater variants use different parts
Confirmed Compatible Models
- - Crosswater 2000 Thermostatic Shower Valve - Pre-2007 - Shower Spare Parts CW DV 171
- - Crosswater WL1000RC Thermostatic Shower Valve Spare Parts
- - Crosswater WL1500RC Thermostatic Shower Valve Spare Parts
- - Crosswater WL2000RC Thermostatic Shower Valve Spare Parts
- - Crosswater WL2001RC Thermostatic Shower Valve Spare Parts
- - Crosswater WL3000RC Thermostatic Shower Valve Spare Parts
Related Spares You May Need
- - AQ8083 Crosswater 3/4 Inch Flow Cartridge with Long Spindle for Crosswater Parent 3 Shower Valves

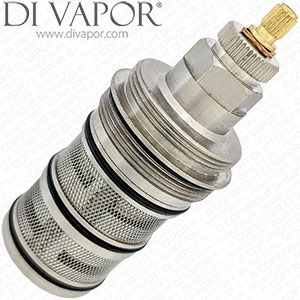

- - Thermostatic Cartridge for Crosswater CP0000250 | GP0000250
- - Crosswater WL1000RC IBNRV Non-Return Valve NRV
- - Crosswater T5T346C Chrome Collar for Thermostatic Cartridge
- - Crosswater AC7043 Chrome Temperature Control Knob
- - Crosswater CP0000250 Handle Base
- - Crosswater H1T082C Handle Base
- - Crosswater Temperature Control Handle for use with CP0000250 / CP250 Thermostatic Cartridge
- - Crosswater Flow Control Handle for use with CP0000250 / CP250 Thermostatic Cartridge
- - TACSIL 3g Premium Cartridge Silicone Grease - WRAS Approved
