Thermostatic Cartridge for Crosswater TCG531FA1 Multifunction | Rainbar (after 2009)
Send a photo of your item and we'll help confirm it.
Summary

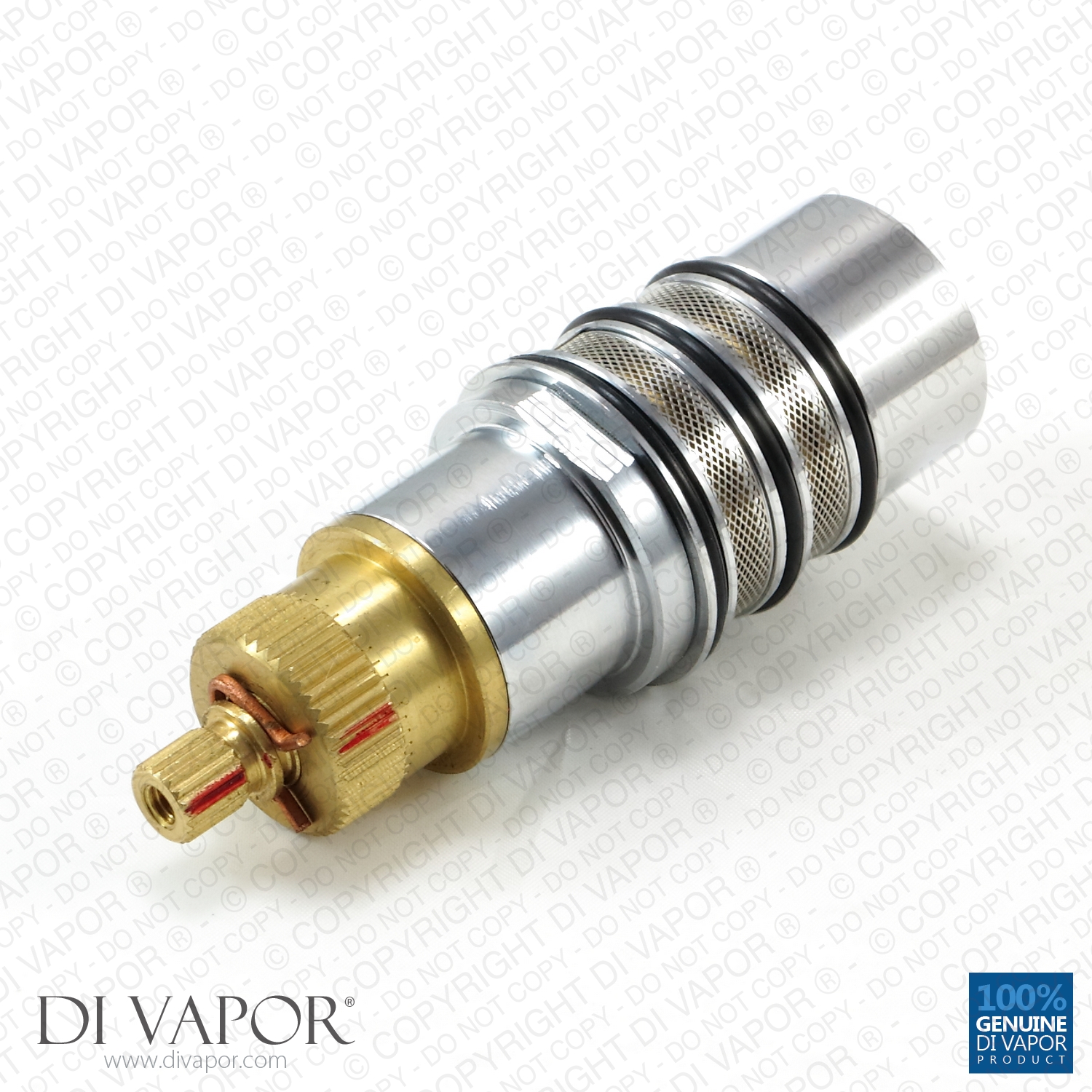

TCG531FA1 thermostatic cartridge.
The TCG531FA1 is used on the Crosswater Multifunction and Rainbar manufactured after 2009.
This cartridge is not to be confused with the Crosswater XCP0000251B and the Crosswater XCP0000251B-C thermostatic cartridges as the three cartridges are from the same range (different generations) and look similar.
Does the cartridge need to be replaced?
- If the metal gauzing on the cartridge isn't blocked up and the valve is receiving a steady flow of hot and cold, the problem is likely to be the thermostatic cartridge. Replacing it is likely to fix the problem.
Technical Information on the Cartridge
| Cartridge Length | n/a |
|---|---|
| Diameter | n/a |
| Number of O'Rings | 3 |
| Material | Brass |
| Type | Screw in |
| Gauze Filters | 2 |
| Total Length | 85.5mm |
| Width (At bottom of main body) | 26mm |
| Width (at top O Ring) | 30.7mm |
Crosswater RV Multifunction Cartridge (New Style) TCG531FA1
The TCG531FA1 is not the same cartridge as the XCP0000251B-C which looks similar but is a different size: Thermostatic Cartridge for Crosswater XCP0000251B-C RV Multifunction | Rainbar (With Toothed Spline).
