SPACW0017 SPACW0017Crosswater SPACW0017 CartridgeCrosswater SPACW0017

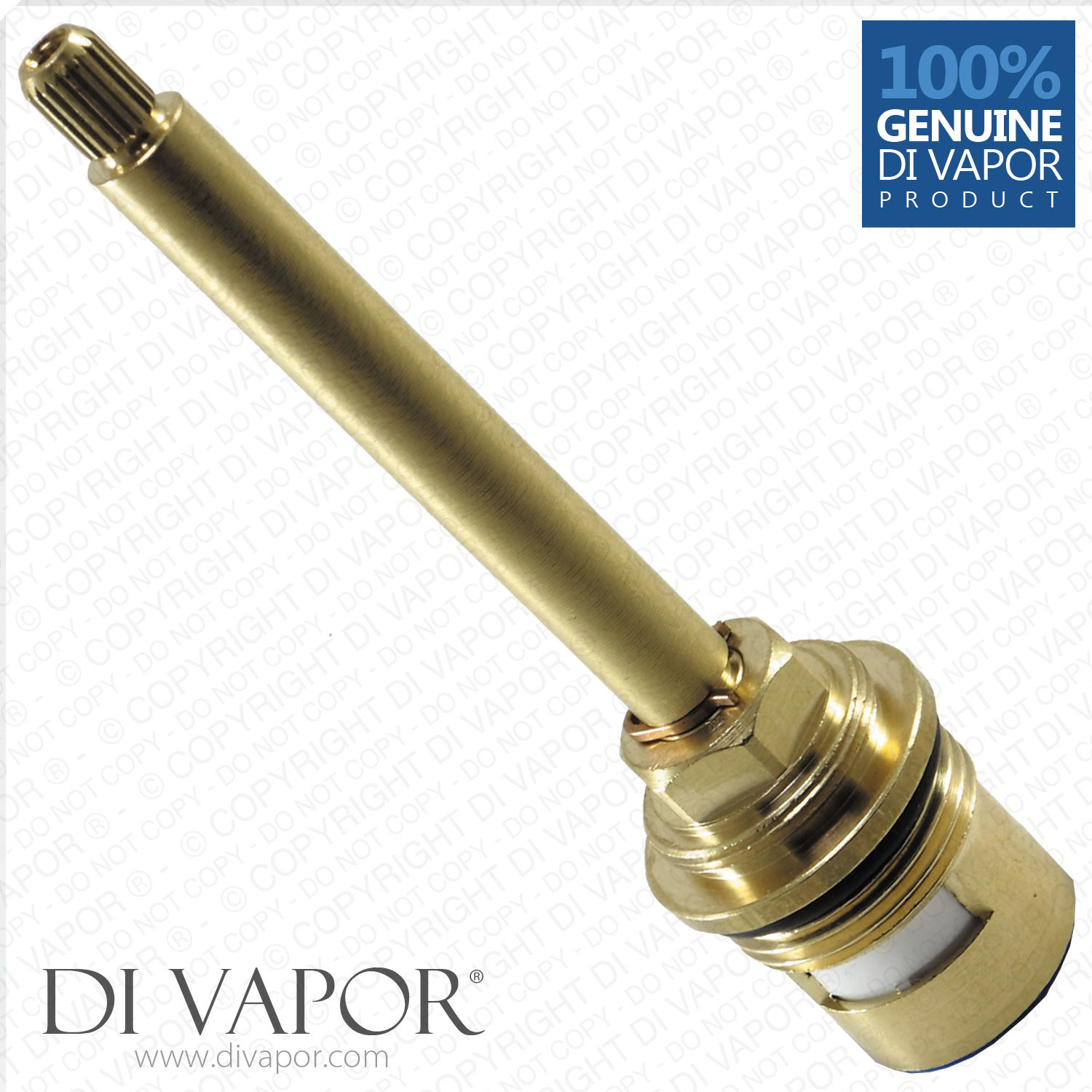

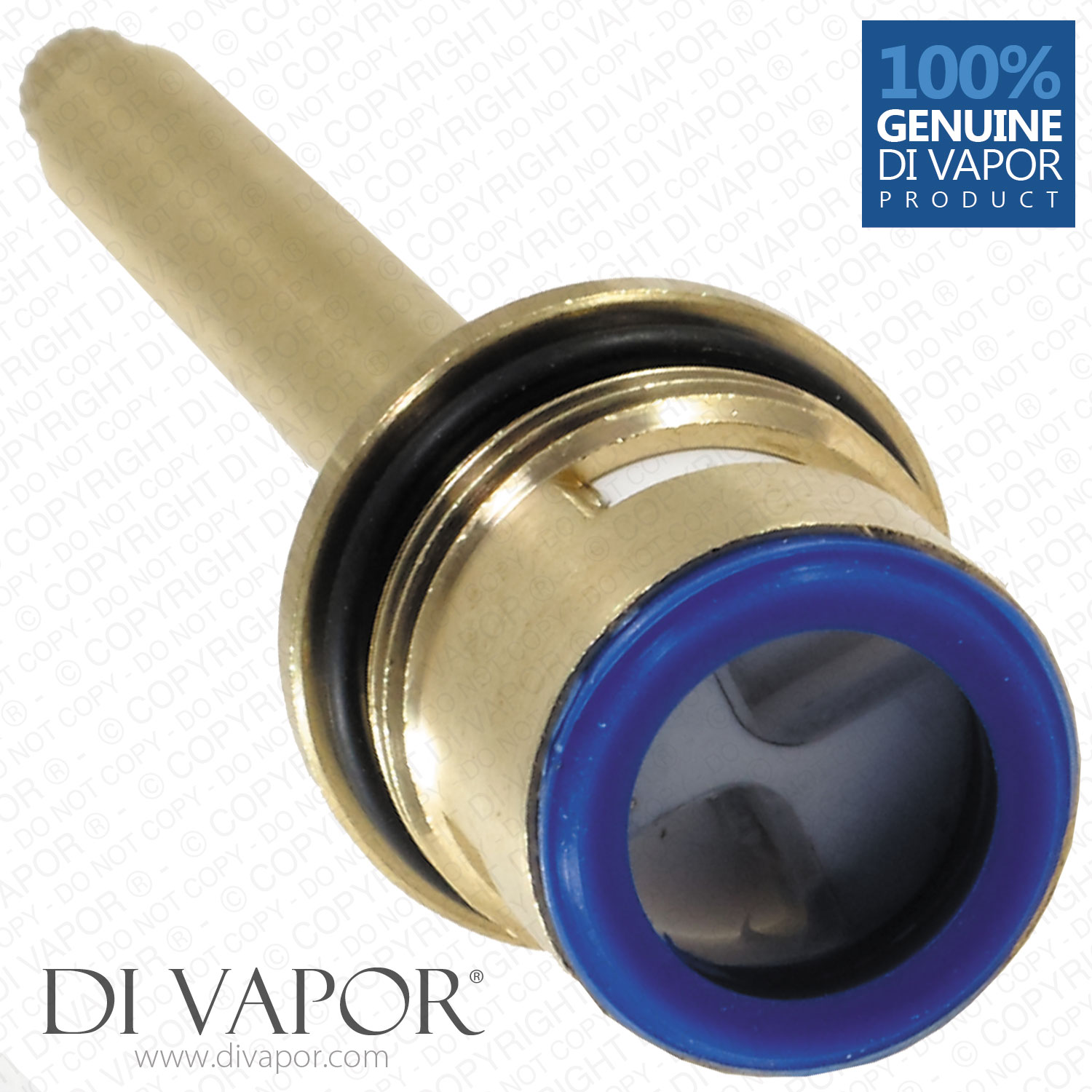

SPACW0017 Crosswater Flow Cartridge for Recessed Shower Valves With Red Button (Pre 2007)

Part Number: SPACW0017

SALE: £44.83

You save: £15.66 (26%)
Price includes UK VAT (Region: UK▼)
Quantity:
ADD TO BASKET
IN STOCK
Wrong Item? Click to see More
UK Lowest Price Guaranteed
Next Day Delivery Available
Product description

SUMMARY

SPACW0017 Crosswater Flow Cartridge for Recessed Shower Valves With Red Button (Pre 2007)

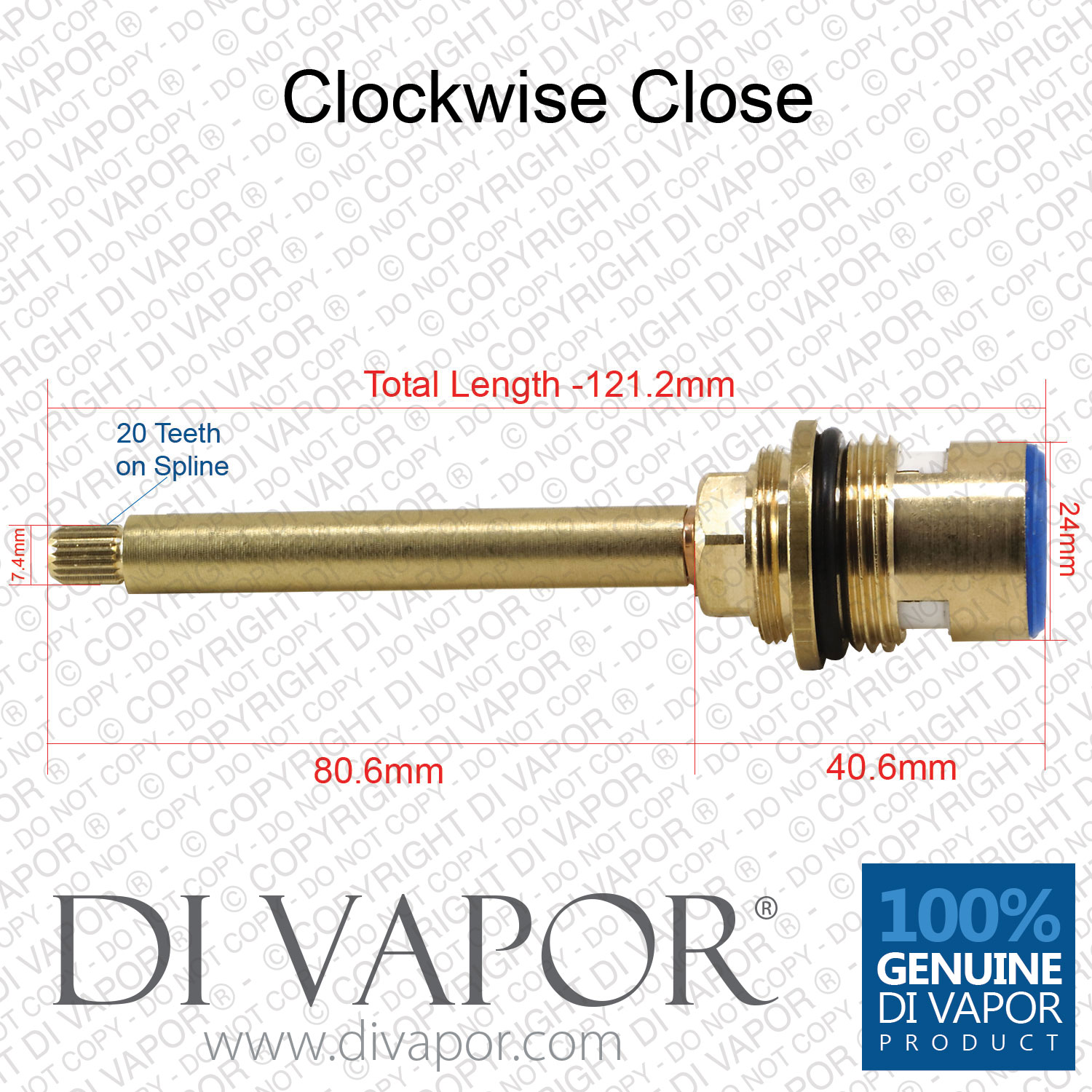

Technical Information
Total Length (incl. rubber washer): 121.2mm (12cm)
Spindle Shaft Length: 80mm (8cm)
Number of Teeth: 20
Main Body diameter: 24mm (2.4cm)
Width of Toothed Spline - 7.6mm
Tools Required - 17mm box spanner for removal and installation


Frequently Asked Questions: SPACW0017
Question: Can the SPACW0017 Crosswater shower spares be fitted in valves from after 2007?
Answer: Spare part SPACW0017 is for before 2007 Crosswater showers. The part you need is SPACW0005 which is for the Crosswater shower valves without the red button.

Question: What is the compatible shower model for this Crosswater shower spares?
Answer: The SPACW0017 is for the pre-2007 Crosswater Alvero recessed shower valve that has a red button on it.

Question: When the shower gives insufficient water flow does it mean the flow cartridge has to be changed?
Answer: An insufficient water flow could mean a number of things. One, the pressure might be too low for the shower valve. This can be resolved by increasing water pressure. Two, a problematic non-return valve or thermostatic cartridge which can be addressed by changing the shower part. Three, clogged water supply lines. And four, the flow cartridge has deteriorated. If this is the case, a replacement Crosswater SPACW0017 is the solution.

Question: The flow cartridge in my shower looks similar to this. Will this Crosswater part fit in my shower?
Answer: Cartridges can look the same but have different dimensions. You can check the given measurements of the SPACW0017 above and on the second photo in the gallery. Then, compare the measurements with the cartridge you have.

Question: How can I open the shower valve to replace the Crosswater SPACW0017 cartridge?
Answer: There is a screw under the handles. Loosen the screw to remove the handle and the parts under it. Remove the wall plate and use a 17mm box spanner to remove the old cartridge.

Note: Coat the replacement Crosswater SPACW0017 cartridge O-ring with silicone grease before installing it. (The plumbers silicone grease can be seen in the last section of this page.)


Other Crosswater shower spares we provide include:
– Thermostatic cartridges
– Flow cartridges
– Diverter cartridges


Part Code References

SPACW0017 is cross-referenced as AQ8083. AQ3083 is the earlier reference for AQ8083.

Before Ordering

Check the exact valve model and production version, together with the existing cartridge code, overall length, spindle, spline, thread and direction of operation. Some valve models have more than one internal design, so the model name or a single measurement alone is not enough to identify the correct cartridge.

Confirmed Compatible Models

The applications below are for versions using the long SPACW0017 or AQ8083 flow cartridge. Match the stated valve version and original cartridge before ordering. The WLBP applications are limited to pre-2006 versions.

- - Crosswater Alvero recessed shower valve - pre-2007 red-button version

- - Crosswater 1000 thermostatic shower valve (CW DV 157) - older AQ8083 version

- - Crosswater 2000 thermostatic shower valve (CW DV 171) - pre-2007

- - Crosswater WL1000RC thermostatic shower valve - older AQ8083 version

- - Crosswater WL2000RC thermostatic shower valve - older AQ8083 version

- - Crosswater WL2001RC thermostatic shower valve - older AQ8083 version

- - Crosswater WL3000RC thermostatic shower valve - older AQ8083 version

- - Crosswater WL3001RC thermostatic shower valve - older AQ8083 version

- - Crosswater Kai Lever KL0001RC recessed shut-off valve

- - Crosswater Totti TO1000RC thermostatic shower valve - older red-button version

- - Bathstore Metro 70001000300 thermostatic valve - older AQ8083 version

- - Bathstore Metro 70001000310 vertical thermostatic shower bath valve - pre-2007

- - Bathstore Quatra 70001000340 vertical thermostatic shower bath valve - pre-2007 red-button version

- - Crosswater WLBP 1000 valve bodies - pre-2006 versions

- - Crosswater WLBP 2000/1 valve bodies - pre-2006 versions

- - Crosswater WLBP 3000/1 valve bodies - pre-2006 versions

Installation Notes

Isolate both hot and cold water supplies before removing the controls and gaining access to the cartridge. Use a 17mm box spanner to remove and fit the cartridge, following the procedure for the specific valve. Apply a thin coating of suitable silicone grease to the relevant O-rings and seals before installation, then reassemble the controls and check operation and sealing.

Related Spares You May Need

The thermostatic cartridges below are separate options for their stated valve applications. Choose the thermostat, temperature stop ring, handle base and controls that match your existing assembly.

- - TACSIL 3g silicone grease: for lubricating suitable O-rings and seals during installation

- - Crosswater SPACW0001 Alvero thermostatic cartridge: temperature-control cartridge for the older red-button Alvero assembly

- - GROHE GR-18007031 SYNTHESO LM 220 silicone grease 2g: an alternative lubricant for suitable cartridge O-rings and seals

- - Crosswater CR99281 temperature stop ring: for the SPACW0001 thermostatic cartridge

- - Crosswater AQ9026 temperature stop ring: override ring for the appropriate older red-button valve assembly

- - Crosswater CP250 thermostatic cartridge: temperature-control option for old-style red-button recessed valves

- - Crosswater CP0000250 / GP0000250 thermostatic cartridge: for the applicable older thermostatic valve assembly

- - Crosswater IBNRV non-return valve: for the older red-button valve family, supplied individually

- - Crosswater T5T346C chrome thermostat collar: for the applicable control assembly, including WL1000RC

- - Crosswater AC7043 chrome temperature-control knob: for the applicable pre-2007 Crosswater 2000 valve

- - Crosswater CP0000250 Handle Base - Part Number CP00002345: match the existing handle-base assembly

- - Crosswater H1T082C handle base: select only where this is the correct base for the existing control

- - Crosswater CP050TT temperature-control handle: for the relevant CP0000250 / CP250 valve arrangement

- - Crosswater CP050FF flow-control handle: for the relevant CP0000250 / CP250 valve arrangement

- - Crosswater TOTHL02F Totti flow-control knob: for the matching Totti control assembly

- - Crosswater TOTHL02H Totti temperature-control knob: for the matching Totti temperature control

- - Crosswater CP40250 reconditioned CP0000250 thermostatic cartridge: a reconditioned thermostat option for assemblies using CP0000250

- - Bathstore 90000014100 thermostatic cartridge: temperature-control option for the appropriate older Quatra or Metro valve

- - Bathstore 9001354 temperature stop ring - Part Number B-9001354: for the 90000014100 thermostatic cartridge

- - Bathstore BSM3CV Metro check-valve housing with O-ring: for the matching Metro vertical or horizontal triple concealed valve

- - DV93248 M4 cartridge screw with 10mm threaded length: check that the existing handle fixing uses this thread and length

- - NXT734 shower hose: listed length 150mm; match the existing hose and end connections

If you are unsure which part you need, use our part identification service for help.
