Grohe 47375IP0 Grohtherm Auto 3000 Flow Control Handle - Chrome
Send a photo of your item and we'll help confirm it.
Summary

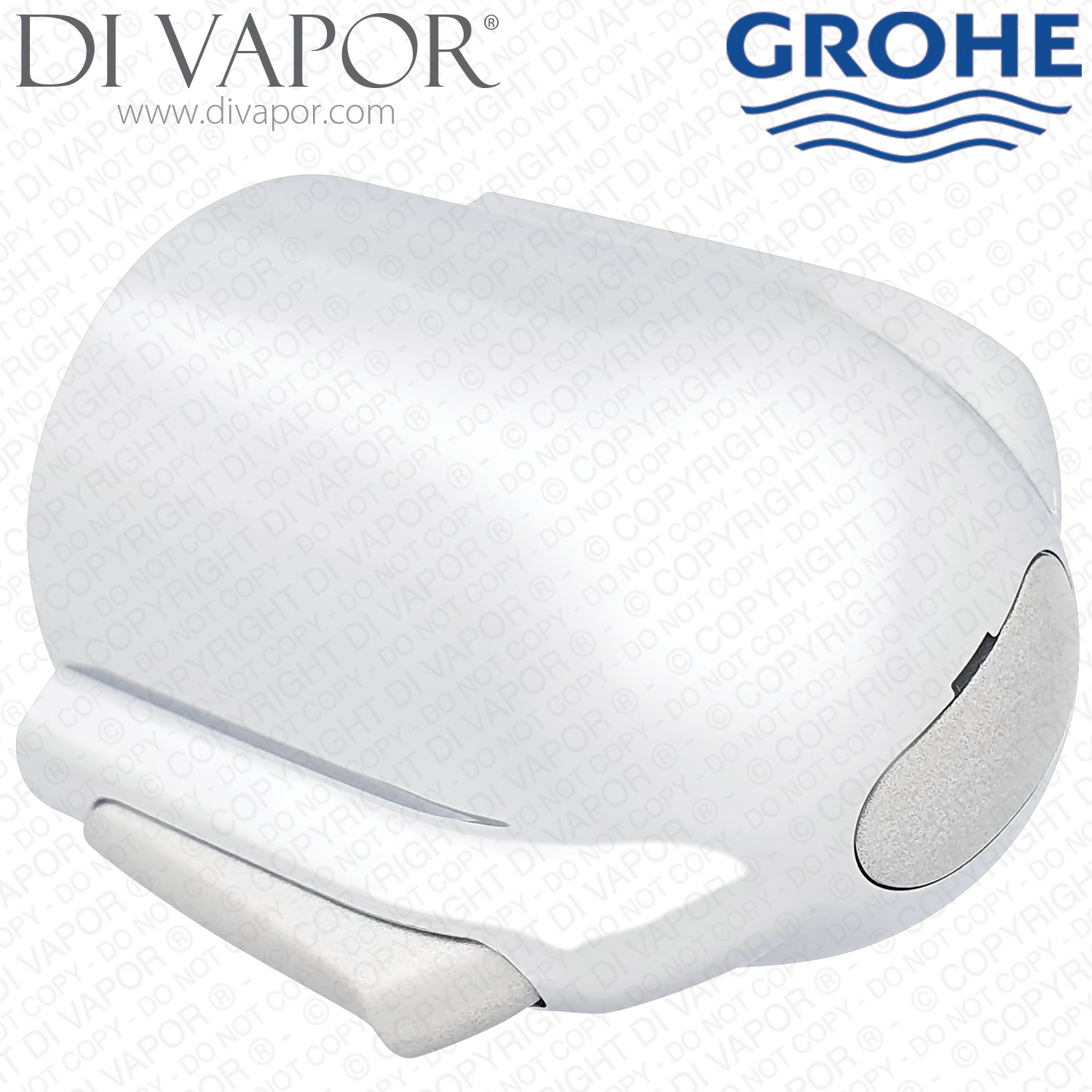

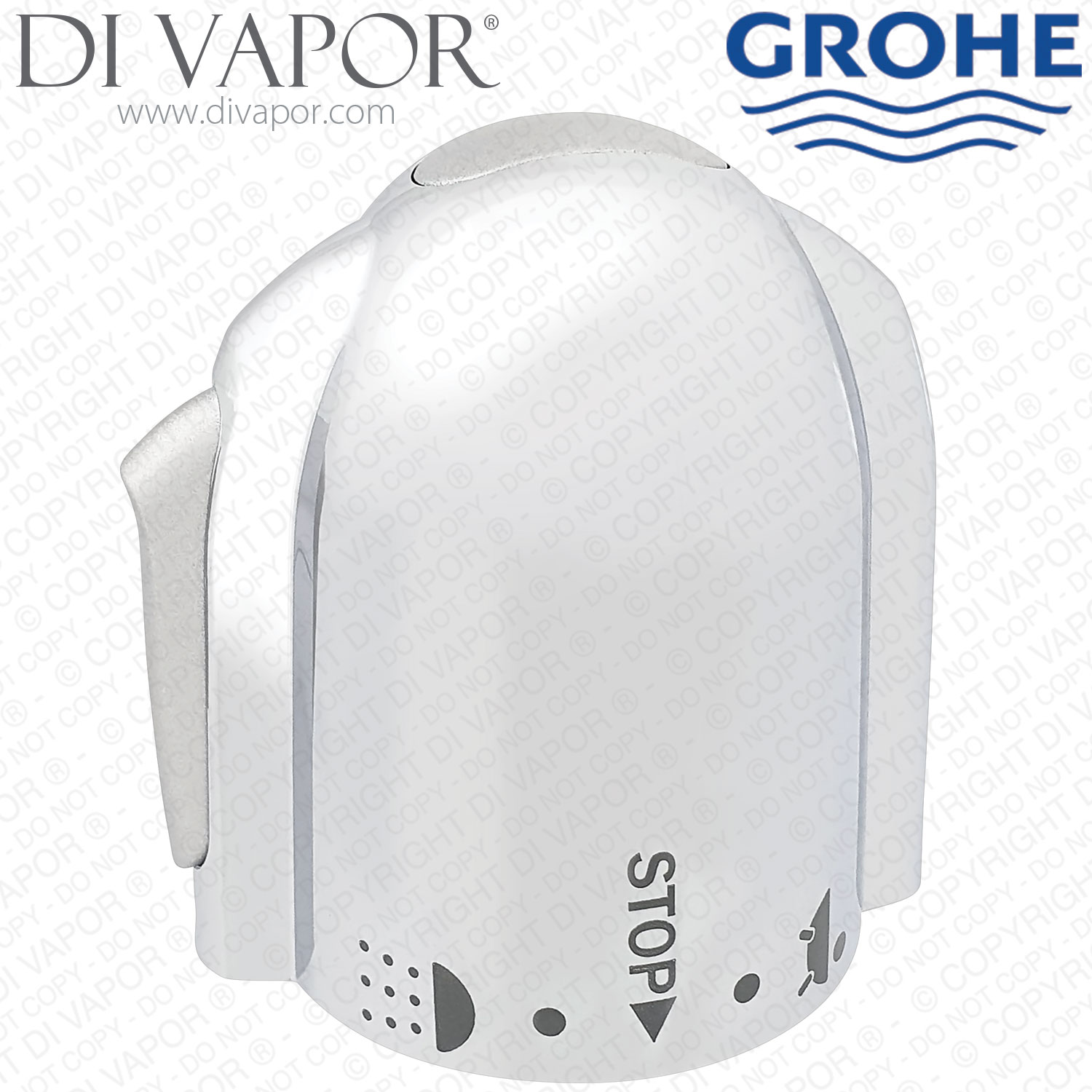

GROHE 47375IP0 Grohtherm Auto 3000 Flow Control Handle Chrome
The GROHE 47375IP0 is a chrome flow-control handle for selected Grohtherm 3000 and Grohtherm Auto 3000 thermostatic bath and shower mixers. It is fitted to the flow-control side of the mixer and operates the Aquadimmer mechanism used to control water flow and, on the relevant bath/shower mixer, outlet selection.
The handle works with the 47364000 Aquadimmer cartridge and associated 47376000 water flow adapter. The handle is an external operating component rather than the internal water-sealing cartridge. If the handle is damaged, loose or missing, the handle should be checked, while persistent dripping or water continuing to run after shut-off can indicate a fault with the 47364000 Aquadimmer cartridge behind it.
Technical Details
| Exact code | 47375IP0 |
|---|---|
| Part type | flow-control and shut-off handle |
| Finish | chrome |
| Associated Aquadimmer cartridge | 47364000 |
| Associated water flow adapter | 47376000 |
- For 19665000, the original flow-control handle was 47530IP0, which is replaced by 47375IP0
Confirmed Models
- GROHE 34367000 Grohtherm 3000 Thermostatic Bath Shower Mixer
- GROHE 34479000 Grohtherm Auto 3000 Bath Shower Mixer
- GROHE 19665000 Grohtherm 3000 Thermostatic Bath / Shower Mixer Trim, where 47375IP0 is the replacement for the original 47530IP0 flow-control handle
Before ordering, check the exact mixer code and which control requires replacement. On GROHE 19665000, 47440IP0 is the temperature-control handle, while 47530IP0 was the original flow-control handle subsequently replaced by 47375IP0. Do not confuse these parts with 47542IP0.
Related Spares You May Need
- GROHE 47450000 Thermostatic Cartridge
- GROHE 47364000 Aquadimmer Flow Cartridge
- GROHE 0305600M O-Ring for Aquadimmer Cartridge
- GROHE 47376000 Water Flow Adapter
- GROHE 47440IP0 Temperature Control Handle
- GROHE 47167000 Stop Ring Adapter
- GROHE 08565000 Non-Return Valve
- GROHE 47282000 Reverse-Supply Thermostatic Cartridge, for installations with hot on the right and cold on the left
- GROHE 04952000 S1 Shroud Sleeve Chrome
- GROHE 1411600M Non Return Valves Two
- GROHE 28151000 Relaxaflex Shower Hose 1500mm
