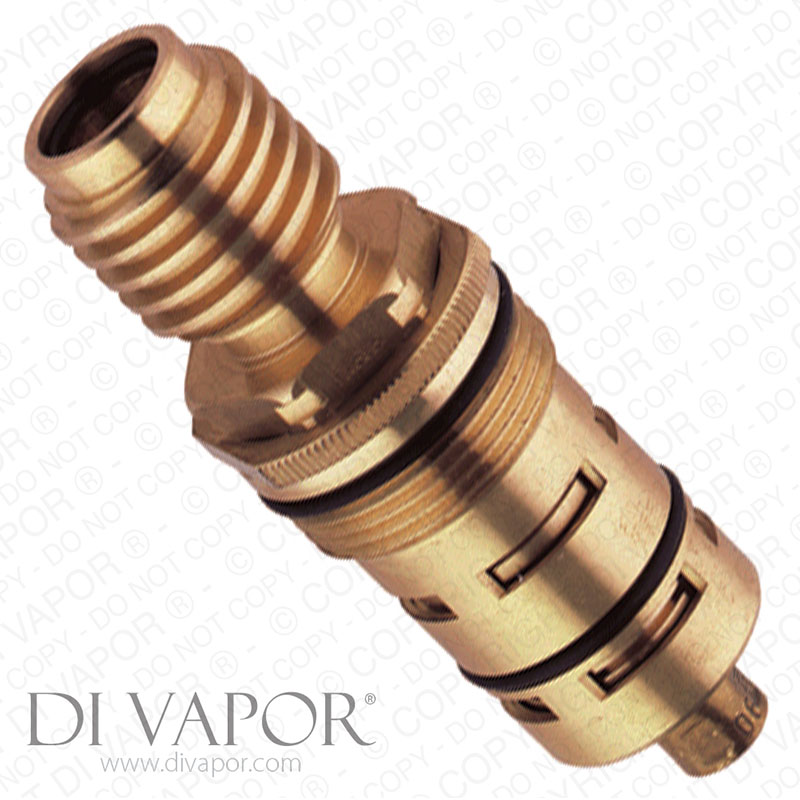

Grohe 47282000 Thermostatic Cartridge (Reverse Supplies) for Automatic 2000, Grohtherm 3000, Grohmaster, Sentosa and Ergomix Valves
SUMMARY
Grohe 47282000 thermostatic cartridge which is for reverse supplies set ups.
Grohe 47282000 is a 1/2 inch thermostatic thermoelement cartridge for reverse-waterway installations in selected Automatic 2000, Grohtherm, Grohmaster, Chiara, Sentosa, Ergomix, Europlus and Tenso valves. This reverse-supply cartridge is intended for installations where the hot water supply enters on the right and the cold water supply enters on the left.
The internal wax element responds to changes in the incoming water temperatures and adjusts the mixed-water temperature through the thermostatic valve. A worn or sticking thermoelement can cause poor temperature adjustment, unstable outlet temperature or difficulty reaching the required temperature. Before replacing the cartridge, confirm that the valve genuinely has reversed hot and cold supplies.
This is the reverse-waterway 47282000 cartridge and should not be confused with the standard-supply 47450000 thermoelement or the separate older 47280 code. No verified supersession was found for 47282000.
Technical Details
- - Part code: 47282000
- - Other documented code forms: 47 282 000 and 47 282
- - Part type: Thermostatic thermoelement cartridge
- - Category: Thermostatic cartridge
- - Nominal size: 1/2 inch
- - Application: Reverse waterways / reversed inlet supplies
- - Hot water supply position: Right
- - Cold water supply position: Left
- - Thermostatic element: Wax element
- - Material: Brass
- - Approximate overall length: 88.75 mm
- - Approximate diameter: 31.89 mm
- - O-rings: 2
- - Service seal codes: 0120600M and 0268000M
- - Supersession status: No verified supersession found for 47282000
Confirmed Valve Applications
- - Grohe 34303 Chiara 1/2 Inch Thermostat Mixer
- - Grohe 34 025 Grohmaster Grohtherm 1000 EV
- - Grohe 34367000 Grohtherm 3000 Thermostatic Bath Shower Mixer
- - Grohe 34357000 Automatic 2000 Thermostatic Bath Mixer 34 357
- - Grohe 34021000 Grohtherm Ergomix 1/2 Inch Thermostat Basin Mixer
- - Grohe Sentosa Mixing Valve
- - Grohe 34954 34954000 Automatic 2000 1/2 Inch Thermostat Mixer
- - Grohe 19665000 Grohtherm 3000 Concealed Thermostatic Bath Shower Mixer Trim 19 665
- - Grohe 34650000 Automatic 2000 Thermostatic Shower Mixer 34 650
- - Grohe 34612 34612000 Chiara 1/2 Inch Thermostat Mixer
- - Grohe 34020000 Grohtherm Ergomix Thermostat Basin Mixer
- - Grohe 34953 34953000 Automatic 2000 1/2 Inch Concealed Thermostat Body
- - Grohe 34647000 Automatic 2000 Special Bar Mixer Shower
- - Grohe 34336000 Grohtherm 1000 Thermostatic Bath Mixer
- - Grohe 34646000 Grohtherm 1000 Thermostatic Shower Mixer
- - Grohe 34334000 Grohtherm Auto 1000 Bar Mixer Shower
- - Grohe 34624000 Grohtherm 1000 Thermostatic Shower
- - Grohe 34479000 Grohtherm Auto 3000 Bath Shower Mixer
- - Grohe 19682000 Europlus Mixer Shower with Flow Control
- - Grohe 34328000 34328 000 Grohtherm Auto 1000 Shower
- - Grohe 19605000 19605 000 Grohtherm Automatic 2000 Shower
- - Grohe 34966000 34966 000 Mixer Valve
- - Grohe 34968000 34968 000 Shower Mixer Valve
- - Grohe 34610 Chiara Thermostatic Bar Mixer Shower
- - Grohe 34024000 Grohtherm 1000 1994-2004 Grohmaster BIV Shower
Before You Order
Check the exact valve model and confirm the inlet arrangement before ordering. This cartridge is specifically for reversed waterways, with hot on the right and cold on the left. Valves with conventional hot-left and cold-right supplies can use a different thermoelement. Because flow-control cartridges, handles and other Grohe spare parts vary between models and generations, select additional valve components against the exact valve spares page.
When installing the cartridge, isolate the water supplies before dismantling the valve, lightly lubricate the O-rings with suitable silicone grease and check the temperature calibration after reassembly. Removal method and access can vary between valve models.
Related Spares You May Need
- - TACSIL 3g Premium Cartridge Silicone Grease - WRAS Approved
