Diverter Cartridge for Adora Recessed Shower Valves (Crosswater DV1500VA1)

SUMMARY

Diverter Cartridge for Adora Recessed Shower Valves (Crosswater DV1500VA1)

The Crosswater DV1500VA1 is a diverter and flow control cartridge used in selected Adora recessed thermostatic shower valves, including the Crosswater Fusion and Planet two-way diverter shower systems. This cartridge is fitted inside the concealed shower valve and controls water flow and outlet selection.

The DV1500VA1 allows mixed water to be directed between two shower outlets, typically a fixed overhead shower head and a separate handheld shower. It operates independently of the thermostatic cartridge, which controls the mixed water temperature. A worn or damaged diverter cartridge can cause difficulty selecting outlets, reduced control over water flow or water continuing to drip from the shower head when the valve is turned off.

Technical Details

- - Part Number: DV1500VA1

- - Part Type: Diverter and flow control cartridge

- - Application: Adora recessed two-way thermostatic shower valves

- - Cartridge Fitting: Push-in

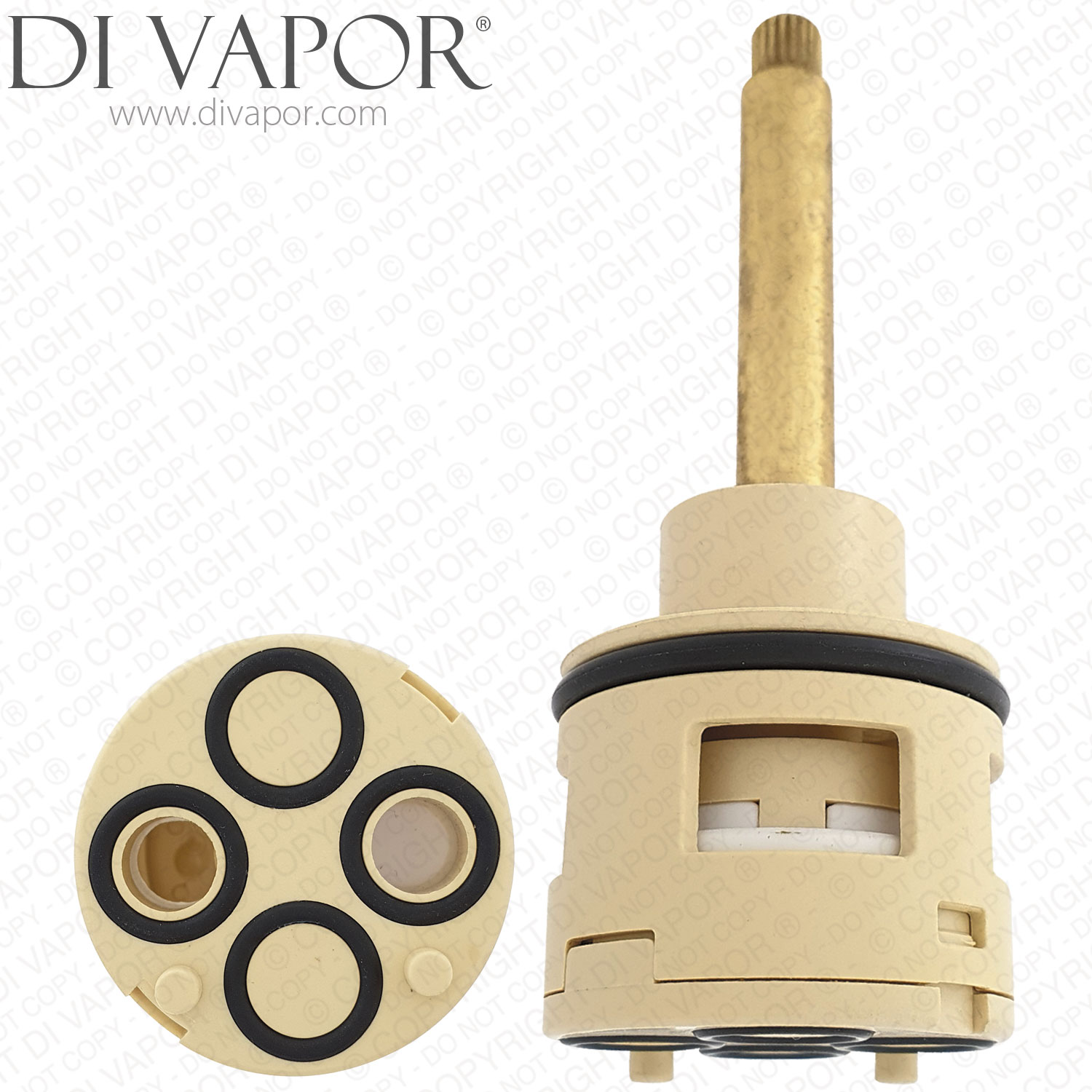

- - Construction: Brass operating spindle with plastic cartridge housing and O-ring seals

- - Overall Cartridge Length: Approximately 100mm

- - Spindle Length: Approximately 60mm

- - Spindle Width: Approximately 10mm

- - Cartridge Body Width: Approximately 40mm

- - Body Length Including Guide Pins: Approximately 50mm

- - Outlet Control: Two-way shower outlet selection

Confirmed Compatible Models

- - Crosswater Fusion MBFU1500RC Thermostatic Shower Valve with 2 Way Diverter

- - Crosswater Planet MBPS1500RC Thermostatic Shower Valve with 2 Way Diverter

Both shower valves use the Crosswater MB1500RV+ dual-control thermostatic valve and diverter assembly. The diverter cartridge controls the flow and outlet selection, while the separate thermostatic cartridge regulates the shower water temperature.

Common Fault Symptoms

A diverter cartridge may require attention if the shower control becomes difficult to operate, water continues to flow through the incorrect outlet or the shower head continues dripping after the shower has been switched off. These symptoms can indicate worn internal seals or a faulty flow control mechanism, although other valve components should also be checked before replacing the cartridge.

Before Ordering and Installation

Check the existing cartridge against the DV1500VA1 part code, overall dimensions, brass spindle, locating pins and sealing arrangement before ordering. Similar-looking shower cartridges are not necessarily interchangeable. Isolate the hot and cold water supplies before dismantling the shower valve. During installation, a light application of suitable silicone grease to the O-ring seals can help protect them and assist with fitting.

Related Spares You May Need

- - Crosswater 5E2.1102 Thermostatic Cartridge - Part Number: CROSSWATER-5E2-1102

- - TACSIL 3g Premium Cartridge Silicone Grease - WRAS Approved - Part Number: TAC86

If you are unsure which part you need, use our Di Vapor Part Identification Service for help.
