SBARCA04 Ultra Thermostatic Shower Cartridge Replacement for JTY369 and A3558 Shower Valves (Hudson Reed)

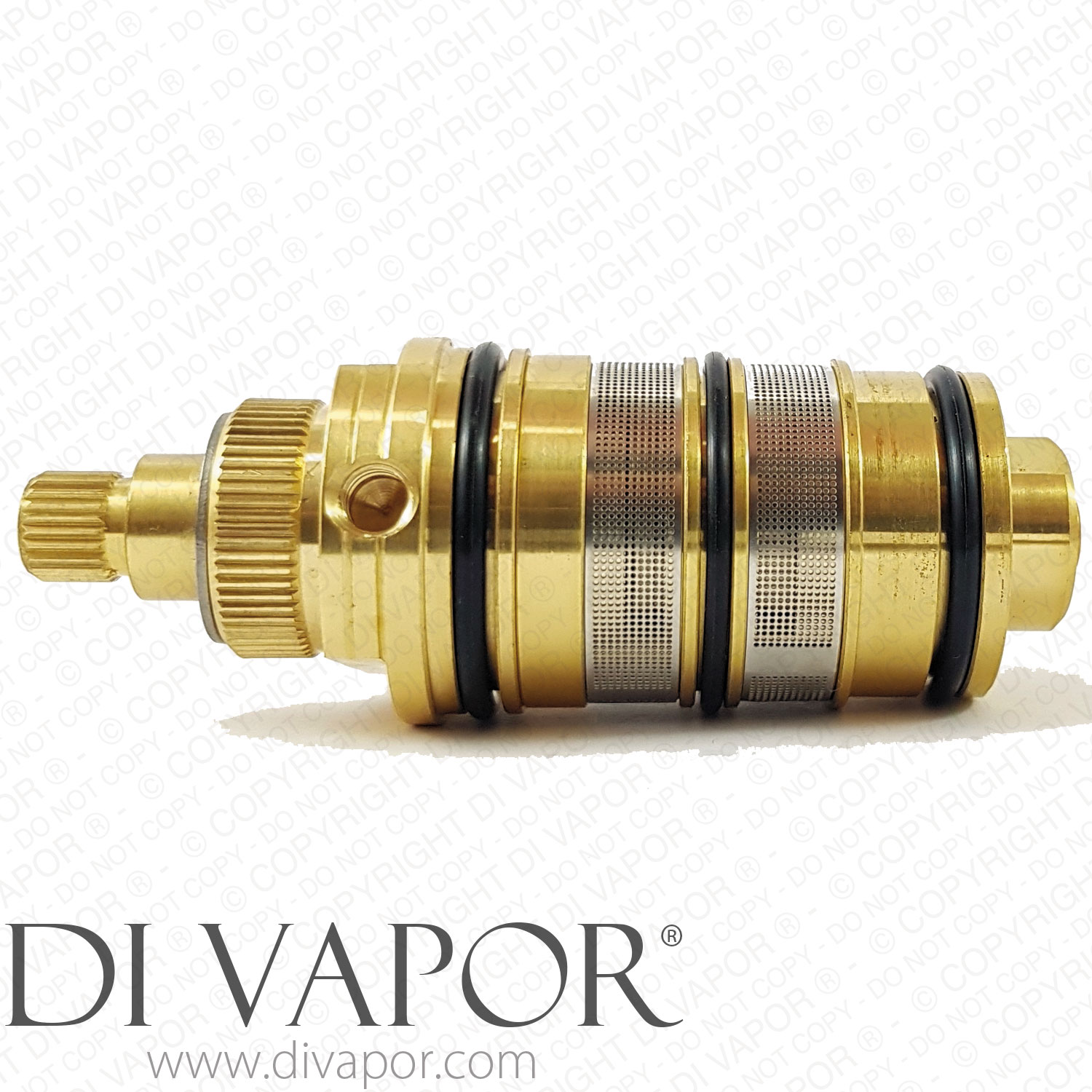

General Information: SBARCA04 Ultra / Hudson Reed Thermostatic Shower Cartridge

The Ultra thermostatic cartridge SBARCA04 is used in Hudson Reed shower valves JTY369 and A3558. Please contact us if you have questions about shower spare part compatibility or need help in shower valve part identification. Our friendly and helpful UK spares experts will personally respond to your queries.

Ultra SBARCA04 measures
– 91mm (9.1cm) in length,
– 33.8mm (3.38cm) at its widest part,
– 9.5mm in spindle diameter,
– and 28 spline teeth count.

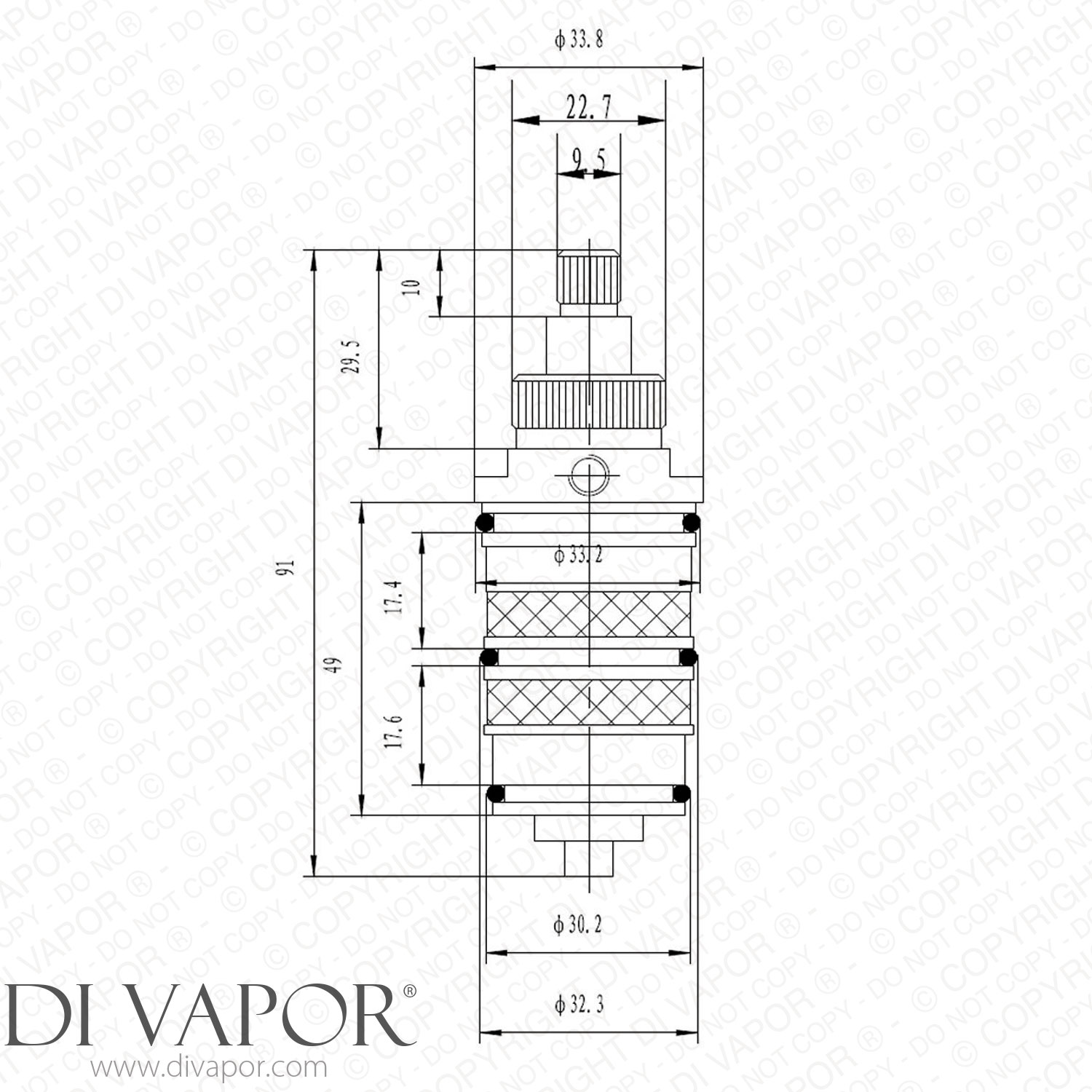

Please see the second image above for a visual representation of the measurements. Manually determine if this is the cartridge you need by comparing the given measurements with the cartridge you have. Or, you can contact us and we will gladly help you.

This Ultra spare part is the solution for showers that exhibit cartridge-related problems including leaks, insufficient water flow and difficulty adjusting water temperature.

Thermostatic shower cartridges such as the Ultra SBARCA04 for valves JTY369 and A3558 wear out after years of use. There can be two contributing factors for this, namely hard water and high water pressure.

Clogs in the cartridge can happen as hard water carries calcium and all sorts of minerals with it as it flows from the feeds into the shower valve. Too much water pressure can damage the cartridge.


Browse and explore other Ultra shower spares we have in stock.

Replacing the SBARCA04 Ultra Thermostatic Shower Cartridge

Before starting the repair with the Ultra SBARCA04 see to it that hot and cold water supplies are shut off.

The SBARCA04 in the JTY369 and A3558 shower valves can be accessed by:
– prising out the end cap on the temperature control handle and loosening the retaining screw under it;

– remove the handle and the white temperature stop ring (make sure to remember the position of the elevated part in the stop ring which must rest on the same position at reassembly);

– undo the grub screw holding the cartridge in the valve and pull the cartridge out;

– coat the replacement Ultra SBARCA04 thermostatic shower cartridge with the proper silicone grease (please scroll to the last section of the page to purchase the heat-resistant plumbing grease we offer.);

– push the new Ultra thermostatic shower cartridge in the JTY369 or A3558 valve and secure it in place with the grub screw;

– reassemble the valve.


Di Vapor is the source of spare parts for showers, bath taps, and kitchen taps. Not only do we carry thousands of spares but we also provide the best customer care and service around. We exist to serve you!

No worries should you need the spares fast. We despatch all items purchased on a weekday (before 3:00 PM) on the same business day. Shipping can be expedited upon checkout.

Before Ordering

Check the installed cartridge carefully, particularly on A3558 and JTY369 valves. The model code alone does not identify the required thermostat. Compare the complete body shape, overall length, seal positions, spindle diameter, spline pattern and retention arrangement with the original cartridge.

Technical Details

- - Part reference: SBARCA04

- - Part Number: ULTRA-SBARCA04

- - Fitting type: push-fit with grub-screw retention

- - Sealing arrangement: three external O-rings

- - Filter arrangement: two mesh filter bands

Important Earlier Cartridge Reference

SBARCA04 is listed as a replacement for the discontinued SBARCA01 thermostatic cartridge in certain Ultra shower valves. Check the original cartridge and valve version before ordering.For A3906 and 92.A3558, confirm that the original cartridge is SBARCA01 before ordering.

Confirmed Compatible Models

- - Ultra JTY369 thermostatic bar valve with riser kit and round head - versions fitted with SBARCA04

- - Hudson Reed / Ultra A3558 Minimalist thermostatic bar valve - versions fitted with SBARCA04

- - Ultra A3900 Reef bar shower valve with slider rail kit - versions fitted with SBARCA04 or the earlier SBARCA01

- - Hudson Reed A3910 Dune thermostatic bar valve - versions fitted with SBARCA04 or the earlier SBARCA01

- - Hudson Reed CD324 Reef thermostatic bath shower mixer - versions fitted with SBARCA04 or the earlier SBARCA01

- - Ultra A3906 Minimalist thermostatic bar valve with bottom outlet - versions originally fitted with SBARCA01

- - Ultra 92.A3558 shower valves - versions originally fitted with SBARCA01

Related Spares You May Need

Choose system spares to match the installed valve and the component being repaired. SAR558D and SAR558D-P are separate diverter options; compare the existing assembly to select the appropriate one.

- - TAC86 TACSIL 3g cartridge silicone grease - for lubricating cartridge O-rings during fitting

- - GR-18007031 GROHE 2g SYNTHESO LM 220 silicone grease - an alternative silicone grease for cartridge O-rings

- - SAR558D Ultra riser diverter - for A3558 and JTY369 assemblies using this diverter

- - SAR558D-P Ultra riser diverter - another A3558 riser diverter option; match the existing assembly

- - HR-PR905 Hudson Reed PR905 on/off flow cartridge - for CD324 and A3910 versions fitted with PR905

- - SPR02 Ultra hot and cold ceramic disc cartridge pair - for CD324 mixers fitted with SPR02 flow cartridges

- - SPR11 Ultra short flow valve pair - for A3906 valves fitted with SPR11 flow cartridges

- - NXT734 short shower hose - check the existing hose length and end connections

If you need help identifying your cartridge, use the Di Vapor part identification service.
