Crosswater CGPRO1000T Thermostatic Cartridge
SUMMARY
Crosswater CGPRO1000T is a thermostatic cartridge for selected concealed thermostatic shower valves. It regulates the blend of hot and cold water inside the valve body and is used on verified Crosswater 3-way concealed valve assemblies including 2500 series models.
A worn thermostatic cartridge can cause unstable outlet temperature, poor temperature regulation or stiff temperature adjustment. Replacing the cartridge helps restore proper thermostatic control where the rest of the valve is serviceable.

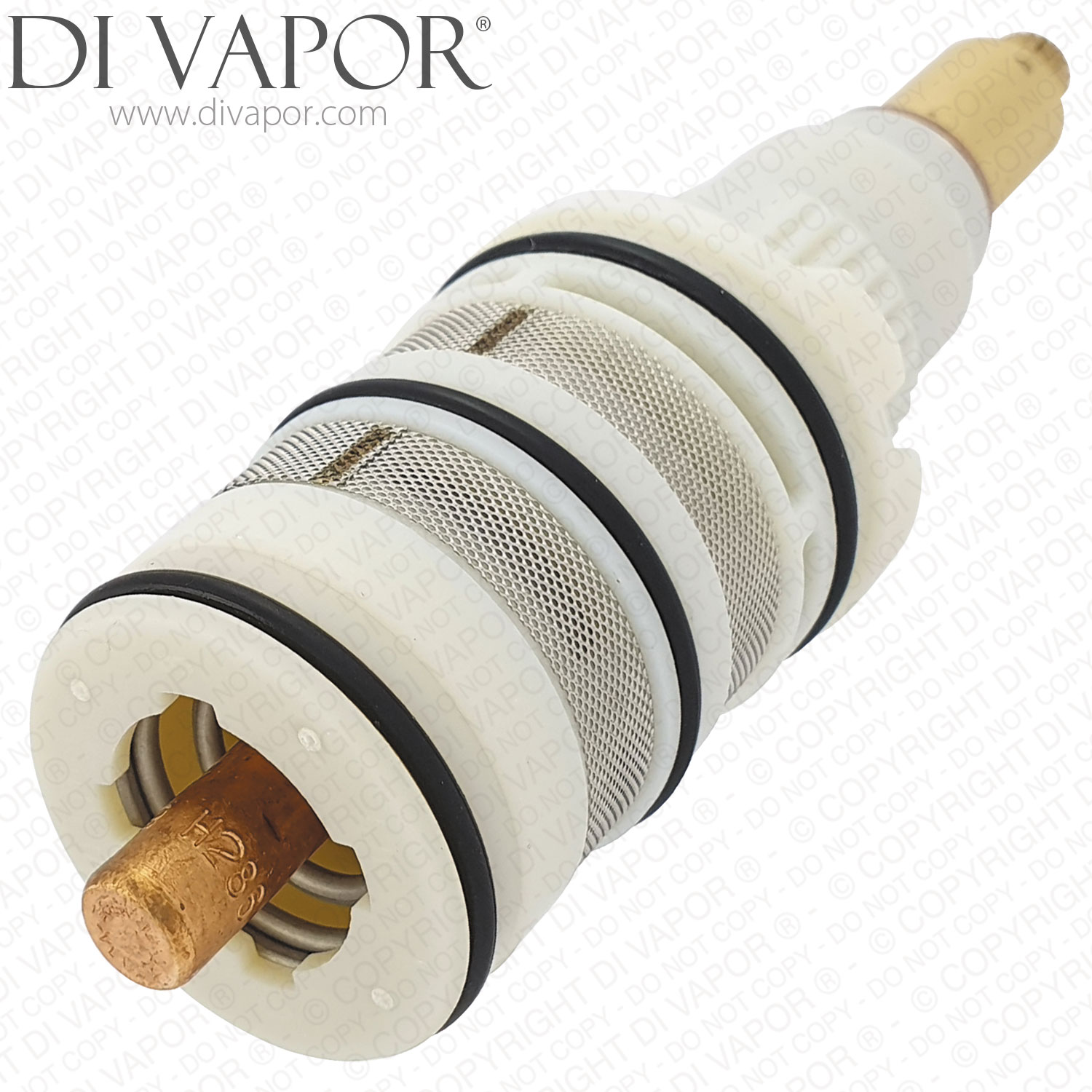

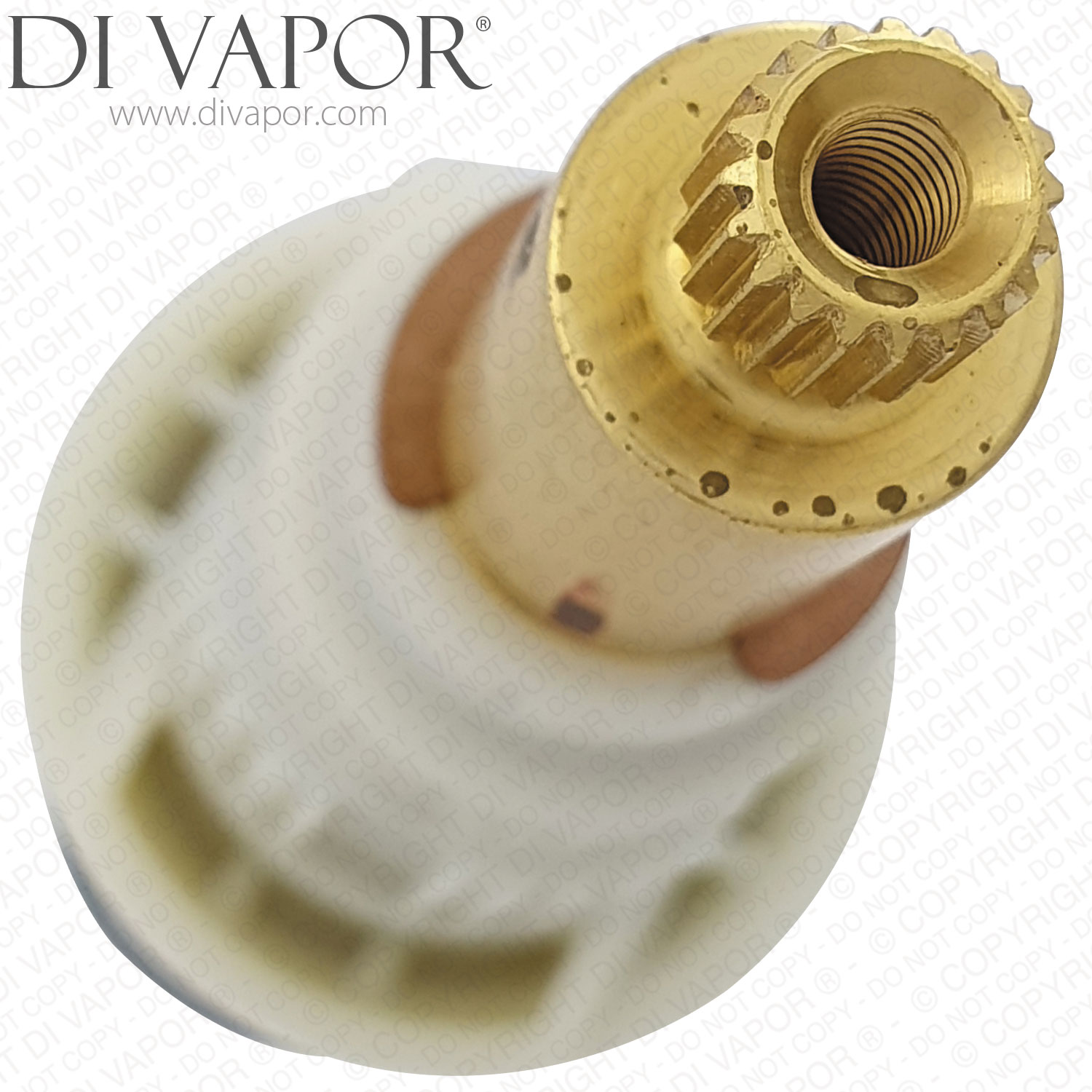

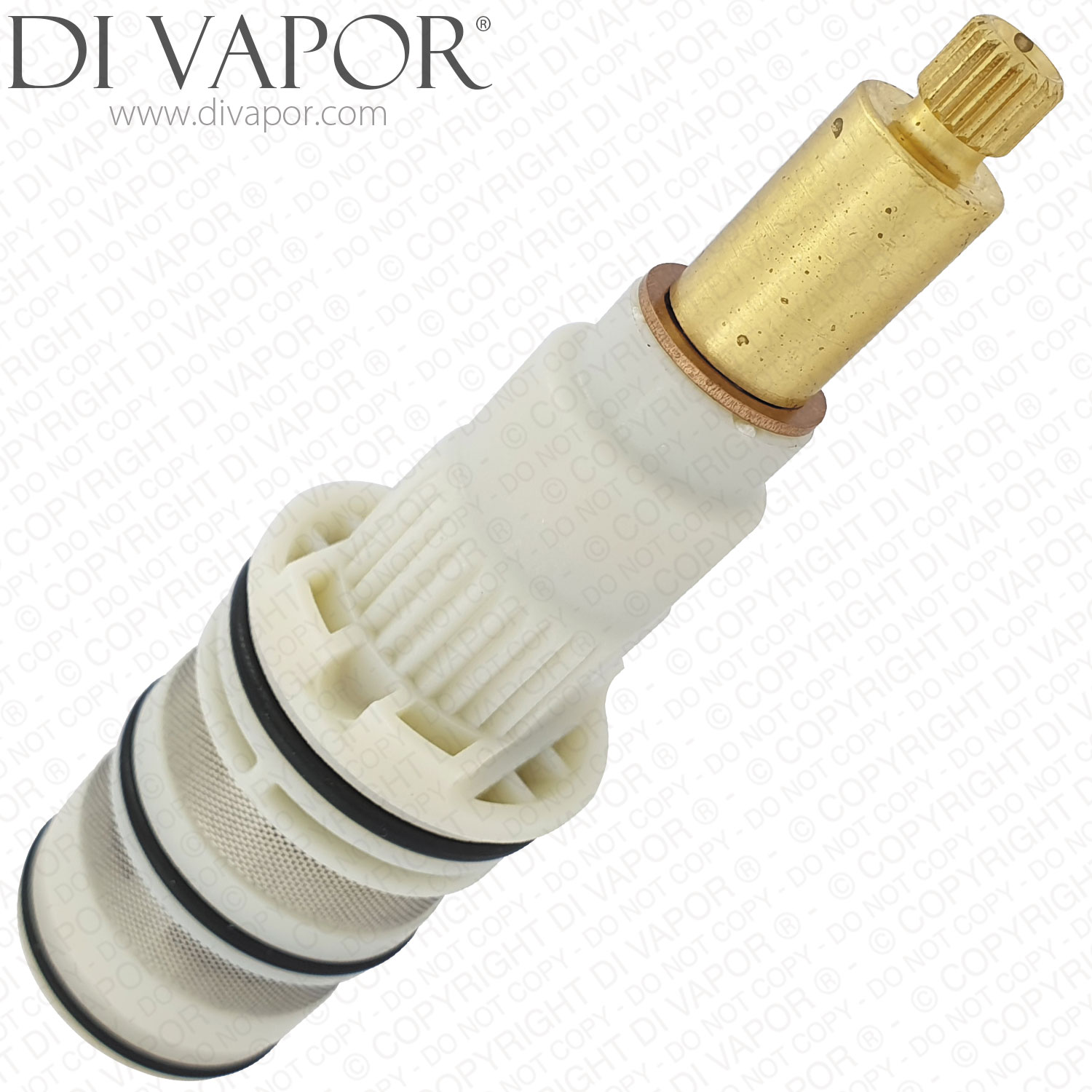

This push-fit plastic cartridge has a white body, 20 splines, 3 O-rings and 2 gauzes. The counterpart diverter cartridge used in the same valve family is CGPRO2500D.
Technical Details
- - Total length with wax thermostat: 113mm
- - Total length without wax thermostat: 120.6mm
- - Spindle length: 28.9mm
- - Spline count: 20
- - Spline diameter: 7.6mm
- - Splines height: 6.09mm
- - Widest body diameter: 34.4mm
- - Diameter below 1st O-ring: 32.1mm
- - Diameter below 2nd O-ring: 30.4mm
- - Diameter below 3rd O-ring: 29.2mm
- - Material: plastic
- - Colour: white
- - Fitting type: push-fit
- - Gauzes: 2
Before you order check
Check the exact Crosswater valve code and generation before ordering, because the CE2500RC fitment here is the GEN1 and other Crosswater valve versions use different thermostatic cartridge families. Do not rely on measurements alone for fitment.
Confirmed Compatible Models
- - Crosswater Central Thermostatic Shower Valve with 3 Way Diverter Spare Parts - CE2500RC GEN1
- - Crosswater KH02_2500RC KH Zero 2 Thermostatic Shower Valve with 3 Way Diverter Spare Parts
- - Crosswater KL2500RC Kai Lever Thermostatic Shower Valve with 3 Way Diverter Spare Parts
- - Crosswater PRO2500RC Mike Pro Thermostatic Shower Valve with 3 Way Diverter Spare Parts
- - Crosswater WS2500RC Water Square Thermostatic Shower Valve with 3 Way Diverter Spare Parts
Related Spares You May Need
- - Crosswater CGPRO2500D Diverter Cartridge - PRO2500R & WLBP2500RC+ Valves
- - TACSIL 3g Premium Cartridge Silicone Grease - WRAS Approved
- - GROHE Premium Plumbers Silicone Grease - 2g - SYNTHESO LM 220 (18007031)
