Grohe 47653000 Extension Kit

Summary

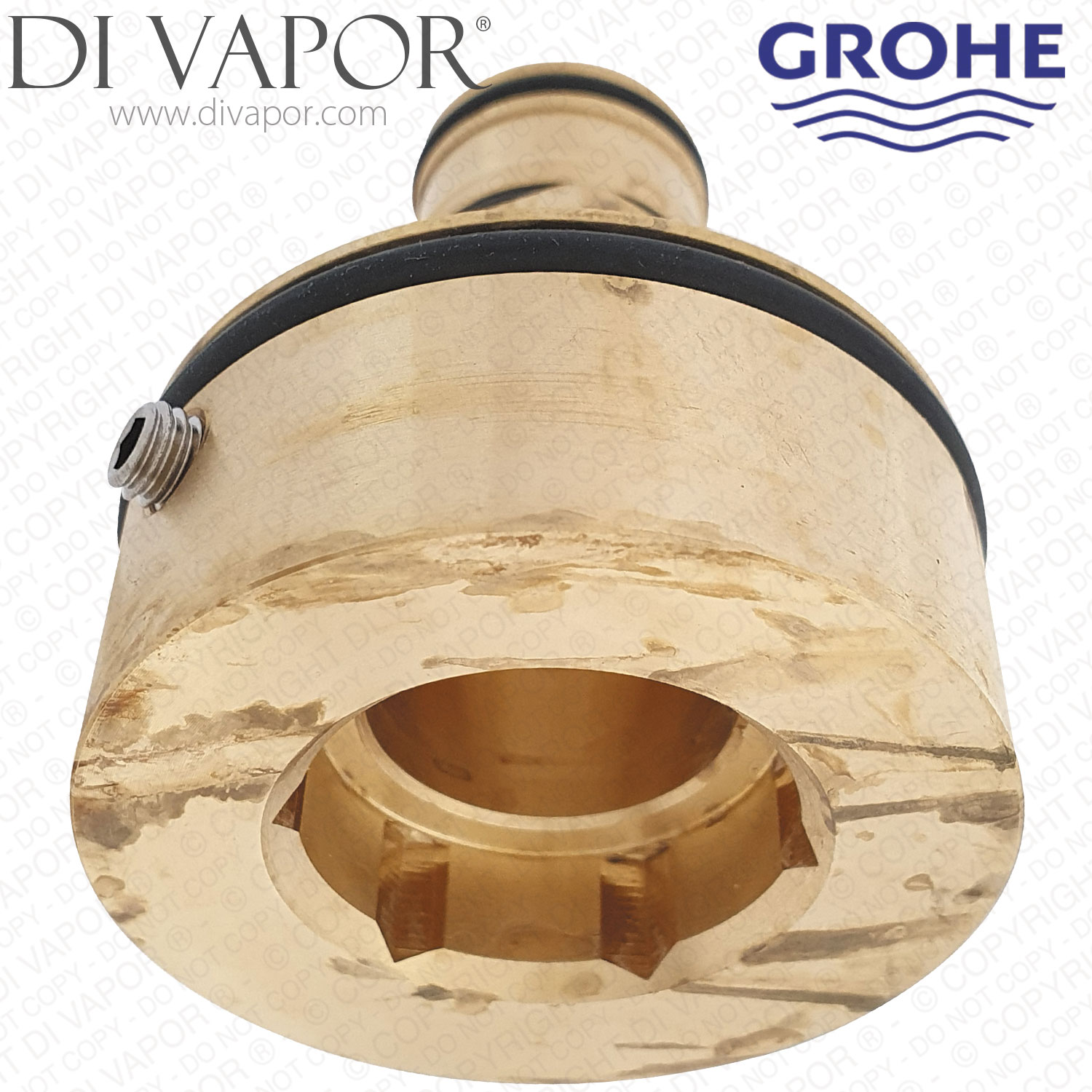

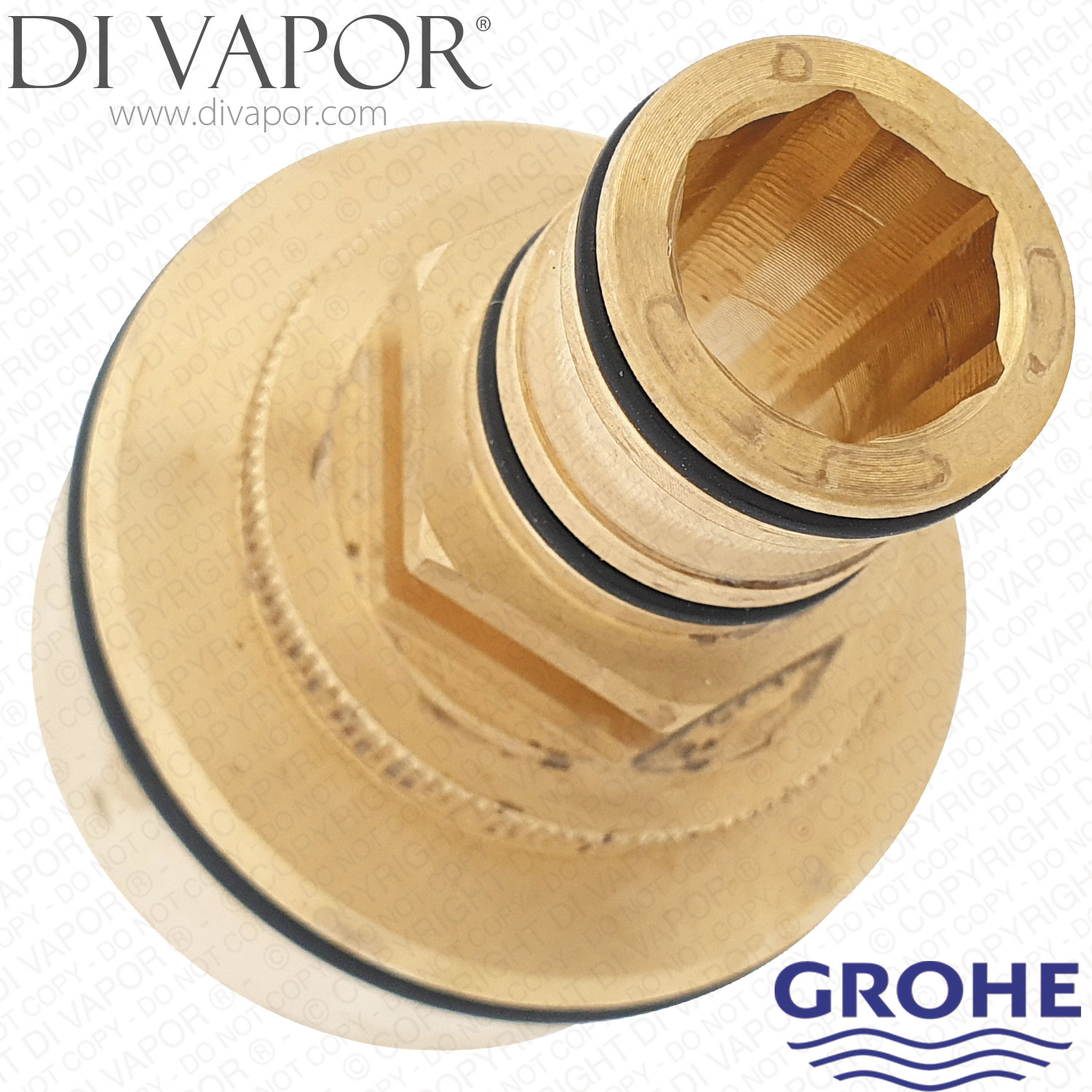

GROHE 47653000 1-1/8 Inch Concealed Thermostat Extension Kit

GROHE 47653000 is a concealed thermostat extension kit for selected GROHE thermostatic shower and bath/shower installations. This GROHE spare is used where the concealed valve body sits too deeply in the wall for the external finishing trim to reach correctly.

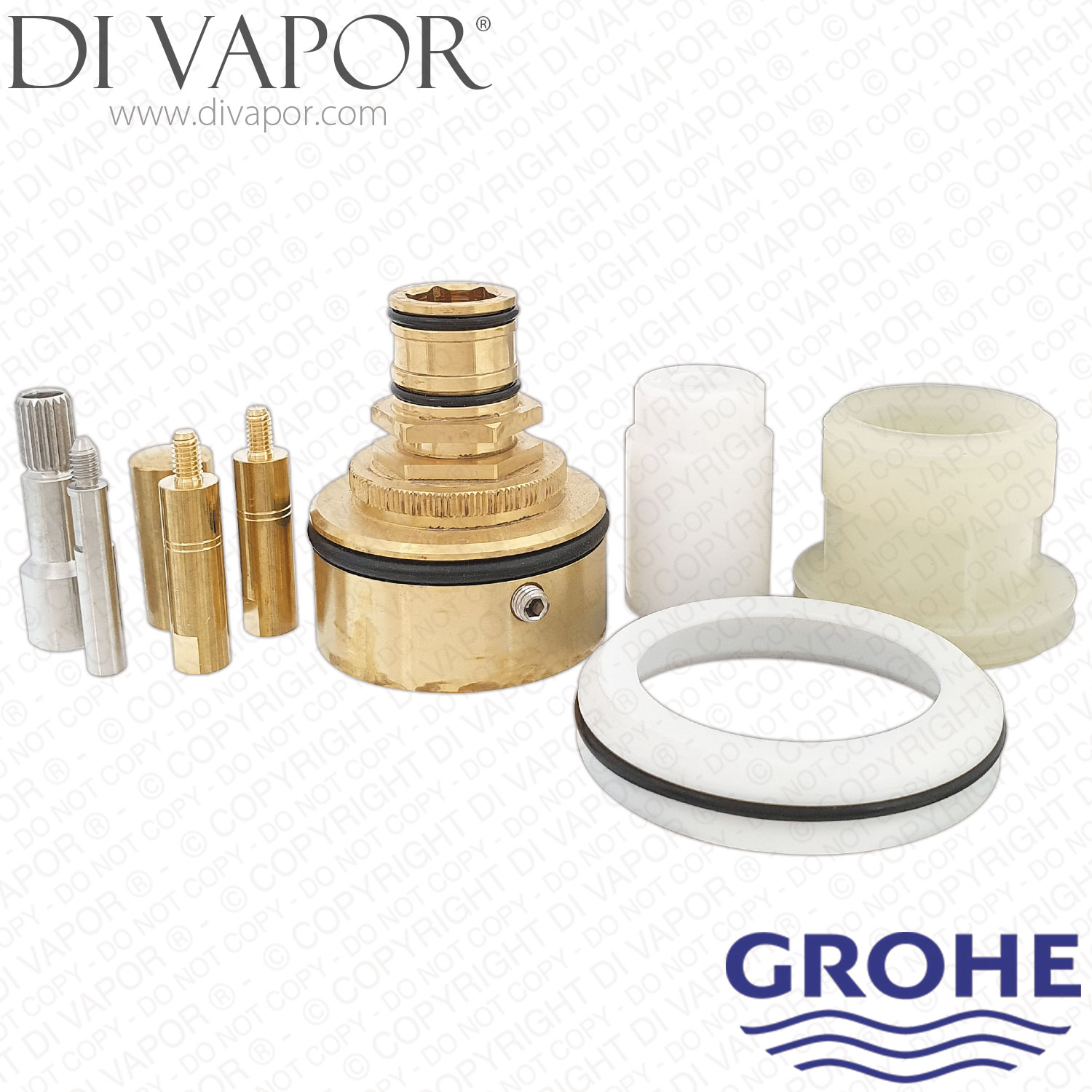

The extension set increases the available reach between the concealed thermostat and the external trim, helping the finish set assemble correctly after an overly deep installation. Use is configuration-specific: 47653000 is specified for 34 100, 34101 and 34102 concealed bodies when fitted with a thermoelement with non-rising spindle.

Technical Details

Specified Finish Sets and Concealed Bodies

GROHE specifies 47653000 for the following finish sets and concealed bodies. Fitment depends on the concealed body and thermoelement arrangement, so the visible trim alone should not be used to identify the required extension set.

• GROHE 19066 Tenso Thermostat Shower Mixer
• GROHE 19067000 Tenso Thermostat for Bath and/or Shower - GROHE specifies 47653000 for 19 067 Tenso. 19067000 as a final installation set for concealed bodies 34 101 and 34 102. Where these concealed bodies are fitted with a thermoelement with non-rising spindle, 47653000 is the specified extension kit. A rising-spindle arrangement uses extension set 47367000 instead, so the concealed body and spindle type must be checked before ordering
• GROHE 19144000 Atrio Ypsilon Thermo Shower Valve Trimset - GROHE specifies 47653000 for 19 144 Atrio. 19144000 as being used with the 34100 pre-2008 concealed body. For this installation, 47653000 applies where the 34100 body uses the non-rising-spindle thermoelement arrangement
• GROHE 19145 Atrio Thermostat Shower Mixer
• GROHE Atrio 19 146
• GROHE 19147 Atrio Central Thermostat Mixer Shower
• GROHE 19148 Atrio Central Thermostat Mixer
• GROHE Atrio 19 149
• GROHE 19159IG0 Chiara Thermostatic Shower Mixer Valve
• GROHE Chiara 19 161
• GROHE F1 34 137
• GROHE F1 34 138
• GROHE 34100 | 34100000 Concealed Body for THM Thermostat Shower Mixer 1/2 Inch - GROHE directly specifies 47653000 for 34 100 when fitted with a thermoelement with non-rising spindle. The 47217000 is the non-rising-spindle thermostatic cartridge as a component of this concealed body, but the actual installed thermoelement should still be identified before ordering
• GROHE 34101 concealed body with non-rising-spindle thermoelement
• GROHE 34102 concealed body with non-rising-spindle thermoelement

Before You Order

• Confirm that the concealed body uses a thermoelement with a non-rising spindle
• Do not select the extension kit from the visible trim alone, because 47367000 is a different extension set used with the alternative rising-spindle arrangement
• For 19067000 Tenso, identify the concealed body and spindle arrangement before ordering

Related Spares You May Need

The following GROHE spare parts are used across the valve and trim assemblies listed above. Check the exact model, concealed body and supply configuration before ordering.

• GROHE 47629000 Handle
• GROHE 47324000 Flow Control Lever Handle
• GROHE Atrio 06676000 Temperature Control Handle 08.945 ABS
• GROHE 47311000 Shut-Off Handle
• GROHE Atrio 06709000 Ceramic Disc Cartridge
• GROHE 47217000 Thermostatic Cartridge 1/2 Inch with Non-Rising Spindle
• GROHE 08943000 Atrio Snap Insert Spline Adapter
• GROHE 0392400M Pack of 10 O-rings
• GROHE Atrio 47289000 Temperature Control Handle
• GROHE 45869000 Flow On/Off Cartridge F 34966/100
• GROHE 45023000 Flow Cartridge Seat
• GROHE 47657000 Thermoelement Thermostatic Cartridge for Reverse Supplies
• GROHE 47300000 Stop Ring Adapter for 47217000 Thermostatic Cartridge
• GROHE 28151000 Relaxaflex Shower Hose 1500mm
