Ideal Standard S960025NU Ceramic Disc Flow Cartridges (Pack of 2) – Trevi 1/​2" On/​Off Replacement

SUMMARY

Big price drop for clearance.

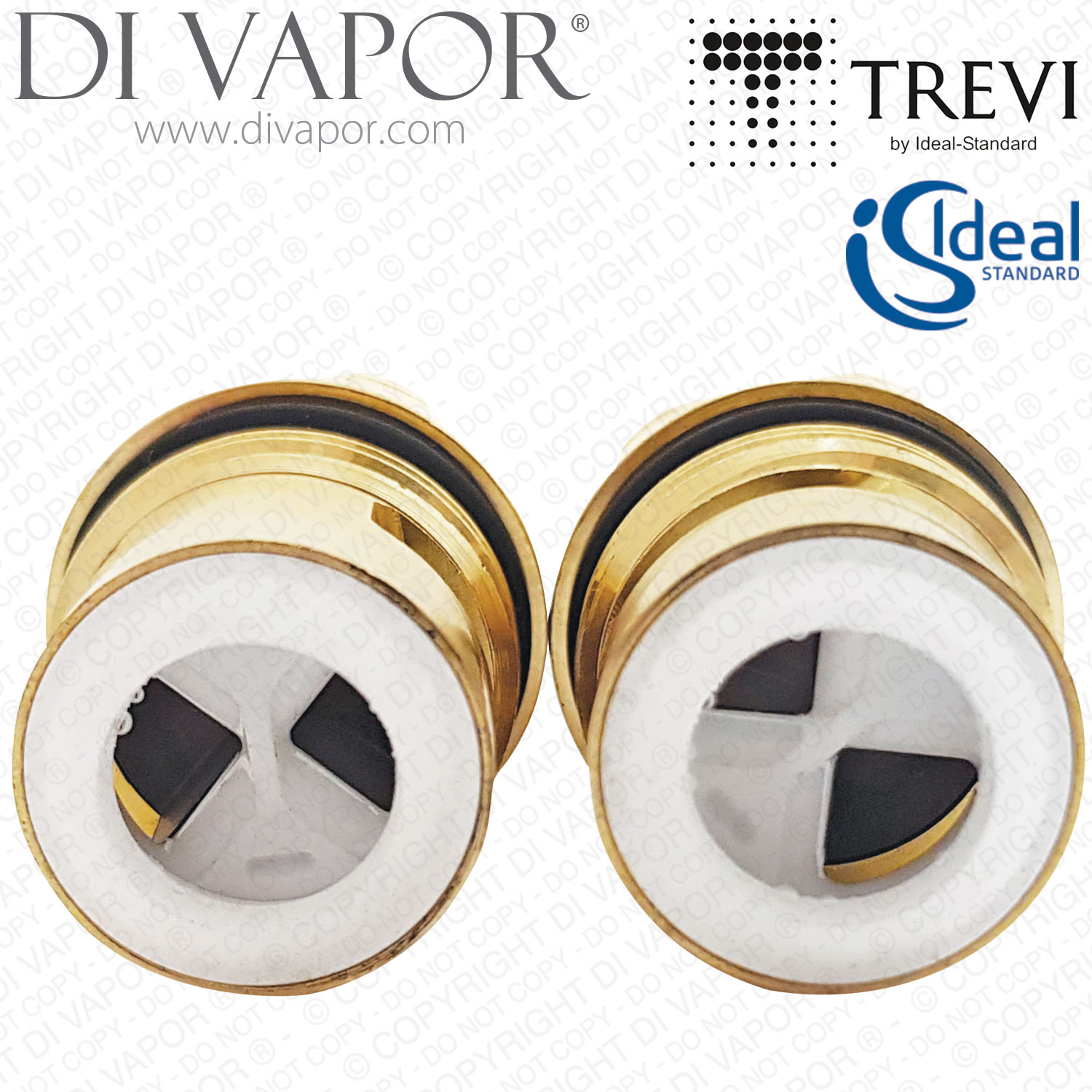

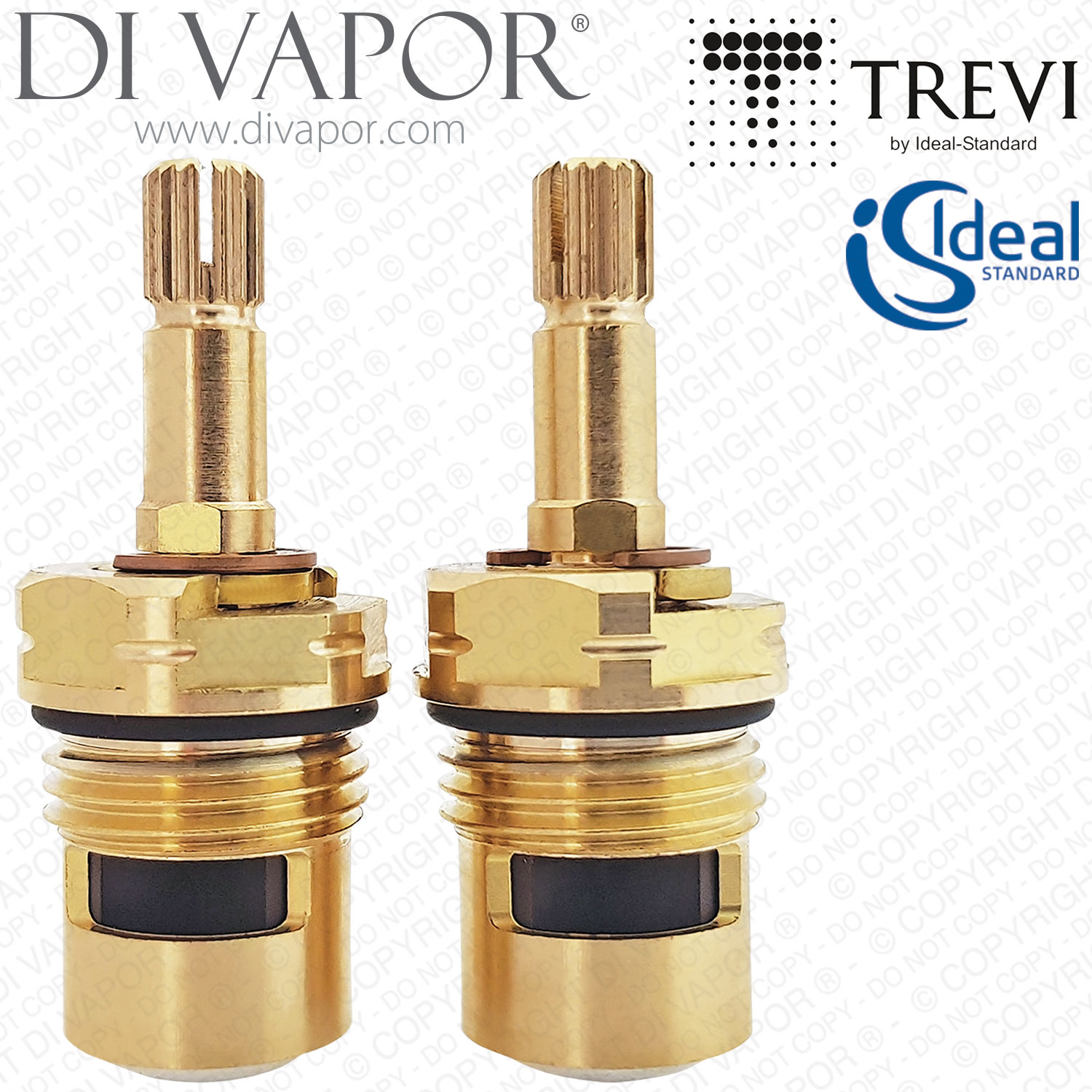

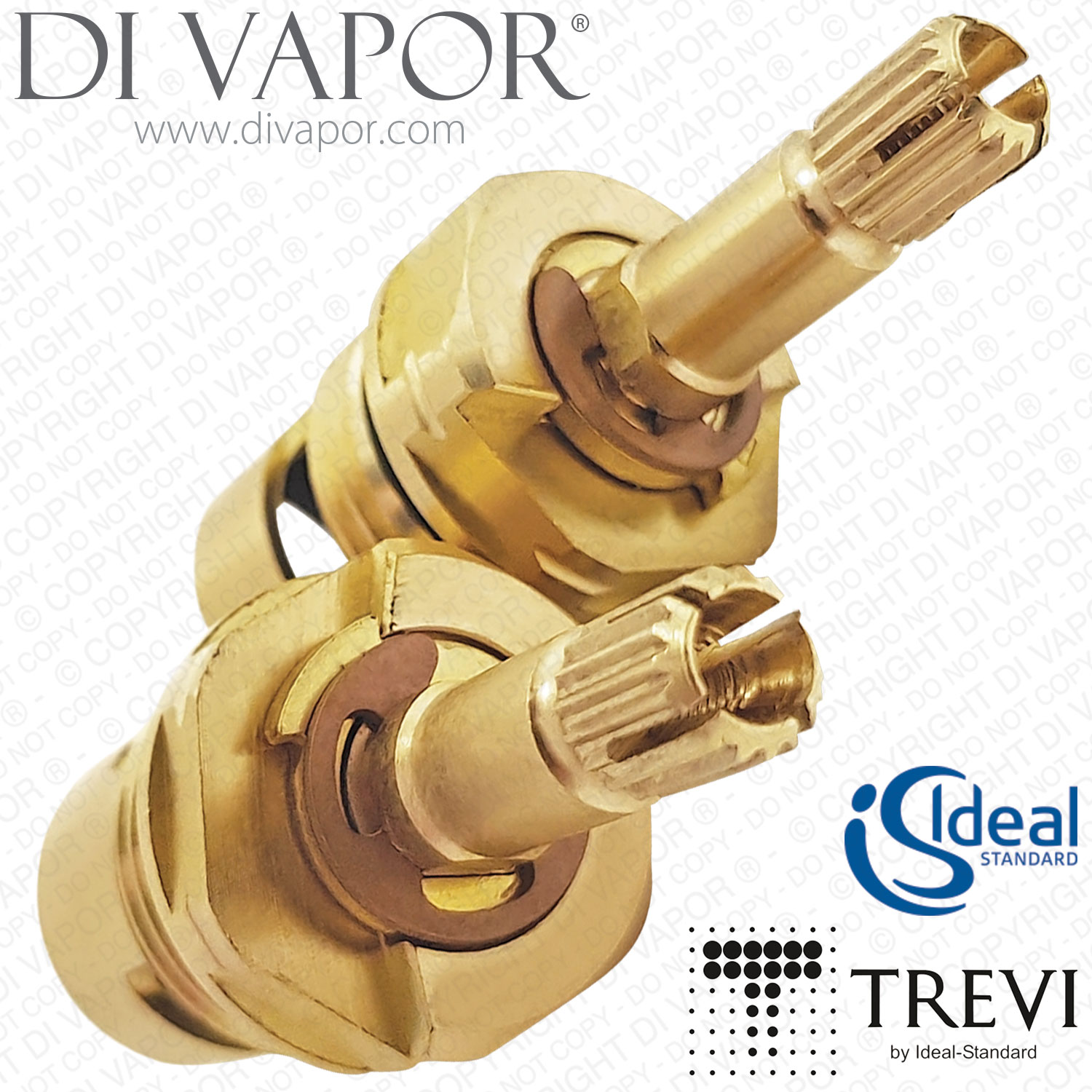

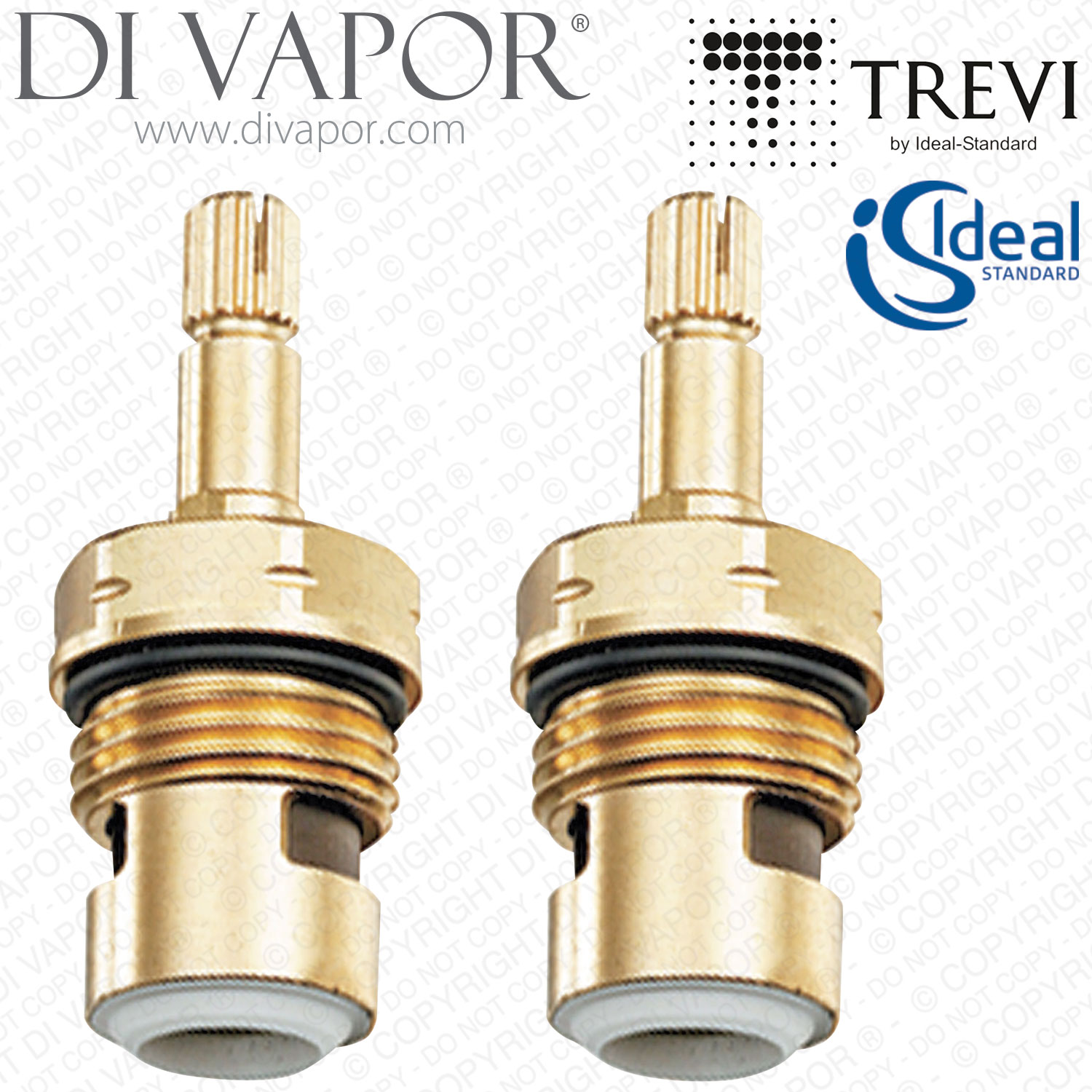

S960025NU Ideal Standard / Trevi 1/2 Inch Ceramic Disc Flow Cartridge 1/4 turn (On/Off) Pack of 2

Includes: 1 x Anti-Clockwise Close Catridge and 1 x Clockwise Close Cartridge

Manufacturer: Ideal Standard
Spare Part: Tap Flow Cartridge 1/2 Inch; Set of Two (S960025NU)
Installation: Screw In
Material: Brass

Total Length: 56.7mm
Number of Splines / Teeth: 18
Length of top Spindle: 25.1mm
Width of Top Spindle: 7.7mm
Width at Widest Point: 23.8mm
Width at Thread (below o ring): 20.8mm
Markings on some versions of the cartridge: PPO-GF-30

The Ideal Standard S960025NU pack of two flow cartridge is available for dispatch on the same day when ordered before 3:00 PM, from Monday to Friday. Each set pack has one piece counterclockwise close cartridge E960582NU and an E960583NU which closes clockwise.

S960025NU Flow Cartridge Compatibility

This is a list of taps that use the Ideal Standard / Trevi spare part.
- Ideal Standard / Trevi Reprise Basin Mixer Rim Mounted 1H Basin Taps
- Ideal Standard / Trevi Alchemy Dual Control Wall Basin Mixer - Lever Handles Basin Taps
- Ideal Standard / Trevi Silver Bath Filler Exposed 3H Bath Taps
- Ideal Standard / Trevi Silver Basin Mixer Rim Mounted 3 Hole Basin Taps
- Ideal Standard / Trevi Alchemy Basin Mixer Rim Mounted Dc Xh Basin Taps
- Ideal Standard / Trevi Trevi Sandringham Bath Shower Mixer Rim Mounted Bath and Shower Taps
- Ideal Standard / Trevi Waterways Cd Basin Mixer Rim Mounted Pop Up Waste Basin Taps
- Ideal Standard / Trevi Ceraplan Basin Pillar Tap Rim Mounted Basin Taps
- Ideal Standard / Trevi Waterways Cd Basin Mixer Rim Mounted S/Spt Basin Taps
- Ideal Standard / Trevi Waterways Cd Basin Pts Rim Mounted Basin Taps
- Ideal Standard / Trevi PARENT-316 Trevi Sandringham Bath Shower Mixer Rim Mounted Bath and Shower Taps

S960025NU Ideal Standard flow cartridge is also suitable for:
- Ideal Standard / Trevi SILVER Sink Mixer RIM Mounted CHROME DC Kitchen Taps
- Ideal Standard / Trevi Sandringham Sink Mixer Rim Mounted 2Th Ah Kitchen Taps
- Ideal Standard / Trevi Silver Bid Mixer Rim Mounted Chrome 1H Dc Bidet Taps
- Ideal Standard / Trevi Affinity Kit Mixer Rim Mounted Mono Xh Kitchen Taps
- Ideal Standard / Trevi Affinity Kit Mixer Rim Mounted Bridge Lever Kitchen Taps
- Ideal Standard / Trevi Silver Basin Mixer Exposed 3 Hole 150 Spout Projection Basin Taps
- Ideal Standard / Trevi Alchemy Basin Mixer Rim Mounted Dc Lever Basin Taps
- Ideal Standard / Trevi Academy Basin Taps Rim Mounted Basin Taps
- Ideal Standard / Trevi Waterways Cd Bidet Mixer Rim Mounted Bidet Taps
- Ideal Standard / Trevi Silver Kit Mixer Rim Mounted 3H Kitchen Taps
- Ideal Standard / Trevi PARENT-318 Waterways Cd Basin Filler Rim Mounted Tf Pop Up Waste Basin Taps
- Ideal Standard / Trevi Cerapl Dsc Basin Mixer R-Mounted Chrome 1H Pop Up Waste Basin Taps
- Ideal Standard / Trevi Silver Basin Mixer Rim Mounted 1 Hole Dual Control Basin Taps
- Ideal Standard / Trevi Academy Bidet Mixer Rim Mounted Pop Up Waste Bidet Taps
- Ideal Standard / Trevi Affinity Kit Mixer Rim Mounted Mono Lever Kitchen Taps
- Ideal Standard / Trevi Academy Dual Control One TapHole Basin Mixer With Pop-Up Waste Basin Taps

Is the Trevi / Ideal Standard S960025NU Right for Your Tap?
Cartridges, as does tap models, come in different shapes and sizes. Di Vapor provides a very wide range of Ideal Standard spare parts. Knowing the correct spare part that corresponds with the tap model is important.

If you do not know your tap’s particular model or part number of the cartridge needed, gather relevant information by measuring the cartridge diameter, length, stem, and count the number of splines. If measuring is not possible, photograph the cartridge and show it your spare part provider.

You can reach us through WhatsApp (07754 173340). Di Vapor has super friendly spares experts who are happy to serve your spares needs.

Frequently Asked Questions: S960025NU Ceramic Disc Flow Cartridge Pair

Q: I have a tap and the pressure has dropped on the cold water so was thinking the tap may have scaled up. Would I need a new tap or a replacement S960025NU Ideal Standard cartridge?
A: It's difficult to call it without seeing the tap, it could be the cartridge or a build-up of limescale.

Leaks or poor water flow are among the signs a tap flow cartridge requires a new replacement. Usually, a good quality cartridge can last for years. The main factor that shortens the lifespan of a cartridge is the level of water hardness. Over time, high levels of chalk and minerals can develop around and inside the cartridge. Accumulated debris will clog the cartridge and causing poor water flow.

Eventually, due to imminent wear-and-tear, cracks in the cartridge or O-rings will transpire and will result in a leaky tap.

Steps for Changing Your Ideal Standard S960025NU Ceramic Disc Tap Cartridge Pair

These are the common steps for replacing an S960025NU tap cartridge:
1: Isolate cold and hot water supply lines. If isolation switches cannot be found, turn the main valve off. This can generally be found near the water meter. Once it is switched off, open the tap to see if the water supply is fully isolated.
2: If the handles are embellished with a cold and hot indicator, remove it by popping it out by hand or using a small blunt instrument to prevent scoring the handle’s finish.
3: With the indicator out, you can now access the small screw underneath the indicators. Use a screwdriver to undo the screws and remove the tap handle.

If there are no decorative indicators, the screw is often located at the back or below the handle.

4: There may or may not be a shroud covering the cartridge. If there is a shroud, it can be hand tight and can be taken off by turning it anticlockwise. If the shroud is locked in place with a screw, use a hex key to undo the grub screw. Remove the shroud.
5: Without the shroud, the top of the flow cartridge can be seen. Grip the cartridge with a spanner and rotate anticlockwise to dislodge it. A small amount of leftover water may seep out.
6: Clean the inside of the tap valve unit using a cloth or a brush.

7: Grease the new Ideal Standard / Trevi S960025NU cartridge with silicone grease and set the cartridge in the valve unit. Use a spanner to tighten.
8: Reinstall the shroud, tap handle, and the decorative cold and hot indicators.
9: Turn both water supply pipes on and test if the S960025NU installation is merrily completed.

Confirmed Compatible Models

- - Ideal Standard B5105AA Cone pair basin taps

- - Ideal Standard E0073AA Silver dual-control one-taphole bidet mixer with pop-up waste

- - Ideal Standard E0084AA Silver monoblock dual-control sink mixer

- - Ideal Standard E0106AA Academy dual-control one-taphole basin mixer with pop-up waste

- - Ideal Standard E0116AA Academy dual-control one-taphole bidet mixer with pop-up waste

- - Ideal Standard E0625AA Waterways quarter-turn dual-control one-taphole basin mixer with swivel spout and pop-up waste

- - Ideal Standard E0655AA Waterways quarter-turn pair basin taps

- - Ideal Standard E0675AA Waterways quarter-turn dual-control one-taphole basin mixer with fixed spout and pop-up waste

- - Ideal Standard E0695AA Waterways quarter-turn dual-control one-taphole bidet mixer with pop-up waste

- - Tantofex E1515AA Tantadisc basin pillar taps

- - Sottini E1952AA Alchemy dual-control one-taphole basin mixer with pop-up waste - crosshead handles

- - Sottini E1953AA Alchemy dual-control one-taphole basin mixer with pop-up waste - lever handles

- - Sottini E1961AA Alchemy dual-control wall basin mixer - lever handles

- - Sottini E1962AA Alchemy dual-control wall basin mixer - crosshead handles

- - Ideal Standard E6136AA Affinity dual-control one-taphole sink mixer - lever handles

- - Armitage Shanks S7092AA Sandringham bath pillar taps

Before Ordering

Check the exact tap model and compare the cartridge code, spline arrangement and measurements with the part being removed. The clockwise-close and anti-clockwise-close cartridges should not be assigned universally to hot or cold, as their positions vary between tap assemblies.

Isolate the water supplies before removing the old cartridges. Clean the cartridge housing before installation and apply a suitable silicone grease to the O-ring and bottom seal where required.

Related Spares You May Need

- - Ideal Standard A922539NU11 Dekora cartridge-to-handle adapter

- - Ideal Standard E960582NU 1/2 Inch ceramic-disc flow cartridge - anti-clockwise close

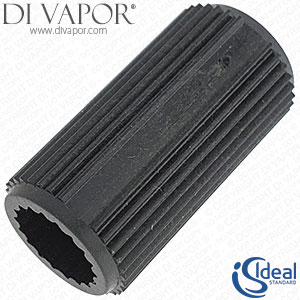

- - Ideal Standard A963196NU cartridge spline adaptor

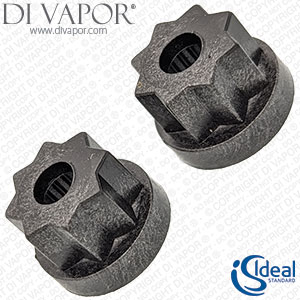

- - Ideal Standard E960053NU cartridge spline adapter - 18 splines to 8 spline

- - Ideal Standard E960054NU indice

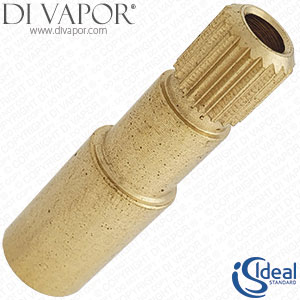

- - Ideal Standard E960078NU cartridge adapter and extender

- - Ideal Standard Trevi A91831914 M4 taper-shoulder slotted screw

- - Ideal Standard E960583NU 1/2 Inch ceramic-disc flow cartridge - clockwise close

- - TACSIL 3g premium cartridge silicone grease - WRAS approved

Not sure which part you need? Use the Di Vapor part identification service.
