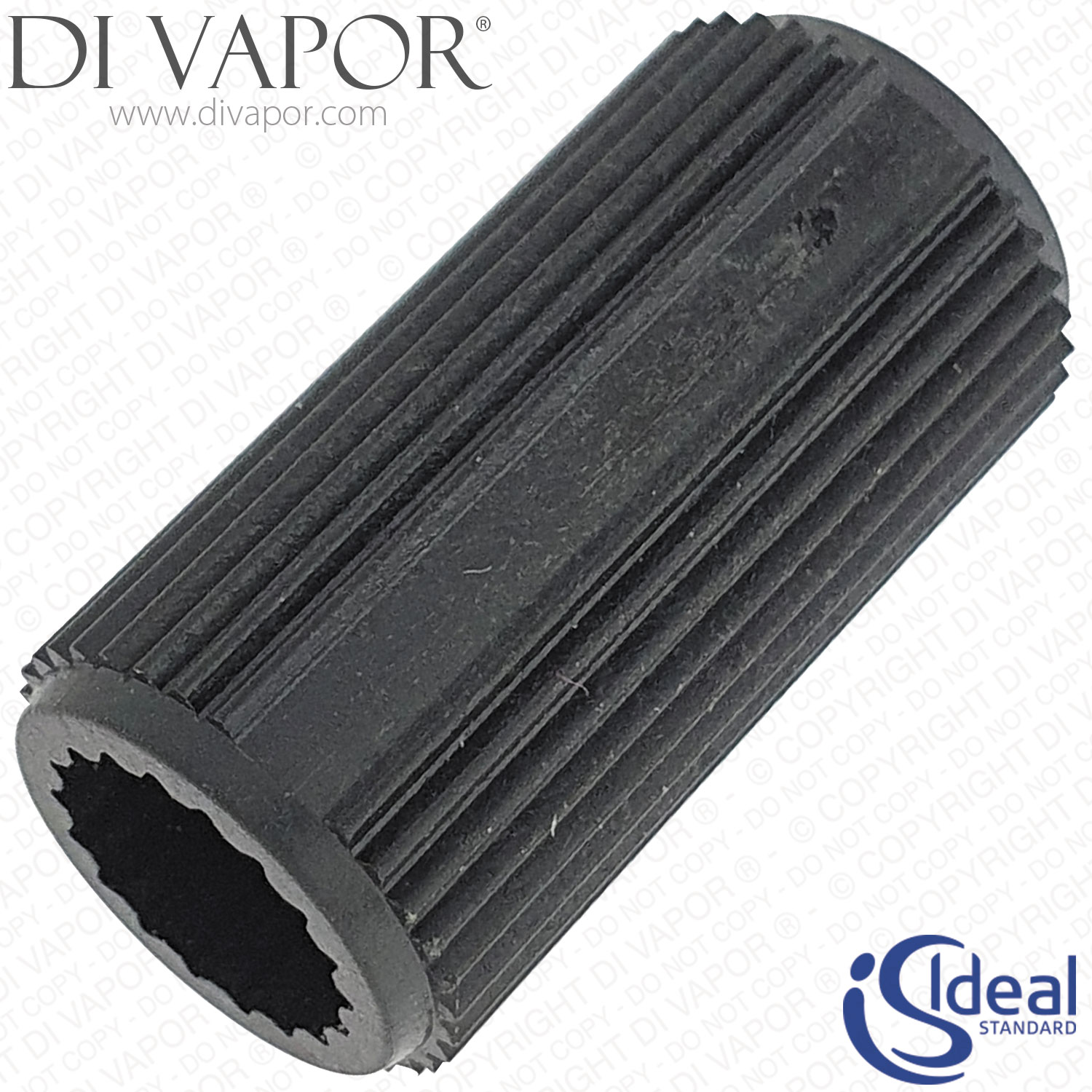

Ideal Standard A963196NU Cartridge Spline Adaptor
SUMMARY
Ideal Standard A963196NU cartridge spline adaptor for selected Ideal Standard dual control taps and mixer valves. This is the drive insert that fits between the handle and the valve cartridge spindle to transfer turning movement from the handle to the cartridge.
Sold individually this adaptor is designed to cut to size and is used on a range of 1/2 inch and 3/4 inch Ideal Standard tap and mixer assemblies depending on model.
Technical Details
- - Part code: A963196NU
- - Type: cartridge spline adaptor / handle insert
- - Outside diameter: 11.2mm
- - Height: 22mm

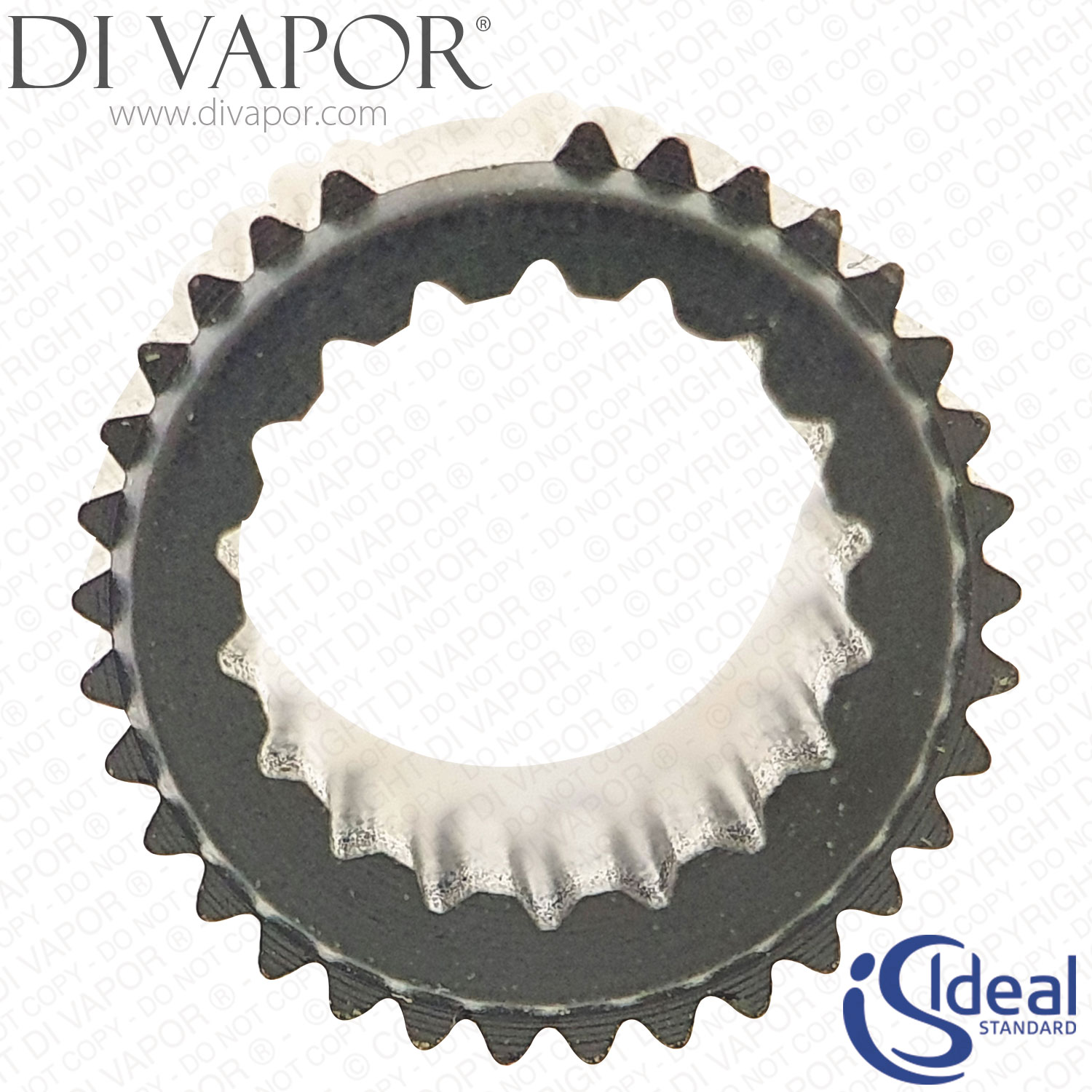

- - Internal splines: 18
- - Internal spline diameter: 7.6mm
- - Sold individually
- - Designed to cut to size
What It Does
This adaptor restores the connection between the handle and the cartridge spindle. If the original insert is worn split rounded or no longer grips the spindle correctly the handle can feel loose fail to turn the valve properly or stop opening and closing the water cleanly.
Before You Order
Check the exact part code A963196NU on your original parts list where available. Also compare the old insert dimensions and spline arrangement and check whether your fitting uses 1/2 inch cartridges such as A963003NU and A963004NU or 3/4 inch cartridges such as A961010NU and A960462NU.
Used In Models
- - B9930AA Concept Blue Bath Shower Mixer 2 Taphole
- - B9929AA Concept Blue Bath Mixer Tap
- - B9925AA Concept Basin Pillar Taps
- - B1147AA Calista Bath Pillar Taps
- - B1146AA Calista Basin Pillar Taps
- - B0731AA Tempo 2H Bath Shower Mixer Rim Mounted
- - B9685AA Vectis Basin Pillar Taps Gen 1
- - B0162AA Senses Cube Basin Pillar Taps Gen 1
- - B0163AA Senses Chrome Bath Pillar Taps Gen 1
- - B0167AA Senses Cube 2 Hole Bath Shower Mixer with Kit
- - B0247AA Active Bath Mixer Two Tap Hole
- - A5597AA Moments Thermostatic Shower Built In 3 Control 2 Outlet Gen 1
- - A5598AA Moments Thermostatic Shower Built In 3 Control 3 Outlet Gen 1
Related Spares You May Need
- - Ideal Standard S960025NU Ceramic Disc Flow Cartridges Pack of 2
- - Ideal Standard A963003NU 1/2 inch On Off Quarter Turn Flow Cartridge
- - Ideal Standard A963004NU 1/2 inch On Off Ceramic Disc Flow Cartridge
- - Ideal Standard A961010NU 3/4 inch Cold On Off Flow Cartridge
- - Ideal Standard A960462NU 3/4 inch On Off Ceramic Disc Cartridge
