Vola VR1400 Diverter
Send a photo of your item and we'll help confirm it.
Summary

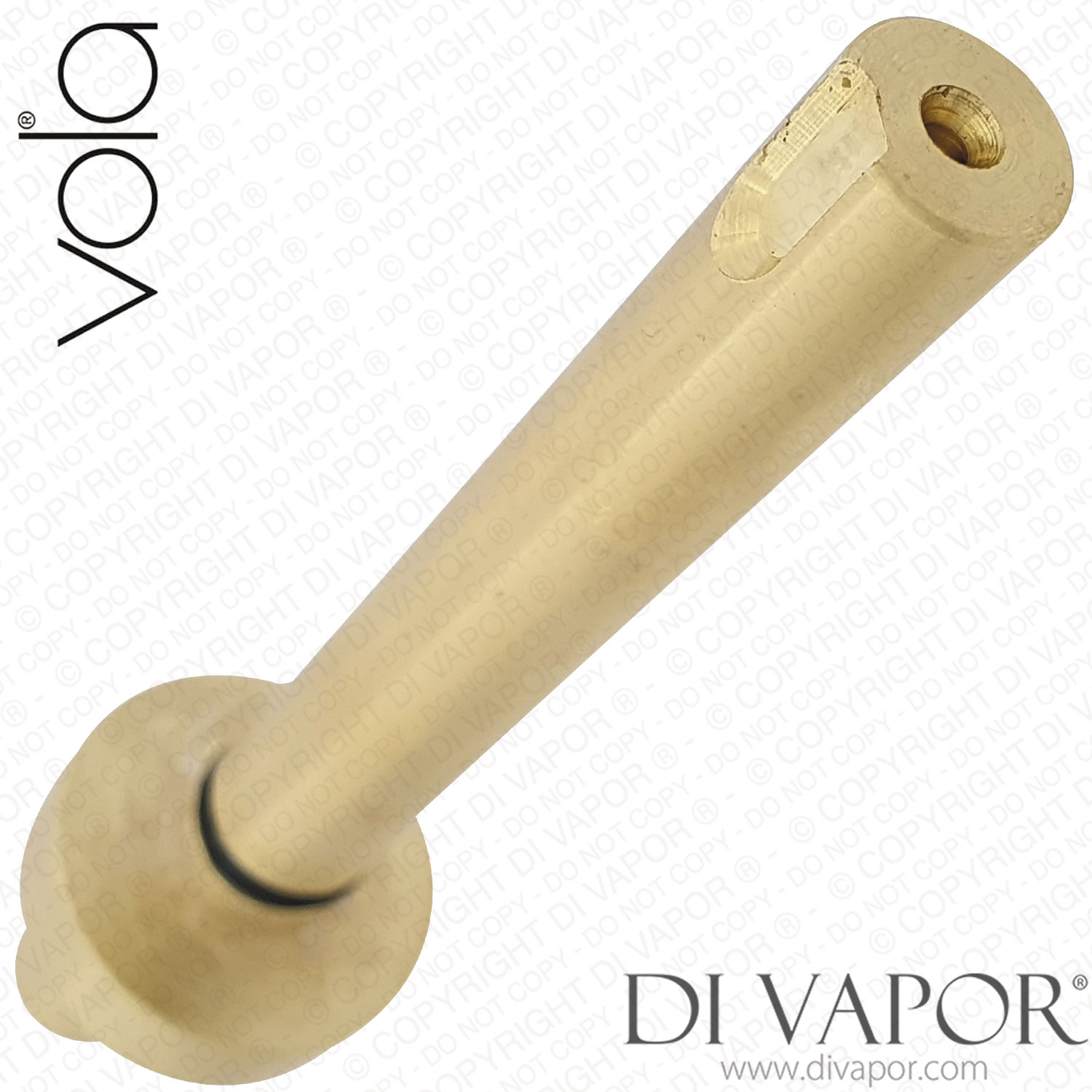

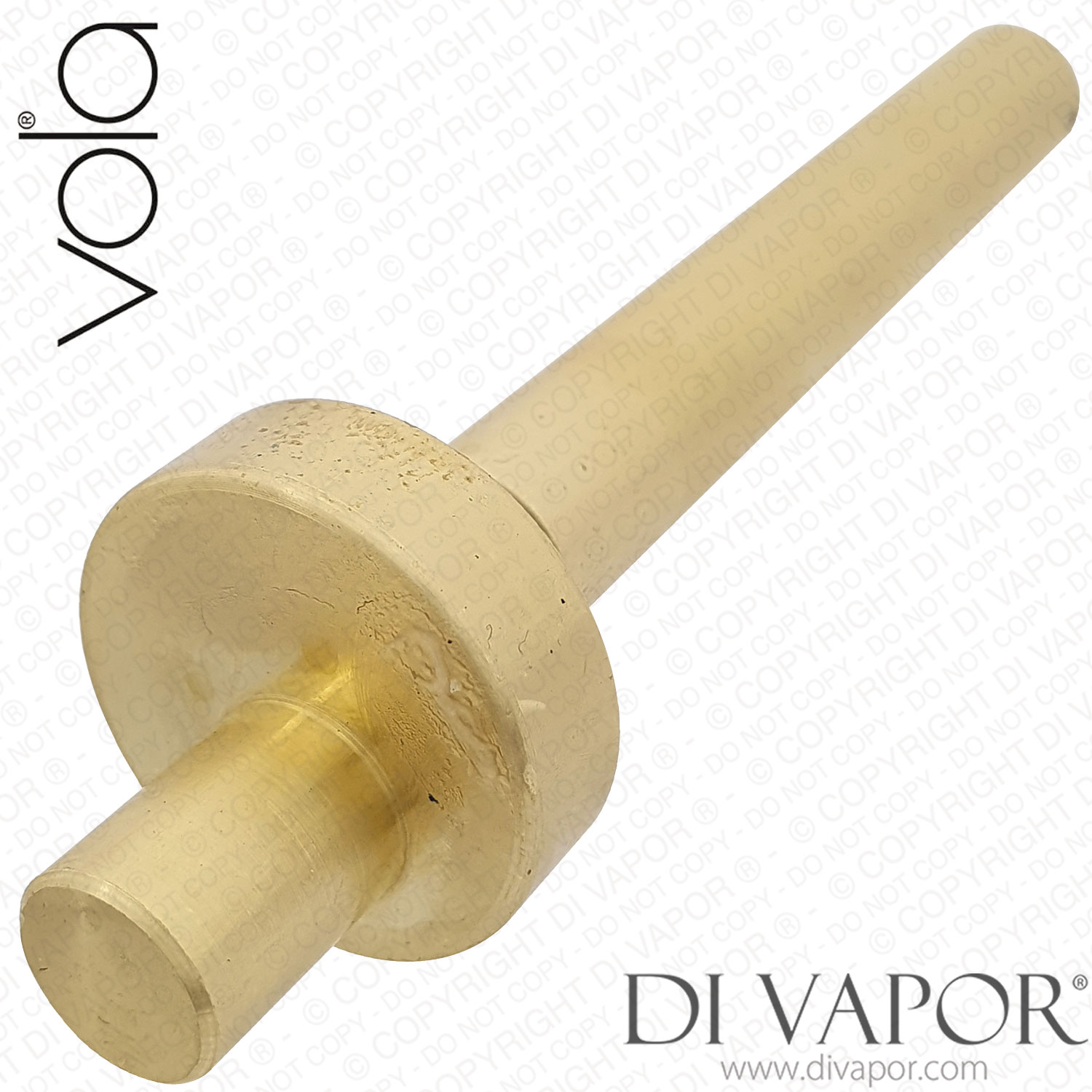

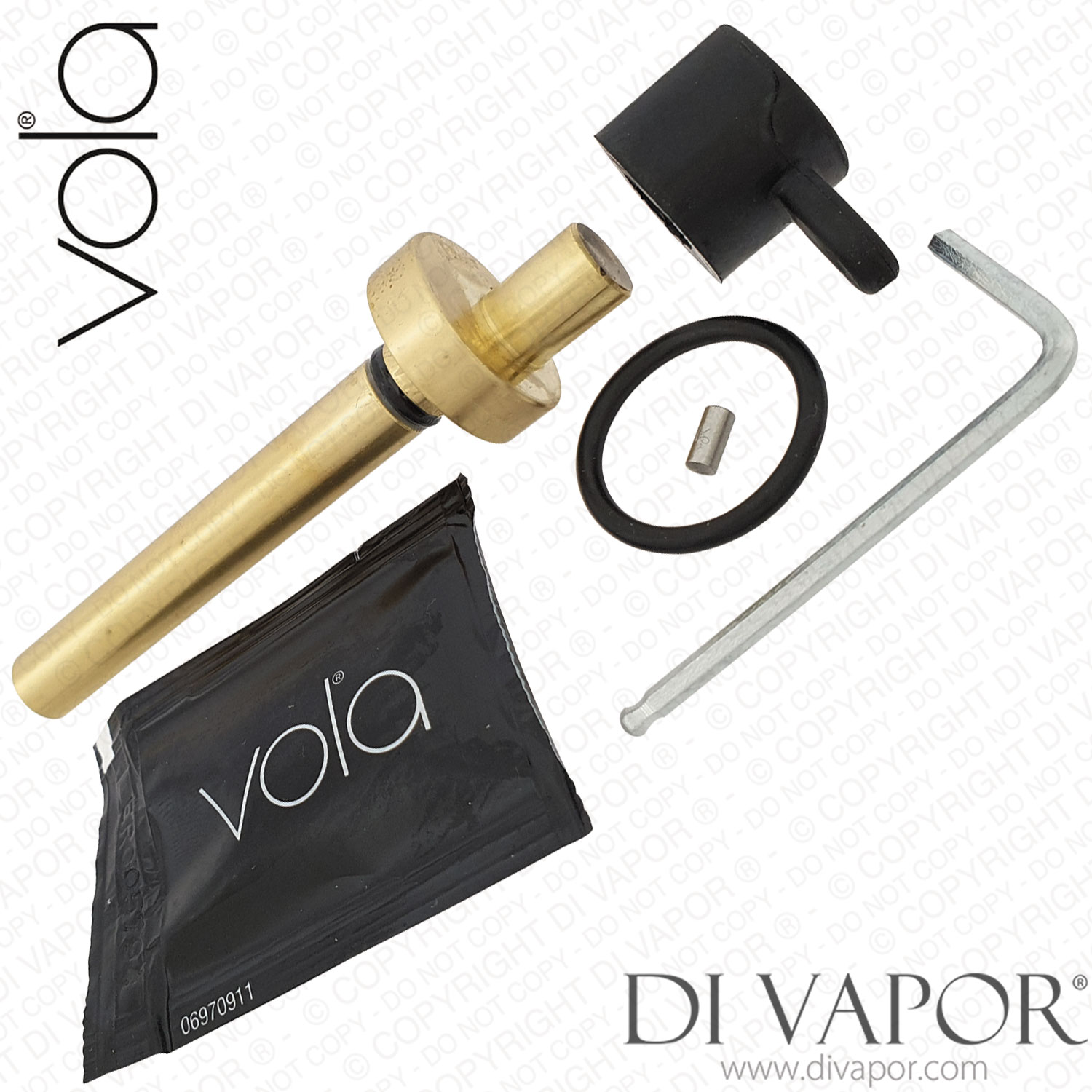

Vola VR1400 Diverter. You will receive the part highlighted in green.
Vola VR1400 is a diverter cartridge / diverter spindle used in selected VOLA built-in mixer diverter assemblies and separate diverter assemblies. It is the internal diverter part used to direct water between outlets where the valve or mixer is built around the VR1400 diverter arrangement.
This part should be checked against the removed diverter, valve model and spare-parts diagram before ordering. A worn diverter can cause poor outlet selection or water passing or dripping from a shower head or spout when the shower or bath mixer is turned off.
Technical Details
| Part Number | VR1400 |
|---|---|
| Part type | diverter cartridge / diverter spindle |
| Total length of brass | 89mm |
| Diameter of brass at widest point | 23mm |
| Diameter of longer brass shaft | 9.9mm |
| Diameter of shorter brass shaft at bottom | 9.5mm |
| Length of longer shaft | 69.7mm |
| Length of shorter shaft | 12mm |
| Standard VR1400 diverter depth reference | 3-15mm installation version |
Confirmed Compatible Models
- Vola One-Handle Build-in Mixer with Diverter (400V) Spare Parts
- Vola One-Handle Build-in Mixer with Diverter (400N) Spare Parts
- Vola Separate Diverter (400D) Spare Parts
- Vola One-Handle Build-in Mixer with Diverter with One Premounted Outlet Socket (400TV) Spare Parts
- Vola Two-Handle Build-in Mixer with Diverter (800V) Spare Parts
- Vola Two-Handle Build-in Mixer with Diverter Including One Fixed Outlet Socket (800NV) Spare Parts
- Vola One-Handle Build-In Mixer for High Flow with Diverter (2400) Spare Parts
- Vola One-Handle Build-In Mixer for High Flow with Diverter (2400N) Spare Parts
- Vola One-Handle Build-In Mixer for High Flow with Diverter with One Fixed Outlet Socket (2400NV) Spare Parts
- Vola One-Handle Build-In Mixer with Ceramic Disc Technology and Diverter (2471) Spare Parts
- Vola One-Handle Build-in Mixer with Diverter, One Premounted Outlet Socket (400FV) Spare Parts
- Vola One-Handle Build-in Mixer with Diverter, One Premounted Outlet Socket (400NV) Spare Parts
- Vola One-Handle Build-in Mixer with Diverter, Without One Premounted Outlet Socket (400RV) Spare Parts
- Vola Separate Diverter (400DV) Spare Parts
- VOLA 800TV
- VOLA 2400V
- VOLA 2400FV
- VOLA 2400RV
- VOLA 2400TV
- VOLA 3400V
Before Ordering
- Confirm the existing valve series and removed diverter against the product image and measurements
- Do not identify this part by shaft diameter alone because similar Vola diverter and spindle parts may appear visually close
- If the handle turns but outlet selection is poor, inspect the diverter handle, threaded collar and diverter spindle as well as the VR1400 cartridge
- Use silicone grease only on suitable O-rings and seals during servicing; it is not a substitute for a worn or damaged mechanical part

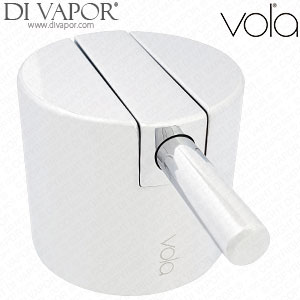

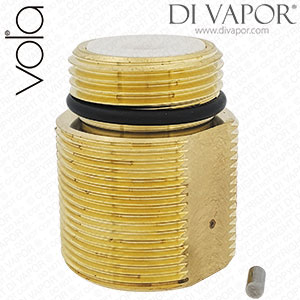

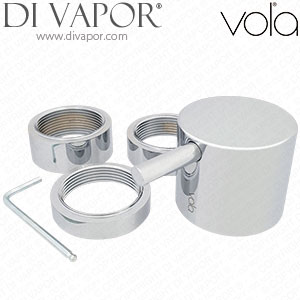

Related Spares You May Need
