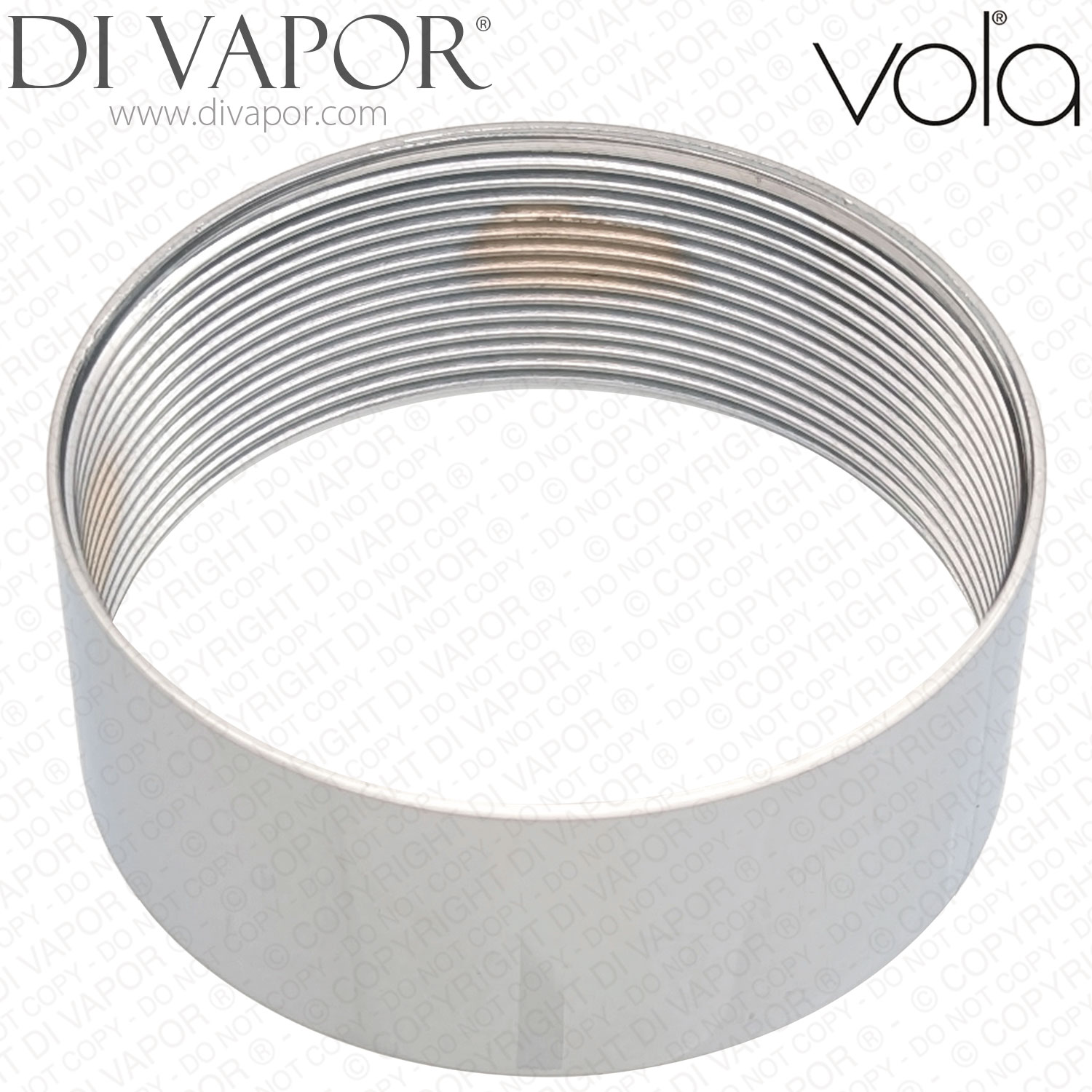

Vola VR2279-16 Chrome Shroud

SUMMARY

Vola VR2279-16 is a chrome 16mm shroud ring used with the VOLA NR21 flow control handle assembly on selected VOLA one-handle built-in mixer valves. This is an external trim and clamping ring for the handle area, not an internal cartridge, diverter or valve mechanism.

The shroud helps finish the exposed handle trim where the NR21 handle is fitted. Use it where the existing VR2279-16 chrome shroud is missing, damaged, marked or being matched to the original VOLA handle trim arrangement.

Technical Details

- - Part Number: VR2279-16

- - Part type: chrome shroud ring / trim ring

- - Finish: chrome

- - Diameter: 40.3mm

- - Height: 16mm

- - Associated NR21 trim ring options listed: VR2279 16mm for 30-34mm, VR2279B 12mm for 26-30mm and VR2279C 8mm for 22-26mm

Before Ordering

- - Check the existing shroud height, visible finish and original VOLA part code before ordering

- - Do not identify the valve from diameter alone because similar VOLA trim parts may look alike

- - This shroud ring will not correct stiff handle movement, poor shut-off or water dripping from the shower head or spout when the mixer is turned off; check the internal cartridge, diverter or spindle parts if those symptoms are present

Confirmed Compatible Models

- - Vola One-Handle Build-In Mixer for High Flow with Fixed Outlet Socket 2100

- - Vola One-Handle Build-In Mixer for High Flow with Fixed Outlet Socket Mixer to the Right 2100X

- - Vola One-Handle Build-In Mixer for High Flow Including Separate Outlet Socket 200M 2200

- - Vola One-Handle Build-In Mixer for High Flow 2200V

- - Vola One-Handle Build-In Mixer with Ceramic Disc Technology 2201

- - VOLA One-Handle Built-In Mixer with Ceramic Disc Technology 2281D

- - Vola One-Handle Build-In Mixer for High Flow for Vertical Installation 2300

- - Vola One-Handle Build-In Mixer for High Flow with Diverter 2400

- - Vola One-Handle Build-In Mixer with Diverter for Bath Filling and Hand Shower with One Fixed Outlet Socket 2400T

- - Vola One-Handle Build-In Mixer for High Flow with Diverter with One Fixed Outlet Socket 2400NV

- - Vola One-Handle Build-In Mixer with Ceramic Disc Technology and Diverter 2402-071

Related Spares You May Need

- - Vola NR21-16 Chrome Flow Control Handle - Part Number: NR21

- - 35mm Cartridge for Vola / Hastings VR1277K (No Hex Piece) - Part Number: VR1277K

- - Vola VR2205 Threaded Collar for Diverter - Part Number: VR2205

- - Vola VR1400 Diverter - Part Number: VR1400

- - Vola NR24G-16 Chrome Diverter Control Handle - Part Number: NR24G

- - Vola Diverter Spindle 400/800/2400 (VR2213) - Part Number: VR2213
