Vola NR24G Diverter Lever for all Concealed Mixers of the Series 2400 Chrome (NR24G-16)

SUMMARY

The VOLA NR24G-16 chrome diverter lever is a replacement diverter control handle for VOLA 2400 series concealed and build-in mixer valves with diverter. It is used to operate the diverter control on the mixer and is finished in chrome to match the VOLA polished chrome trim.

This part is the NR24G same-colour peg version in finish code 16. It should not be confused with the NR24 black-peg version. Check the original handle code, valve model and finish before ordering.

Technical Details

- - Brand: VOLA

- - Part Number: NR24G-16

- - VOLA base code: NR24G

- - Finish: chrome / polished chrome

- - Part type: diverter lever / diverter control handle

- - Application: VOLA 2400 series concealed mixer valves with diverter

- - VOLA listed diameter: 43mm

- - Handle diameter measurement: 39.5mm

- - Shroud diameter measurement: 39.5mm

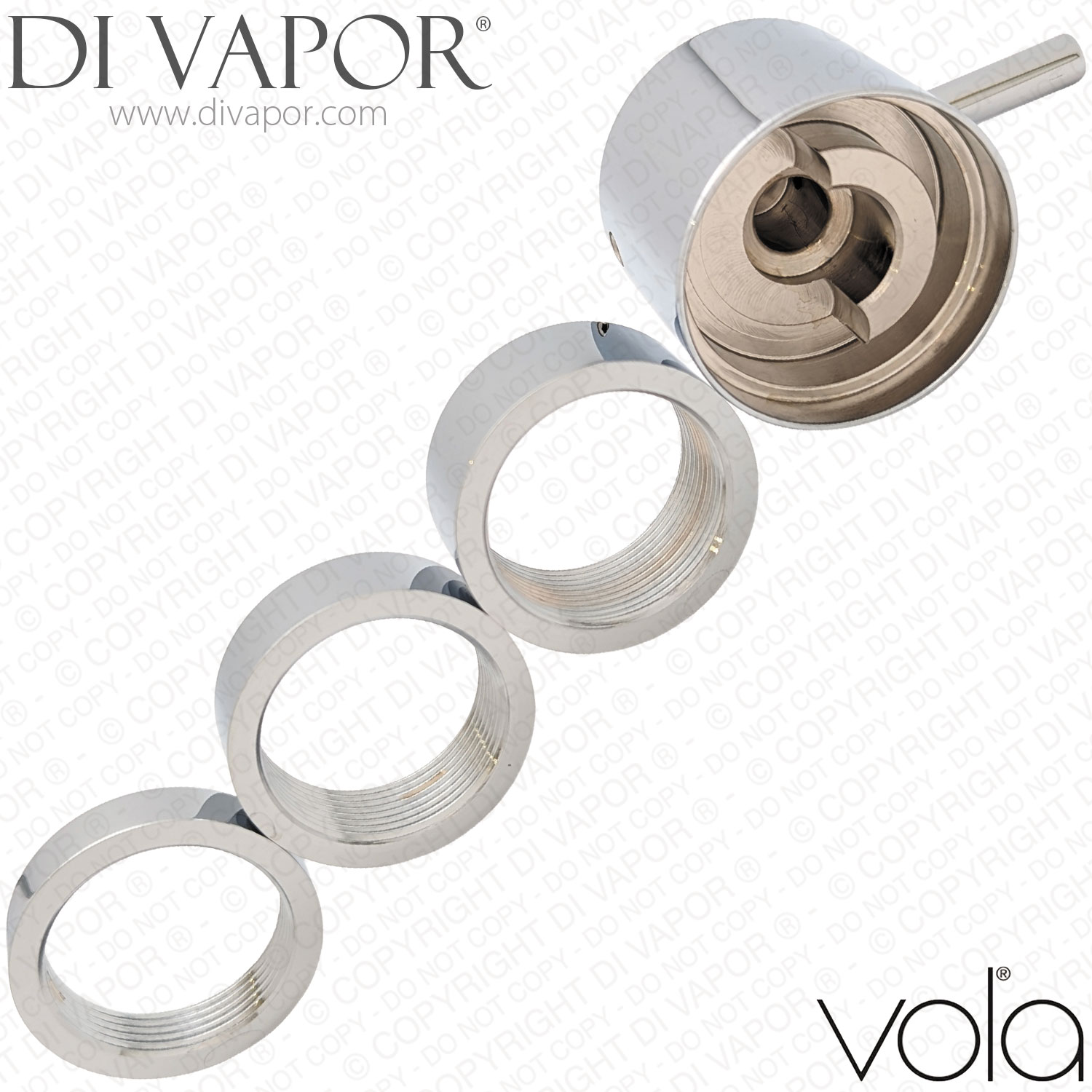

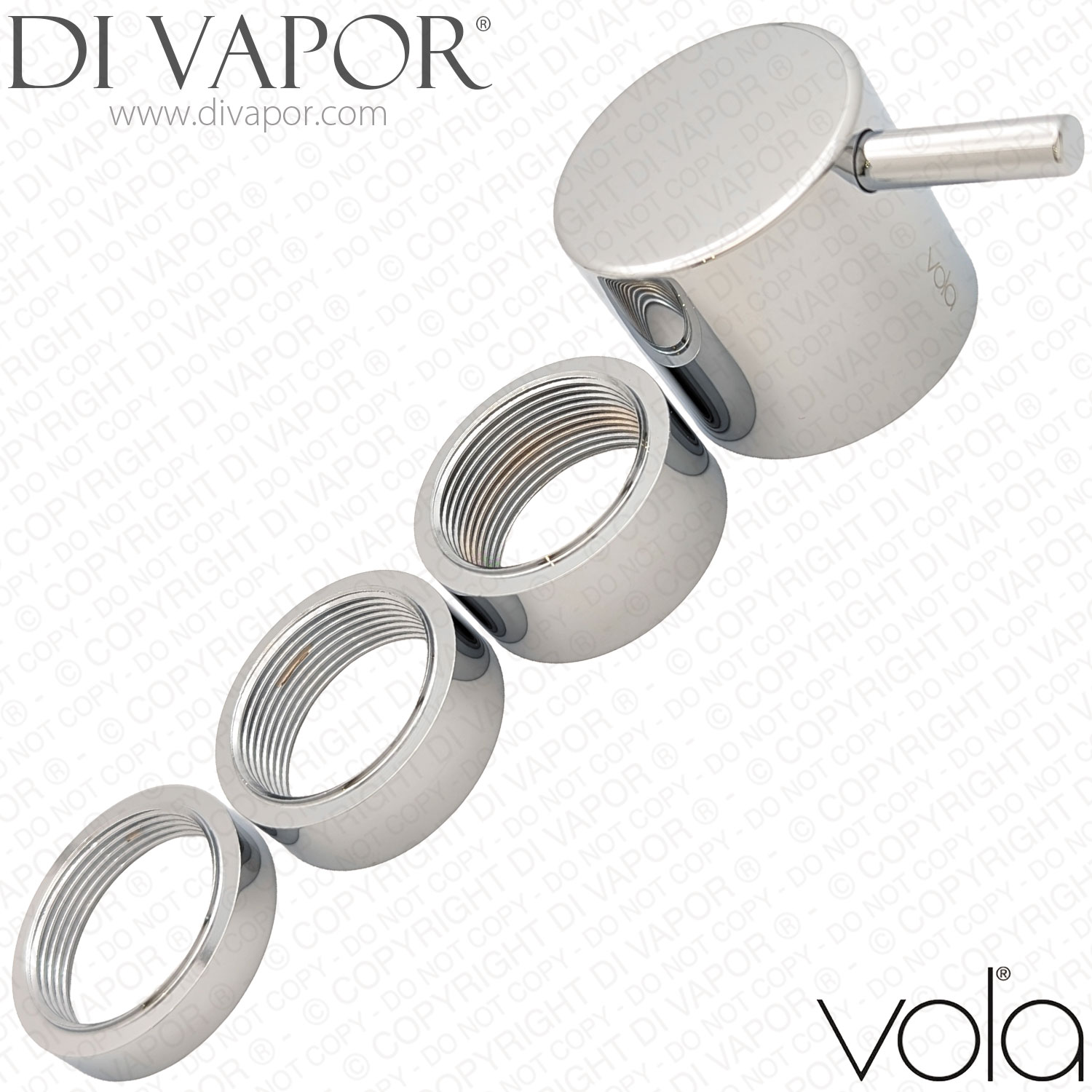

- - Supplied with three chrome shrouds measuring 16mm, 12mm and 8mm high

Confirmed Compatible Models

- - VOLA 2400 series concealed mixers including 2400 build-in mixer chrome

- - Vola One-Handle Build-In Mixer for High Flow with Diverter 2400 Chrome

- - Vola One-Handle Build-In Mixer for High Flow with Diverter with One Fixed Outlet Socket 2400NV Chrome

- - Vola One-Handle Build-In Mixer with Diverter for Bath Filling and Hand Shower with One Fixed Outlet Socket 2400T Chrome

Before Ordering

- - Confirm that the valve is a VOLA 2400 series concealed mixer with diverter

- - Match the finish code 16 if replacing polished chrome trim

- - If the lever is intact but the diverter is stiff, failing to switch outlets or allowing water to pass when turned off, check the diverter and spindle spares as well as the handle

- - Do not order from diameter alone; confirm the original part code and mixer model wherever possible

Related Spares You May Need

- - Vola VR2205 Threaded Collar for Diverter - Part Number: VR2205

- - Vola VR1400 Diverter - Part Number: VR1400

- - Vola NR21-16 Chrome Flow Control Handle - Part Number: NR21

- - 35mm Cartridge for Vola / Hastings VR1277K (No Hex Piece) - Part Number: VR1277K

- - Vola Diverter Spindle 400/800/2400 (VR2213) - Part Number: VR2213

- - TACSIL 3g Premium Cartridge Silicone Grease - WRAS Approved - Part Number: TAC86
