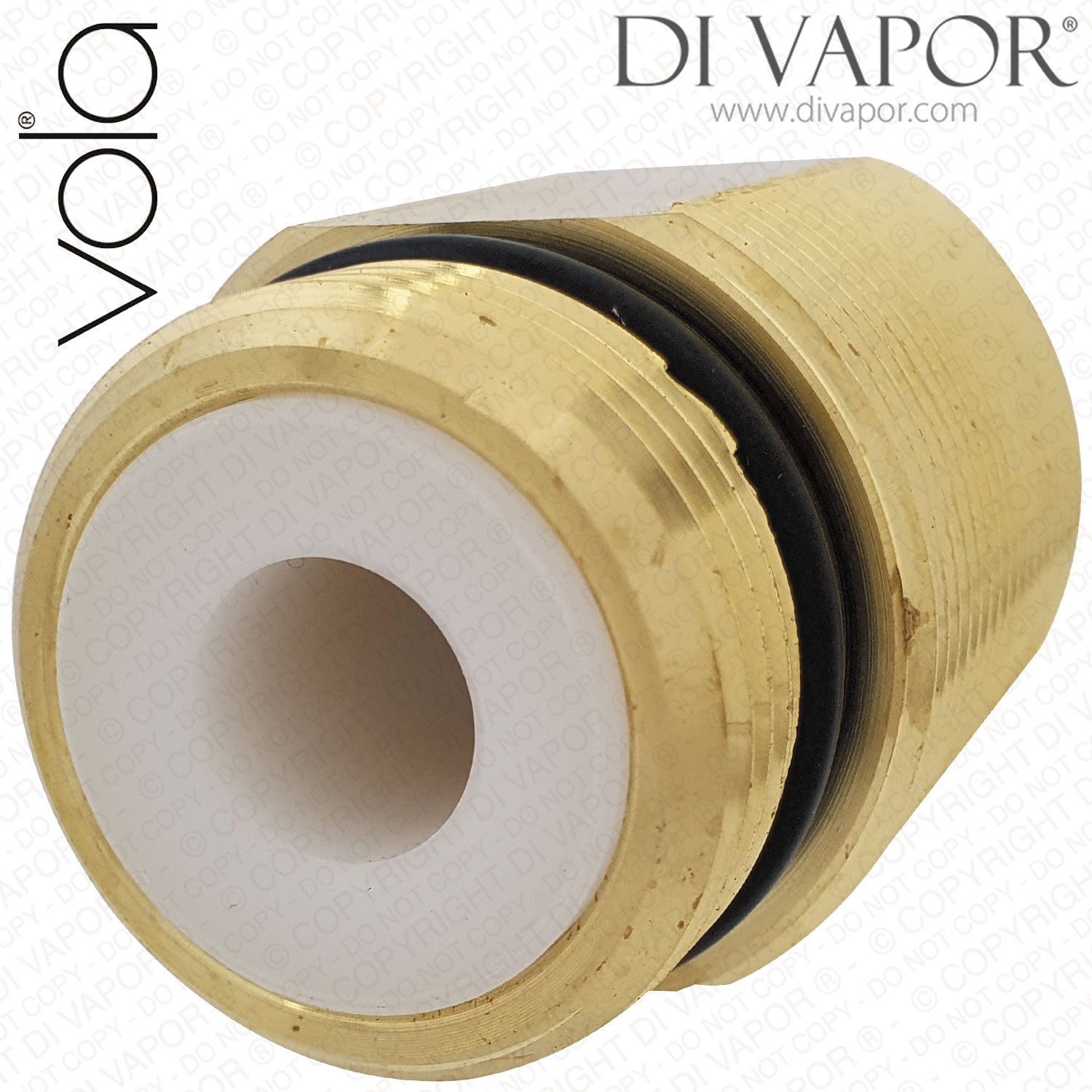

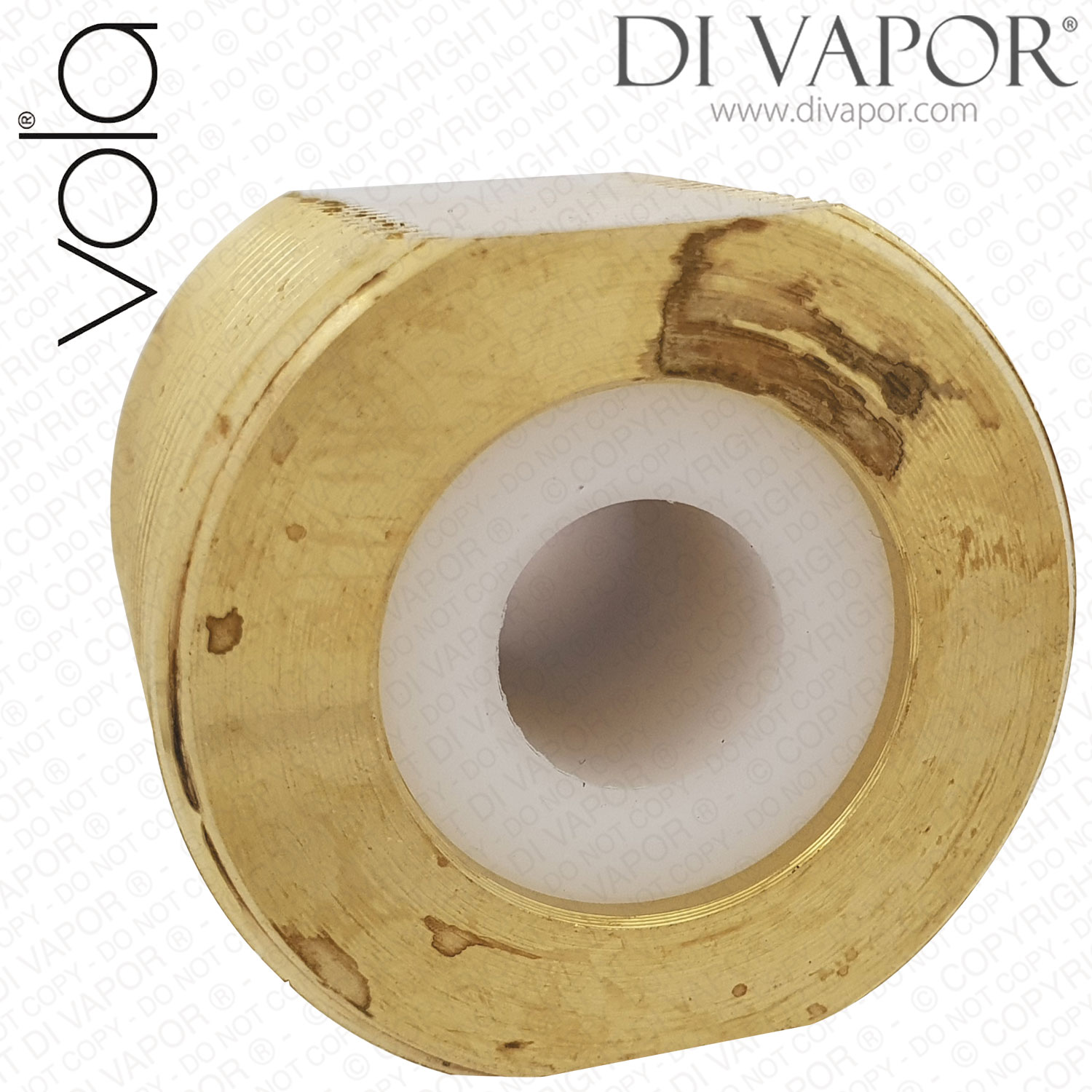

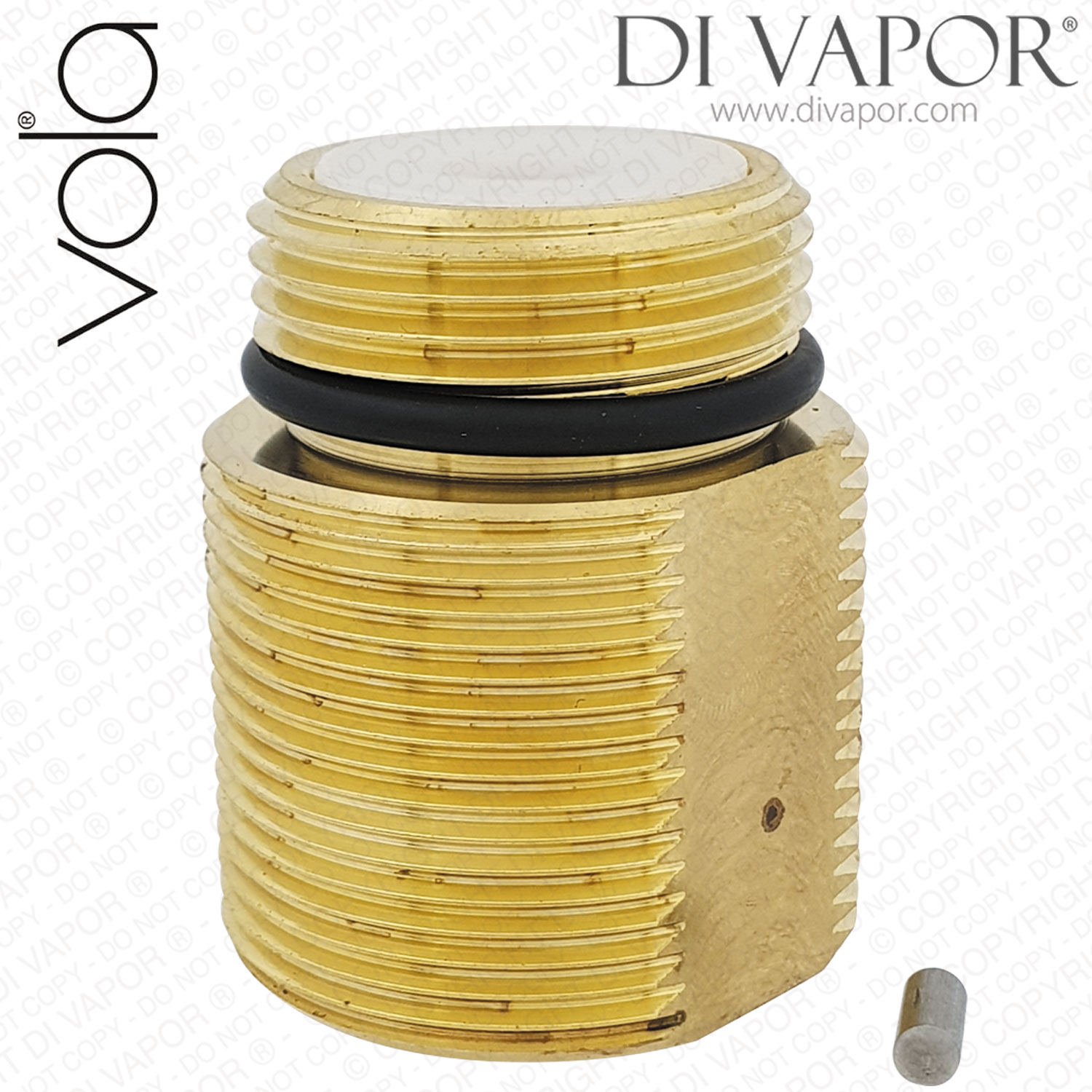

Vola VR2205 Threaded Collar for Diverter

Summary

Vola VR2205 is a threaded collar for the diverter assembly used with selected Vola build-in mixer diverters. It is also referred to as a diverter housing and is ordered as the separate VR2205 collar where the Vola VR1400 diverter arrangement requires it.

This part is associated with Vola diverters for build-in mixer groups 400, 800, 2400 and 3400. It should not be identified by thread appearance alone; check the removed collar, the valve model and the diverter assembly before ordering.

Technical Details

• Used with the VR1400 diverter arrangement for selected Vola build-in mixer diverters
• Vola VR1400 depth variants are selected by wall coating and spindle-to-finished-wall measurement; VR2205 is purchased separately from the VR1400 diverter
• No direct VR2205 thread size or dimensional measurement was confirmed on the Di Vapor product page

Confirmed Vola Applications

• Vola One-Handle Build-in Mixer with Diverter (400V) Spare Parts
• Vola Separate Diverter (400D) Spare Parts
• Vola One-Handle Build-In Mixer with Ceramic Disc Technology with Diverter (471) Spare Parts
• Vola Two-Handle Build-in Mixer with Diverter (800V) Spare Parts
• Vola Two-Handle Build-in Mixer with Diverter Including One Fixed Outlet Socket (800NV) Spare Parts
• VOLA Two-Handle Built-In Mixer with Quarter Turn Ceramic Disc Technology and Diverter (871R) Spare Parts
• Vola One-Handle Build-In Mixer for High Flow with Diverter (2400) Spare Parts
• Vola One-Handle Build-In Mixer for High Flow with Diverter (2400N) Spare Parts
• Vola One-Handle Build-In Mixer with Diverter for Bath Filling and Hand Shower with One Fixed Outlet Socket (2400T) Spare Parts
• Vola One-Handle Build-In Mixer for High Flow with Diverter with One Fixed Outlet Socket (2400NV) Spare Parts
• Vola One-Handle Build-In Mixer with Ceramic Disc Technology and Diverter (2402-071) Spare Parts
• Vola 3400 build-in mixer diverter group

Before Ordering

• Confirm the existing valve series and removed collar against the product image before fitting
• If outlet selection is poor or water continues to pass from a shower head or spout when the mixer is turned off, inspect the VR1400 diverter, VR2213 diverter spindle and operating handle as well as the threaded collar
• Use silicone grease only on suitable O-rings and seals during servicing; do not apply it as a substitute for worn or damaged mechanical parts

Related Spares You May Need

• Vola VR1400 Diverter
• Vola Diverter Spindle 400/800/2400 (VR2213)

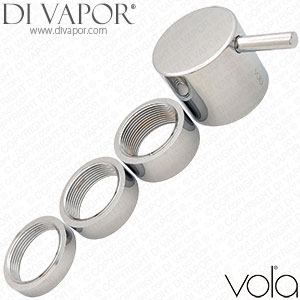

• Vola NR24G-16 Chrome Diverter Control Handle
