Vola VR3279B Chrome Shroud - VR3279B-16
SUMMARY

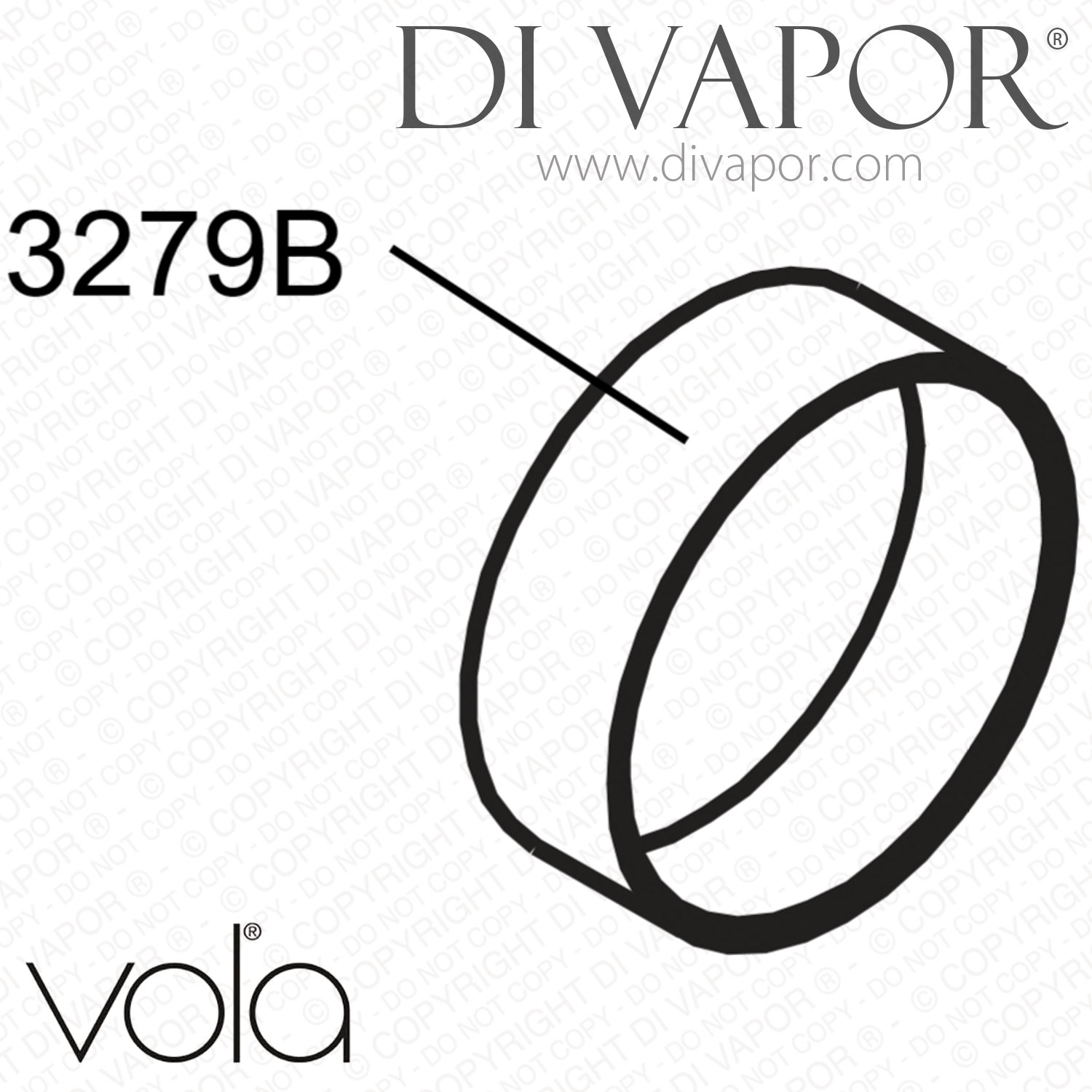

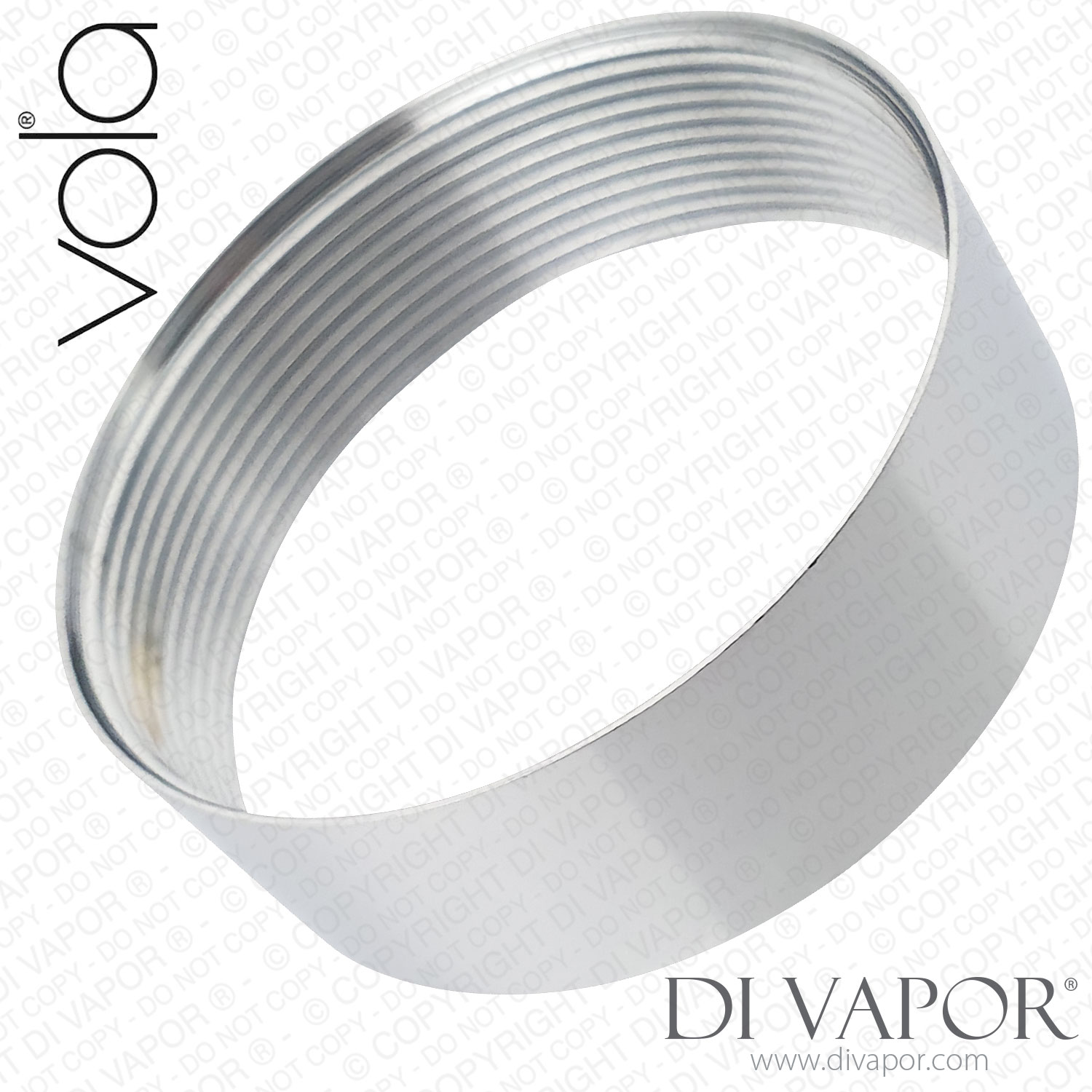

Vola VR3279B Chrome Shroud - VR3279B-16.
This shroud is 16mm in height.

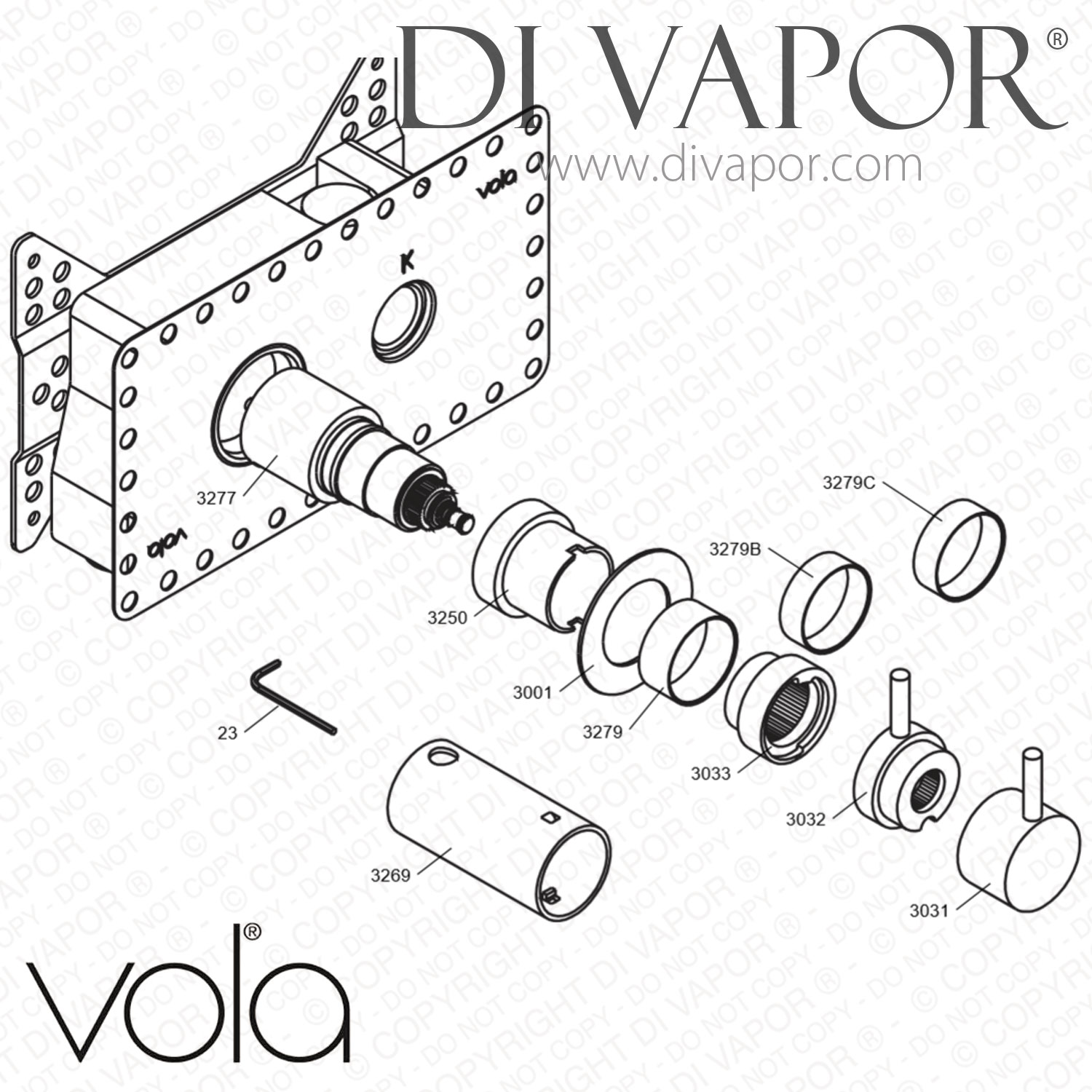

Vola VR3279B is a chrome shroud ring for the VOLA NR28 operating handle assembly used on selected VOLA built-in one-handle mixer and diverter installations.
This trim ring is used during final handle assembly to set the correct projection between the operating handle and the finished wall surface. It should be checked against the existing shroud ring and the installation depth before ordering because VR3279B is a separate depth option from VR3279 and VR3279C.
Technical Details
- - Brand: Vola
- - Part Number: VR3279B
- - Product code: VR3279B-16
- - Part type: chrome shroud ring
- - Finish: chrome
- - Ring depth: 12mm
- - Installation depth reference: A 27-32mm
- - Associated handle assembly: VOLA NR28 operating handle
- - Related shroud depth options: VR3279 16mm and VR3279C 8mm
Before Ordering Check
Compare the existing ring depth, visible trim finish and valve or operating handle reference before ordering. Do not order from overall diameter alone because the VR3279, VR3279B and VR3279C rings are separate trim-depth parts.
Confirmed Compatible Models
- - Vola Operating Handle for 100 200 300 400 NR28 Spare Parts
- - Vola One-Handle Build-In Mixer 200V Spare Parts
- - Vola One-Handle Build-in Mixer with Fixed Outlet Socket for Vertical Installation 300 Spare Parts
- - Vola One-Handle Build-in Mixer with Diverter 400V Spare Parts
- - Vola Separate Diverter 400D Spare Parts
- - Vola One-Handle Build-in Mixer with Diverter 400N Spare Parts
- - VOLA 400FV, 400NV, 400RV and 400TV
- - VOLA 4900, 4900VS and 4900VSX final assembly
Related Spares You May Need
- - Vola VR3033 Chrome Shroud - VR3033-16
- - Vola VR3032-16 Chrome Temperature Stop Lever Ring
- - VOLA VR3277K Thermostatic Cartridge Hastings - NO REMOVAL KEY Compatible Spare
- - Vola 3279 Chrome Shroud - VR3279
- - VOLA VR3277K Thermostatic Cartridge - With Removal Key Tool Compatible Spare
- - Vola VR3269 Removal Key for VR3277K Thermostatic Cartridge
- - Vola VR3250 Cartridge Removal Tool / Key
- - 28mm Lever Cartridge for Vola VR277K - VR269 Fixing Nut NOT Included Hastings - Compatible Spare
- - 28mm Lever Cartridge for Vola VR277 Mixer Taps Hastings - Compatible Spare
- - Vola Diverter Spindle 400/800/2400 VR2213
- - TACSIL 3g Premium Cartridge Silicone Grease - WRAS Approved
