Vola NR24G-16 Chrome Diverter Control Handle

SUMMARY

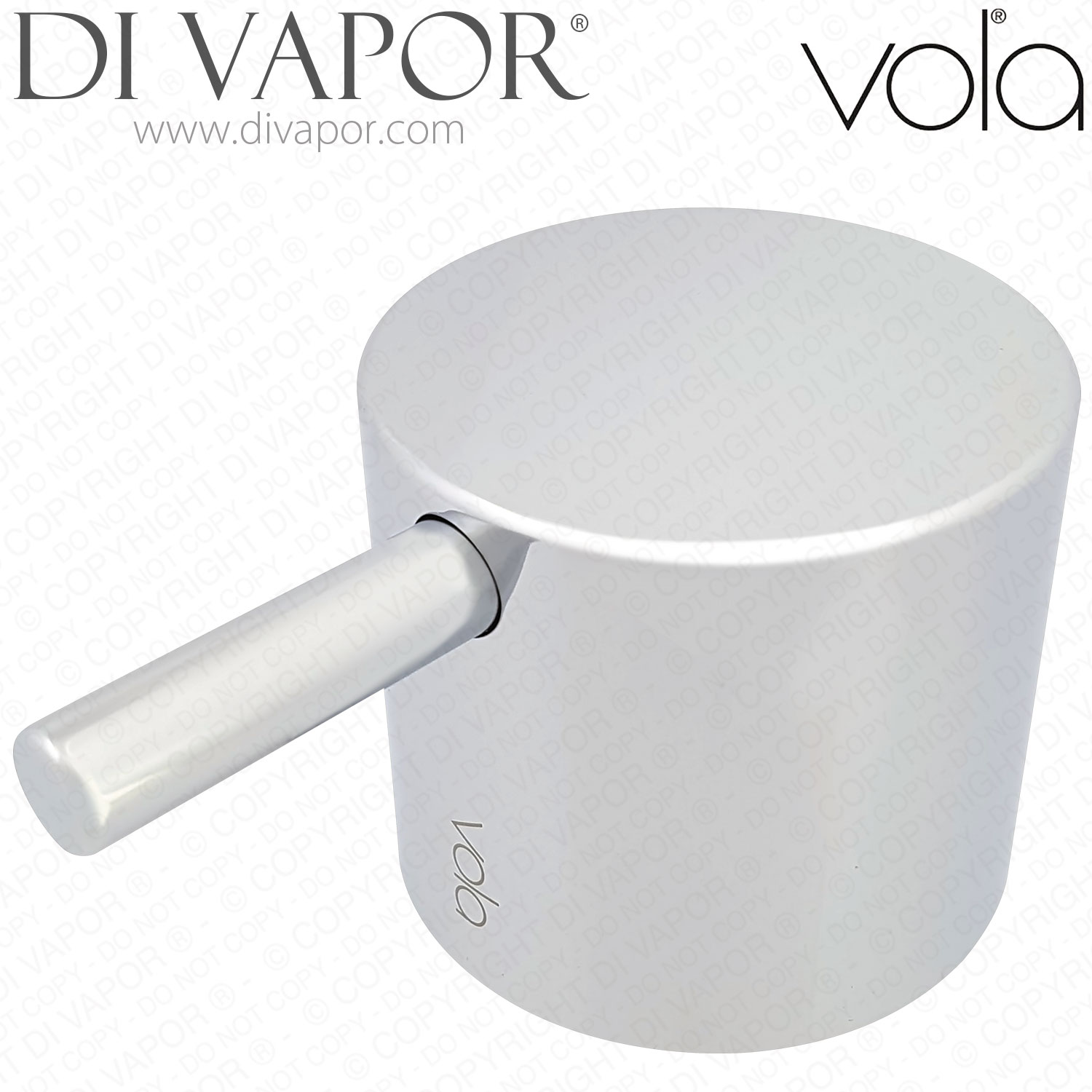

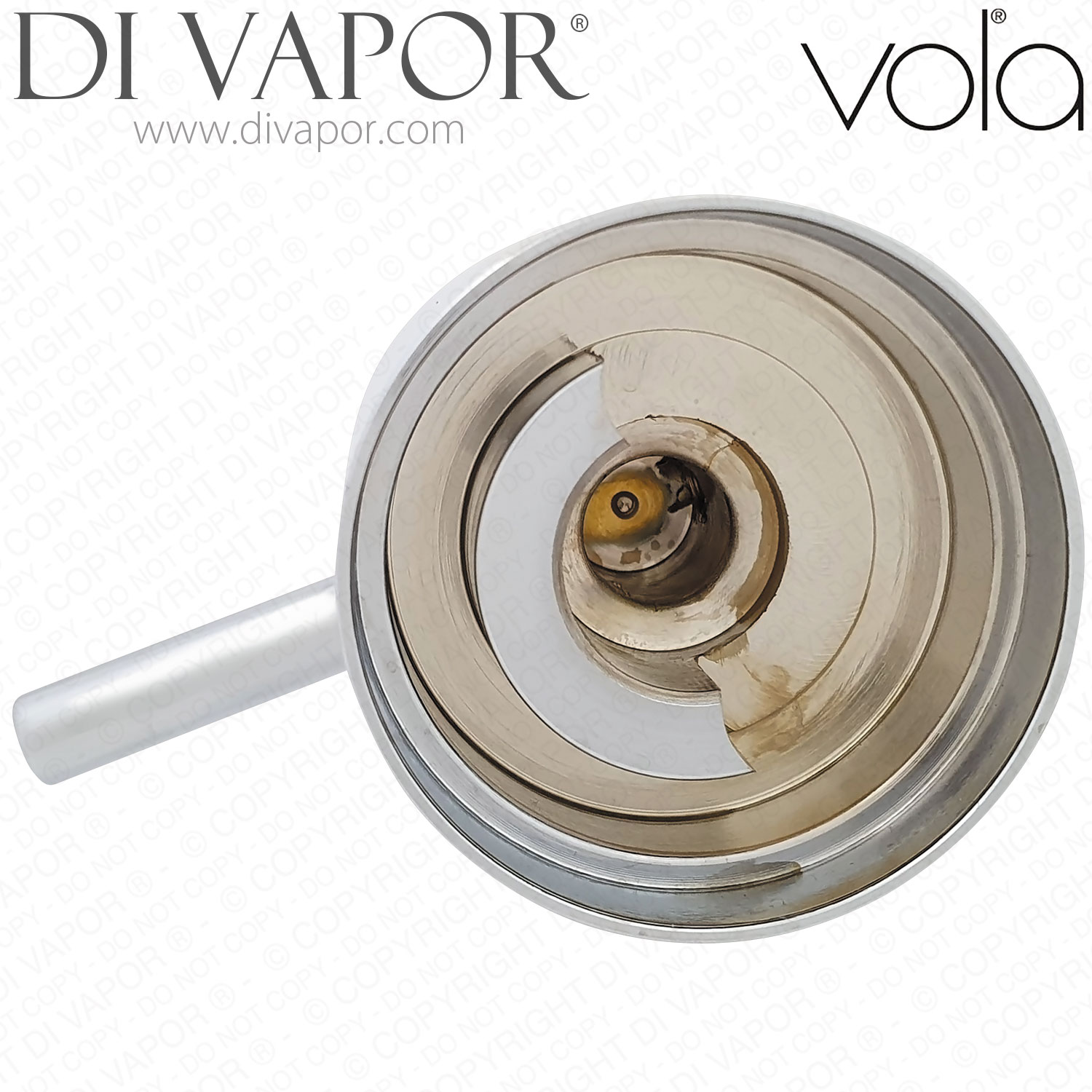

Vola NR24G-16 Chrome Diverter Control Handle is a chrome diverter handle for Vola Series 2400 concealed mixer assemblies. The supplied Di Vapor page lists Part Number NR24G and the Series 2400 Vola listing identifies the chrome diverter lever as NR24G-16.

This handle operates the diverter control on the shower or bath mixer so water can be directed between outlets where the valve uses the Vola 2400 diverter arrangement. It is a trim and control part for the diverter mechanism rather than the internal diverter cartridge itself.

Technical Details

- - Part Number shown on supplied page: NR24G

- - Finish: chrome

- - Handle diameter: 39.5mm

- - Diameter of shrouds: 39.5mm

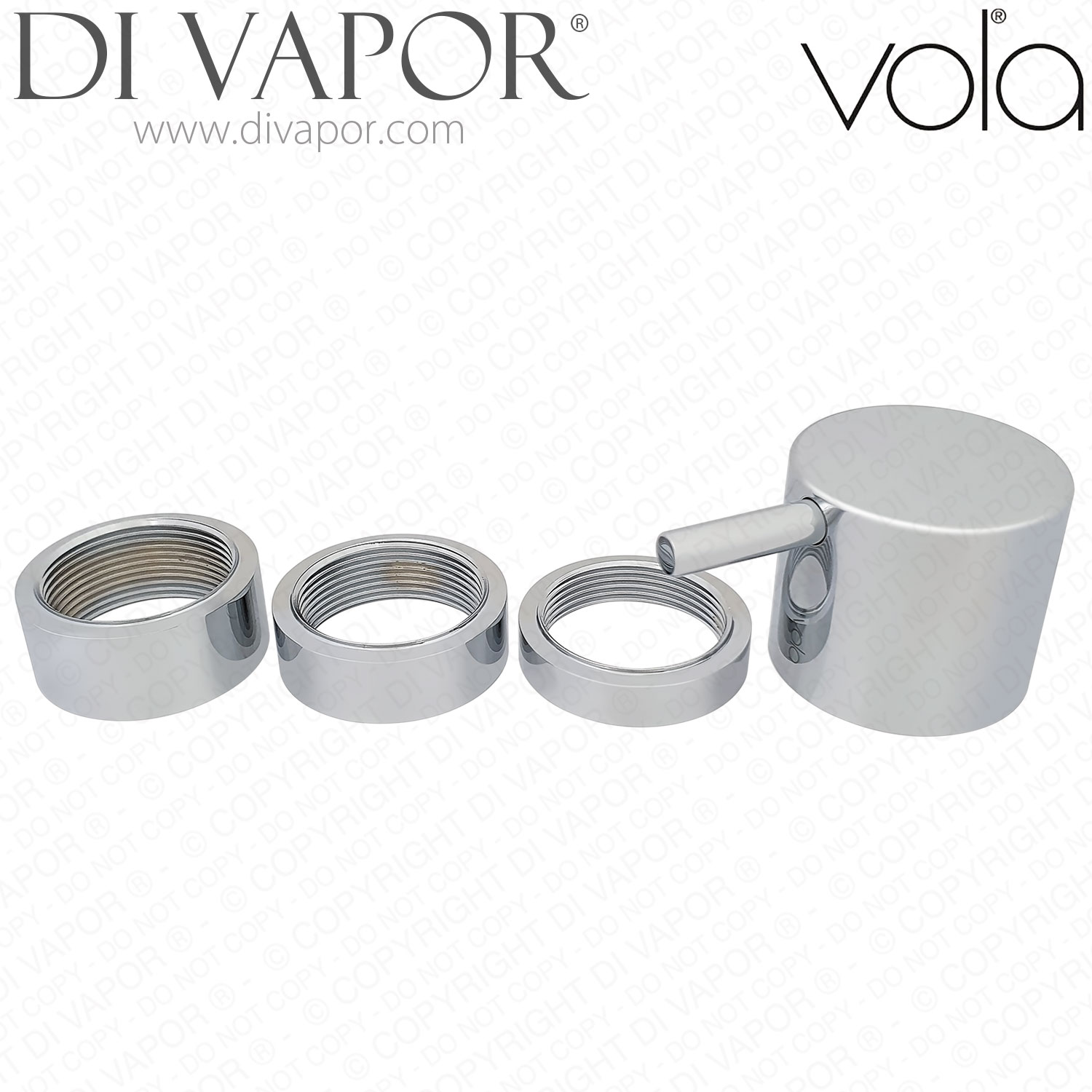

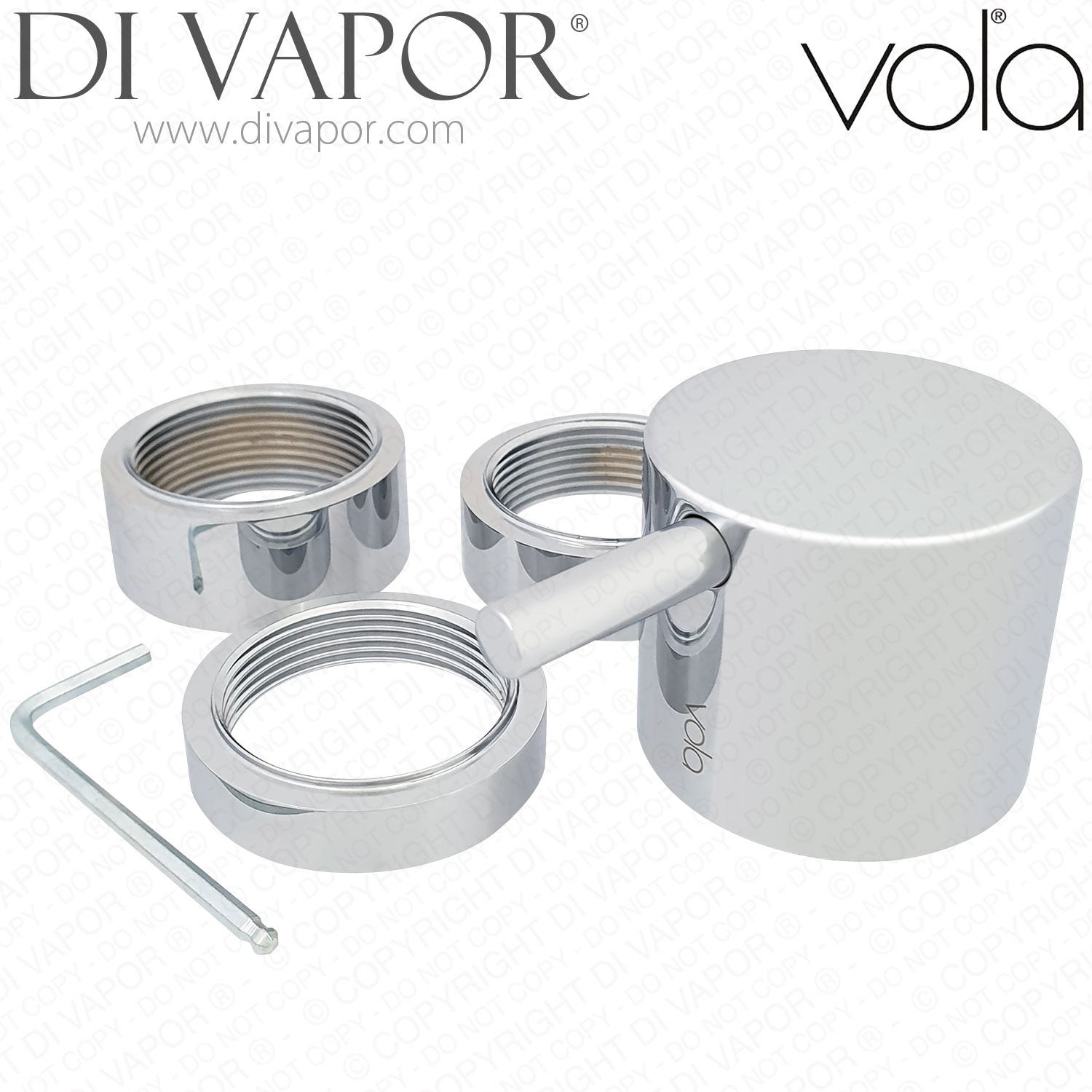

- - Height of three chrome shrouds: 16mm 12mm and 8mm

- - Vola specification detail for NR24G: diverter handle for 2400 including variants with peg in the same colour as the handle as standard

Check the existing handle code valve series and shroud arrangement before ordering. The 39.5mm handle and shroud measurements should not be used on their own to identify the valve because other Vola handles and trim parts can appear visually similar.

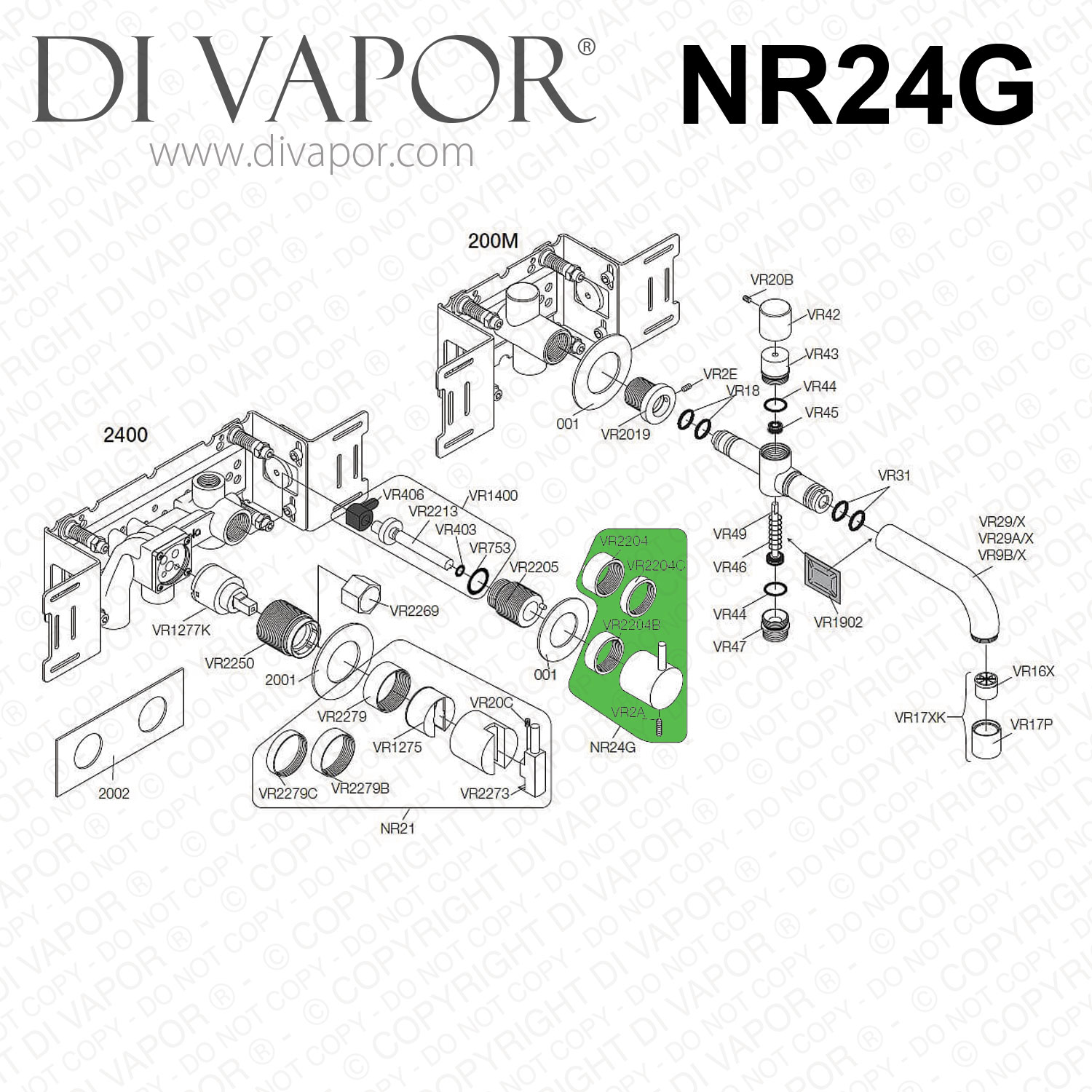

Confirmed Vola 2400 Chrome Applications

- - Vola One-Handle Build-In Mixer for High Flow with Diverter 2400

- - Vola One-Handle Build-In Mixer with Ceramic Disc Technology and Diverter 2471

- - Vola One-Handle Build-In Mixer with Ceramic Disc Technology and Diverter 2471-061A

Related Spares You May Need

- - Vola VR2205 Threaded Collar for Diverter

- - Vola VR1400 Diverter

- - Vola NR21-16 Chrome Flow Control Handle

- - 35mm Cartridge for Vola / Hastings VR1277K (No Hex Piece)

- - Vola Diverter Spindle 400/800/2400 (VR2213)

- - TACSIL 3g Premium Cartridge Silicone Grease - WRAS Approved

A worn diverter assembly can cause poor outlet selection or water passing from the shower head or spout when the shower or bath mixer is turned off. If the handle turns but does not control the outlet correctly check the VR1400 diverter VR2205 threaded collar and VR2213 spindle as well as the handle.
