Crosswater X2A044N-1 Diverter Cartridge - 100mm Length

SUMMARY

Crosswater X2A044N-1 100mm Diverter Cartridge for Recessed Thermostatic Shower Valves

NOTE: NO brass locking ring included. Only the cartridge is included as per the photos. The blue and white cartridge has now been replaced with a cream version. It is the exact same size and functionality.

The Crosswater X2A044N-1 is a 100mm diverter cartridge used in selected Crosswater recessed thermostatic shower valves. It controls the direction of mixed water between shower outlets, allowing the user to select the required shower function. The diverter operates separately from the thermostatic cartridge, which controls the water temperature.

This cartridge is supplied on its own without the brass retaining nut collar. The original blue-and-white cartridge has been replaced by a cream-coloured version with the same dimensions and functionality. The matching Crosswater X2A044N-1-COL retaining nut collar is available separately if the existing collar is damaged or missing.

Technical Details

- - Brand: Crosswater

- - Part Number: X2A044N-1

- - Part type: shower diverter cartridge

- - Overall length: 100mm

- - Main barrel diameter: 40mm

- - Barrel body length including locating pins: 50mm

- - Spindle length: 60mm

- - Distance between locating pins: 22mm centre to centre

- - Fitting: cartridge body with two locating pins at the base

- - Current colour: cream

- - Supplied components: diverter cartridge only

- - Brass retaining nut collar: not included

Common Signs of Diverter Cartridge Failure

A worn or damaged diverter cartridge can make it difficult to switch water between shower outlets. Water may continue dripping from one outlet while another is in use, or the shower head or spout may drip when the valve is turned off. Replacing a faulty diverter cartridge can restore the outlet-selection function and help resolve leakage caused by worn internal diverter components.

Confirmed Compatible Models

Crosswater Design Range

- - DE3000RC - Design thermostatic shower valve with 3-way diverter

- - DE3001RC - Design thermostatic shower valve with 3-way diverter

Crosswater Kai Lever Range

- - KL1500RC - Kai Lever thermostatic shower valve with 2-way diverter

- - KL3000RC - Kai Lever thermostatic shower valve with 3-way diverter

- - KL3001RC - Kai Lever thermostatic shower valve with 3-way diverter

Crosswater Modest Range

- - MO1500RC - Modest thermostatic shower valve with 2-way diverter

- - MO2001RC - Modest thermostatic shower valve with 2-way diverter

- - MO3000RC - Modest thermostatic shower valve with 3-way diverter

- - MO3001RC - Modest thermostatic shower valve with 3-way diverter

Crosswater Totti II Range

- - TO1500RC - Totti II thermostatic shower valve with 2-way diverter

- - TO3000RC - Totti II thermostatic shower valve with 3-way diverter

- - TO3001RC - Totti II thermostatic shower valve with 3-way diverter

Crosswater Celeste Range

- - CT1500RC - Celeste thermostatic shower valve with 2-way diverter

- - CT1501RC - Celeste thermostatic shower valve with 2-way diverter

- - CT3000RC - Celeste thermostatic shower valve with 3-way diverter

Crosswater MPRO Range

- - PRO1500RC+ - MPRO thermostatic shower valve with 2-way diverter

- - PRO3000RC+ - MPRO thermostatic shower valve with 3-way diverter

Crosswater Belgravia Range

- - BL1500RC+ - Belgravia Crosshead thermostatic shower valve with 2-way diverter

- - HG3000RN - Belgravia Crosshead thermostatic shower valve with 3-way diverter

Crosswater Union Range

- - UB2001RC UB2001LBPC WLBP2001R+ - Union thermostatic shower valve with 2-way diverter wheel

- - UB1500RU UB1000LBPU WLBP25X3R+ - Union thermostatic shower valve with 2-way MultiFlow diverter wheel

Crosswater Water Square Range

- - WS1701RC - Water Square thermostatic shower valve with 2-way diverter and handset

- - WS3000RC - Water Square thermostatic shower valve with 3-way diverter

- - WS3000RC-VS GEN1 - Water Square slim thermostatic shower valve

- - WS3001RC-VS - Water Square slim thermostatic shower valve with 3-way diverter

Crosswater Waldorf Range

- - CW DV 101 - Waldorf thermostatic shower valve with 3-way diverter

- - WF1500RC_LV+ - Waldorf thermostatic shower valve with 2-way diverter

Crosswater WLBP Range

- - WLBP1500R+ - thermostatic shower valve assembly without collars

- - WLBP25X3R+ - 2-outlet thermostatic MultiFlow valve assembly

Crosswater Wisp Range

- - WP1500RM - Wisp thermostatic shower valve with 2-way diverter

Crosswater 1000 Range

- - CW DV 157 - Crosswater 1000 thermostatic shower valve

Important Before Ordering Checks

Crosswater shower valves can use different cartridge types across model generations. Check the exact shower valve reference and compare the original cartridge's overall length, barrel diameter, spindle and two locating pins before ordering. Some MultiFlow component listings contain more than one diverter cartridge reference, so the valve model alone may not identify the correct version.

Installation Guidance

Isolate both hot and cold water supplies before starting. Loosen the diverter handle's grub screw, remove the handle and cover, and unscrew the retaining nut collar. Withdraw the old cartridge and apply suitable heat-resistant silicone plumbing grease to the seals of the new cartridge. Align the two locating pins with their corresponding slots in the valve body, insert the cartridge and refit the retaining collar, cover and handle. The existing collar can be reused if it remains in suitable condition.

Related Spares You May Need

The following parts are listed with this cartridge or on associated Crosswater valve component pages. Flow cartridges, thermostatic cartridges and other fittings perform separate functions, so check the specific valve model before ordering them.

- - Crosswater X2A044N-1-COL retaining nut collar - secures the diverter cartridge in position

- - TACSIL 3g premium silicone grease - TAC86 - for lubricating cartridge seals

- - GROHE Syntheso LM 220 silicone grease 2g - GR-18007031 - alternative cartridge seal lubricant

- - Crosswater X2A071N 90mm anti-clockwise flow cartridge - separate flow-control component

- - Crosswater CGPRO2000C clockwise-opening flow cartridge - separate on/off water flow control

- - Crosswater CGPRO1000H anti-clockwise-opening flow cartridge - separate on/off water flow control

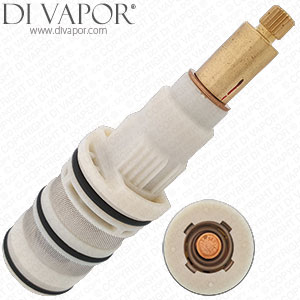

- - Crosswater CA43-102 thermostatic cartridge - temperature-control component for specified valve versions

- - Crosswater CA43-059 thermostatic cartridge - temperature-control component for specified valve versions

- - Crosswater SC50T20-M thermostatic cartridge - temperature-control component used in earlier valve assemblies

- - Crosswater Z00717N non-return valve filter - valve inlet check and filtration component

- - Crosswater Z0A363N non-return valve - check valve for specified recessed assemblies

- - Crosswater NRV1000FA1 non-return valve - separate check valve component

- - Crosswater SSP004 recessed shower valve control screws - control assembly fixings

- - Crosswater H1T082C handle base - control handle mounting component

- - Crosswater CP0000250 handle base - Part Number CP00002345 - separate handle mounting component

- - Crosswater RN1000FA1 thermostatic retaining nut - retaining part for the thermostatic assembly rather than the diverter cartridge

- - Crosswater AQ8083 long-spindle flow cartridge - CROSSWATER-AQ8083 - separate flow-control component for specified valve assemblies

Not sure which shower part you need? Use the Di Vapor part identification service for help.
