Ultra SPR02 1/​2" Ceramic Disc Cartridges (20 Splines) - Hot and Cold

SUMMARY

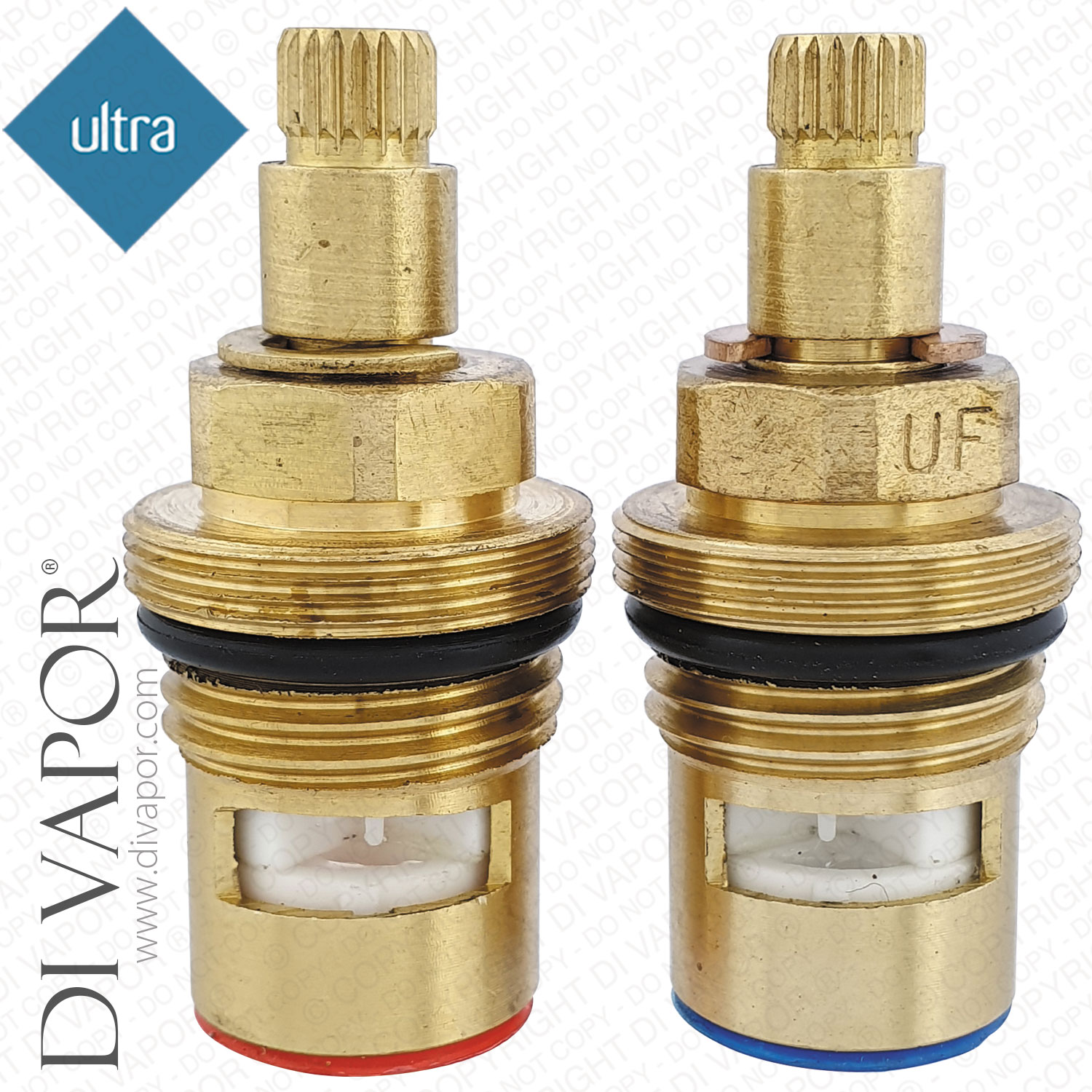

Ultra SPR02 1/2 Inch Ceramic Disc Flow Cartridges 20 Splines Hot and Cold Pair

Ultra SPR02 is a hot and cold pair of 1/2" BSP quarter-turn ceramic disc flow cartridges with 20-spline spindles. The pair is used in selected Ultra, Hudson Reed, Premier and Nuie tap and valve assemblies to control water flow and provide a positive shut-off.

Each cartridge screws into the tap or valve body and its splined spindle connects to the control handle. Worn ceramic discs can cause poor shut-off or water dripping from the tap spout or outlet when the control is turned off.

Technical Details

- - Part Number: SPR02

- - Supplied as a hot and cold pair

- - Connection size: 1/2" BSP

- - Cartridge type: ceramic disc on/off flow cartridge

- - Total length including bottom seal: 50.5mm

- - Diameter at widest point: 23.8mm at flange thread

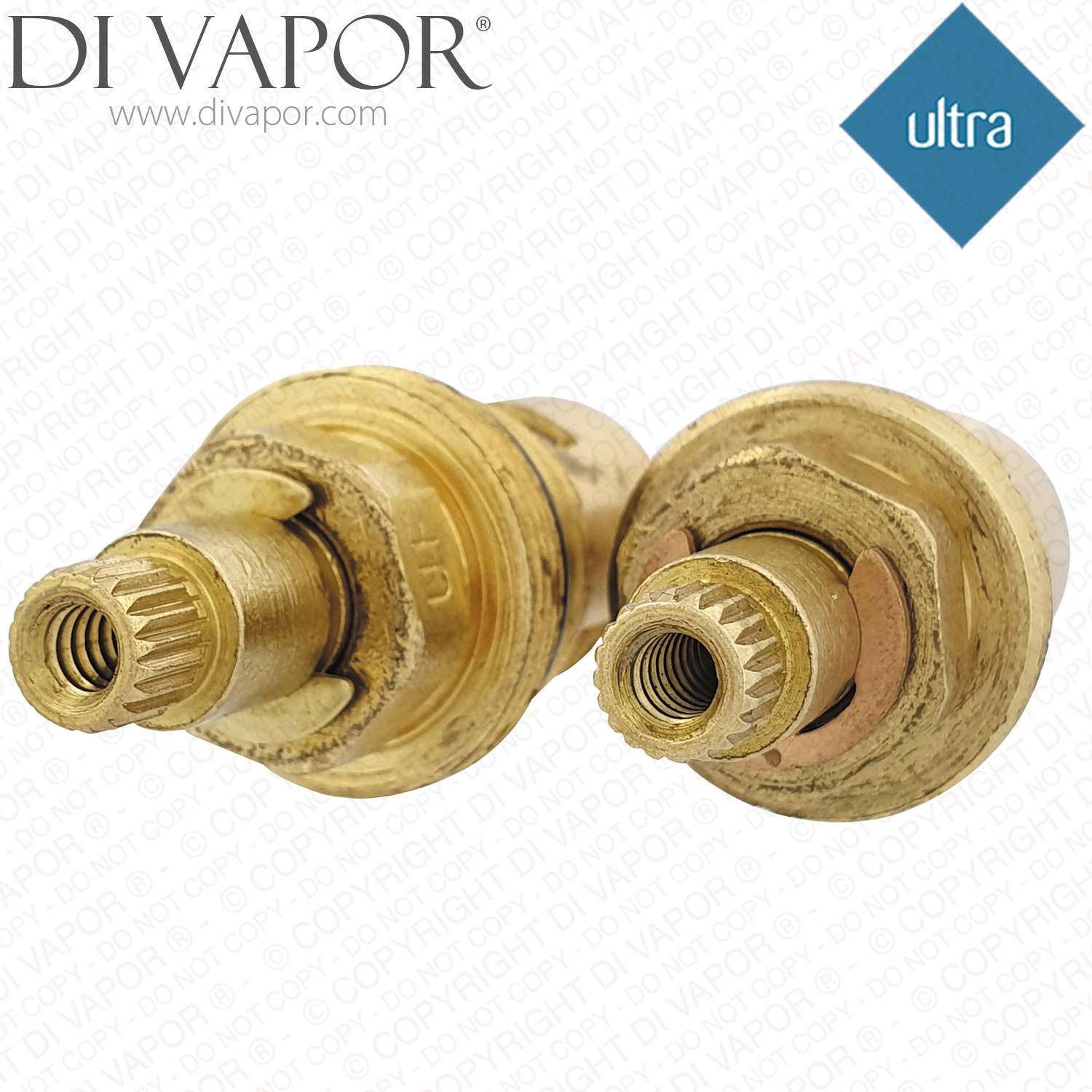

- - Spindle length from top of hex to top of splines: 16mm

- - Top spline diameter: 8mm

- - Top spline count: 20

- - Lower thread diameter: 20.5mm

- - Barrel diameter below lower thread: 18.3mm

- - Hex diameter: 17mm

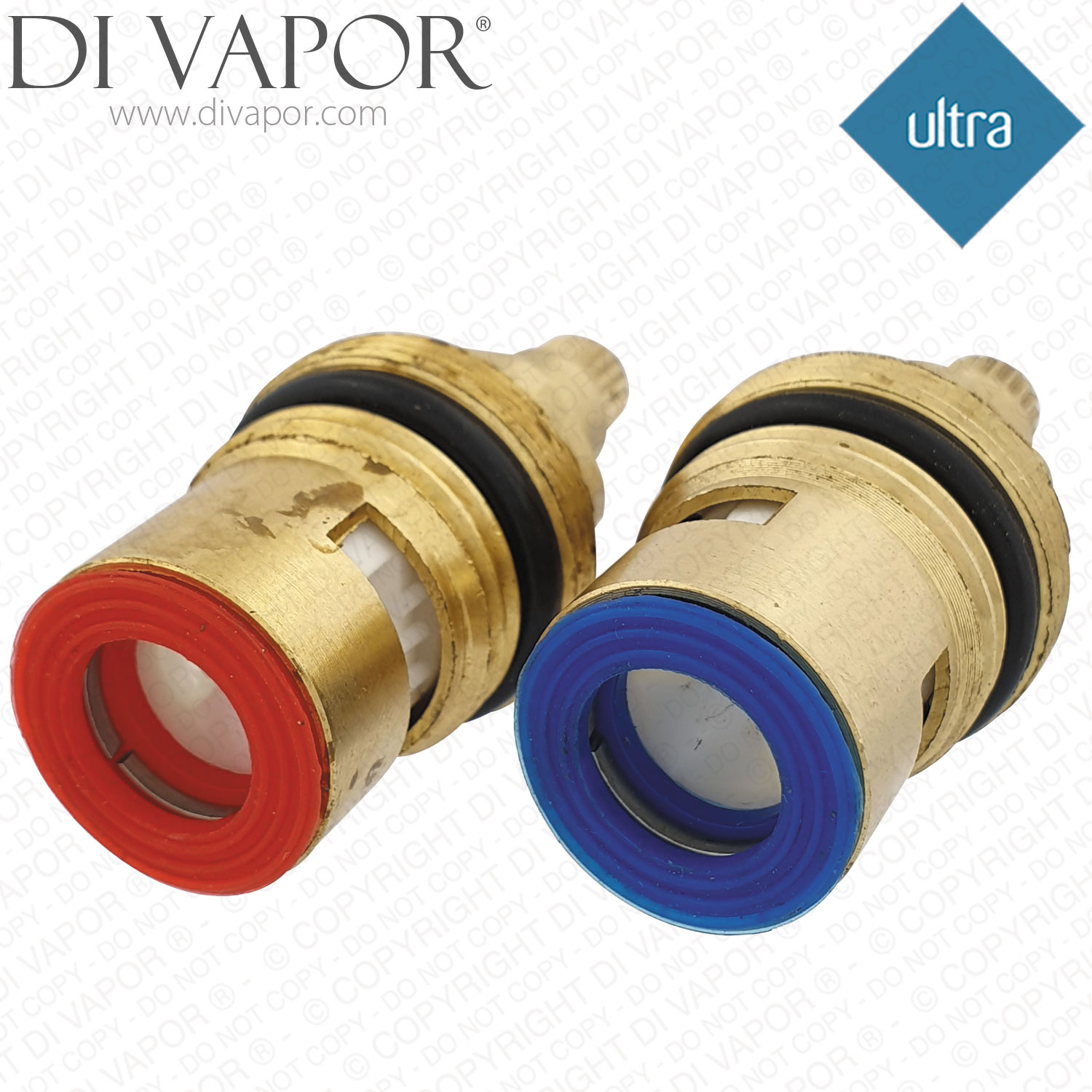

- - Bottom seal colours: red and blue

- - Operation: quarter turn through 90 degrees

- - Closing directions: pair includes clockwise-closing and anti-clockwise-closing cartridges

Before Ordering

Do not identify this cartridge from the 1/2" connection or 20-spline count alone. Compare the total length, thread diameter, spindle length, spline diameter, spline count and closing direction with the cartridges being removed before ordering.

Confirmed Models and Applications Using SPR02 Cartridge Pair

- - BC301DL Hudson Reed Topaz lever basin taps

- - BC301DX Hudson Reed Topaz crosshead basin taps

- - BC301HL Hudson Reed Topaz lever basin taps

- - BC301HX Hudson Reed Topaz basin taps

- - BC401DL Hudson Reed basin taps

- - BC401DX Hudson Reed Topaz crosshead basin taps

- - BC401HL Hudson Reed Topaz lever basin taps

- - BC401HX Hudson Reed basin taps

- - BC305DX Hudson Reed Topaz crosshead mono basin mixer

- - BC305HL Hudson Reed mono basin mixer

- - BC305HX Hudson Reed Topaz crosshead mono basin mixer

- - BC405DL Hudson Reed mono basin mixer

- - BC405DX Hudson Reed mono basin mixer

- - BC405HL Hudson Reed Topaz lever mono basin mixer

- - BC405HX Hudson Reed mono basin mixer

- - BC306DL Hudson Reed bidet tap

- - BC306DX Hudson Reed bidet tap

- - BC306HL Hudson Reed bidet tap

- - BC406DL Hudson Reed Topaz lever bidet tap

- - BC406DX Hudson Reed Topaz crosshead bidet tap

- - BC406HL Hudson Reed bidet tap

- - BC406HX Hudson Reed bidet tap

- - BC307DL Hudson Reed Topaz lever 3 tap hole basin mixer

- - BC307DX Hudson Reed Topaz crosshead 3 tap hole basin mixer

- - BC307HL Hudson Reed 3 tap hole basin mixer

- - BC307HX Hudson Reed Topaz 3 tap hole basin mixer

- - BC407DL Hudson Reed 3 tap hole basin mixer

- - BC407DX Hudson Reed 3 tap hole basin mixer

- - BC407HL Hudson Reed 3 tap hole basin mixer

- - BC407HX Hudson Reed 3 tap hole basin mixer

- - PF301 Hudson Reed / Ultra Eon basin taps

- - PF343 Hudson Reed / Ultra Eon deck-mounted bath filler

- - KB317 Hudson Reed / Ultra bridge sink mixer

- - TEX301 Hudson Reed Tec crosshead basin taps

- - TEX305 Hudson Reed Tec crosshead mono basin mixer

- - TEX307 Hudson Reed Tec crosshead 3 tap hole basin mixer

- - TEX315 Hudson Reed Tec crosshead mono basin mixer with swivel spout and waste

- - TEX317 Hudson Reed Tec crosshead wall-mounted basin mixer

- - TEX337 Hudson Reed Tec crosshead 3 tap hole basin mixer with swivel spout and pop-up waste

- - TEL301 Hudson Reed Tec lever basin taps

- - TEL305 Hudson Reed Tec lever mono basin mixer with large swivel spout and pop-up waste

- - TEL306 Hudson Reed Tec lever mono bidet mixer

- - TEL307 Hudson Reed Tec lever 3 tap hole basin mixer

- - TEL315 Hudson Reed Tec lever mono basin mixer with swivel spout and waste

- - HEX305 Ultra Helix crosshead mono basin mixer with high swivel spout and waste

- - HEX317 Hudson Reed / Ultra Helix crosshead wall-mounted basin mixer

- - MF305 Ultra Laser mono basin mixer

- - PM365 / ECC399 Ultra Ecco mono basin mixer

- - KRI301 Hudson Reed Kristal basin taps

- - PW307 Hudson Reed Xeta 3 tap hole basin mixer

- - PE307 / PK340 Ultra Minimalist Helix crosshead 3 tap hole deck-mounted basin mixer

- - GRA314 Hudson Reed Grace 5 tap hole bath/shower mixer

- - DTY334 Premier / Nuie D-Type bath shower mixer

- - MG345 Hudson Reed Clio cruciform mono basin mixer with swivel spout and waste

- - A3503 Hudson Reed Quadro thermostatic bar valve

- - A3503-A3167 Hudson Reed Quadro thermostatic bar valve with Sheer rectangular slide rail kit

- - HT330 Hudson Reed Minimalist angled X-head radiator valves

- - HT340 Hudson Reed Minimalist straight X-head radiator valves

Related Spares You May Need

- - Hudson Reed PN398 Lever Handles

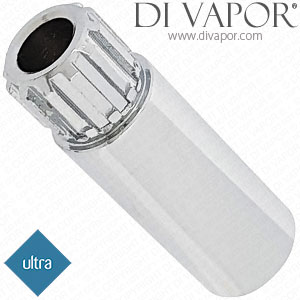

- - Hudson Reed SPR06 Spline Adapter - Pair

- - TACSIL 3g Premium Cartridge Silicone Grease - WRAS Approved

Not sure this is the right part? Use the Di Vapor Part Identification Service and send us a photo and measurements.
