Ultra SPR01 1/​2" Ceramic Disc Cartridges (24 Splines) - Hot and Cold

SUMMARY

Ultra SPR01 1/2" Inch Ceramic Disc Cartridges (24 Splines) - Hot and Cold

Cartridge Measurements:
Total Length (including bottom seal): 51mm
Diameter at Widest Point: 23.8mm (at flange thread)
Spindle Length (from top of hex to top of splines): 16mm
Top Spline Diameter: 8mm
Top Spline Teeth / Notches: 24
Lower Thread Diameter: 20.5mm (1/2" BSP)
Barrel Diameter Below Lower Thread: 18.3mm
Bottom Seal Colour: Red & Blue
Close Direction: Clockwise Close & Anti-Clockwise Open
Turn: Quarter Turn (1/4 Turn) 90°
Diameter of Hex: 17mm

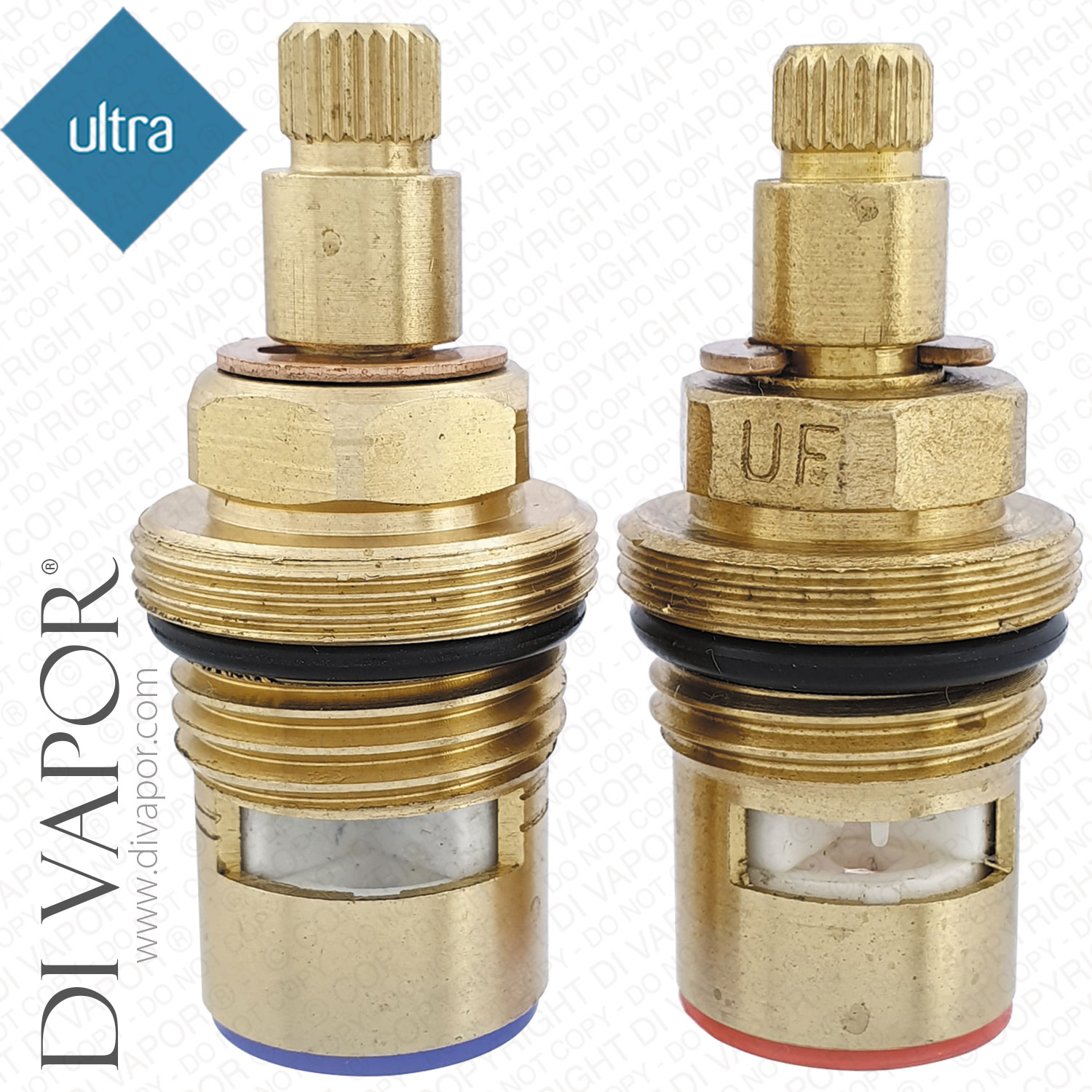

Ultra SPR01 1/2 Inch Hot and Cold Ceramic Disc Flow Cartridges 24 Splines

Ultra SPR01 is a pair of 1/2 inch ceramic disc flow cartridges supplied for the hot and cold sides of selected Ultra and Hudson Reed taps and bath shower mixers. Each cartridge has a 24-spline spindle for connection to the tap handle.

The cartridges control hot and cold water flow and provide the shut-off inside the tap. Worn or damaged ceramic discs can cause water to drip from the spout or shower outlet when the tap is turned off, make it difficult to stop the flow completely or result in stiff or uneven handle operation.

Technical Details

- - Part number: SPR01

- - Supplied as a hot and cold pair

- - Cartridge type: ceramic disc flow cartridges

Confirmed Compatible Models

- - Hudson Reed BD304 Jade Lever Bath Shower Mixer with Shower Kit - Chrome

- - Hudson Reed BD301 Jade Levers/Crosshead Basin Taps - 24 Spline Version

- - Hudson Reed PT301 Jule Chrome Basin Pillar Taps - 24 Spline Version

- - Ultra MH311 Cera Bathroom Basin Taps

Before Ordering

Check that the cartridge being removed has 24 splines before ordering. Visually similar Ultra and Hudson Reed taps can use different cartridges, including 20-spline versions, so the spline count and cartridge measurements should be checked rather than identifying the part from appearance or overall length alone.

If you are unsure which cartridge you need, use the Di Vapor Part Identification Service.
