Grohe 47352000 Temperature Control Handle

SUMMARY

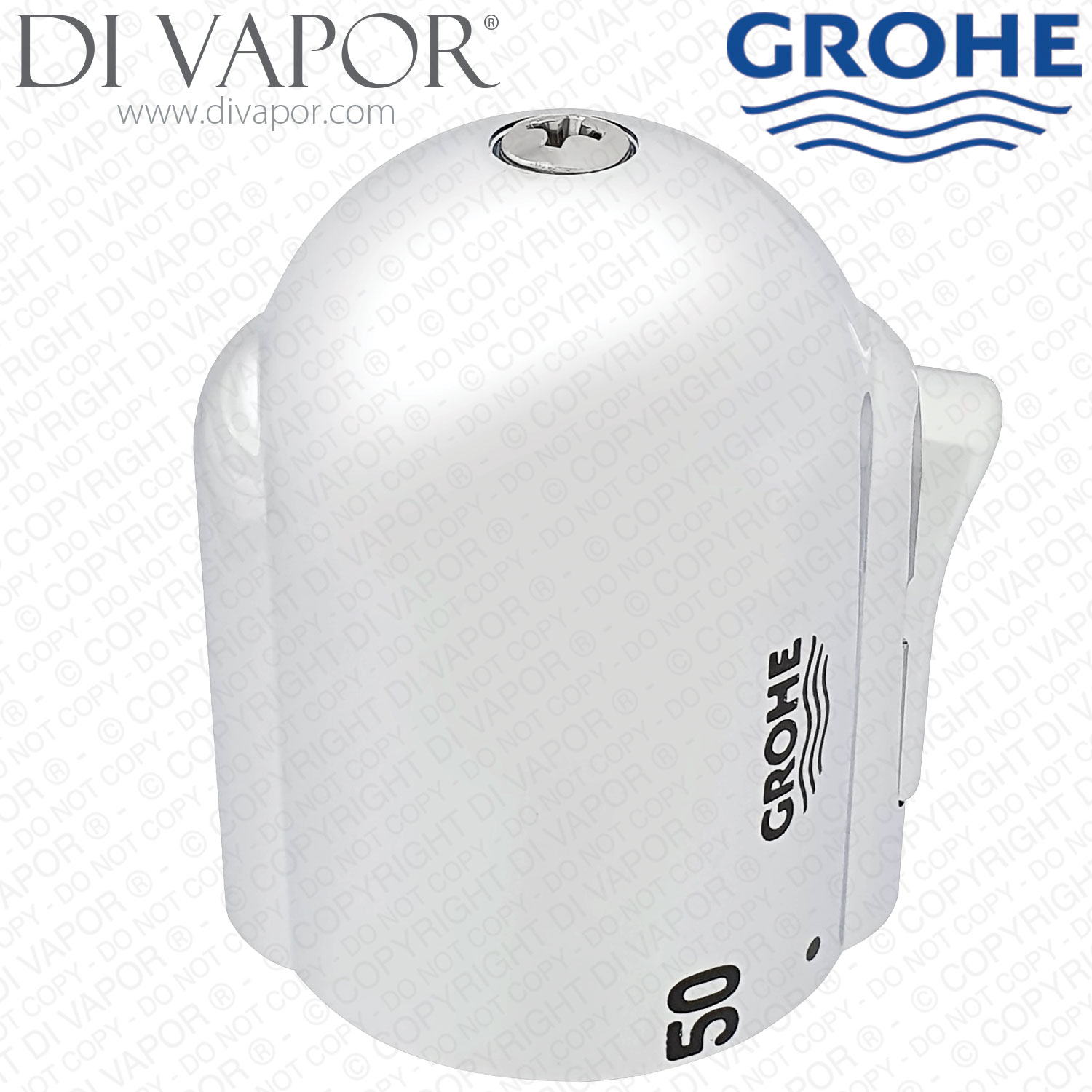

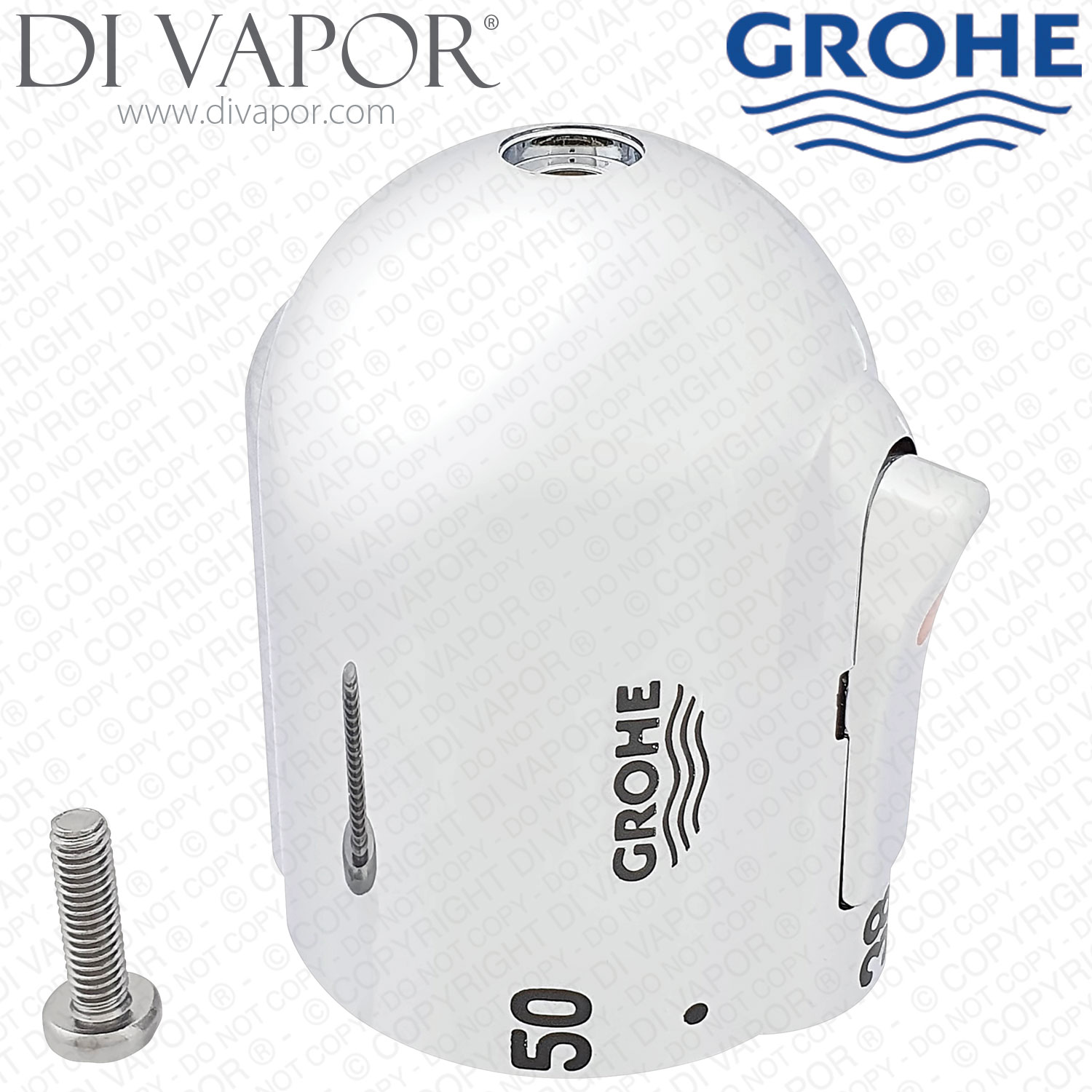

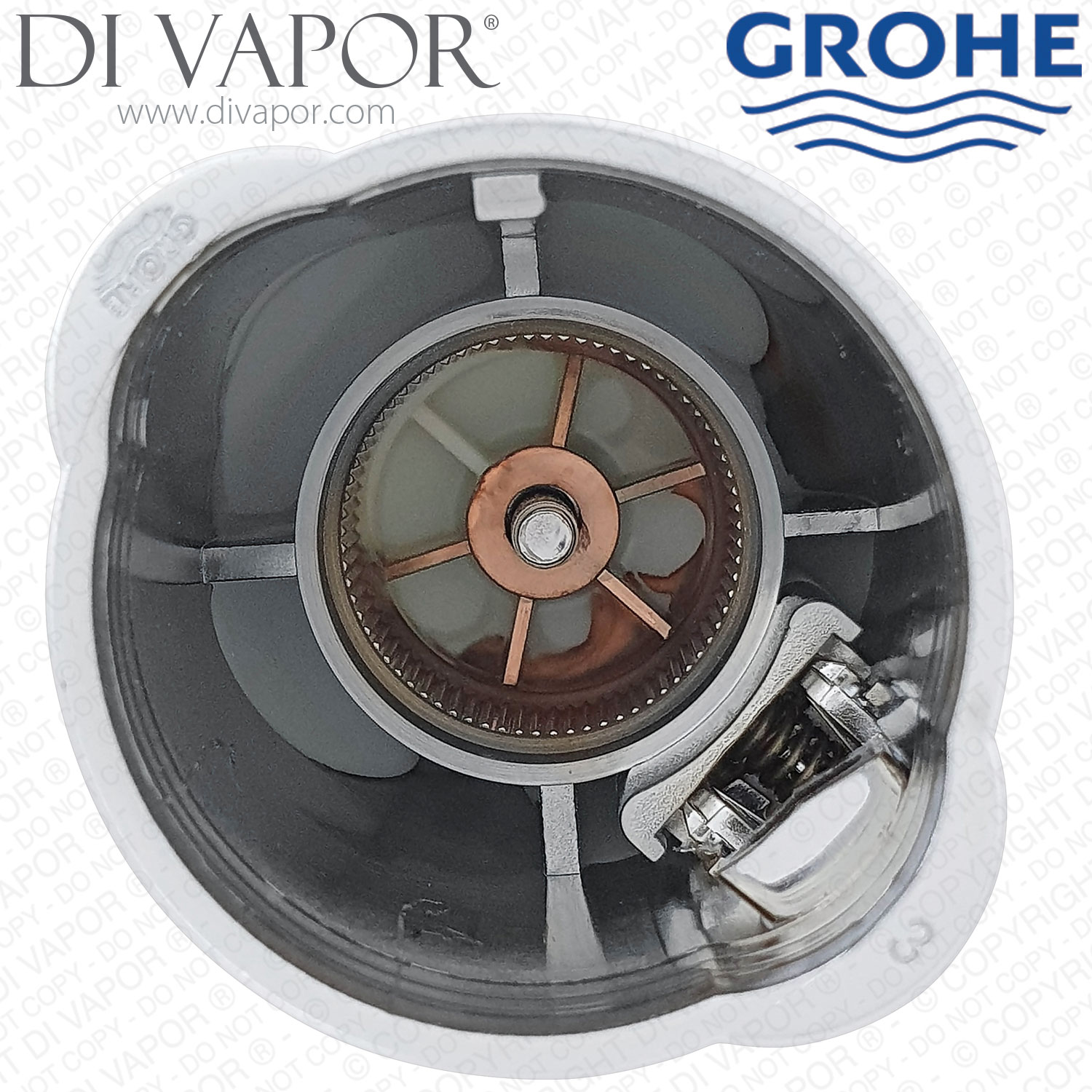

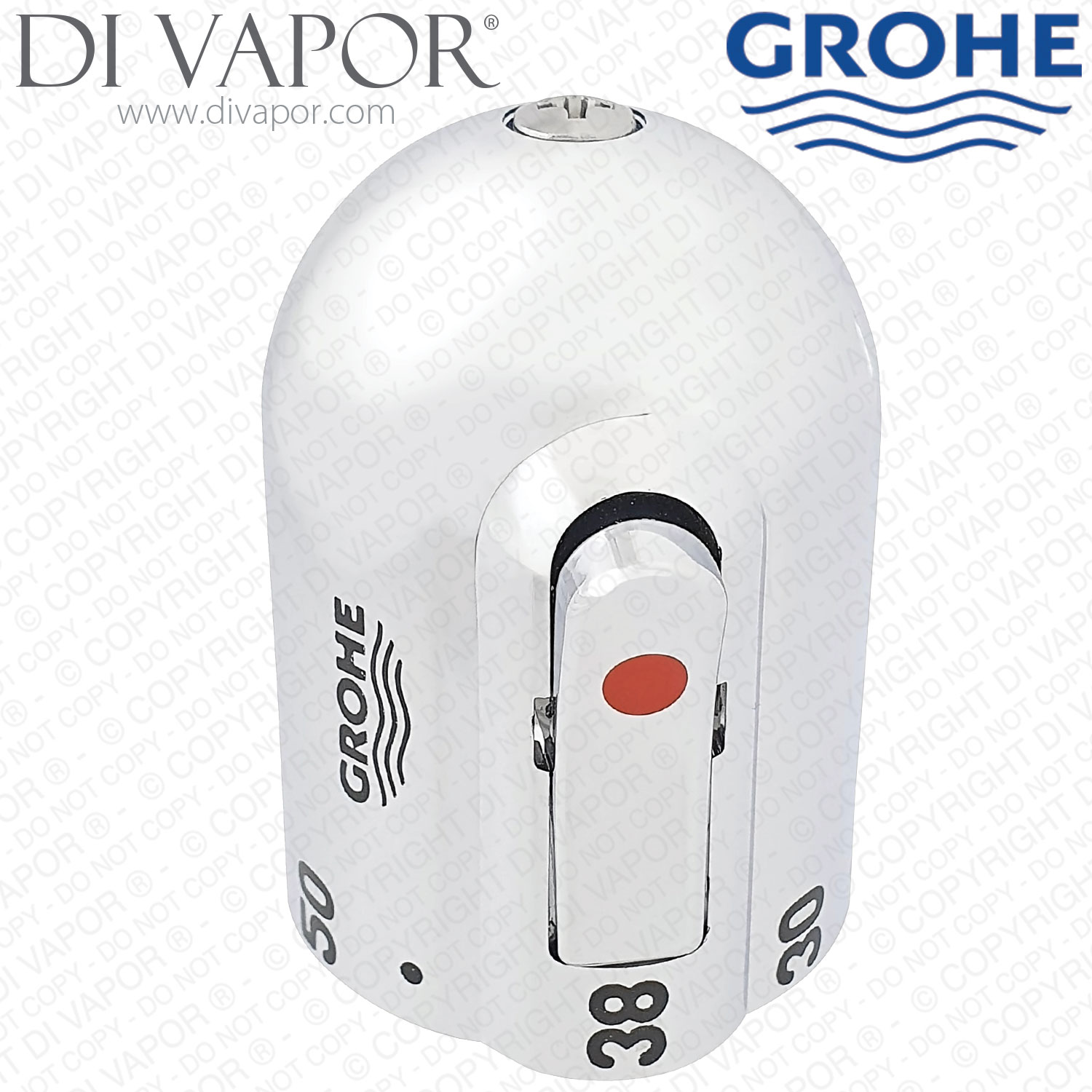

GROHE 47352000 Temperature Control Handle for Grohtherm 1000 Thermostatic Valves

GROHE 47352000 is a chrome temperature scale and temperature control handle used on selected older Grohtherm 1000 thermostatic shower and bath/shower mixers. GROHE documentation identifies this handle for Grohtherm 1000 models before 2006, with a 38°C safety stop for controlled temperature adjustment.

The handle operates the thermostatic temperature-control mechanism, allowing the user to adjust the mixed-water temperature while providing the calibrated safety-stop position. When the temperature-control assembly has been serviced, the outlet temperature should be set to 38°C before the handle is refitted, with the 38°C marking aligned to the valve reference position.

Technical Details

- - Part code: 47352000

- - Other documented code forms: 47 352 000 and 47352 000

- - Part type: Temperature scale and temperature control handle

- - Function: Operates the thermostatic temperature-control mechanism

- - Finish: Chrome

- - Safety stop: 38°C

Confirmed Compatible Models for 47352000

- - GROHE 34328000 / 34328 000 Grohtherm Auto 1000 Shower

- - GROHE 34334000 Grohtherm Auto 1000 Bar Mixer Shower

- - GROHE 34336000 Grohtherm 1000 Thermostatic Bath Mixer

- - GROHE 34624000 Grohtherm 1000 Thermostatic Shower

- - GROHE 34646000 Grohtherm 1000 Thermostatic Shower Mixer

Before ordering, confirm the valve model and the design of the existing temperature handle, as later Grohtherm 1000 versions use different temperature-control handle assemblies.

Related Spares You May Need

- - GROHE 47450000 Thermo Element Thermostatic Cartridge, the standard-supply thermoelement associated with the temperature-control assembly

- - GROHE 47167000 Stop Ring and Regulating Nut Assembly, fitted between the thermoelement and temperature-control handle

- - GROHE 47092000 Grohtherm 1000 Flow Control Handle, the flow-side control handle used on the applicable valve assemblies

- - GROHE 47282000 Thermostatic Cartridge for Reverse Supplies, for installations with hot water entering on the right and cold water entering on the left only
