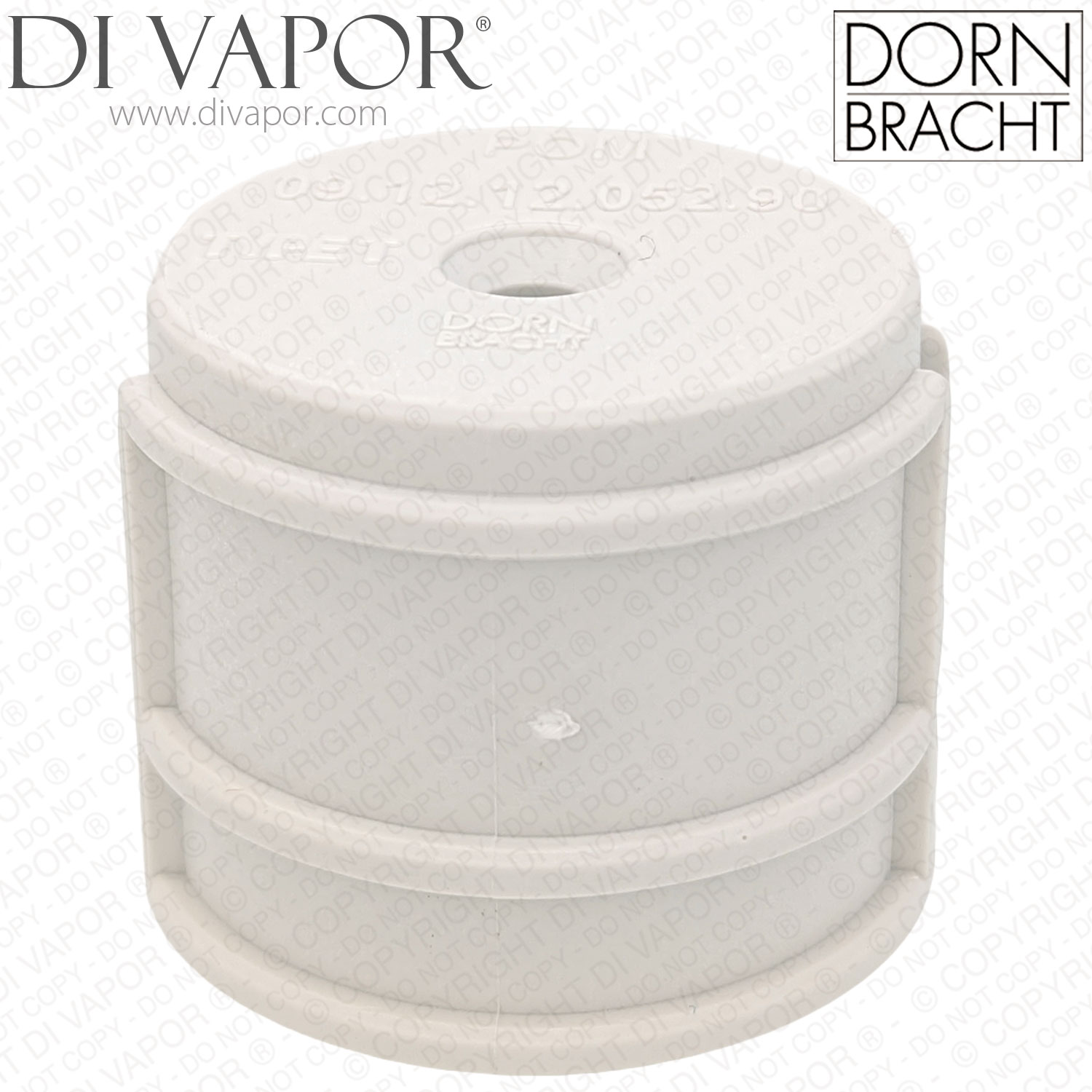

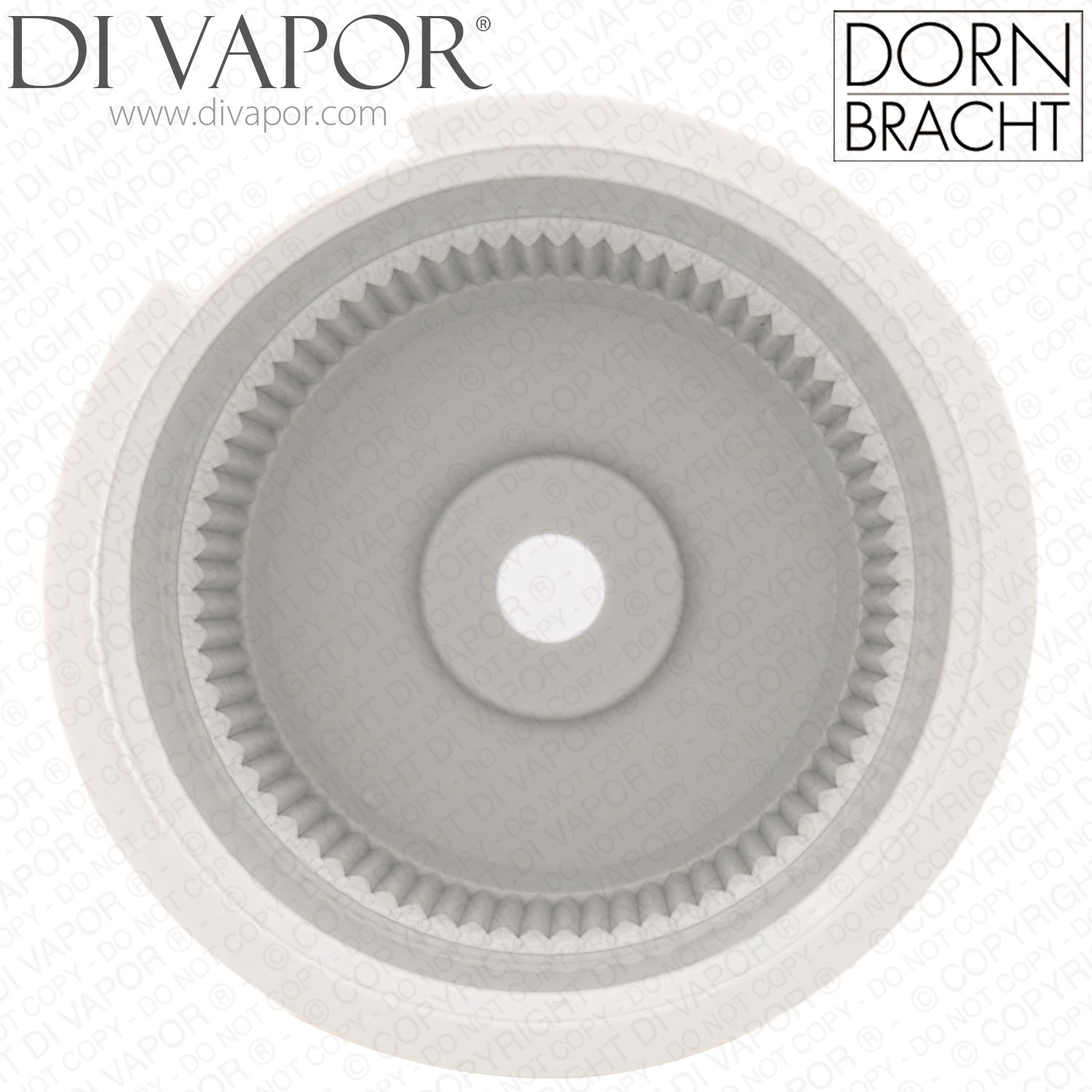

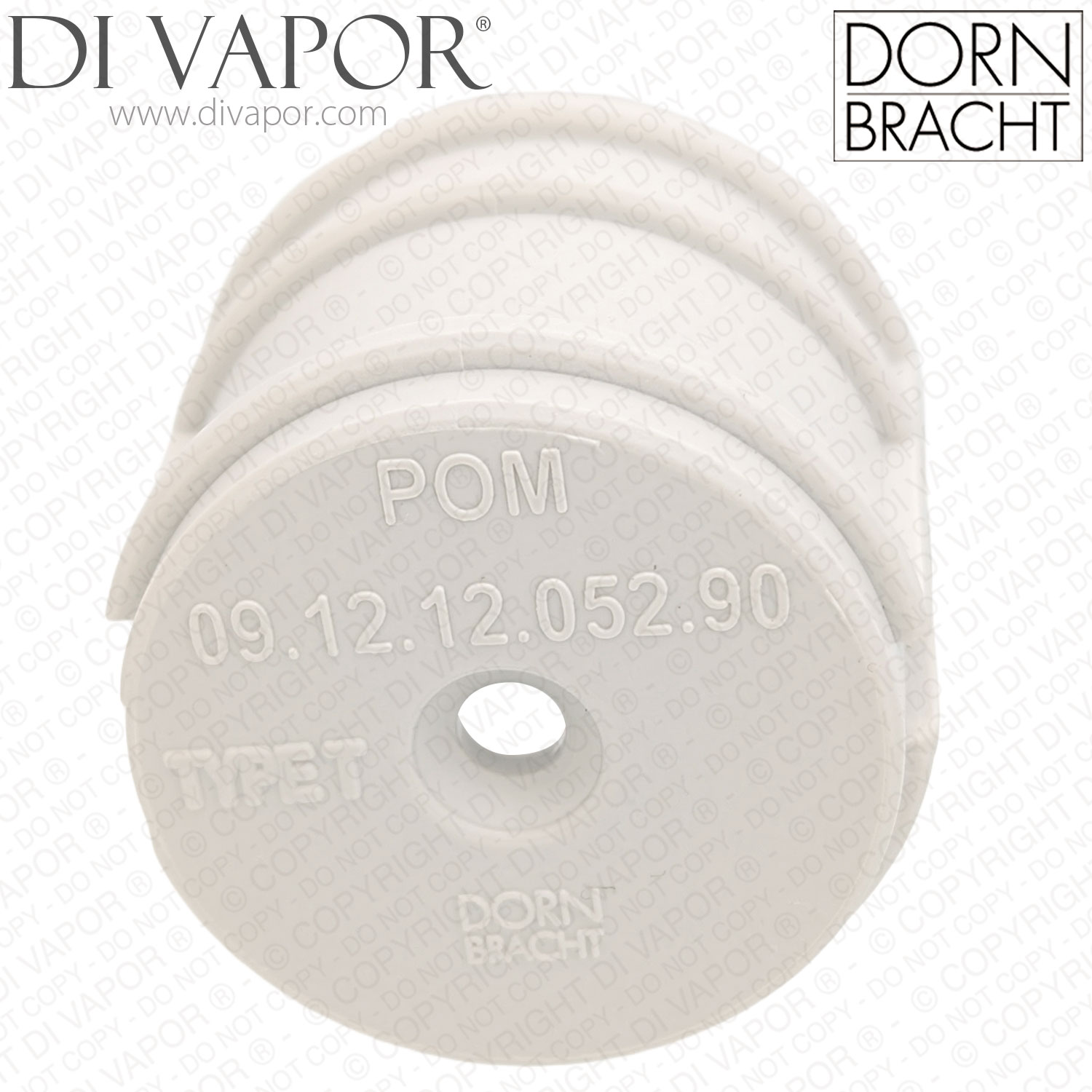

Dornbracht 9012120520090 Handle Mount for Thermostatic Cartridge (09.12.12.052.90 TYPE T)
Part number: 9012120520090
Price: £15.00
Price includes UK VAT (Region: UK▼)
In stock
Is this the right part?
Send a photo of your item and we'll help confirm it.
Product description
Summary
Dornbracht 9012120520090 is a Type T handle mount used on the thermostatic side of selected concealed thermostat trim assemblies.
This part sits behind the temperature control handle and works with the thermostatic cartridge assembly. It is the handle mount or base component, not the thermostatic cartridge itself.
The current ordering code is 9012120520090. Verified spare-parts lists for the same part also show the older service code 09121205290 / 09 12 12 052 90.
Technical Details
- Type T handle mount for thermostatic cartridge assemblies
- Used on the thermostat handle side of concealed valve trims
- Associated thermostat-side parts are ordered separately
- Depending on the valve article number the associated thermostatic cartridge may be 9015020120090 or 9015020130090
Before you order check
- Your existing spare-parts list shows 9012120520090 or 09121205290
- You need the thermostat-side handle mount Type T rather than the flow or diverter side trim parts
- Your valve article number matches one of the verified concealed thermostat models below
Confirmed Compatible Models
- Dornbracht Series Specific Concealed Thermostat with One-Way Volume Control - Chrome 36 425 670-000010
- Dornbracht Lulu Concealed Thermostat with One-Way Volume Control - Chrome 36 425 710-000010
- Dornbracht Liss Concealed Thermostat with One Function Volume Control - Brushed Platinum 36 425 845-06
- Dornbracht Series Specific Concealed Thermostat with One Function Volume Control - Brushed Platinum 36 425 970-06
- Dornbracht Lulu Concealed Thermostat with Two-Way Volume Control - Chrome 36 426 710-000010
- Dornbracht Series Specific Concealed Thermostat with Two Function Volume Control - Matte Black 36 426 970-33
- Dornbracht Series Specific Concealed Thermostat with Two Function Volume Control - Brushed Dark Platinum 36 426 670-99
- Dornbracht Series Specific Concealed Thermostat with Three Function Volume Control - Brushed Dark Platinum 36 427 970-99
Related Spares You May Need
- Dornbracht 09121205490 Adapter
- Dornbracht 09230112490 Thermostatic Cartridge Adapter - D-09230112490
- Dornbracht 09184007790 Brass Sleeve
- Dornbracht 09281015290 Regulator Stop Ring
- Dornbracht 9015020120090 Thermostatic Cartridge (Villeroy & Boch) - 90 15 02 012 00 90
- Dornbracht 9015020130090 Thermostatic Cartridge
