Hansgrohe 95049000 Fixing Set

Summary

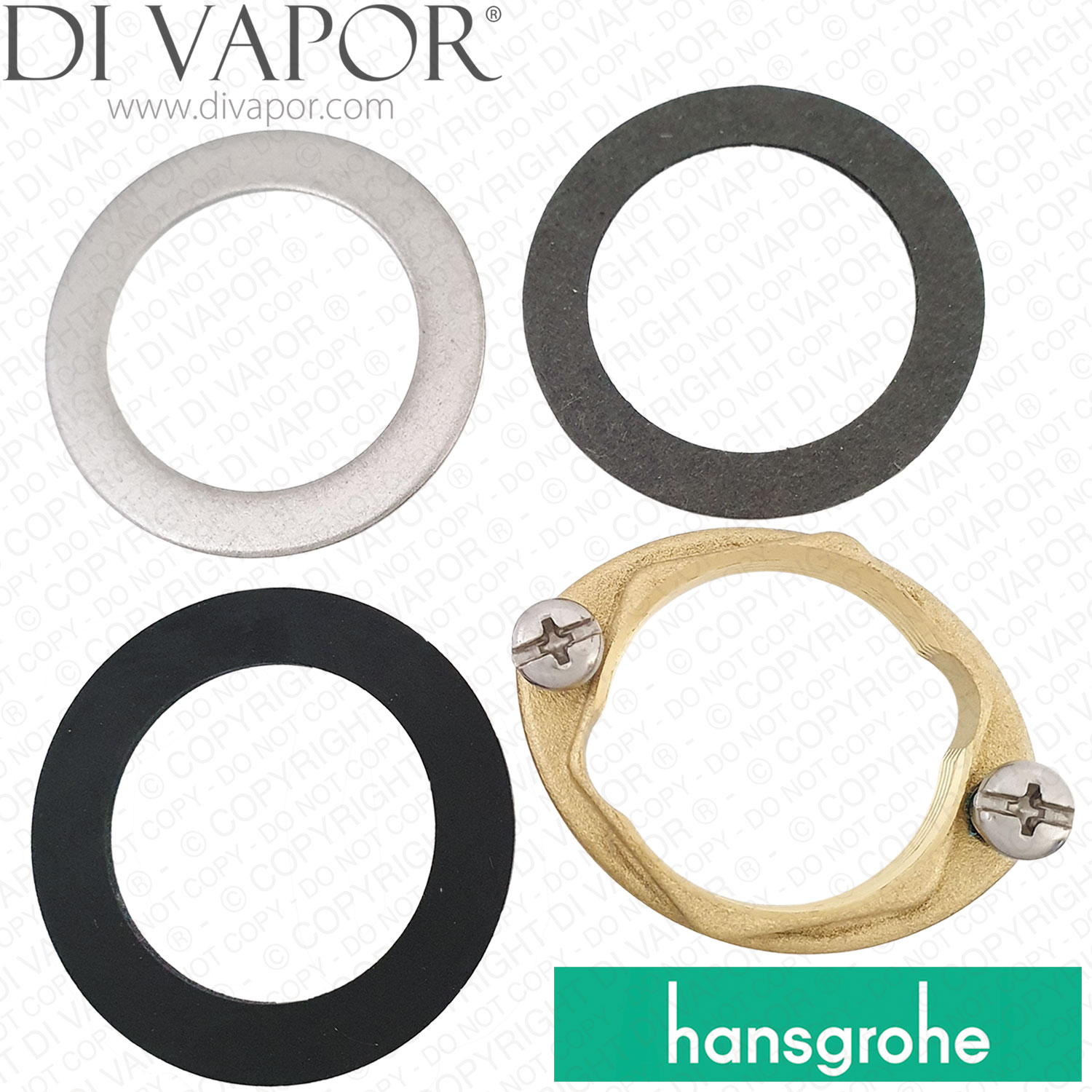

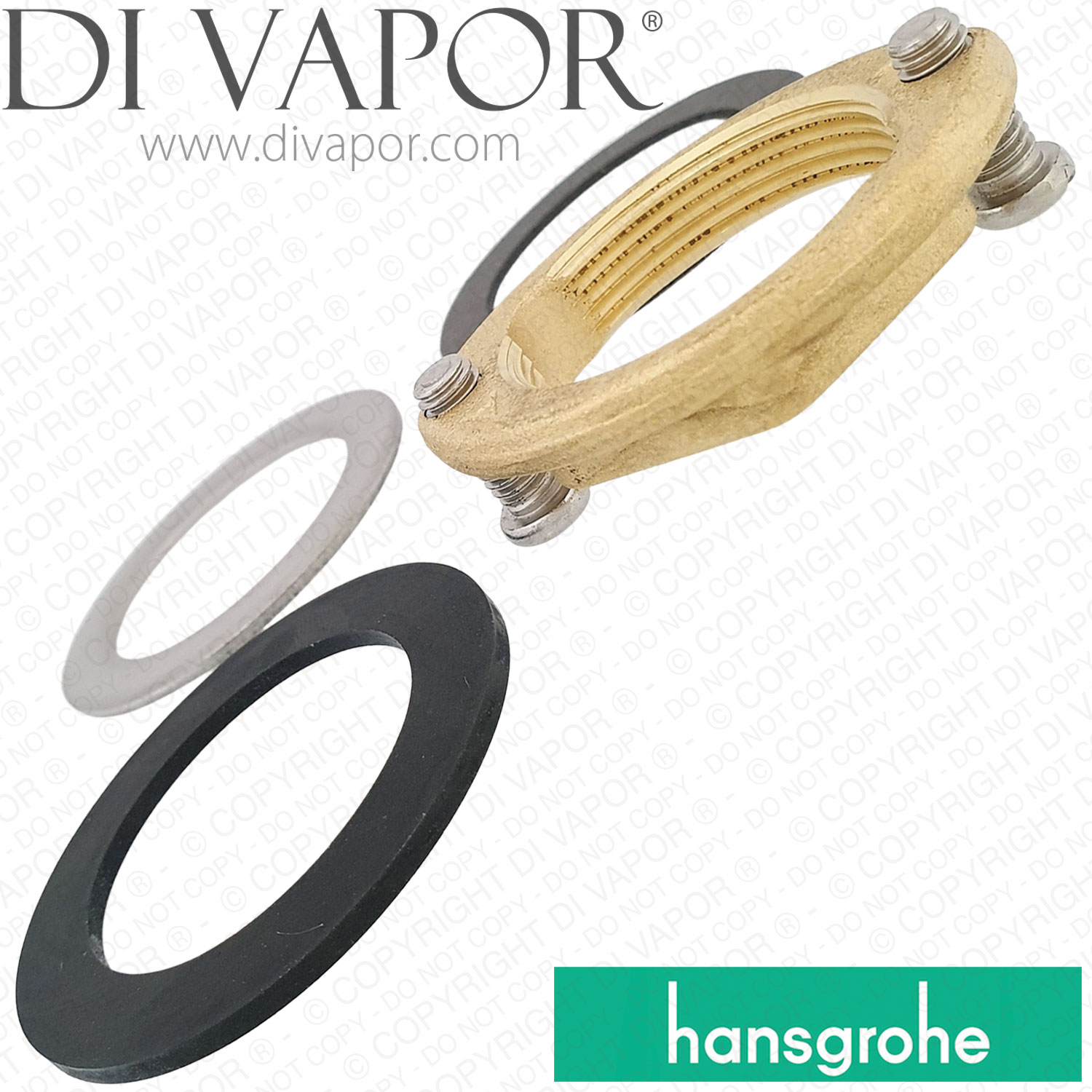

Hansgrohe 95049000 34mm Shaft Fixing Set for Deck-Mounted Taps and Mixers

The Hansgrohe 95049000 is a complete 34 mm shaft fixing set used beneath the mounting surface of selected Hansgrohe and AXOR deck-mounted basin, bidet and kitchen taps and mixers. It secures the threaded mixer body to the sink, basin, bidet or worktop and helps keep the installed fitting stable.

This service assembly is identified in Hansgrohe spare-parts information as fixing set 95049000 for a 34 mm fixing shaft. It must not be confused with Hansgrohe 13961000, which is a separate fixing set for a 32 mm shaft.

Technical Details

• Hansgrohe 98749000 is shown as a separate upper sealing ring and should not be assumed to be included with 95049000
• Check the exact mixer article number, construction period and 34 mm fixing-shaft requirement before ordering

Installation and Ordering Notes

Install the fixing components in the arrangement shown for the exact mixer and tighten the fixing nut and screws evenly in accordance with the mixer installation instructions. A missing, damaged or incorrectly fitted fixing set can allow the tap body to move or rotate at the mounting surface.

Do not order this part by appearance alone. Hansgrohe uses different fixing assemblies across similar tap ranges, including the separate 32 mm 13961000 set.

Confirmed Compatible Models

• AXOR Starck single lever kitchen mixer 240 Semi-Pro Eco 12803000 - production from October 2019
• AXOR Citterio single lever kitchen mixer 250 with pull-out spray 39835004 - production November 2006 to August 2011
• AXOR Urquiola Bidette 1Jet hand shower and single lever basin mixer set 11125000 - production June 2014 to December 2016
• Aqittura M91 single lever kitchen mixer 240 1Jet for Sodasystem 76834670 - production from July 2022
• Aqittura M91 Filtersystem 210 pull-out spout 1Jet 76803800 - production from June 2022
• Aqittura M91 Filtersystem 210 pull-out spout 1Jet 76803670 - production from June 2022
• Aqittura M91 Filtersystem 210 pull-out spout 1Jet 76803000 - production from June 2022
• Aqittura M91 Filtersystem 210 pull-out spout 1Jet Sbox starter set 76800000 - production from March 2022
• Aqittura M91 Filtersystem 210 pull-out spout 1Jet starter set 76801000 - production from June 2022
• Aquno Select M81 single lever kitchen mixer 170 pull-out spray 3Jet Sbox 73831001 - production from June 2020
• Aquno Select M81 single lever kitchen mixer 170 pull-out spray 3Jet 73837801 - production from April 2020
• Focus M41 single lever kitchen mixer 280 1Jet 31817000 - production from July 2013
• Focus M41 single lever kitchen mixer 260 1Jet 73882000 - production April 2017 to December 2020
• Focus M41 single lever kitchen mixer 240 pull-out spray 2Jet Sbox 73880000 - production from April 2017
• Focus M42 single lever kitchen mixer 100 1Jet 71808000 - production from October 2018
• Focus M42 single lever kitchen mixer 150 pull-out spout 1Jet 71814000 - production October 2018 to April 2020
• Metris Select M71 single lever kitchen mixer 240 pull-out spray 2Jet 73822000 - production from October 2019
• Metris Select M71 single lever kitchen mixer 320 pull-out spout 1Jet Sbox 73803000 - production April 2017 to April 2019
• MySport single lever kitchen mixer M 1Jet 13861800 - production from October 2015
• MySport single lever kitchen mixer L 1Jet 13862800 - production from January 2016
• Sportive L kitchen mixer 14861000 - production December 2009 to January 2012
• Talis M52 single lever kitchen mixer 170 1Jet 32851000 - production July 2008 to September 2010
• Talis M52 single lever kitchen mixer 220 front-of-window pull-out spray 2Jet Sbox 73863800 - production October 2017 to June 2022
• Talis M54 single lever kitchen mixer 210 pull-out spray 2Jet Sbox 72801000 - production from December 2019
• Talis M54 single lever kitchen mixer 210 pull-out spray 2Jet 72800000 - production from December 2019
• Talis M54 single lever kitchen mixer 210 pull-out spray 2Jet 72800670 - production from April 2020
• Talis M54 single lever kitchen mixer 210 pull-out spray 2Jet 72800004 - production from April 2020
• Talis M54 single lever kitchen mixer 210 pull-out spray 2Jet 72800003 - production from April 2020
• Talis M54 single lever kitchen mixer 210 pull-out spout 1Jet 72802800 - production from December 2019
• Talis M54 single lever kitchen mixer 270 pull-out spout 1Jet 72808007 - production from April 2020
• Talis M54 single lever kitchen mixer 270 pull-out spout 1Jet 72808800 - production from December 2019
• Talis M54 single lever kitchen mixer 270 pull-out spout 1Jet 72808000 - production from December 2019
• Talis M54 single lever kitchen mixer U 220 Eco 1Jet 72844000 - production from December 2019
• Talis Select M51 single lever kitchen mixer 220 pull-out spray 2Jet Sbox 73868007 - production from October 2019
• Talis Select M51 single lever kitchen mixer 220 pull-out spout 1Jet Sbox 73852000 - production April 2017 to March 2019
• Locarno single lever kitchen mixer Semi-Pro 2Jet 04851670 - production from February 2021
• PuraVida 2-hole electronic kitchen mixer with 230 V mains connection 15805000 - production March 2011 to December 2016
• AXOR Montreux single lever kitchen mixer 210 Semi-Pro Eco 16585000 - production from October 2019
• AXOR Steel single lever kitchen mixer with fixed spout 35800800 - production April 1998 to October 2006
• AXOR Steel single lever kitchen mixer with pull-out spray DN15 35807800 - production October 2005 to September 2009
• AXOR Steel single lever kitchen mixer with pull-out spray DN15 35807800 - production October 2010 to August 2012
• Hansgrohe Allegra Variarc 14870XXX
• Hansgrohe Allegra Variarc 14874000
• Hansgrohe Allegra Variarc 14878000
• Hansgrohe Allegra Variarc 14871000
• Hansgrohe Allegra Variarc 14875XXX
• Hansgrohe Allegra Variarc 14871XXX
• Hansgrohe Talis C 33180000
• Hansgrohe Talis C 33107000
• Hansgrohe adesso Talis C 33105000
• Hansgrohe Allegra Fing 14860000
• Hansgrohe Allegra Premia 16804000
• Hansgrohe Mediano II 14914000
• Hansgrohe Sportive 32810003
• Hansgrohe Allegra Linea 14807XXX
• Hansgrohe Allegra Talis'E 33820000
• Hansgrohe Allegra Talis'E 33822000
• Hansgrohe Adoro 14862000
• Hansgrohe Elegance 33802000
• Hansgrohe Elegance 33810000
• Hansgrohe Elegance 33815000
• Hansgrohe Decor 260 1Jet 31820XX3
• Hansgrohe Decor 280 1Jet 31817XX3
• Hansgrohe Logis 71830003
• Hansgrohe Logis 71832003
• Hansgrohe Metris Select M71 200 1Jet 14845007
• Hansgrohe Metris Select M71 200 2Jet 73819007
• Hansgrohe Metris Select M71 260 1Jet 1484700001/17 - 05/18
• Hansgrohe 14847000 Metris Select M71 Single Lever Kitchen Mixer 260, 1Jet Spare Parts >06/18
• Hansgrohe Zesis M33 150 2Jet 74800XX3
• Hansgrohe Focus M41 240 2Jet 31815XX3
• Hansgrohe Focus M41 240 2Jet 31815019
• Hansgrohe Focus M41 240 2Jet 31863009 >04/20
• Hansgrohe Cento XL 2Jet 14803003
• Hansgrohe Talis M52 220 2Jet 14864003
• Hansgrohe Talis Select M51 220 1Jet 72822007 07/17 - 03/19
• Hansgrohe Talis Select M51 Single Lever Kitchen Mixer 220, Pull-Out Spout, 1Jet 72822007 >04/19
• Hansgrohe Talis Select M51 220 2Jet 72824007>10/19
• AXOR Citterio Select 230 2Jet Sbox 39862007>10/19
• Hansgrohe Talis M54 210 1Jet Sbox 72803XX7
• Hansgrohe Talis M54 210 2Jet Sbox 72801XX7
• Hansgrohe Aquno Select M81 170 3Jet 73837XX1
• Hansgrohe Aquno Select M81 250 2Jet 73836XX1
• Hansgrohe Logis M31 single lever kitchen mixer 120 LowPressure 1Jet 718310000 3/15 - 11/15
• Hansgrohe Logis M31 Single Lever Kitchen Mixer 120, Lowpressure/Vented Hot Water Cylinders, 1Jet 71831000 >12/15
