Hansgrohe 95730000 Cartridge

SUMMARY

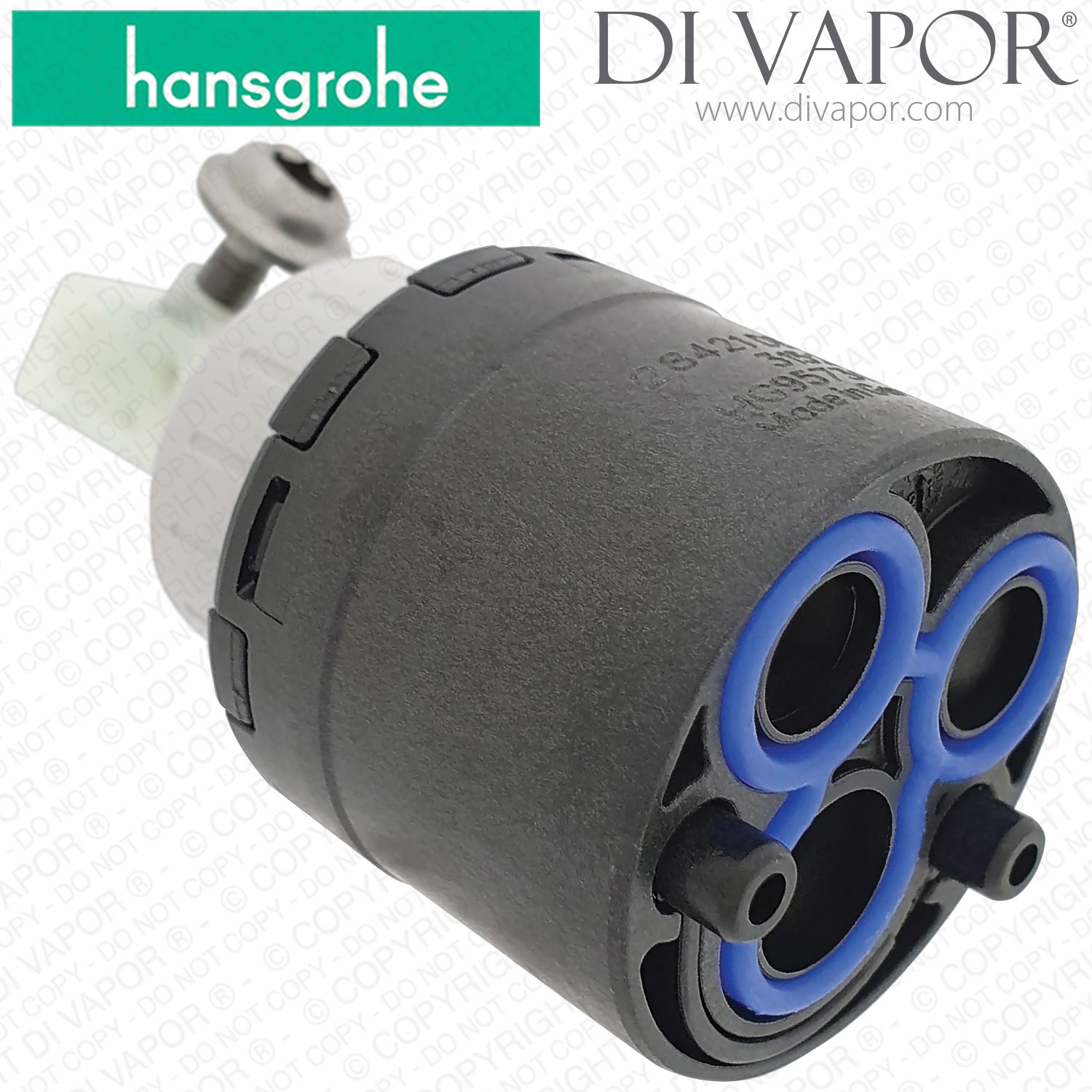

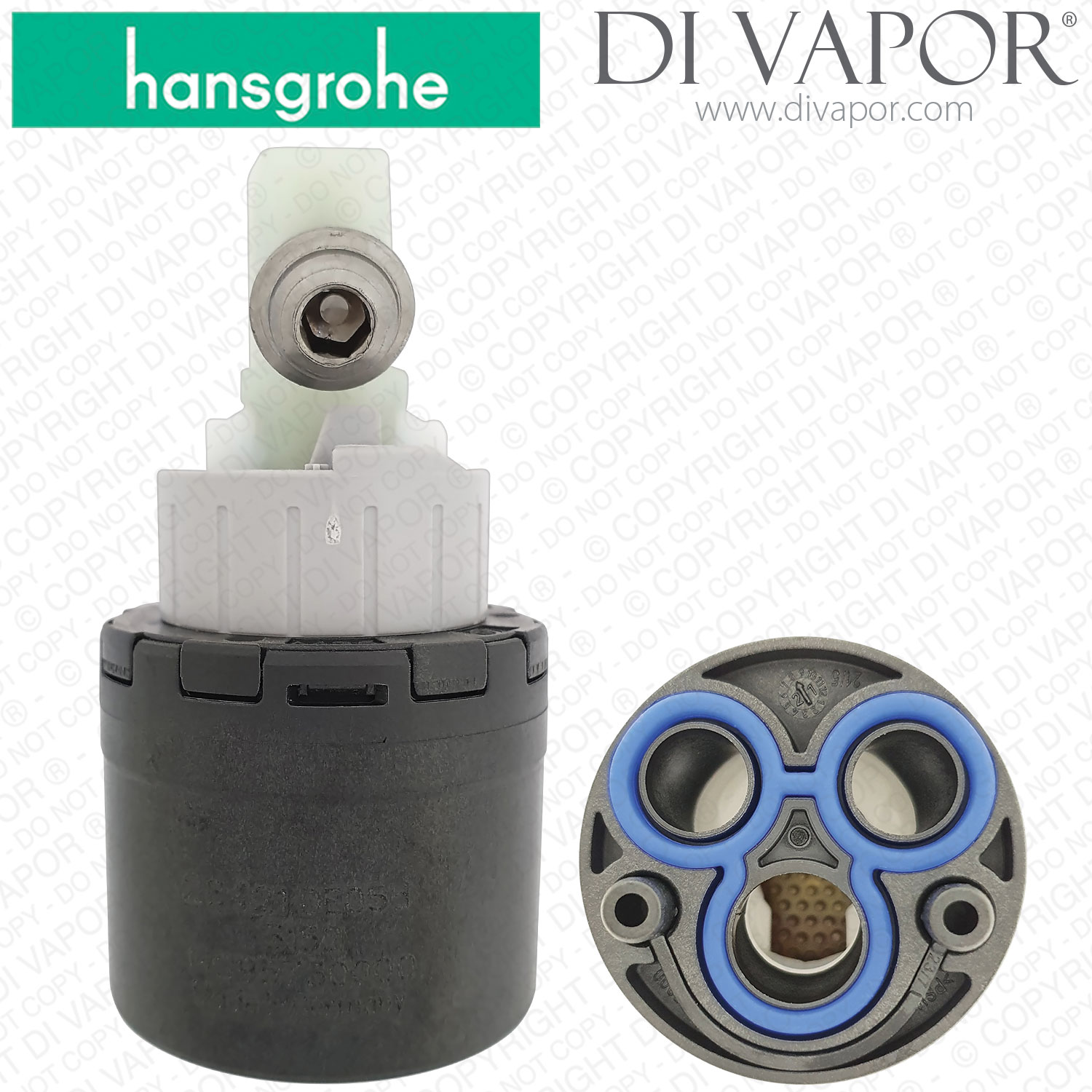

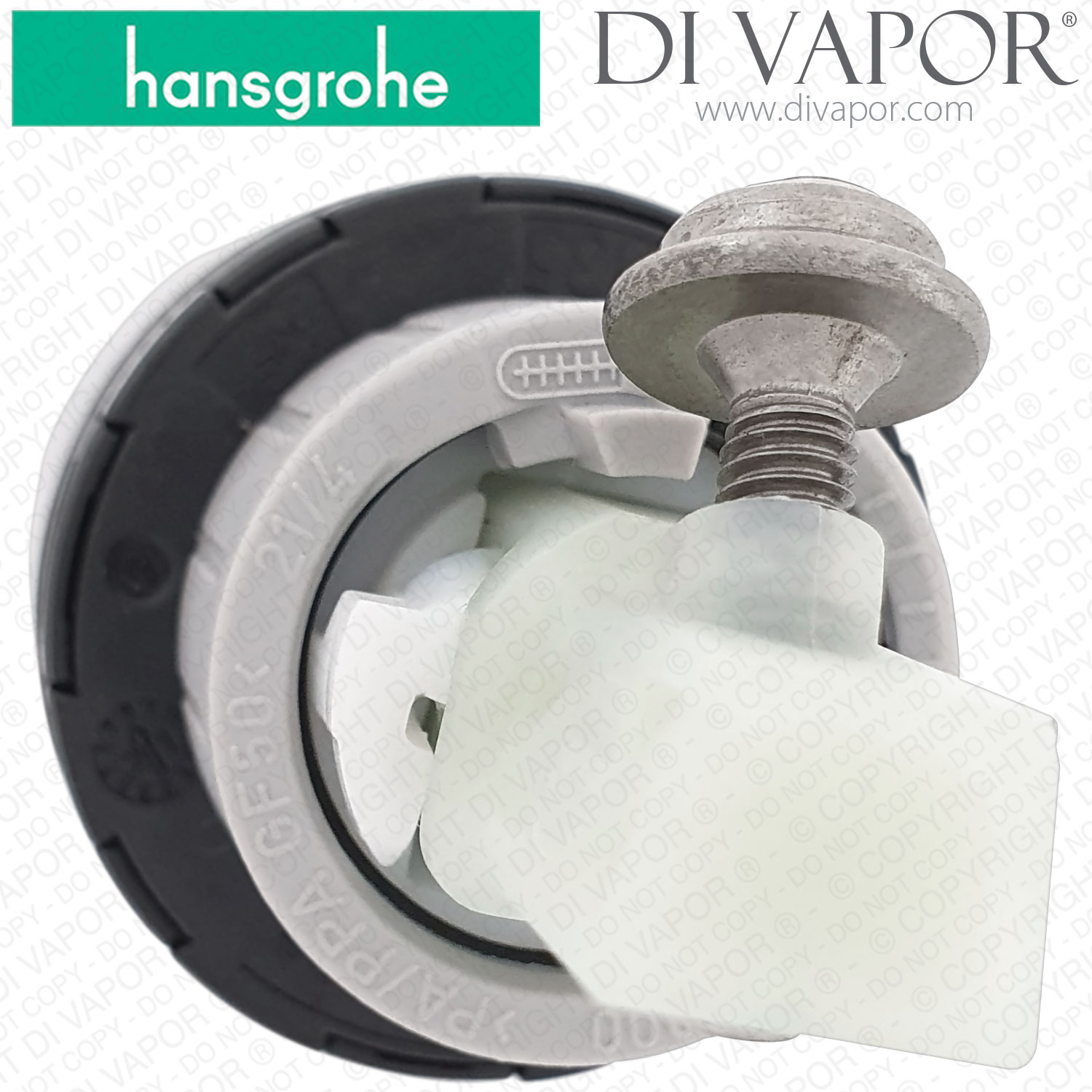

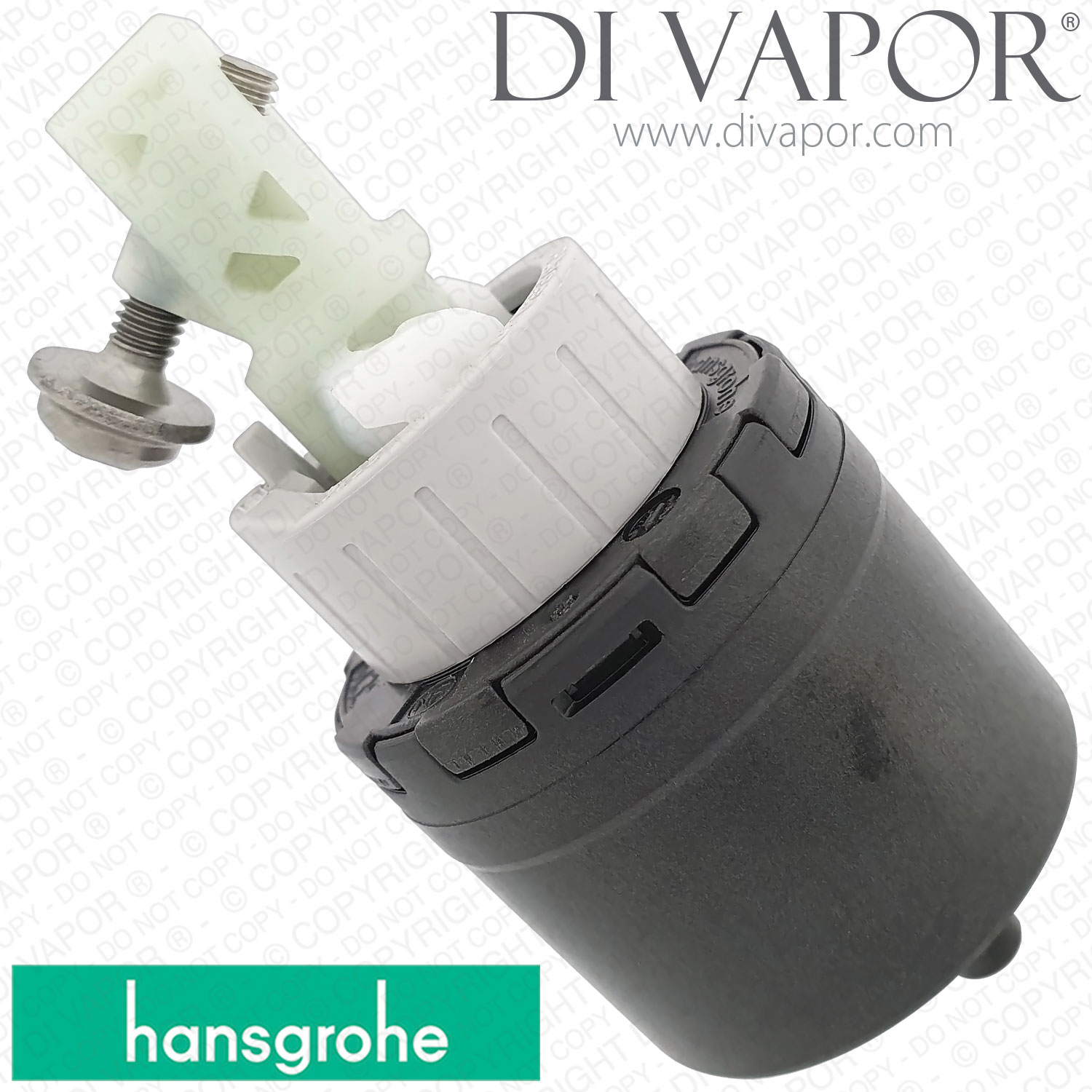

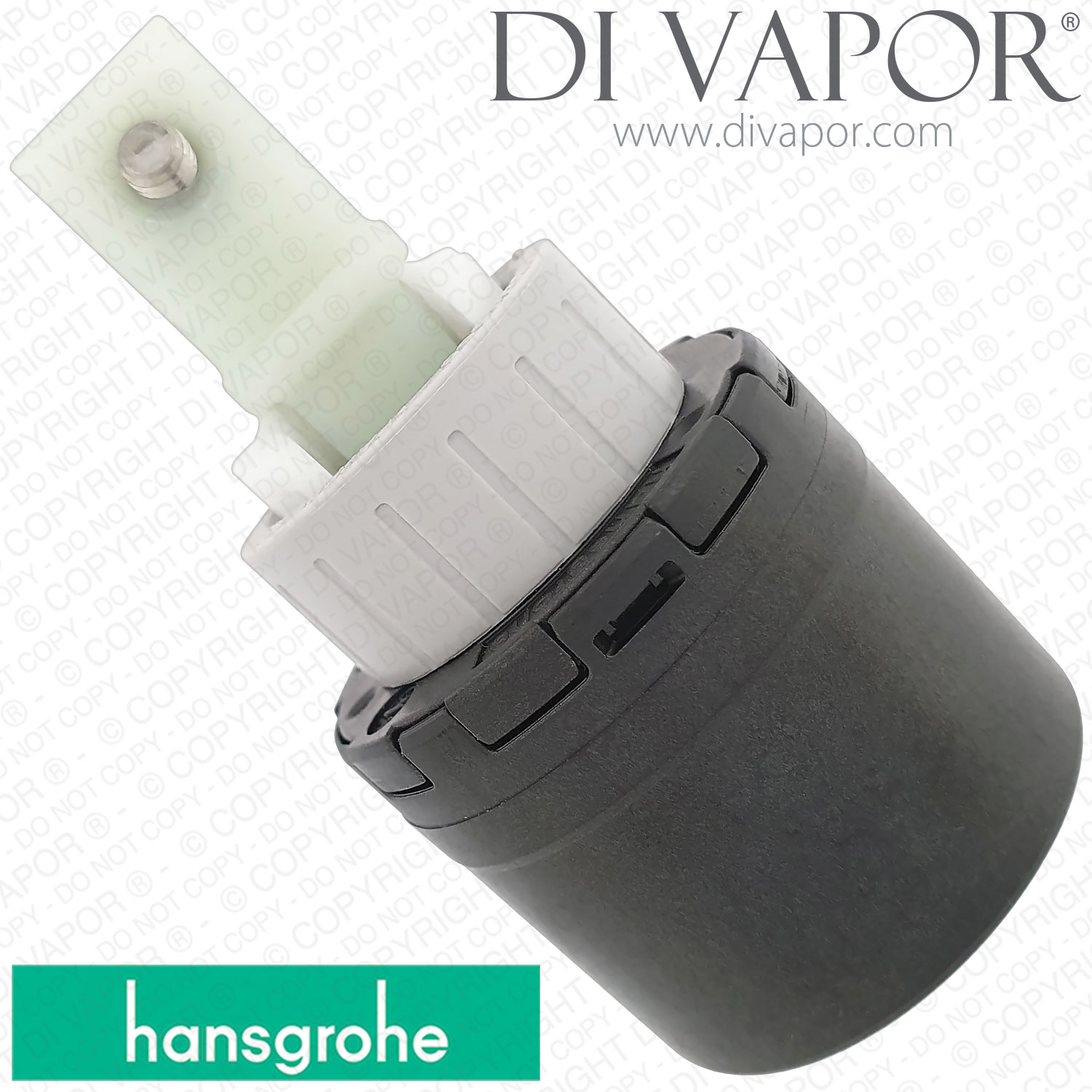

Hansgrohe 95730000 M2 Eco 35mm Ceramic Cartridge for Single-Lever Taps and Showers

Hansgrohe 95730000 is the M2 Eco ceramic single-lever cartridge used in selected bath, shower, bidet and kitchen mixers. It sits beneath the operating lever and controls water shut-off, flow and the hot/cold mixing ratio.

The cartridge provides the Eco flow-control function in the specified mixer versions, including models with two flow rates. It is a manual mixing cartridge, not a thermostatic temperature-control cartridge. CoolStart operation depends on the mixer design; fitting this cartridge does not add CoolStart to an unrelated tap.

Technical Details

- - Manufacturer part code: 95730000

- - Cartridge designation: M2 Eco

- - Nominal body diameter: 35 mm

- - Mechanism: ceramic single-lever mixing cartridge

- - Functions: on/off control, water-flow adjustment and manual hot/cold mixing

Check Before Ordering

Match the exact mixer article number and production version, then compare the existing cartridge, spindle and base arrangement. A 35 mm diameter alone does not establish fitment. Do not substitute this cartridge for 92730000 or 92530000 solely because the parts look similar. Separate retaining nuts, adapters and seal sets must be selected for the exact mixer; do not assume they are included.

Confirmed Compatible Models using 95730000

The following applications refer to the stated production versions. Dates are shown as month/year and identify mixer construction periods, not purchase dates. Match your mixer to the appropriate spares page before ordering.

Bath and Shower Mixers

- - Hansgrohe Focus 31968000 exposed shower mixer with two flow rates - from 02/10

- - Hansgrohe Focus 31938000 Monotrou bath and shower mixer with two flow rates - from 05/21

- - Hansgrohe Focus 31948000 exposed bath mixer with two flow rates - 06/14 version onwards

- - Hansgrohe Focus 31948000 exposed bath mixer with two flow rates - 02/10-05/14

- - Hansgrohe Logis 71315000 Monotrou bath and shower mixer with two flow rates - 01/15 version onwards

- - Hansgrohe Logis 71401000 exposed bath mixer with two flow rates - 07/14 version onwards

- - Hansgrohe Logis 71601000 exposed shower mixer with two flow rates - from 04/14

- - Hansgrohe Logis Loop 71413000 exposed bath mixer with two flow rates - 01/18-06/22

- - Hansgrohe Novus 71324000 Monotrou bath and shower mixer with two flow rates - 05/20-06/22

- - Hansgrohe Vernis Blend 71646000 exposed shower mixer with two flow rates - from 01/21

- - Hansgrohe Vernis Blend 71454000 exposed bath mixer with two flow rates - from 01/21

- - Hansgrohe Vernis Shape 71464000 Monotrou bath and shower mixer with two flow rates - from 04/21

- - Hansgrohe Rebris S 72436000 Monotrou bath and shower mixer with two flow rates - from 06/22

- - Hansgrohe Rebris S 72443670 exposed bath mixer with two flow rates in Matt Black - from 06/22

- - Hansgrohe Rebris S 72443000 exposed bath mixer with two flow rates in Chrome - from 06/22

- - Hansgrohe Rebris S 72643670 exposed shower mixer with two flow rates in Matt Black - from 06/22

- - Hansgrohe Talis E² 31534000 exposed bath mixer with Eco operation - 04/10-05/14 and 06/14-12/17

- - Hansgrohe Talis E² 31536000 exposed shower mixer - 04/10-12/14

- - Hansgrohe Talis E² 31538000 Monotrou bath and shower mixer - 04/10-08/11 and 09/11-12/14

Bidet Mixers

- - Hansgrohe Focus 31928000 bidet mixer with pop-up waste and two flow rates - 02/10-07/12, 08/12-02/17 and from 03/17

- - Hansgrohe Talis E² 31522000 bidet mixer with pop-up waste - 04/10-07/12 and 08/12-12/16

- - Hansgrohe Logis 71205000 bidet mixer 100 with pop-up waste - 04/14-12/14, 01/15-03/17 and 04/17-12/17

Kitchen Mixers

- - Hansgrohe Focus M42 71809000 kitchen mixer 100 CoolStart EcoSelection 1jet - from 10/18

- - Hansgrohe Focus M42 71866000 kitchen mixer 100 CoolStart Eco 1jet - from 10/19

- - Hansgrohe MySport 13841000 kitchen mixer M 1jet - from 04/20

- - Hansgrohe MySport 13831000 kitchen mixer L 1jet - from 04/20

- - Hansgrohe MyCube 13815000 kitchen mixer M 1jet - from 10/15

- - Hansgrohe Cento 14784000 kitchen mixer XL with pull-out spout 2jet - from 04/20

- - Hansgrohe Cento 14806000 kitchen mixer XXL Semi-Pro 2jet - from 03/14

- - Hansgrohe Cento 14843000 kitchen mixer XXL Semi-Pro 2jet with device shut-off valve - from 09/15

- - Hansgrohe Ecos 31838000 kitchen mixer L 1jet DZR - 03/20-08/22

- - Hansgrohe Ecos 14816000 kitchen mixer L 1jet - from 01/12

- - Hansgrohe Focus M42 71805000 kitchen mixer 120 CoolStart EcoSelection 1jet - from 10/18

- - Hansgrohe Logis M31 71837004 kitchen mixer 120 CoolStart EcoSelection 1jet - from 06/15

- - Hansgrohe MySport 13872000 kitchen mixer M 1jet with device shut-off valve - 12/15-02/18 and from 03/18

- - Hansgrohe MyCube 13819000 kitchen mixer M 1jet with device shut-off valve - 09/15-02/18 and from 03/18

- - Hansgrohe Status 32860000 kitchen mixer M 1jet - 02/12-12/17

- - Hansgrohe Status 32862000 kitchen mixer M 1jet with device shut-off valve - from 09/15

- - Hansgrohe Status 32861000 kitchen mixer L with pull-out spray 2jet - 02/12-05/19

- - Hansgrohe Cento 14841000 kitchen mixer L 1jet with device shut-off valve - from 09/15

- - Hansgrohe Cento 14802009 kitchen mixer L 1jet - 07/15-04/21

- - Hansgrohe Cento 14803009 kitchen mixer XL with pull-out spray 2jet - 07/15-04/21

- - Hansgrohe Ecos 14816009 kitchen mixer L 1jet - 07/15-04/21

- - Hansgrohe Ecos 14815009 kitchen mixer M 1jet - 07/15-04/21

- - Hansgrohe Ecos 14836000 kitchen mixer L 1jet with device shut-off valve - from 11/15

- - Hansgrohe Sportive 14861800 kitchen mixer L - 03/10-01/12 and 02/12-12/18

- - Hansgrohe Avista 31802000 kitchen mixer - 10/06-10/14 and 11/14-12/17

Related Spares You May Need

These are model-specific service items, not a common repair kit for every mixer listed above. Select only the parts shown for your exact mixer.

- - TACSIL 3g cartridge silicone grease - optional service lubricant for seals where specified in the fitting instructions

- - Hansgrohe 96338000 grey rubber screw-cover cap - handle screw cover used on Focus 31938000 and 31968000, among the listed mixers

- - Hansgrohe 97981000 diverter knob - separate bath/shower selector knob used on Focus 31938000, not the main mixing lever

- - Hansgrohe 97980000 non-return valve pair - check valves used in Focus 31938000 and Logis 71315000 assemblies

- - Hansgrohe 98133000 O-ring 16 x 2 mm - sealing ring used in Vernis Blend 71454000

- - Hansgrohe 98750000 cartridge adapter - adapter used beneath the cartridge in selected mixers, including Focus M42 71809000

- - Hansgrohe 95049000 fixing set - tap-body mounting hardware for models including Focus M42 71809000; not the cartridge retaining nut

- - Hansgrohe 92646000 spout seal kit - used with MySport 13831000 and Ecos 31838000 and 14816000; not a cartridge seal kit

- - Hansgrohe 98189000 O-ring 14 x 2.5 mm - sealing ring used in MySport 13831000

- - Hansgrohe 95507000 1500 mm pull-out mixer-tap hose - separate hose repair item for Cento 14784000

- - Hansgrohe 98127000 pair of O-rings 11 x 2 mm - sealing rings used in Cento 14784000

- - Hansgrohe 94074000 non-return valve set - check valves used in Focus 31968000

- - Hansgrohe 98817000 anti-clockwise-opening shut-off unit - separate device shut-off valve in Cento 14843000, not its main mixing cartridge

Fault Symptoms and Fitting Hansgrohe 95730000

Persistent dripping from the shower head or spout when the lever is fully off can indicate a worn or damaged cartridge. Stiff lever movement or difficulty controlling the mixed-water flow can also require cartridge inspection. These symptoms are not conclusive on their own; check for debris, scale and other faults before choosing the repair.

Isolate both hot and cold water supplies and release the pressure before dismantling the mixer. Clean the cartridge seating area, check the seals and locate the new cartridge correctly. Follow the service instructions for the exact mixer and retaining-nut arrangement rather than applying one tightening torque to every installation. After reassembly, restore the supplies and check operation and water-tightness.

Need Help Identifying the Part?

Send the mixer article number and clear photographs of the tap or shower, existing cartridge, spindle and base to our part identification service before ordering when the correct part is uncertain.
