Hansgrohe 92530000 Lever Cartridge
Send a photo of your item and we'll help confirm it.
Summary

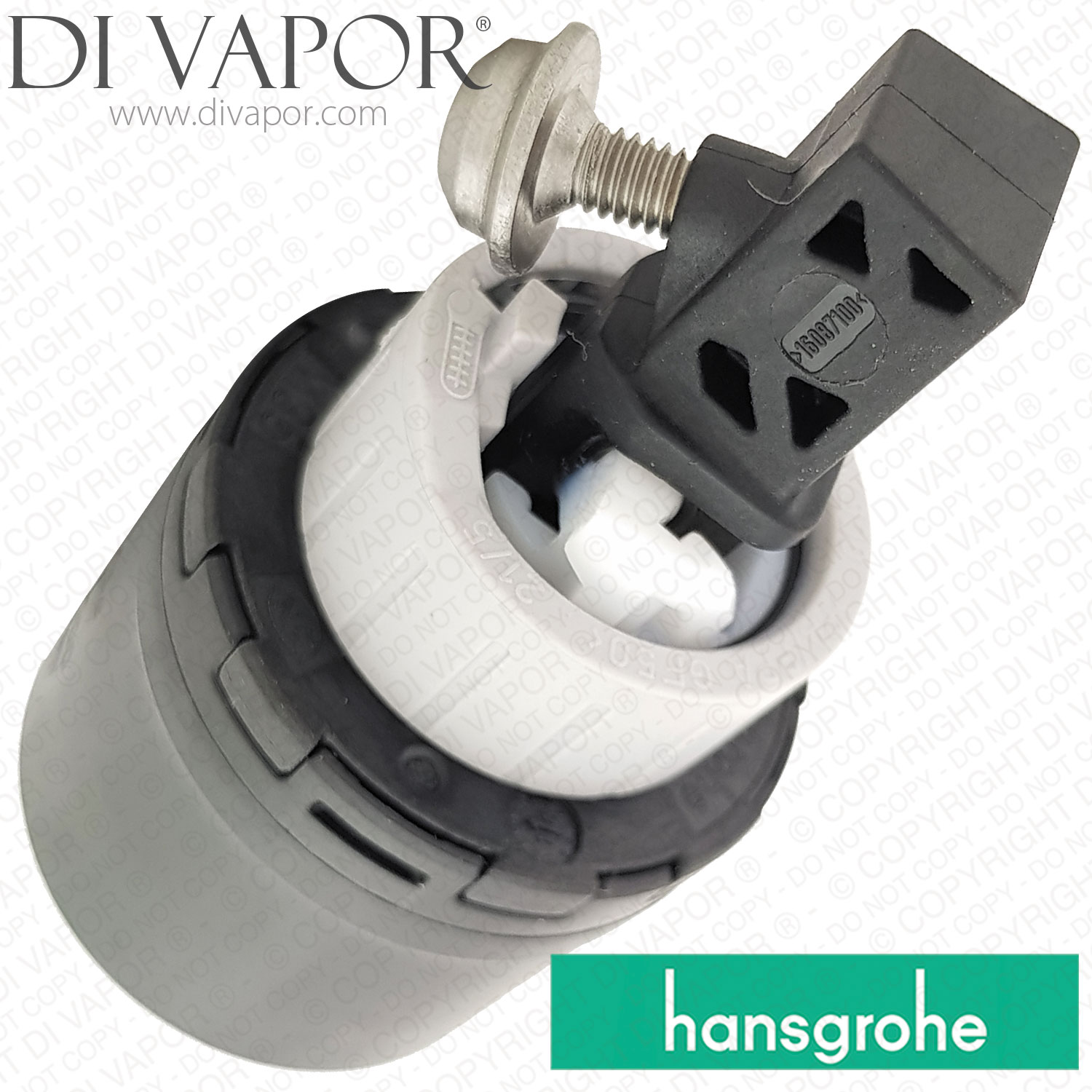

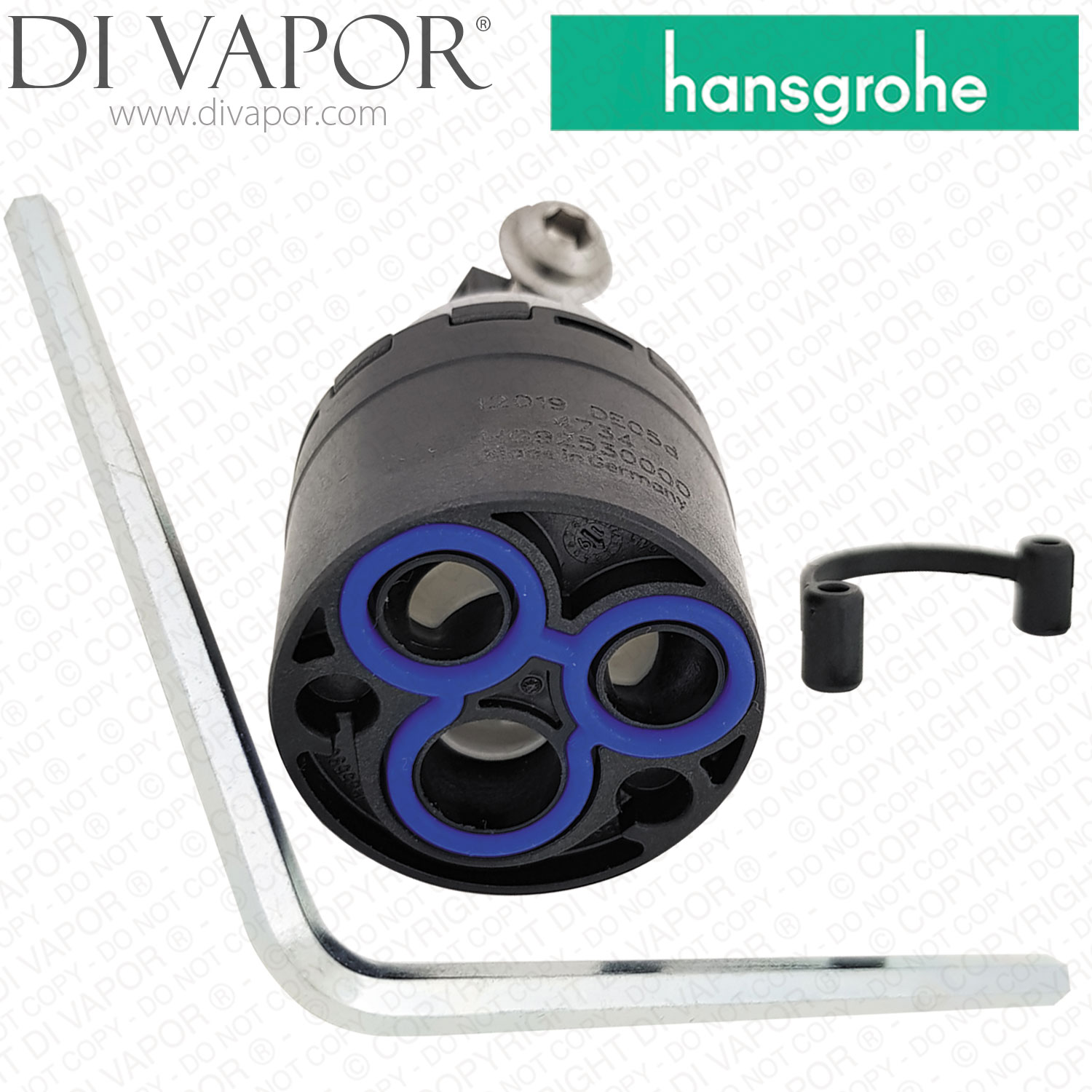

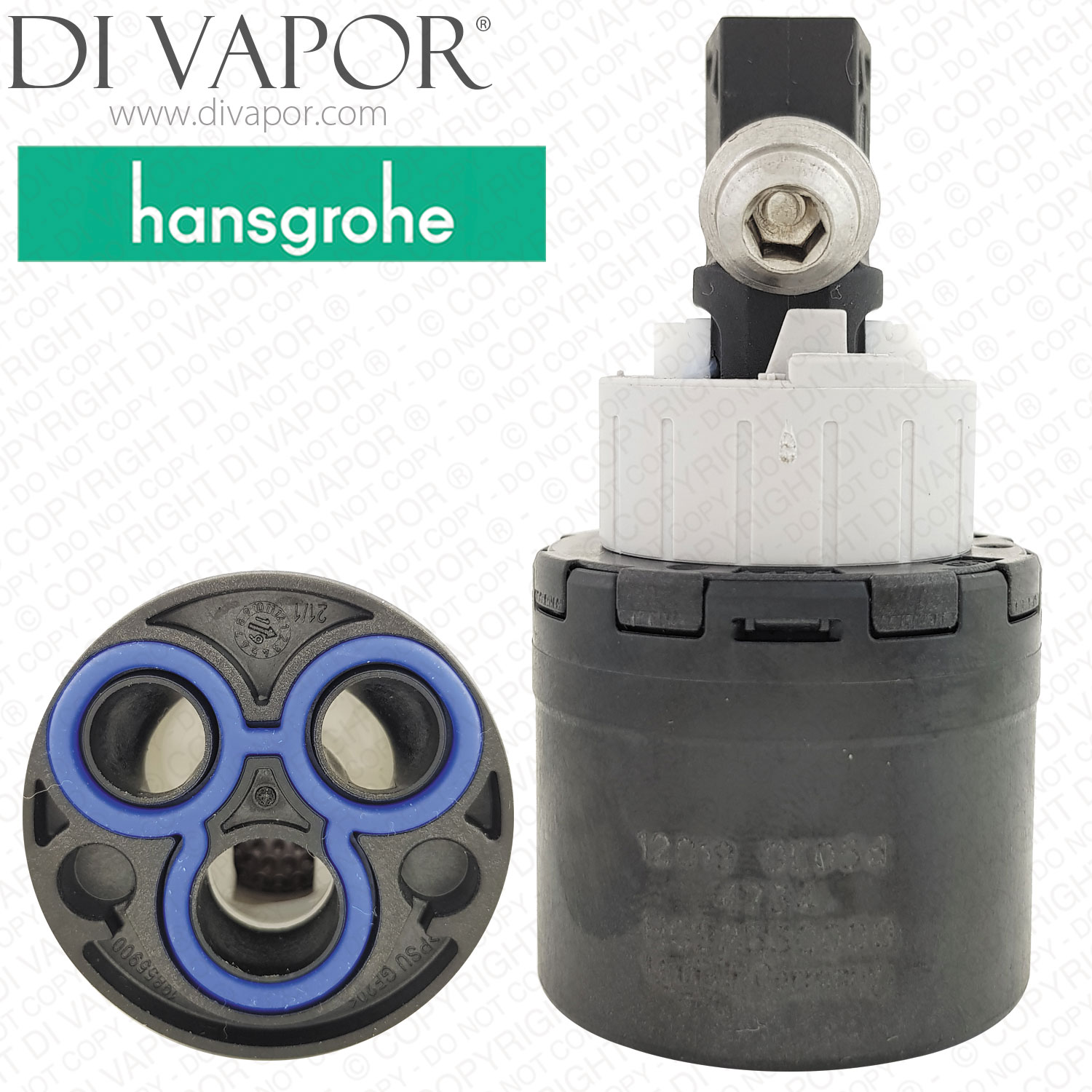

Hansgrohe 92530000 Lever Cartridge
Hansgrohe 92530000 is a lever cartridge assembly for selected Hansgrohe single lever basin mixer taps and selected single lever kitchen mixer taps. The Di Vapor part number for this cartridge is HG-92530000.
This cartridge controls the single lever mixing action inside the tap body, helping regulate water flow and hot/cold blending through the mixer. It is a suitable part to check when the lever action becomes stiff or loose, when temperature blending becomes inconsistent, or when water continues to drip from the tap spout after the mixer has been turned off.
Technical Details
| Cartridge type | lever cartridge assembly |
|---|---|
| Height of cartridge | 66mm |
| Diameter of cartridge | 35mm |
| Part code | 92530000 |
| Di Vapor Part Number | HG-92530000 |
Check the existing cartridge code, cartridge shape and mixer model before ordering. The 35mm diameter is a measurement only and should not be used on its own to confirm fitment.
Confirmed Compatible Models
- Hansgrohe 31657000 Focus Single Lever Basin Mixer 100 with 2 Flow Rates with Pop-Up Waste Set 07/15 - 02/17
- Hansgrohe 71105000 Logis Single Lever Basin Mixer 100 Coolstart with 2 Flow Rates with Pop-Up Waste Set 04/14 - 12/14
- Hansgrohe 71037000 Novus Single Lever Basin Mixer 100 with 2 Flow Rates with Pop-Up Waste Set 10/17 - 10/17
- Hansgrohe 71076000 Logis Single Lever Basin Mixer 70 Coolstart with 2 Flow Rates without Waste Set 04/14 - 12/14
- Hansgrohe 71095000 Logis Single Lever Basin Mixer 190 with 2 Flow Rates with Pop-Up Waste Set 05/17 onwards
- Hansgrohe 31816000 Focus M41 Single Lever Kitchen Mixer 160 Coolstart Ecosmart 1Jet 08/12 onwards
- Hansgrohe 71075000 Logis Single Lever Basin Mixer 70 CoolStart with 2 Flow Rates with Pop-Up Waste Set 05/17 onwards
- Hansgrohe 71106000 Logis Single Lever Basin Mixer 100 without Waste Set 01/15 - 04/17
- Hansgrohe 31658000 Focus Single Lever Basin Mixer 190 CoolStart with 2 Flow Rates with Pop-Up Waste Set 12/11 - 06/12
- Hansgrohe 31658000 Focus Single Lever Basin Mixer 190 Coolstart with 2 Flow Rates with Pop-Up Waste Set >07/12 Spare Parts
- Hansgrohe 71837000 Logis M31 Single Lever Kitchen Mixer 120 CoolStart EcoSelection 1jet
- Hansgrohe 71839000 Logis M31 Single Lever Kitchen Mixer 160 CoolStart EcoSelection 1jet
Related Spares You May Need
- TACSIL 3g Premium Cartridge Silicone Grease - WRAS Approved
- Hansgrohe 92730000 Lever Cartridge M3 / M2
- Hansgrohe 96338000 Rubber Screw Cover Cap - Grey
- Hansgrohe 98324000 Cartridge Adapter
- Hansgrohe 95049000 Fixing Set
Apply a small amount of suitable silicone grease to cartridge O-rings during installation where required. Do not use petroleum-based grease on rubber seals.
