Grohe 47916000 Grohtherm 2000 Valve Flow Control Handle

SUMMARY

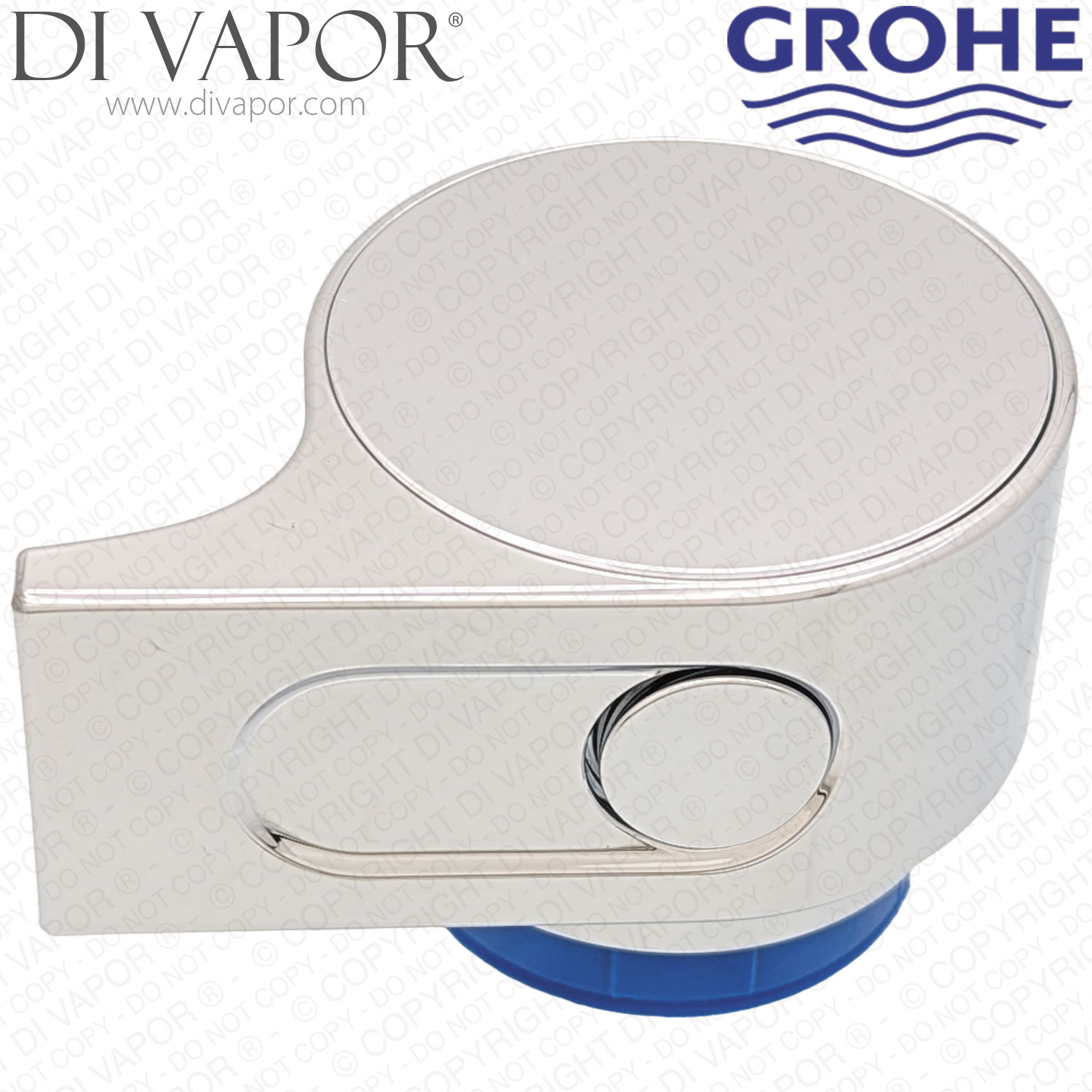

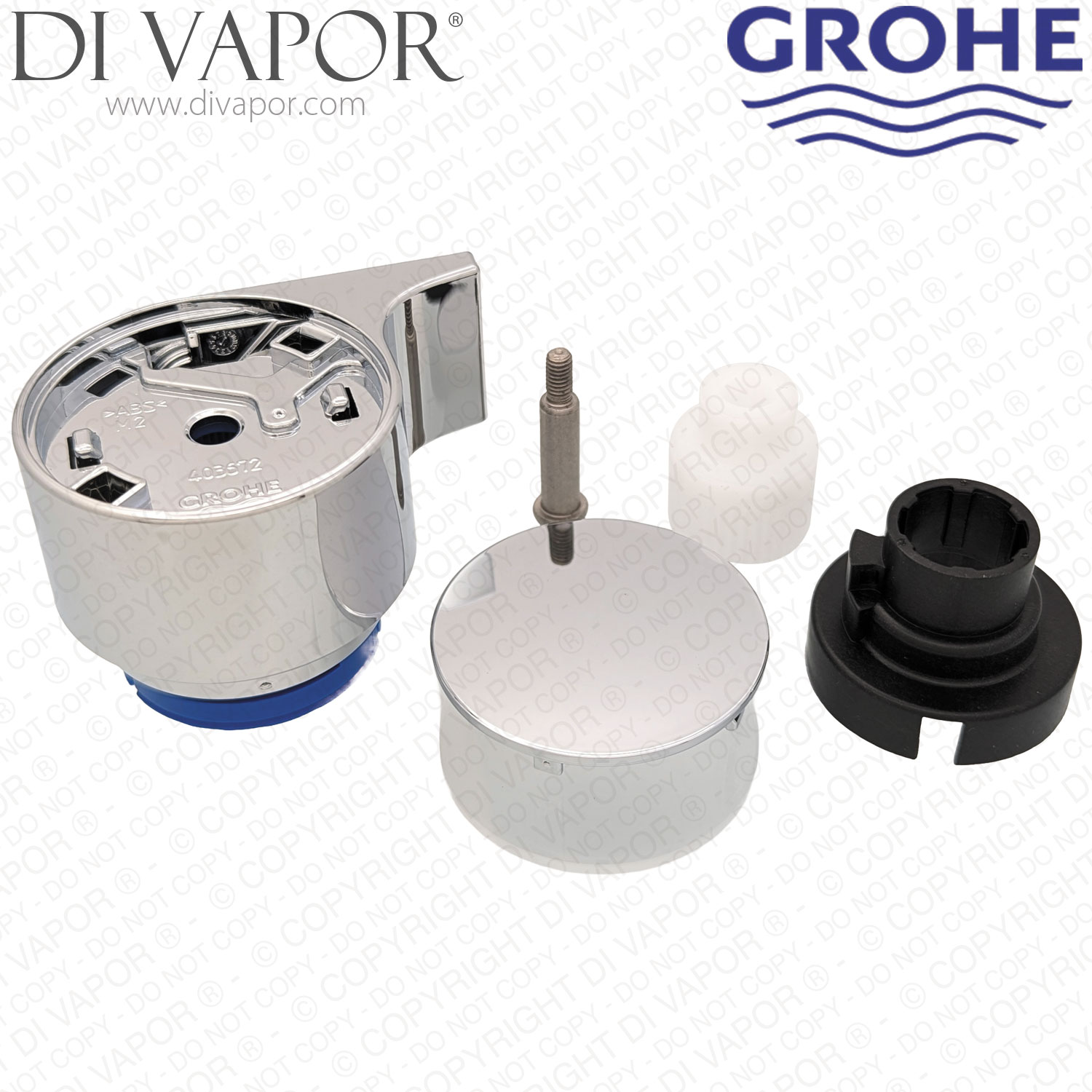

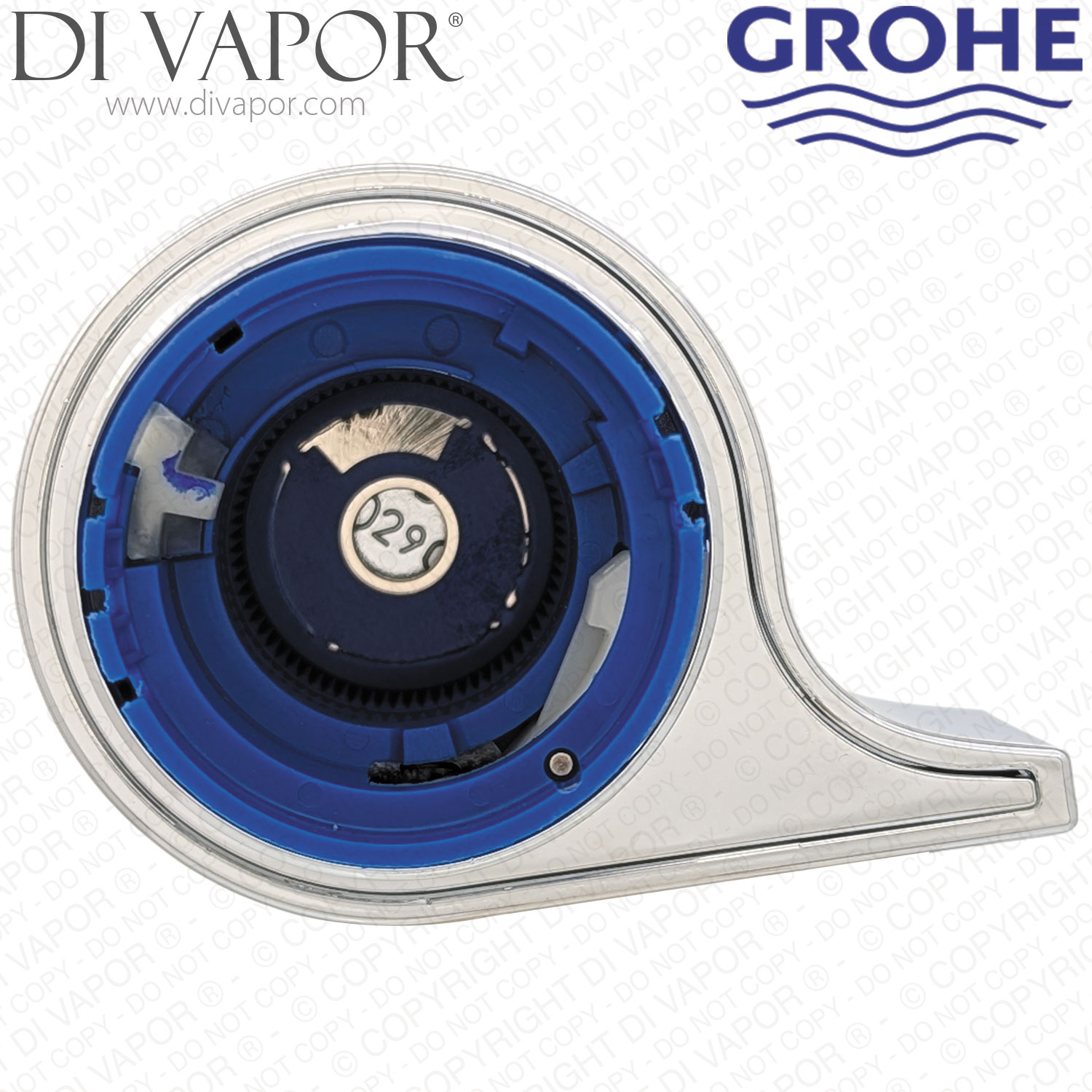

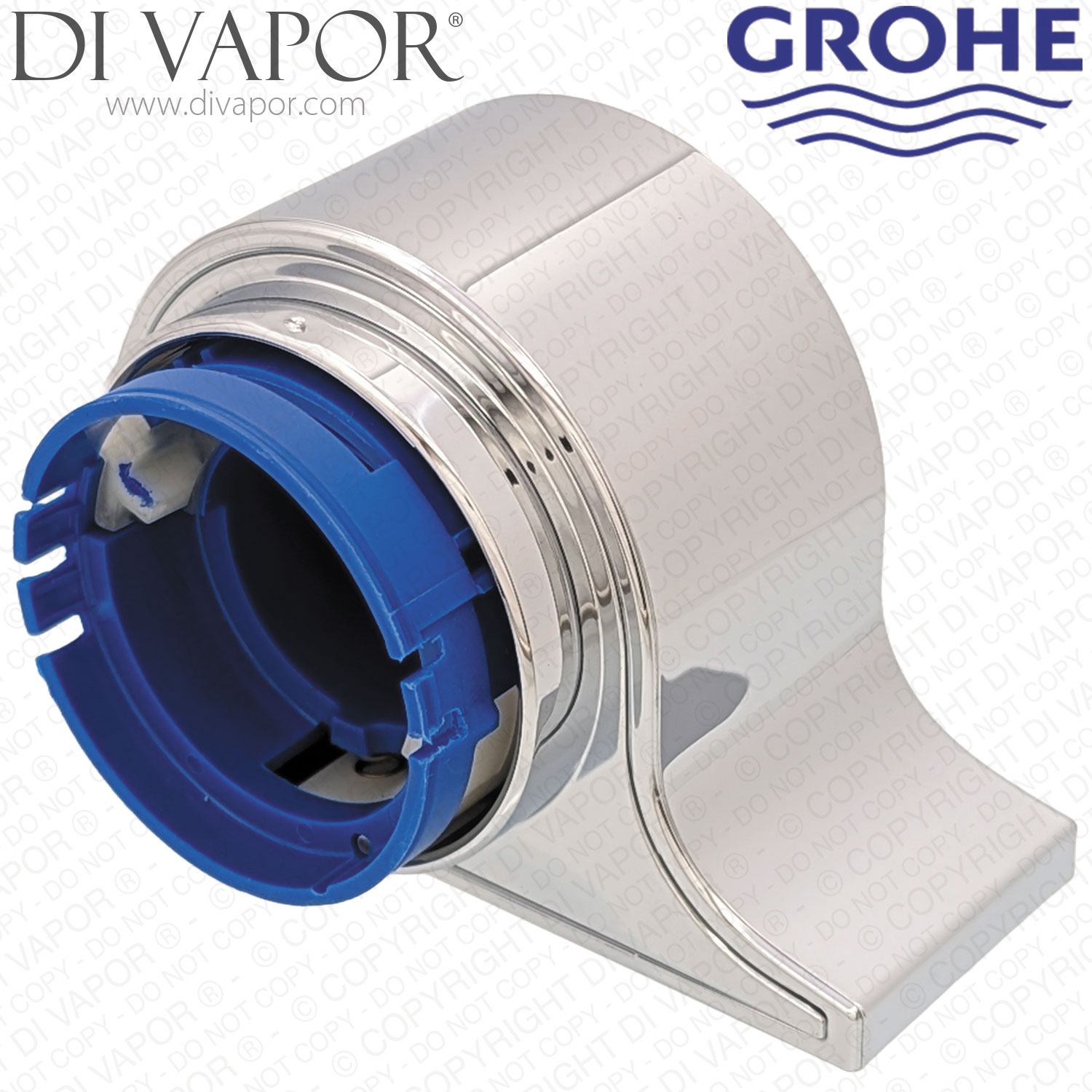

GROHE 47916000 Grohtherm 2000 Aqua Paddle Shower Flow Control Handle Chrome

The GROHE 47916000 is a chrome Aqua Paddle shut-off and flow-control handle for selected Grohtherm 2000 exposed thermostatic shower mixers. It is the external operating control for shower water flow, not the temperature-control handle, an internal cartridge or a complete mixer.

Turning the handle operates the separate ceramic headpart to start, stop and adjust the water flow. The economy button allows the flow stop to be overridden for a higher flow rate. This is a flow-control function, separate from the temperature safety stop on the opposite control.

Technical Details

- - Product code: 47916000

- - Part type: external shut-off and flow-control handle

- - Finish: chrome

- - Handle design: Aqua Paddle with economy-stop override

- - Application: flow-control side of the specified exposed thermostatic shower mixers

- - Associated cover-cap code: 4788300M

Confirmed Models for 47916000

- - GROHE 34169001 Grohtherm 2000 Thermostatic Shower Mixer Components

- - GROHE 34170001 Grohtherm 2000 Thermostatic Shower Mixer

- - GROHE 34172001 Grohtherm 2000 Thermostatic Shower Mixer Components

- - GROHE 34195001 Grohtherm 2000 Thermostatic Shower Mixer with Shower Set Components

- - GROHE 34281001 Grohtherm 2000 Thermostatic Shower Mixer with Shower Set

- - GROHE 34446001 Grohtherm 2000 Thermostatic Shower Mixer Components

- - GROHE 34463001 Grohtherm 2000 Thermostatic Shower Mixer Components

- - GROHE 34469001 Grohtherm 2000 Thermostatic Shower Mixer Components

- - GROHE 34482001 Grohtherm 2000 Thermostatic Shower Mixer with Shower Set Components

Before You Order

Check the exact mixer model, existing handle and fixing arrangement before ordering. Grohtherm 2000 includes different generations and control designs, so the range name or appearance alone does not identify the correct part. Several models using 47916000 have different temperature handles and thermostatic cartridges.

Check whether the repair concerns the external handle, its cover cap or the internal flow-control valve. Do not assume that separately listed cartridges, seals or other service components are included with the handle.

Related Spares You May Need

These are separate mixer components and servicing items. Select them according to the exact mixer model and the fault being repaired; the thermostatic cartridges listed below are not interchangeable options for every model.

- - GROHE 45346000 1/2 Inch Ceramic Flow-Control Cartridge - internal on/off valve operated by the flow-control handle

- - GROHE 0392400M O-Rings Pack of 10 - seals associated with the ceramic headpart

- - GROHE 47917000 Temperature-Control Handle - temperature-side control for models such as 34169001; not the temperature handle specified for 34446001 or 34463001

- - GROHE 47743000 Retaining Ring - retaining component for the thermostatic cartridge

- - GROHE 47439000 Compact Thermostatic Cartridge - temperature-regulating cartridge used in models including 34169001 and 34195001

- - GROHE 47885000 Thermostatic Cartridge - temperature-regulating cartridge specified for 34446001 and 34463001

- - GROHE 08565000 Non-Return Valve - inlet check valve for the listed mixer assemblies

- - GROHE 47175000 Reversed-Supply Thermostatic Cartridge - optional service part for specified hot-right and cold-left installations; the CoolTouch function is not retained in this configuration

- - GROHE 19332000 34mm Socket Box Spanner - service tool for the thermostatic-cartridge retaining assembly, not a requirement for changing the external handle alone

Fault Checking and Fitting

If water continues dripping from the shower head after the shower is turned off, the internal flow-control cartridge may need attention. A new external handle alone will not repair a worn internal valve seal. Check the handle fixing and engagement with the valve before deciding which component needs replacing.

Follow the instructions for the exact mixer when refitting and aligning the handle with the economy stop. Isolate the water supplies before removing any internal valve components.

For help identifying the correct part, contact us with photographs of the mixer, the removed handle and its fixing connection.
