Grohe 34170001 Grohtherm 2000 Thermostatic Shower Mixer (1/​2 Inch) Spare Parts

SUMMARY

Spares for Grohe 34170001 Grohtherm 2000 Thermostatic Shower Mixer 1/2 Inch

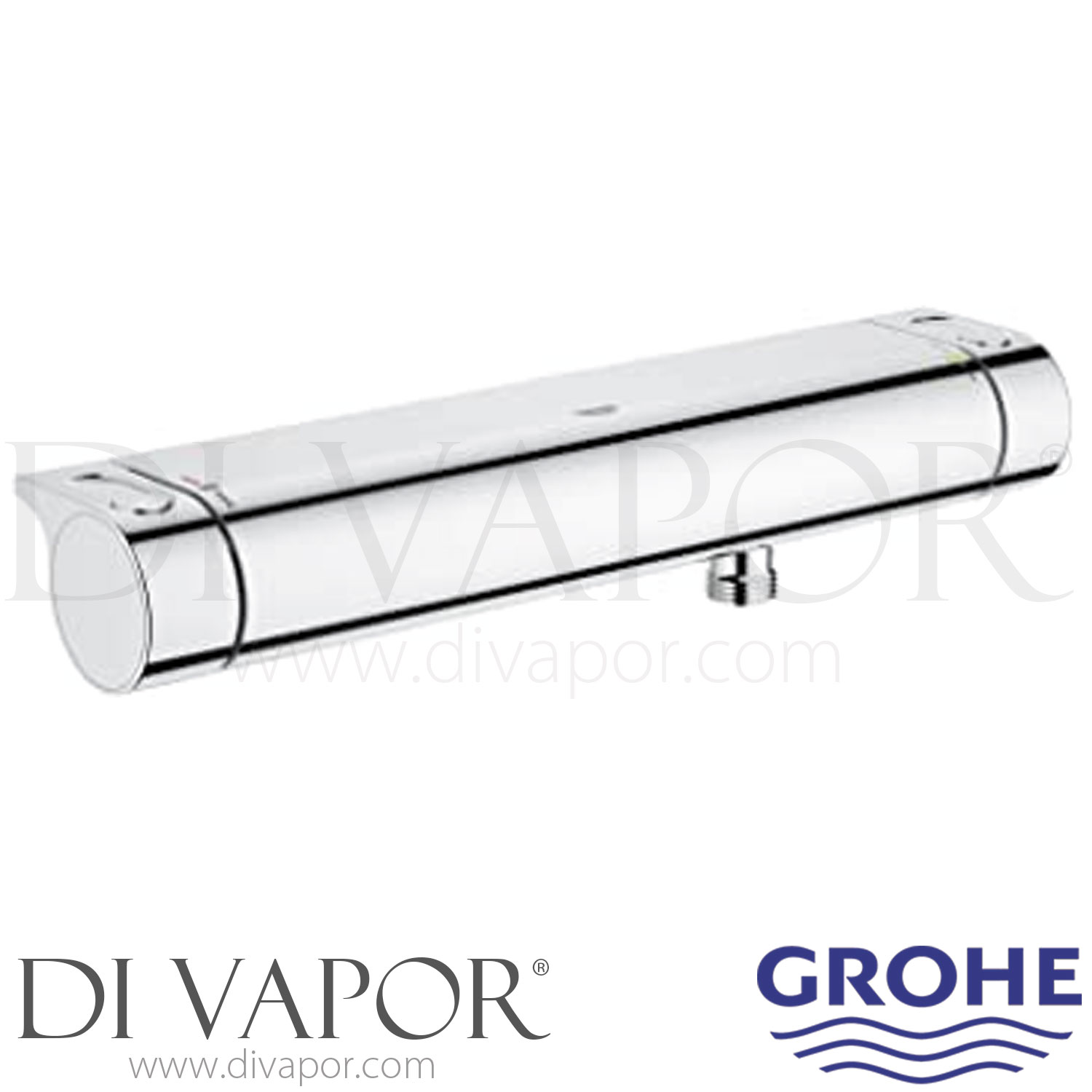

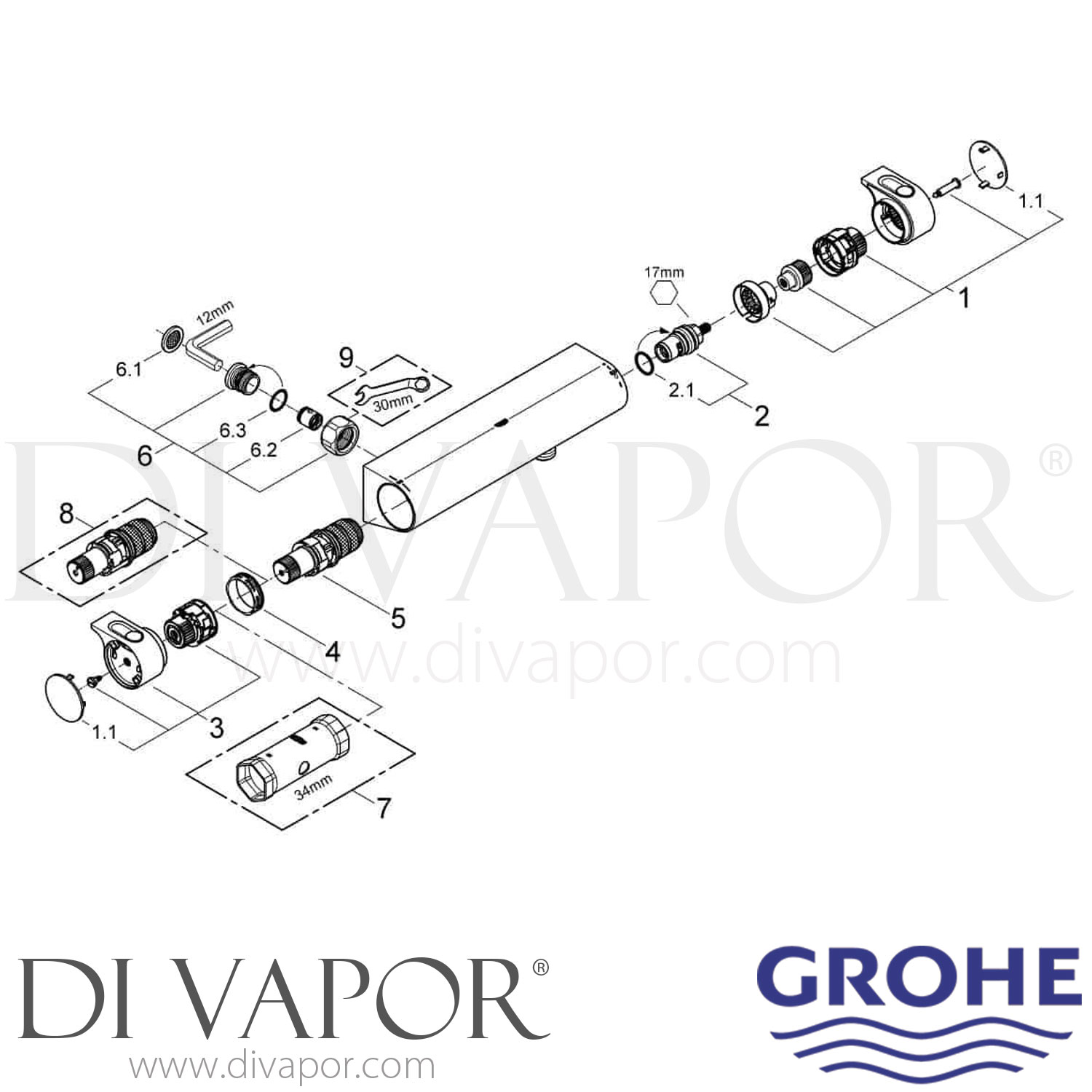

The GROHE 34170001 Grohtherm 2000 is a wall-mounted thermostatic shower mixer with 150 mm inlet centres and a bottom G1/2 shower outlet. This page brings together the main Grohe shower spare parts used to service the mixer, including its temperature control, flow control, handles, seals and non-return valve components.

The mixer uses GROHE TurboStat thermostatic control to regulate the mixed-water temperature, while a separate ceramic headpart controls water flow. The standard installation has the hot-water supply on the left and the cold-water supply on the right, with a 38°C safety stop and an additional 43°C temperature limiter.

Technical Details

- - Brand: GROHE

- - Range: Grohtherm 2000

- - Category: Thermostatic shower mixer

- - Product code: 34170001

- - Installation: Wall mounted

- - Finish: Chrome

- - Inlet connections: G3/4

- - Shower outlet: Bottom G1/2 outlet

- - Inlet centre distance: 150 mm

- - Overall body length shown on the technical drawing: 317 mm

- - Hot-water connection: Left

- - Cold-water connection: Right

- - Safety stop: 38°C

- - Additional temperature limiter: 43°C

- - Flow control: Ceramic headpart with 180° operation

- - Thermostatic control: GROHE TurboStat compact cartridge with wax thermoelement

- - Recommended flow pressure: 1 to 5 bar

- - Maximum operating pressure: 10 bar

- - Approximate flow rate: 26 litres per minute at 3 bar

- - Recommended maximum hot-water temperature: 60°C

- - Maximum hot-water supply temperature: 70°C

- - Minimum flow: 5 litres per minute

- - EAN: 4005176926471

Servicing and Before Ordering Checks

If the mixer no longer maintains a stable temperature, the thermostatic cartridge and associated seals should be checked. Poor shut-off or water continuing to drip from the shower head after the mixer has been turned off can indicate wear in the flow-control headpart, although the complete valve should be inspected before ordering parts.

Before ordering, confirm the mixer code is 34170001 and check whether the installation has standard or reversed hot and cold supplies. The standard thermostatic cartridge is 47439000. The 47175000 reverse TurboStat cartridge is intended only for installations where the hot and cold waterways are reversed.
